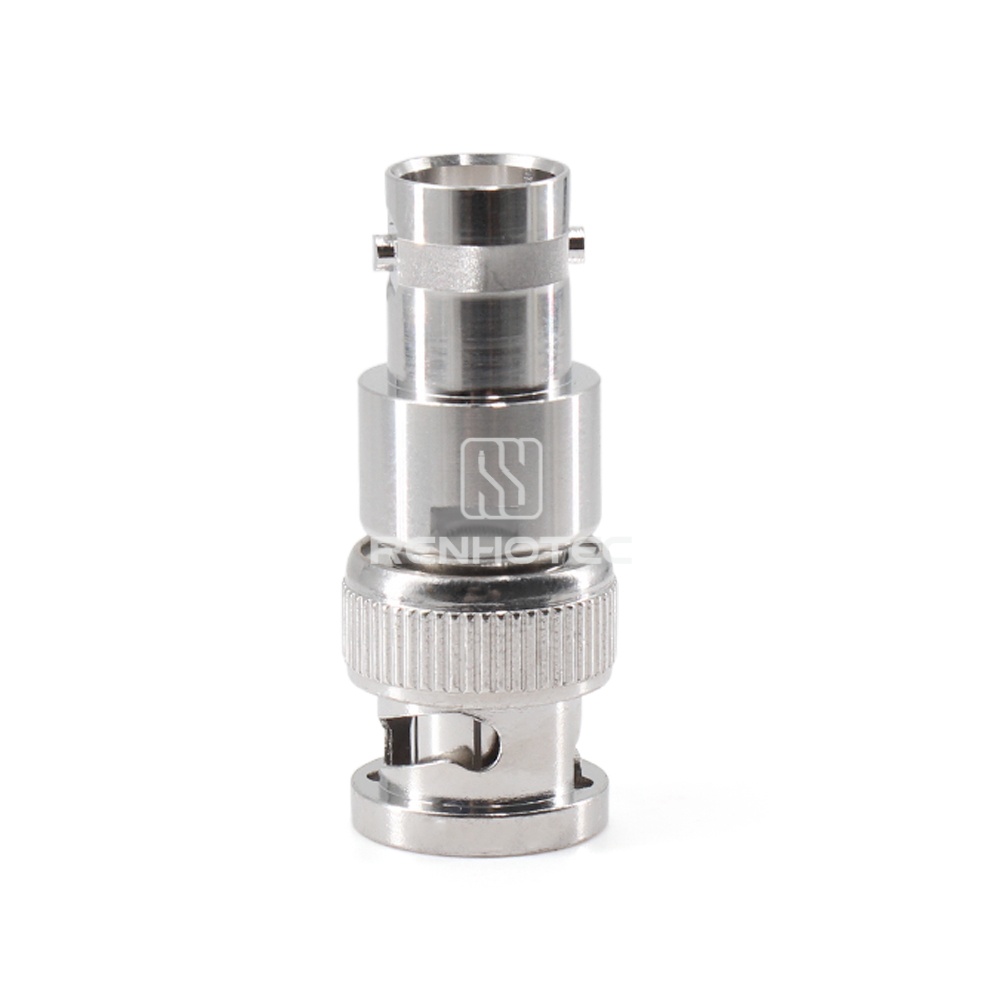

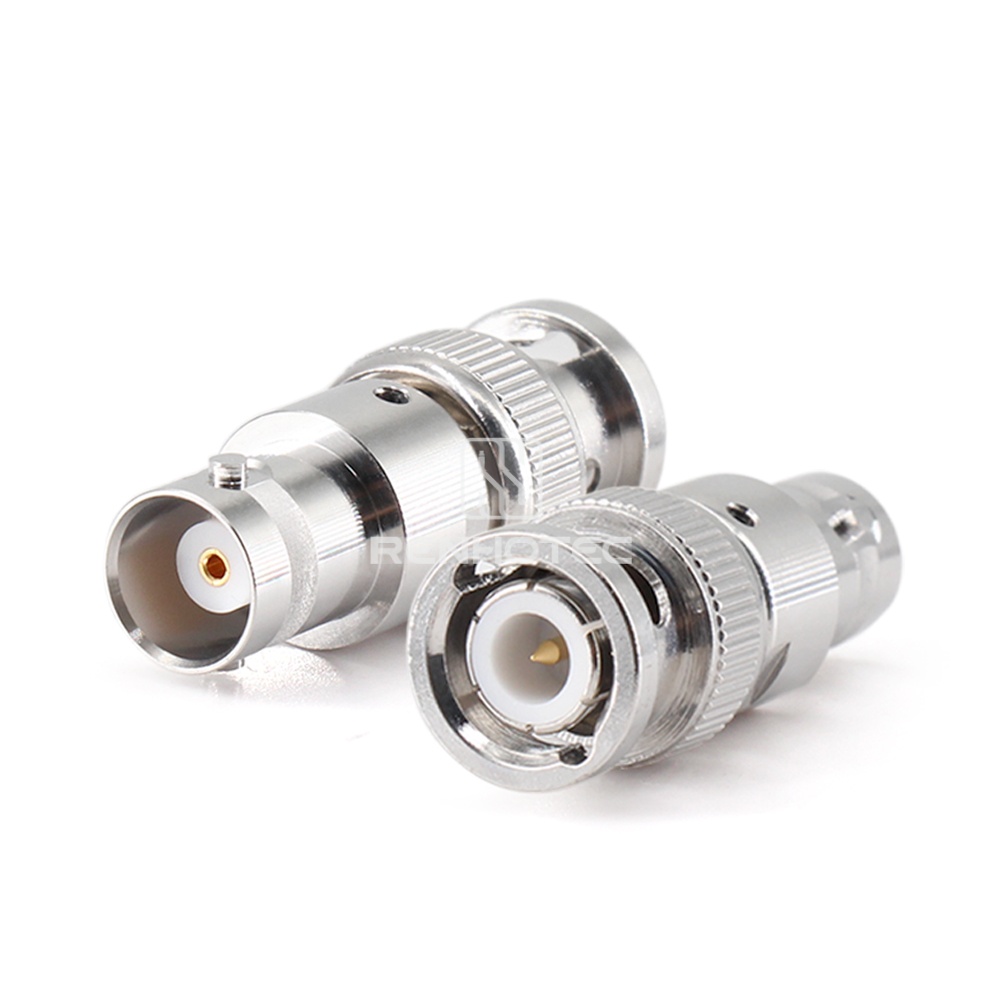

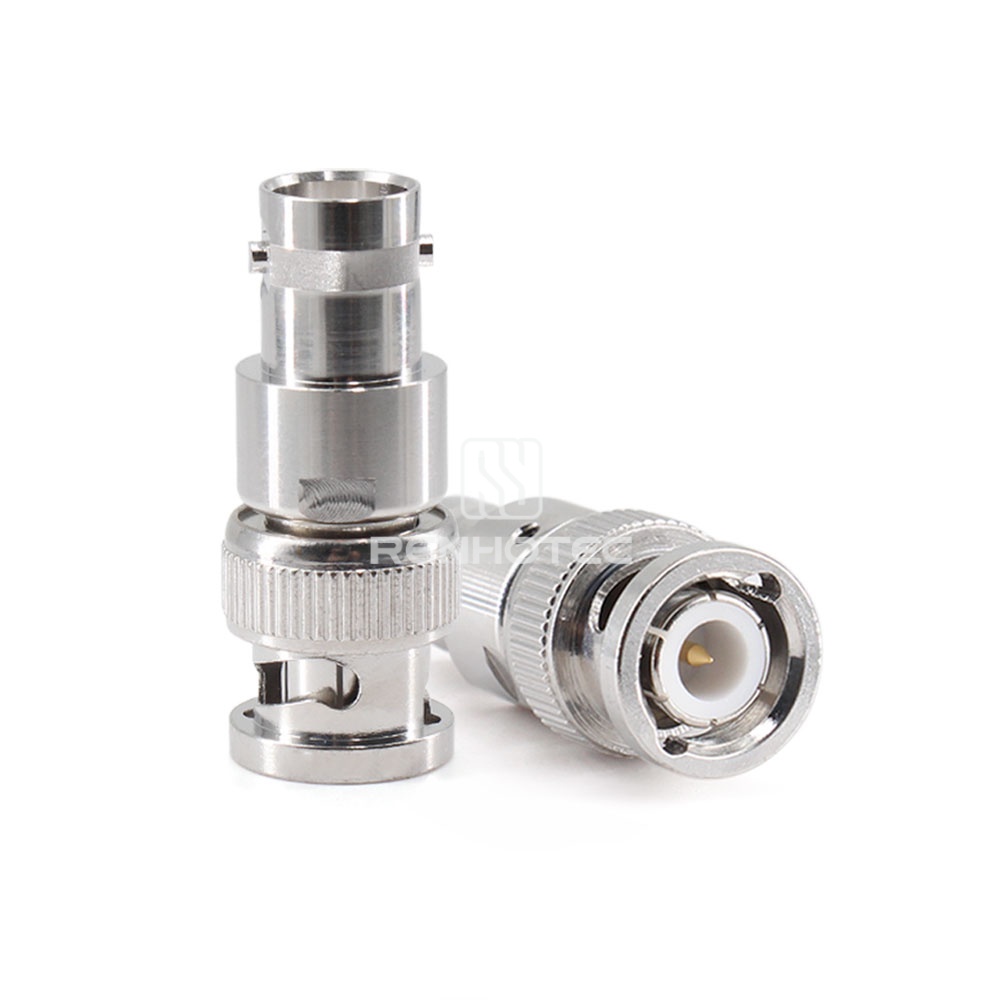

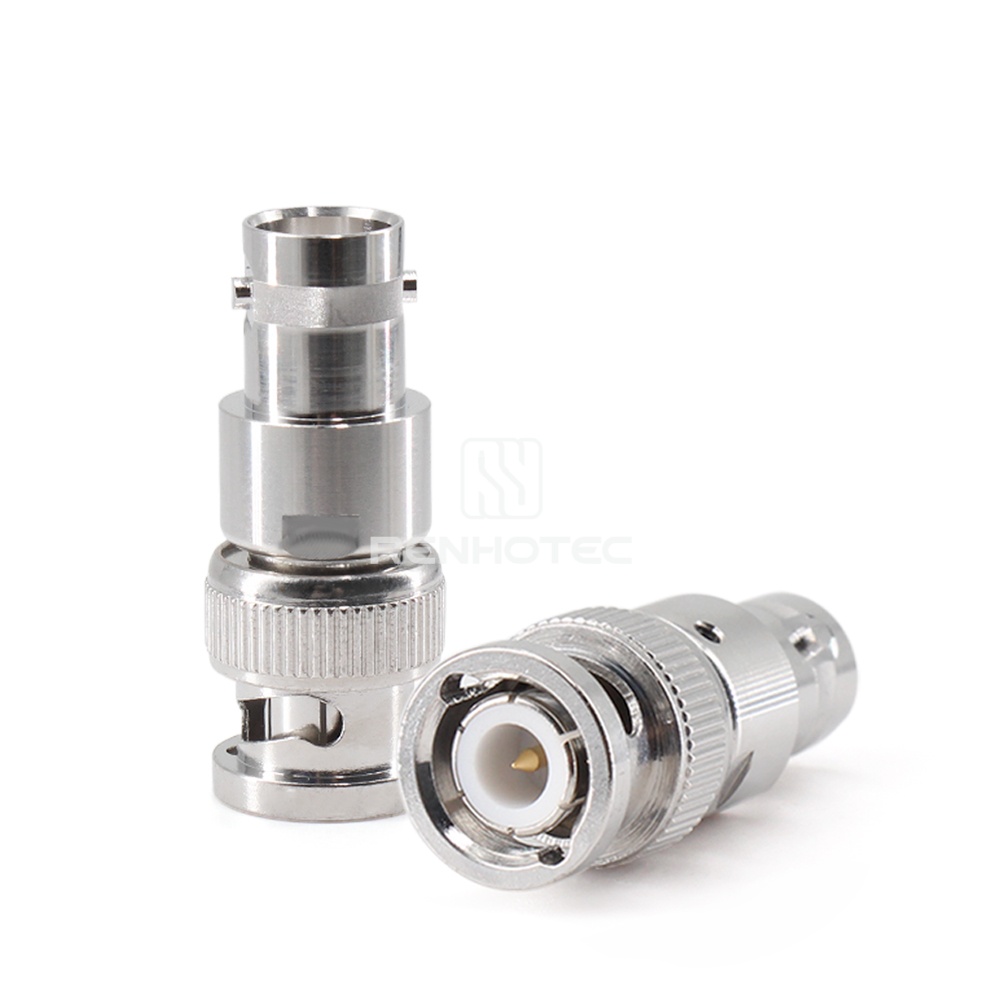

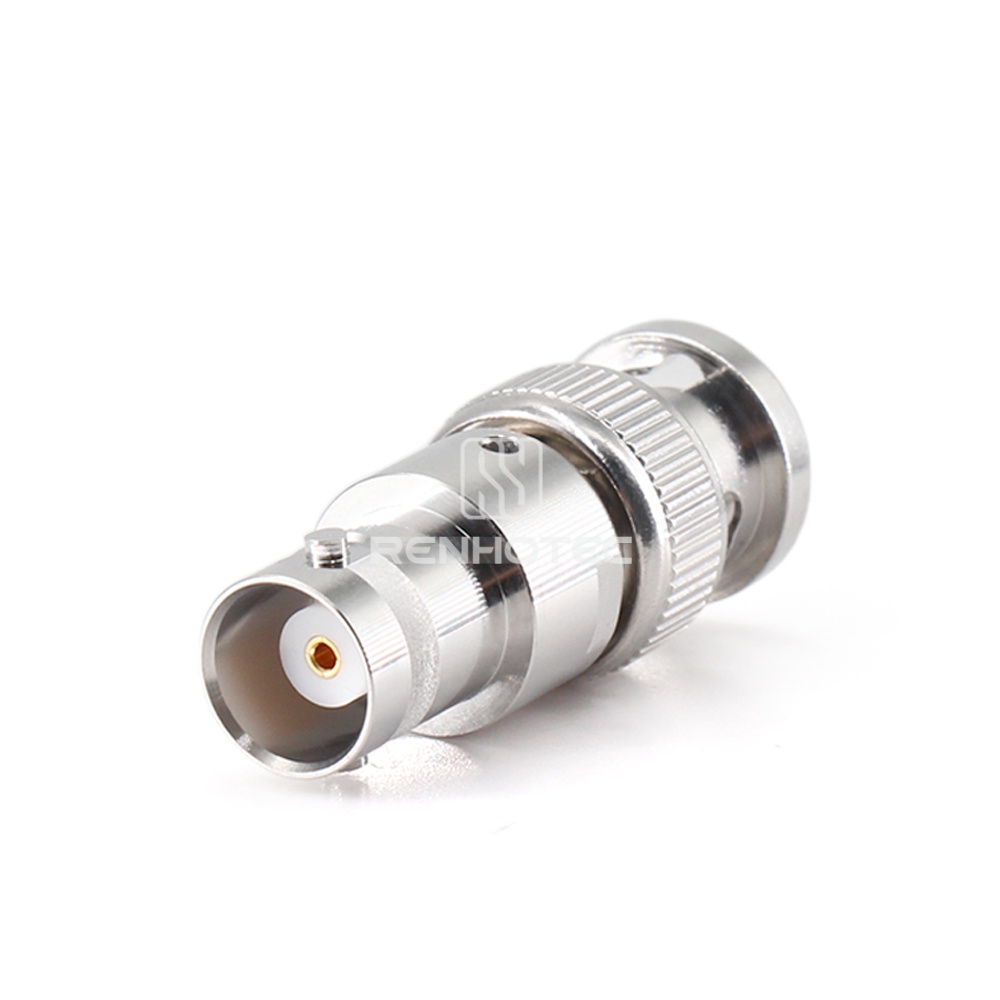

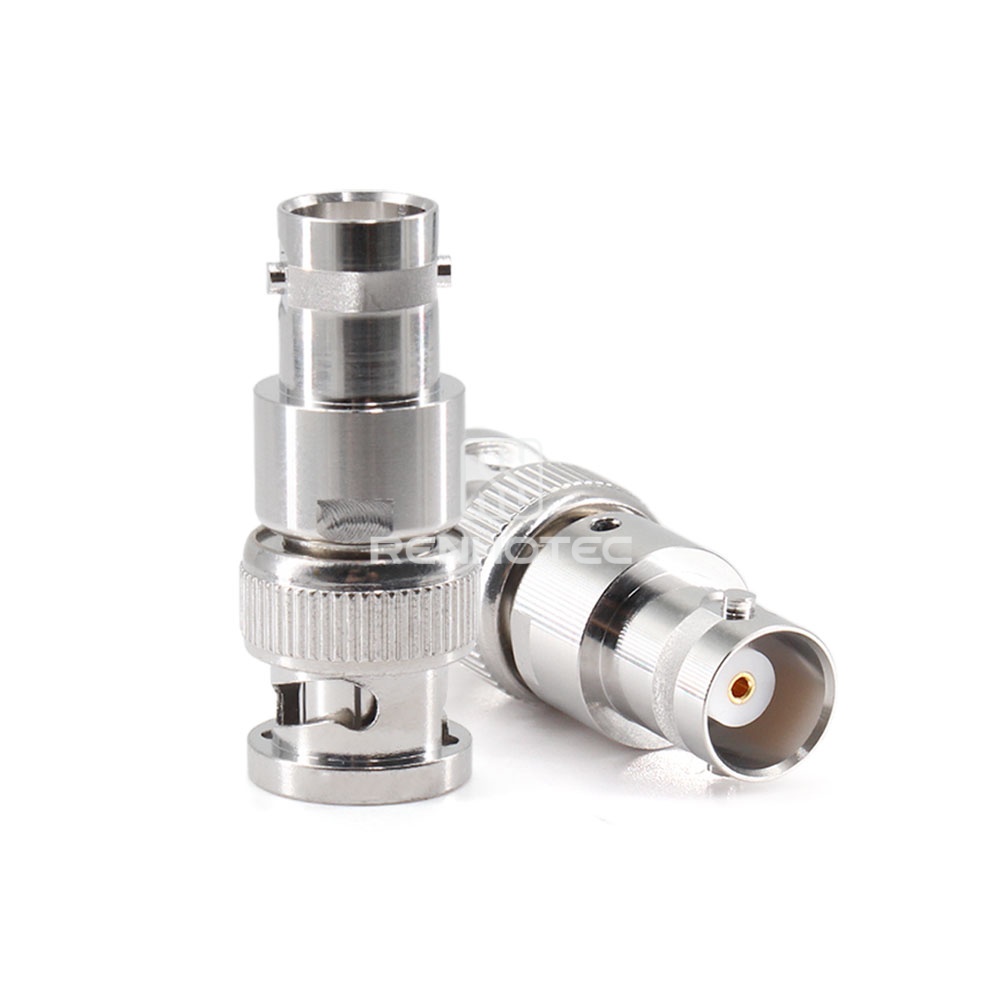

2W BNC Fixed RF Coaxial Attenuator 30dB DC-4GHz
Product Specification
| Frequency Range | DC-4GHz |
||
|---|---|---|---|
| VSWR | ≤?1.25(Max) |
||
| Impedance | 50Ω |
||
| Insulation Resistance | ≥5000MΩ |
||
| Adapter Style | BNC to BNC |
||
| 1st Connector | BNC Plug |
||
| 2nd Connector | BNC Jack |
||
| Frequency Range | DC-4GHz |
VSWR | ≤?1.25(Max) |
| Impedance | 50Ω |
Insulation Resistance | ≥5000MΩ |
| Adapter Style | BNC to BNC |
1st Connector | BNC Plug |
| 2nd Connector | BNC Jack |
| Attenuation Values | 30dB |
||
|---|---|---|---|
| Max Input Power | 2W |
||
| Dielectric Withstand Voltage | 1000V |
||
| Service Life | ≥500 |
||
| Operation Temperature | -55℃ ~ +125℃ |
||
| Inner Conductor Material | Beryllium bronze gold plating |
||
| External Conductor Material | Stainless steel passivation |
||
| Insulator | PTFE |
||
| Attenuation Values | 30dB |
Max Input Power | 2W |
| Dielectric Withstand Voltage | 1000V |
Service Life | ≥500 |
| Operation Temperature | -55℃ ~ +125℃ |
Inner Conductor Material | Beryllium bronze gold plating |
| External Conductor Material | Stainless steel passivation |
Insulator | PTFE |
| Frequency Range | DC-4GHz |
|---|---|
| VSWR | ≤?1.25(Max) |
| Attenuation Values | 30dB |
| Impedance | 50Ω |
| Max Input Power | 2W |
| Dielectric Withstand Voltage | 1000V |
| Service Life | ≥500 |
| Insulation Resistance | ≥5000MΩ |
| Adapter Style | BNC to BNC |
| 1st Connector | BNC Plug |
| 2nd Connector | BNC Jack |
| Operation Temperature | -55℃ ~ +125℃ |
| Inner Conductor Material | Beryllium bronze gold plating |
| External Conductor Material | Stainless steel passivation |
| Insulator | PTFE |
