BNC Connector Overview: Definition, Design & Applications

A BNC connector is a miniature, quick-lock RF connector that connects coaxial cables in high-frequency signal applications. Known for its bayonet-style locking and stable performance, it is widely used in video surveillance, broadcast, RF communication, medical equipment, and industrial systems. This article explains its design, key features, and common applications to support informed selection and use.

Definition and Design of the BNC Connector

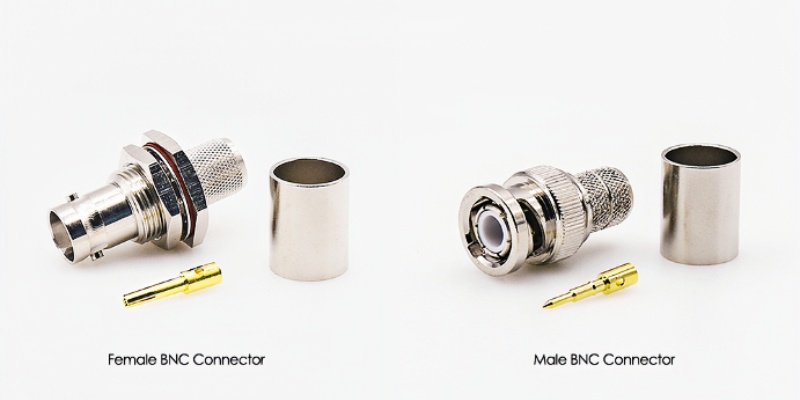

The BNC (Bayonet Neill-Concelman) connector, named after its inventors Paul Neill and Carl Concelman, is a miniature coaxial RF connector designed for frequencies up to 4 GHz, with high-end variants supporting even higher ranges. It features a bayonet locking mechanism that ensures a secure and easy-to-use connection.

Key Features:

• Bayonet Coupling Mechanism—A twist-lock design allows fast, secure mating and prevents accidental disconnections.

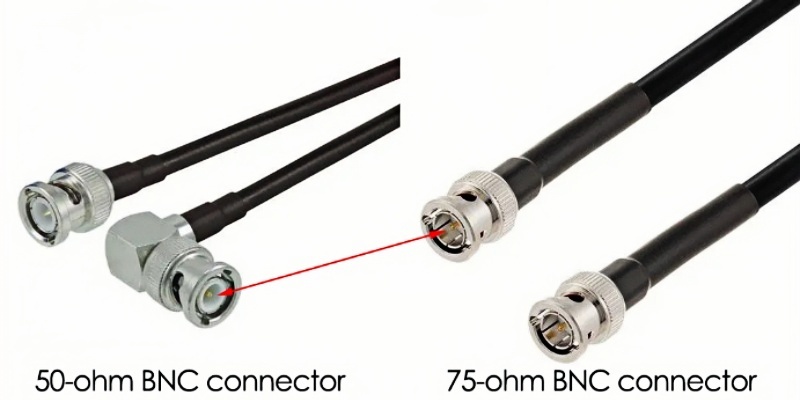

• 50-Ohm and 75-Ohm Options
  • 50-ohm BNC connectors are used in RF and data communication systems.
  • 75-ohm BNC connectors are ideal for video and broadcast applications.
• Shielded Design—Protects signals from electromagnetic interference (EMI) for clean, stable transmission.

Applications of BNC Connectors

BNC connectors are widely used across industries that require reliable, high-frequency signal transmission and secure coaxial cable connections. Here are the key application areas for BNC connectors:

Video Surveillance (CCTV Systems)

BNC connectors are the standard in analog CCTV systems, providing stable video signal transmission. Their locking mechanism prevents loose connections, ensuring uninterrupted surveillance.

Broadcast and Professional Video Equipment

BNC connectors are used in SDI (Serial Digital Interface) and composite video connections. They are preferred in studios for cameras, monitors, and switchers due to their low signal loss.

Radio and Wireless Communications

Used in amateur radio, military communications, and cellular networks, BNC connectors provide consistent RF signal connections in base stations, antennas, and test instruments.

Medical and Laboratory Instruments

Found in ECG machines, oscilloscopes, and ultrasound devices, BNC connectors support accurate signal transmission for diagnostic precision in clinical and lab environments.

Industrial Automation and Control Systems

In factory automation, robotics, and sensor networks, BNC connectors are valued for their durability and vibration resistance, making them suitable for harsh industrial environments.

Advantages Over Other Connectors

• Quick Locking Mechanism—Faster and more secure than screw-type connectors.
• Broad Compatibility—Works with RG-58, RG-59, and other coaxial cables.
• High-Frequency Support—Suitable for applications up to 4 GHz and beyond.
