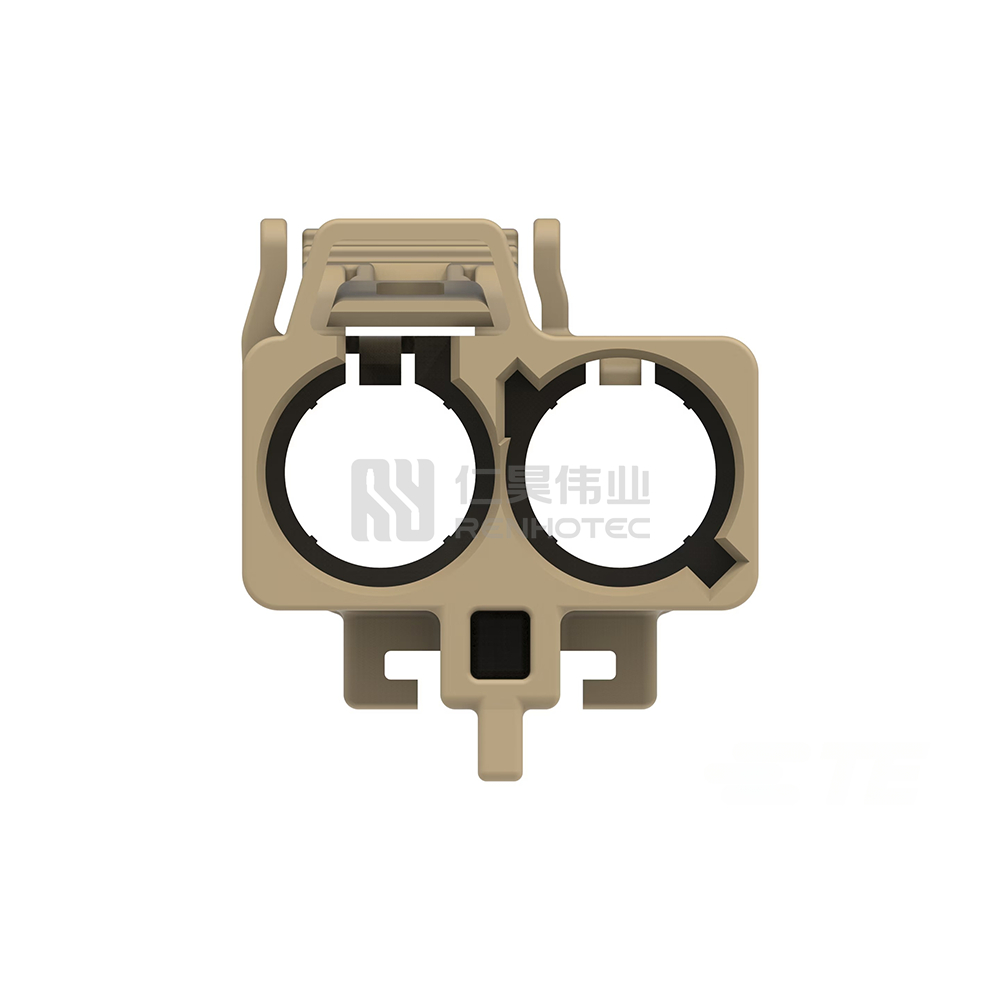

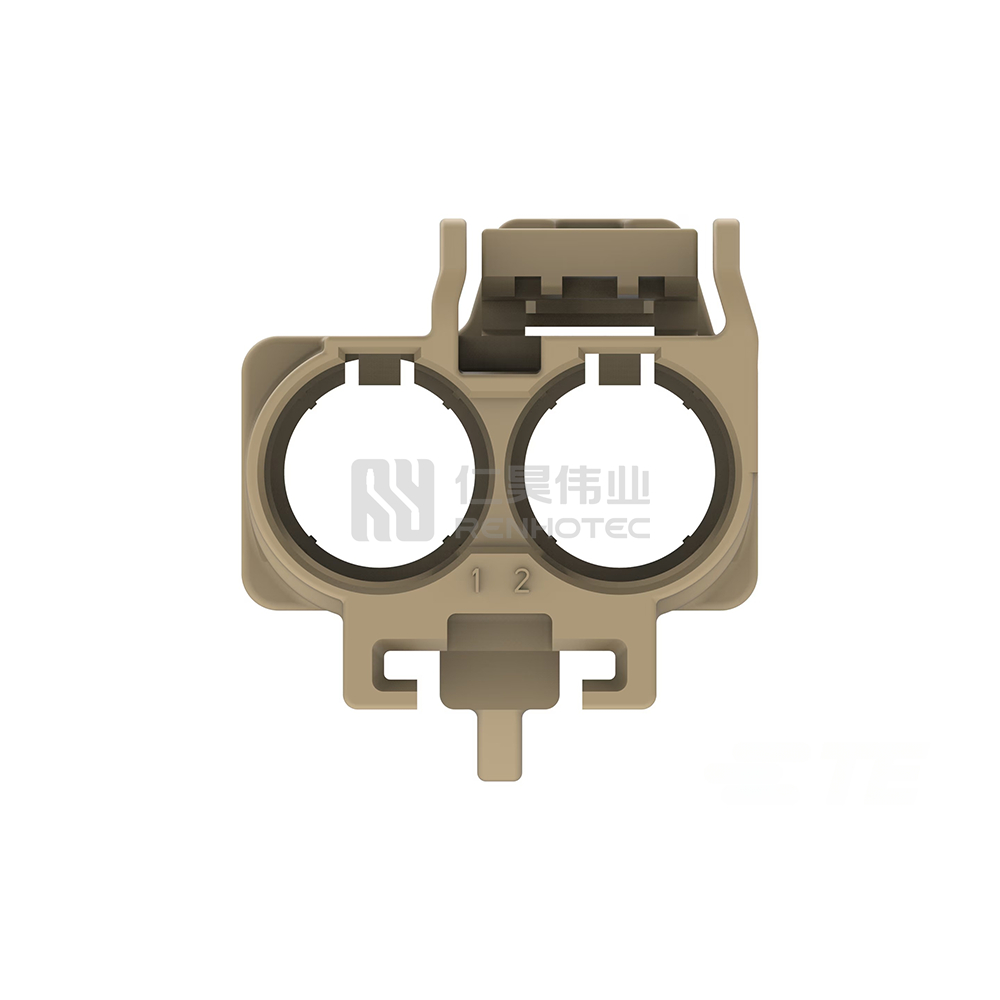

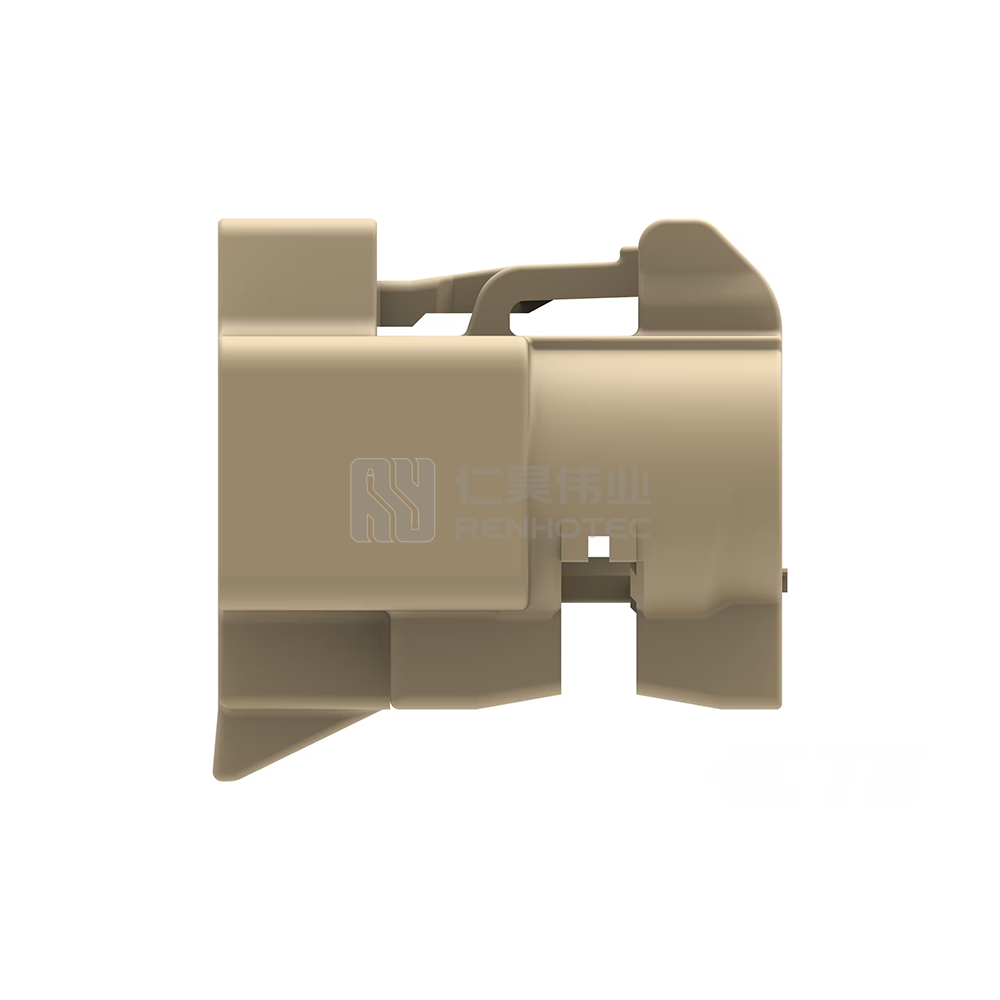

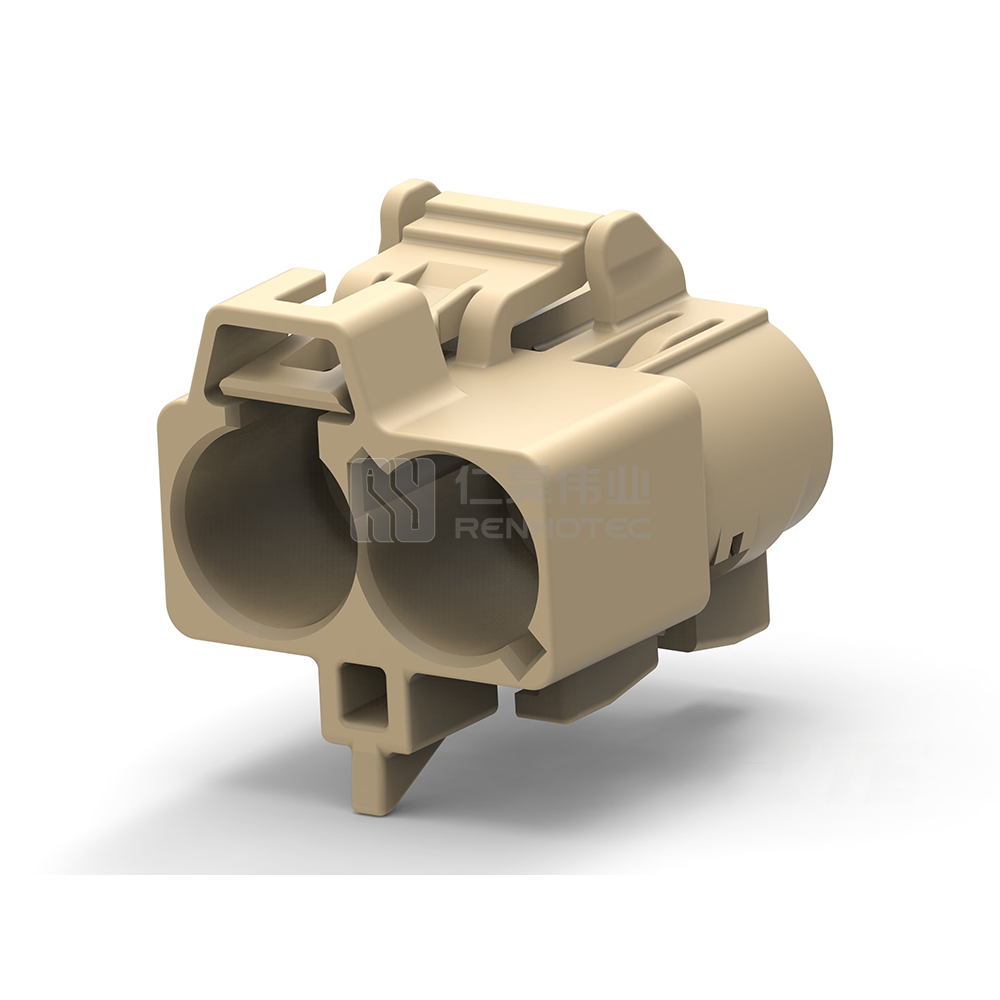

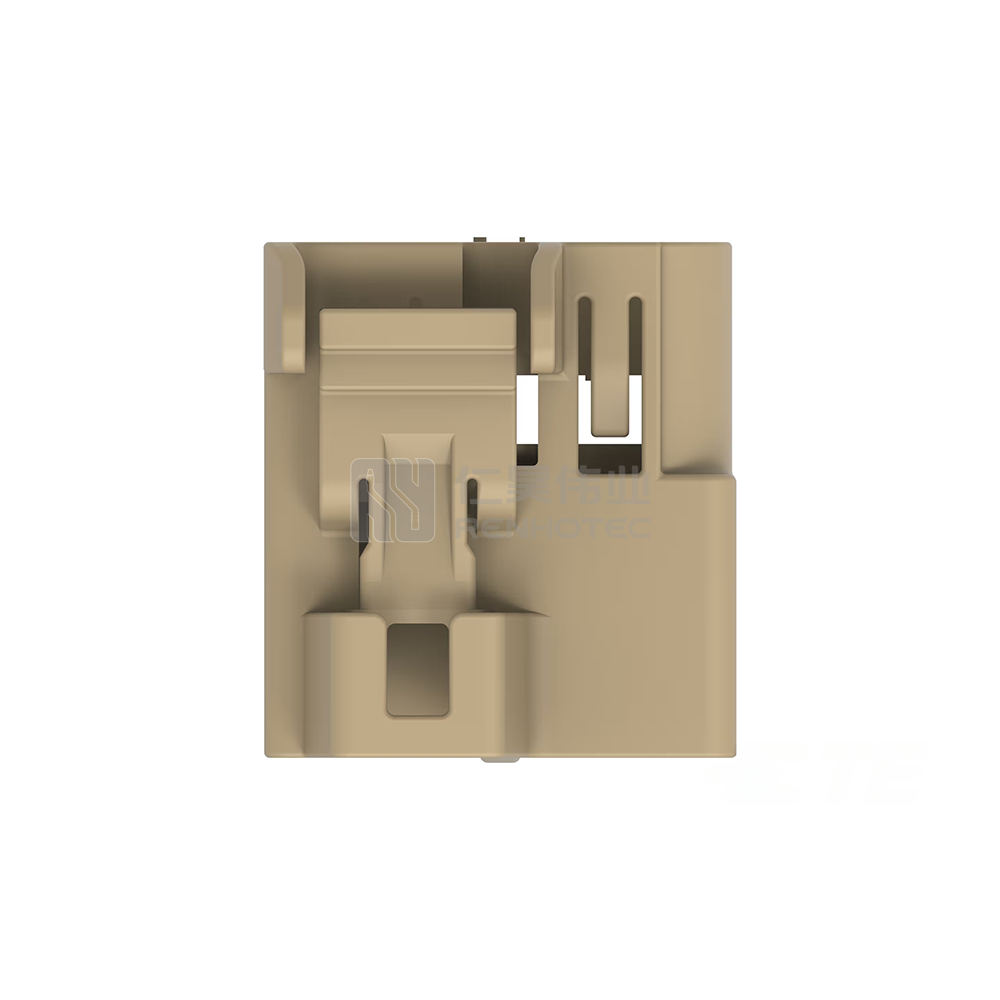

Wire-to-Wire, 180° Cable Exit, 2 Position, K Code, Housing for Female Terminals, Signal, Cable Mount (Free-Hanging), FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	I
Max Current A	1
Mount Type	Cable Mount (Free-Hanging)
Circuit Application	Signal
Package Qty	1
Pitch mm	8
Package Method	Package
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Frequency Range GHz	0 – 6
Position Assurance	No
Standards Certified	USCAR
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85 \| 90 \| 100
Max Temperature F	212
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	1
Position Count	2	Key Code	I
Max Current A	1	Mount Type	Cable Mount (Free-Hanging)
Circuit Application	Signal	Package Qty	1
Pitch mm	8	Package Method	Package
Housing Type	Housing for Female Terminals	Cable Exit Angle	180°
Cable Termination	Crimp	Frequency Range GHz	0 – 6
Position Assurance	No	Standards Certified	USCAR
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85 \| 90 \| 100	Max Temperature F	212

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	I
Max Current A	1
Mount Type	Cable Mount (Free-Hanging)
Circuit Application	Signal
Package Qty	1
Pitch mm	8
Temperature Range	-40 – 100 °C [ -40 – 212 °F ]
Package Method	Package
Impedance Ω	50
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	Coaxial
Frequency Range GHz	0 – 6
Position Assurance	No
Standards Certified	USCAR
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85 \| 90 \| 100
Max Temperature F	212
