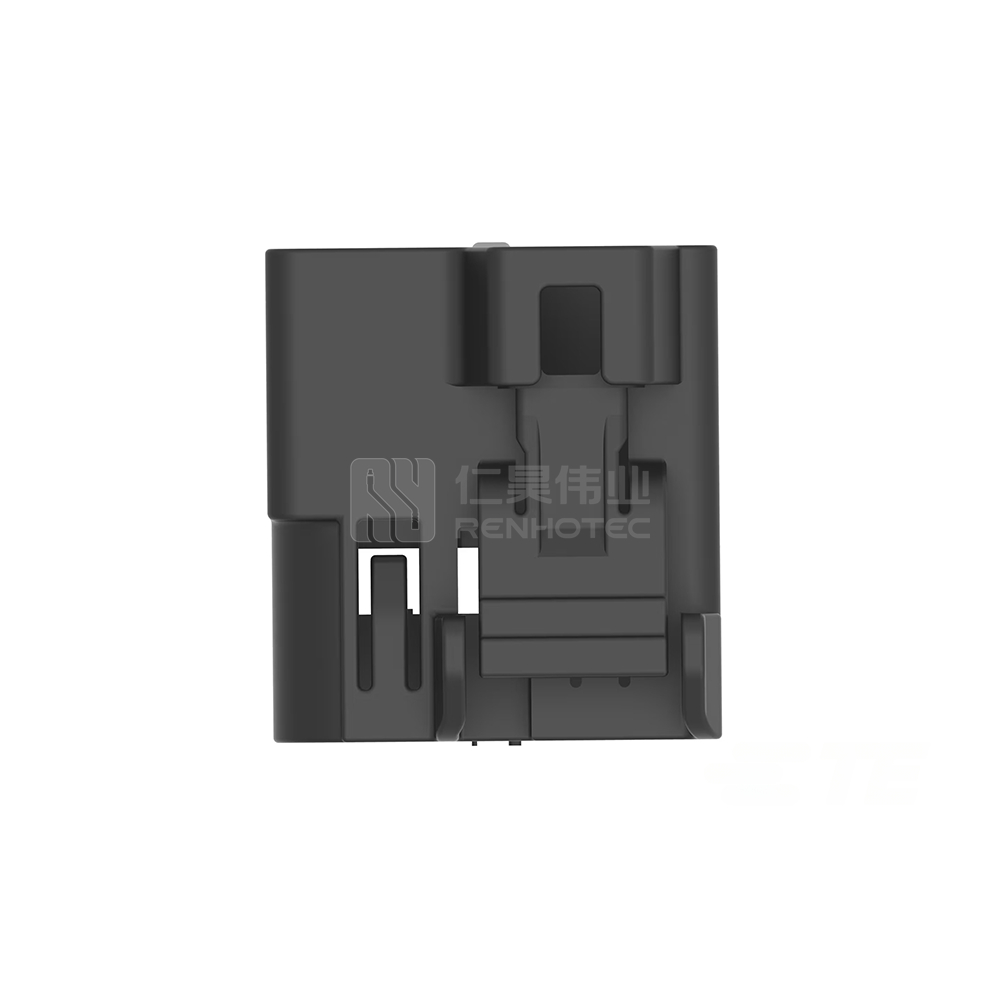

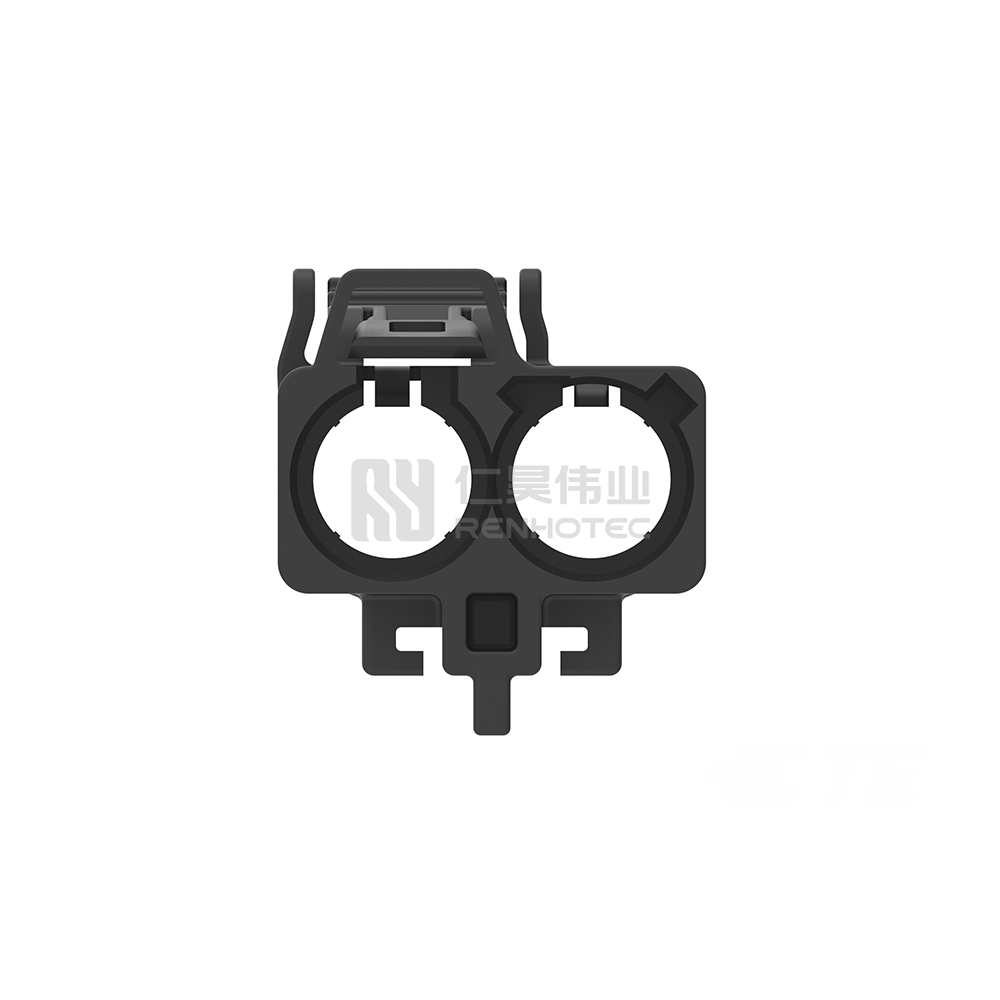

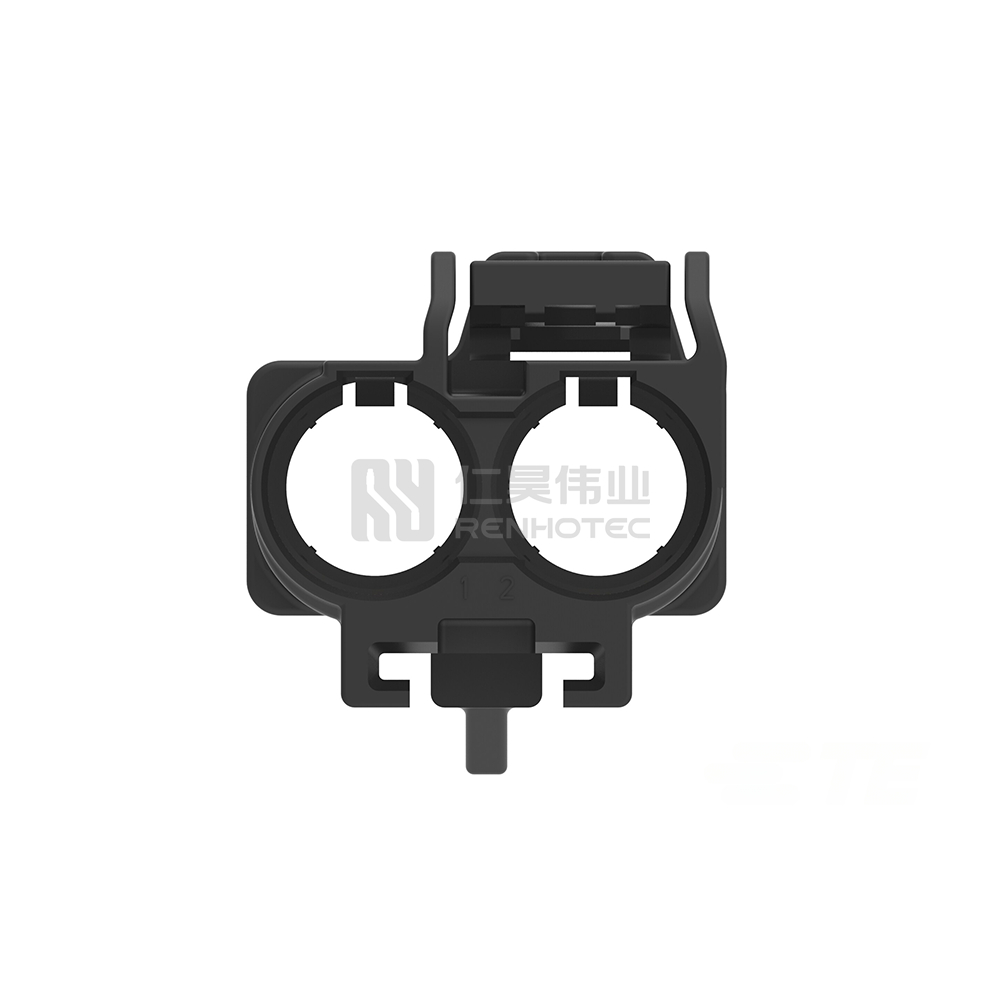

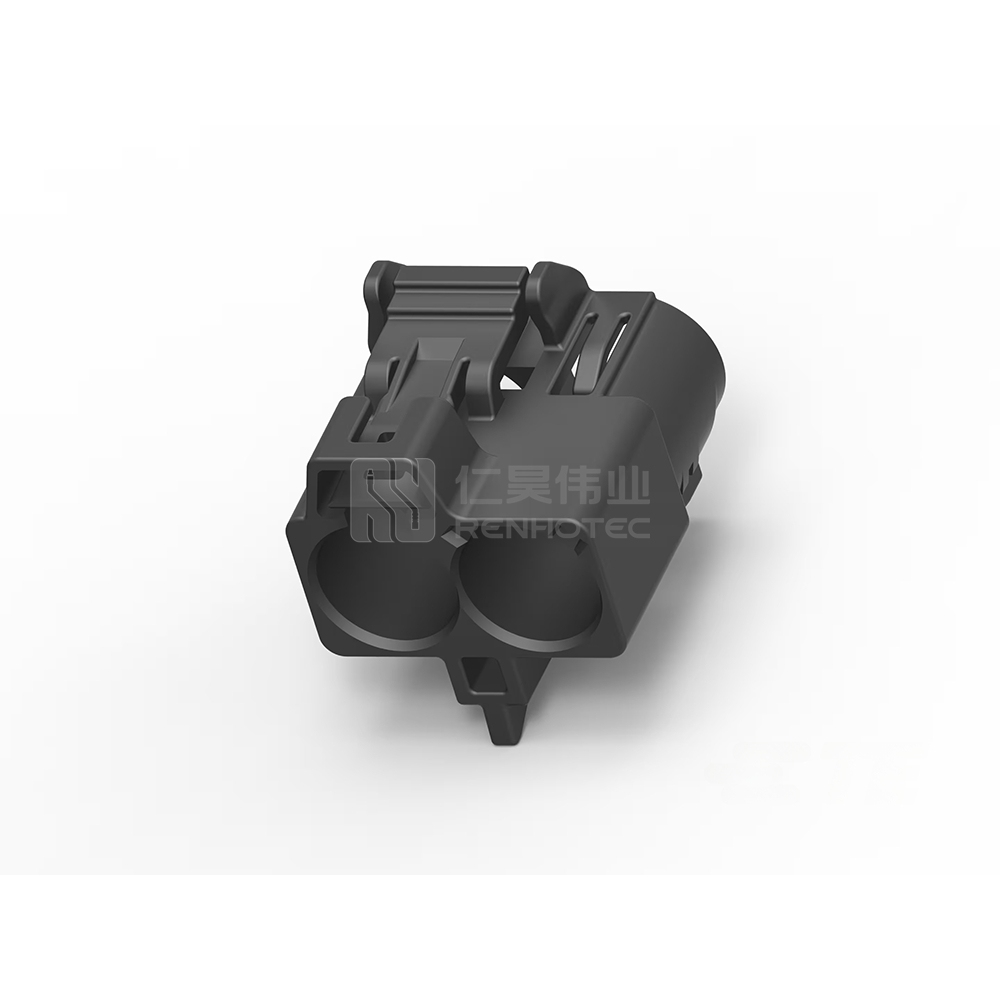

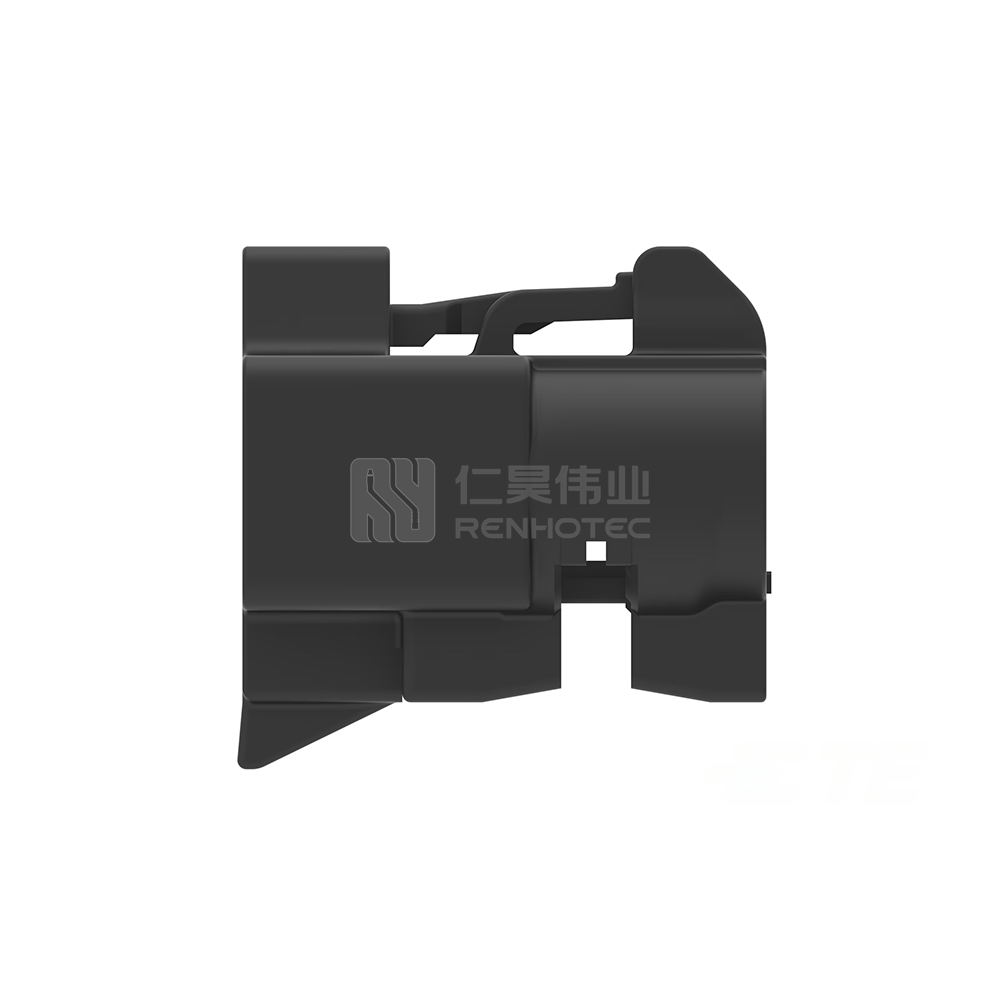

Wire-to-Wire, 180° Cable Exit, 2 Position, C Code, Housing for Female Terminals, 8 mm Centerline, FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	A
Center Contact	Without
Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	8 mm [ .315 in ]
Shielded	No
Circuit Application	Signal
Operating Voltage VDC	60
Body Material	PBT GF
Outer Contact Plating	Tin (Sn)
Housing Type	Housing for Female Terminals
Cable Exit Type	Adjustable
Ferrule	Without
Cable Exit Angle	180°
Frequency Range GHz	0 – 3
Dielectric Material	PBT
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185
Termination Point	Wire & Cable	Sealable	No
Row Count	1	Position Count	2
Key Code	A	Center Contact	Without
Contact Plating	Gold (Au)	Center Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]	Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Black
Pitch	8 mm [ .315 in ]	Shielded	No
Circuit Application	Signal	Operating Voltage VDC	60
Body Material	PBT GF	Outer Contact Plating	Tin (Sn)
Housing Type	Housing for Female Terminals	Cable Exit Type	Adjustable
Ferrule	Without	Cable Exit Angle	180°
Frequency Range GHz	0 – 3	Dielectric Material	PBT
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85	Max Temperature F	149 \| 158 \| 167 \| 176 \| 185

Termination Point	Wire & Cable
Sealable	No
Row Count	1
Position Count	2
Key Code	A
Contact Type	Socket
Center Contact	Without
Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Pitch	8 mm [ .315 in ]
Shielded	No
Circuit Application	Signal
Operating Voltage VDC	60
Body Material	PBT GF
Outer Contact Plating	Tin (Sn)
Temperature Range	-40 – 85 °C [ -40 – 185 °F ]
Housing Type	Housing for Female Terminals
Cable Exit Type	Adjustable
Ferrule	Without
Cable Exit Angle	180°
Cable Type	Coaxial
Frequency Range GHz	0 – 3
Dielectric Material	PBT
Max Temperature C	65 \| 70 \| 75 \| 80 \| 85
Max Temperature F	149 \| 158 \| 167 \| 176 \| 185
