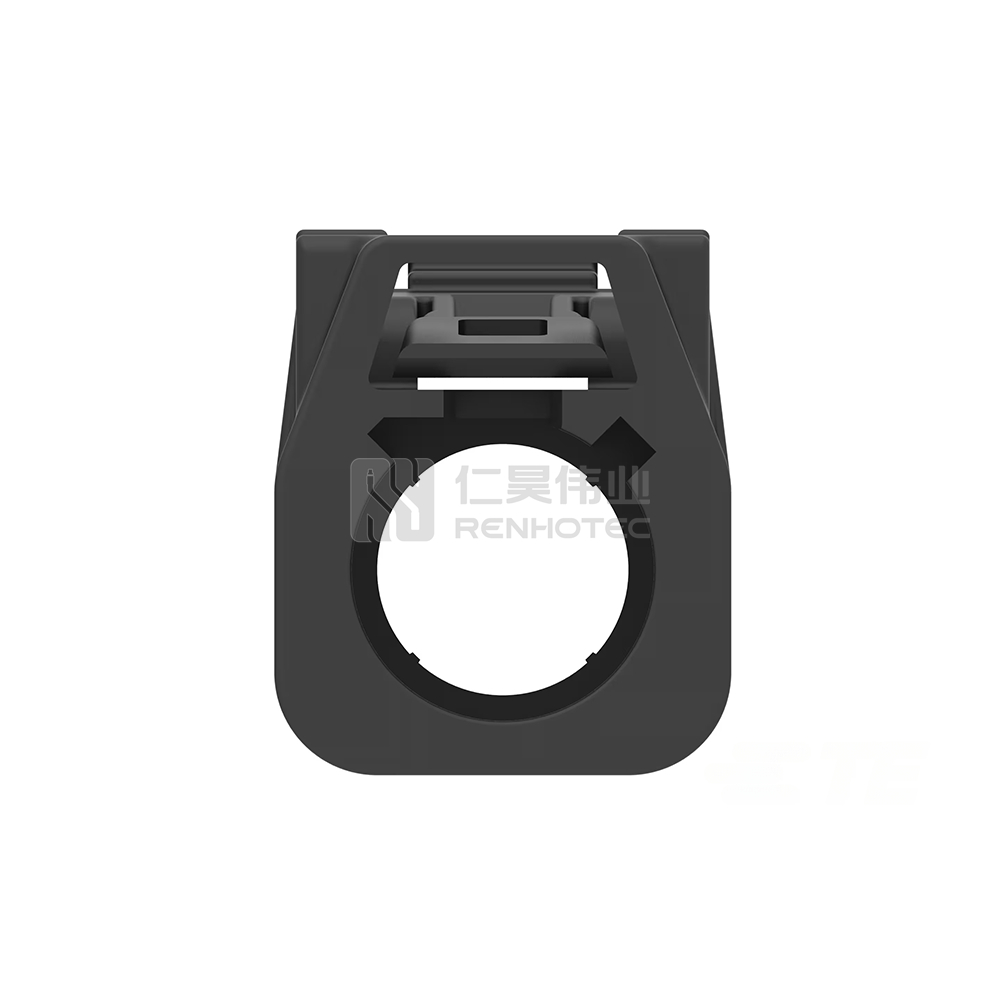

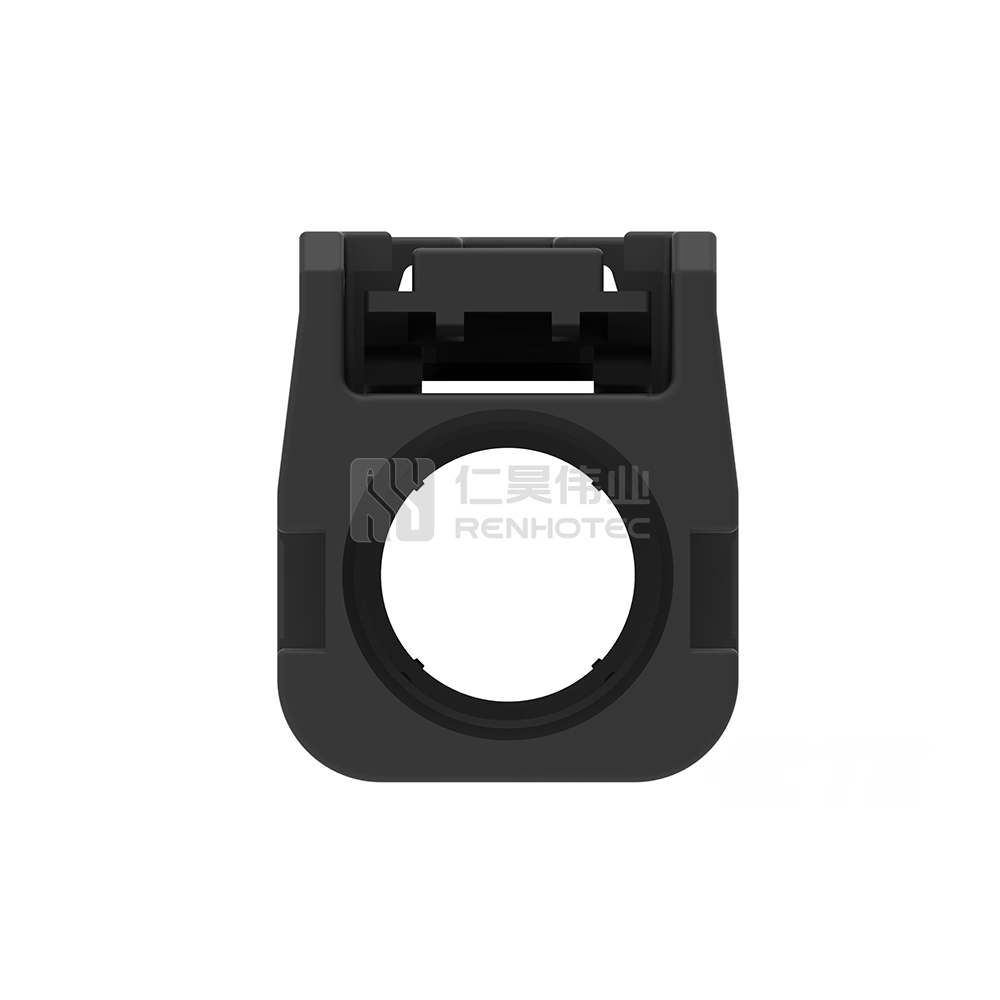

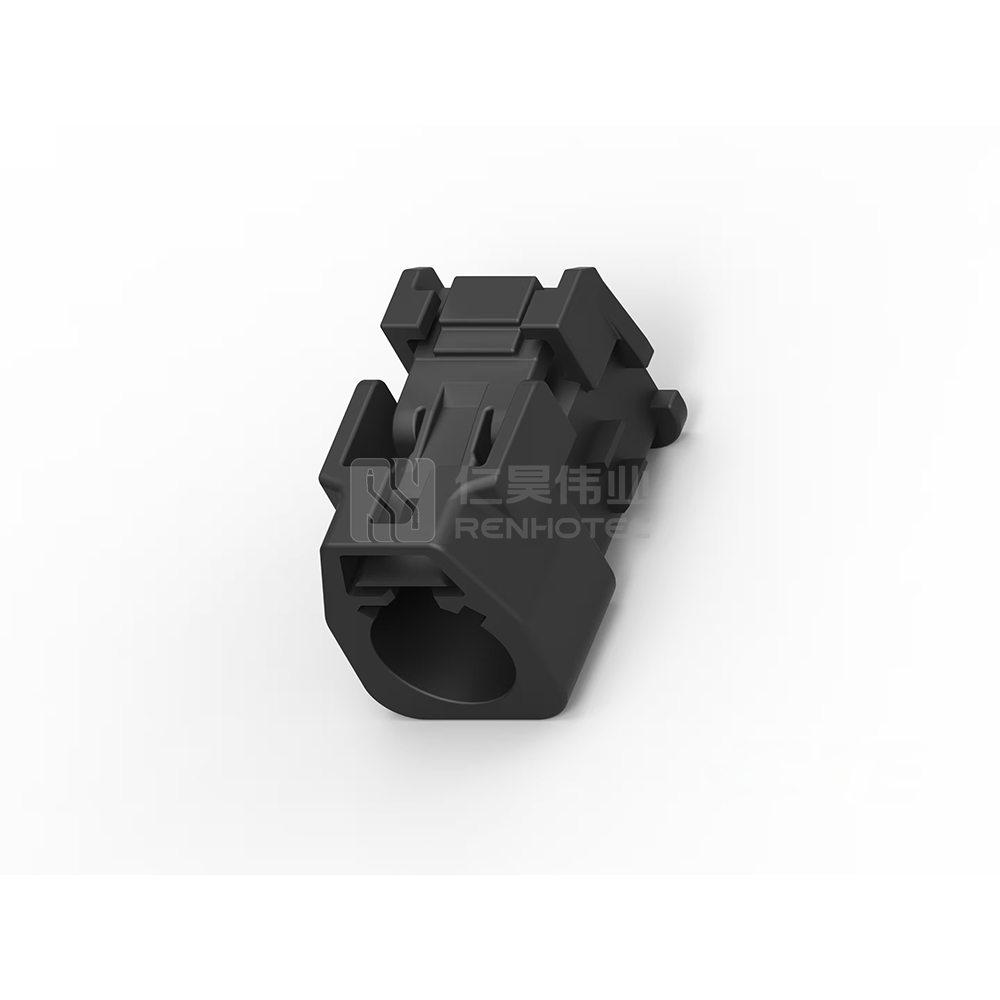

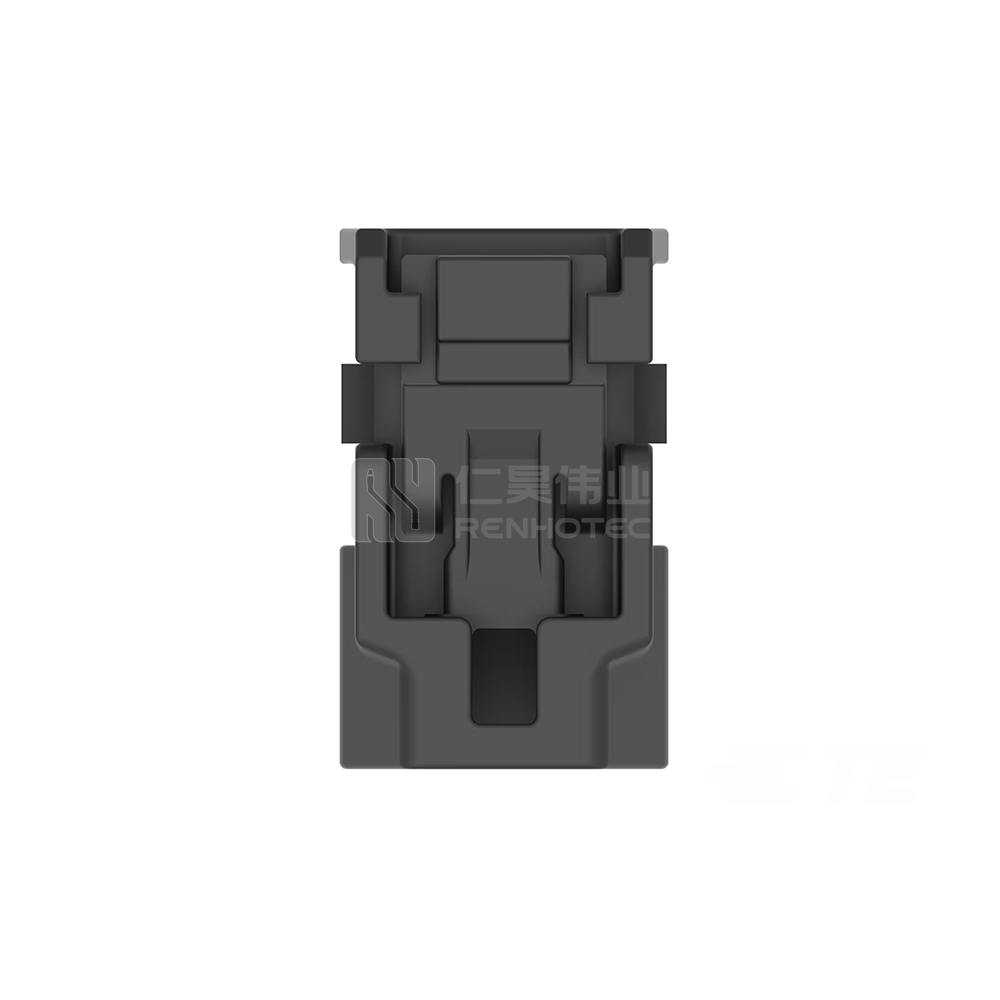

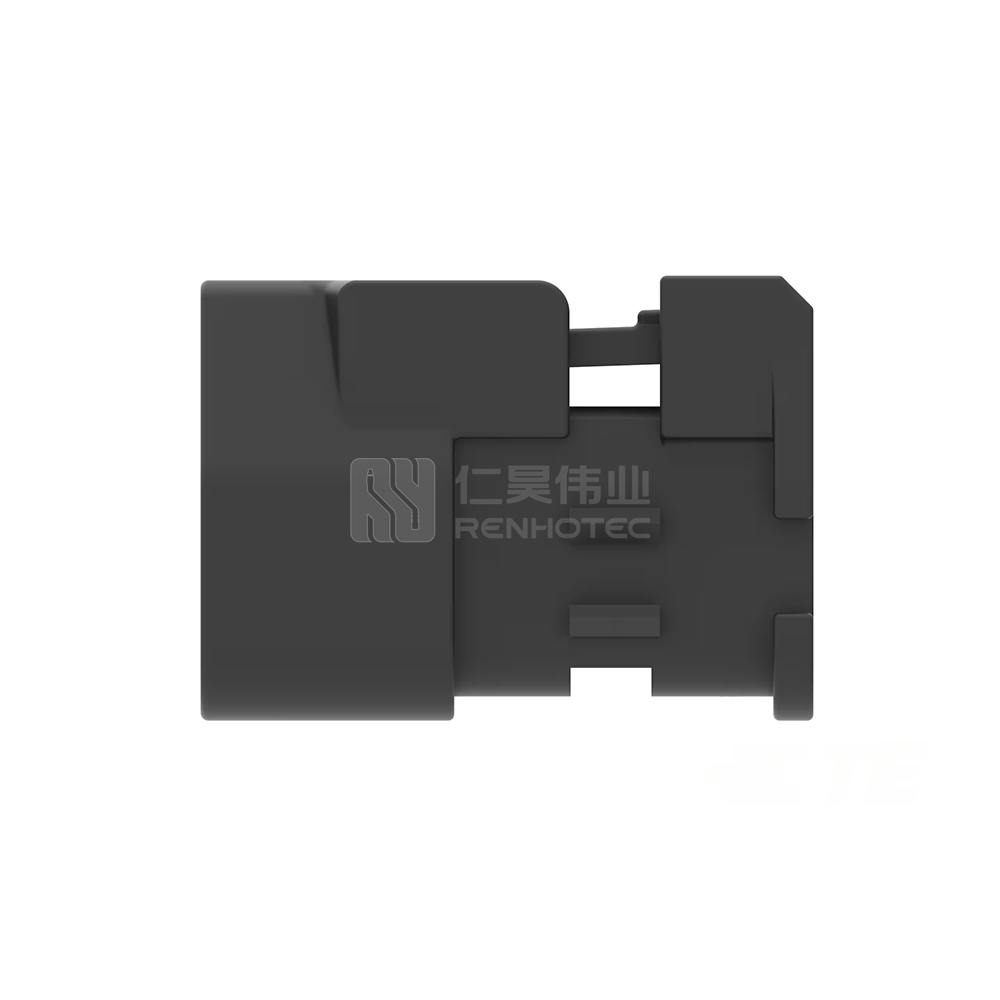

Wire-to-Wire, 180° Cable Exit, 1 Position, A Code, Plug, Crimp, Cable Mount (Free-Hanging), FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	1
Key Code	A
Center Contact	Without
Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Connector Height	13.8 mm [ .54 in ]
Product Length	11.69 mm [ .46 in ]
Product Width	19.05 mm [ .75 in ]
Operating Voltage VDC	60
Body Material	PBT GF30
Outer Contact Plating	Tin (Sn)
Max Temperature	100 °C [ 212 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Frequency Range GHz	0 – 3
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	1
Position Count	1	Key Code	A
Center Contact	Without	Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)	Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black	Connector Height	13.8 mm [ .54 in ]
Product Length	11.69 mm [ .46 in ]	Product Width	19.05 mm [ .75 in ]
Operating Voltage VDC	60	Body Material	PBT GF30
Outer Contact Plating	Tin (Sn)	Max Temperature	100 °C [ 212 °F ]
Housing Type	Housing for Female Terminals	Snap Lock	Without
Cable Exit Type	Fixed	Ferrule	Without
Cable Exit Angle	180°	Cable Termination	Crimp
Frequency Range GHz	0 – 3

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	1
Key Code	A
Contact Type	Socket
Center Contact	Without
Contact Plating	Gold (Au)
Center Contact Plating	Gold (Au)
Pin Diameter	.5 mm [ .02 in ]
Mating Retention	With
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Black
Connector Height	13.8 mm [ .54 in ]
Product Length	11.69 mm [ .46 in ]
Product Width	19.05 mm [ .75 in ]
Operating Voltage VDC	60
Body Material	PBT GF30
Outer Contact Plating	Tin (Sn)
Max Temperature	100 °C [ 212 °F ]
Temperature Range	-40 – 100 °C [ -40 – 212 °F ]
Housing Type	Housing for Female Terminals
Snap Lock	Without
Cable Exit Type	Fixed
Ferrule	Without
Cable Exit Angle	180°
Cable Termination	Crimp
Frequency Range GHz	0 – 3
