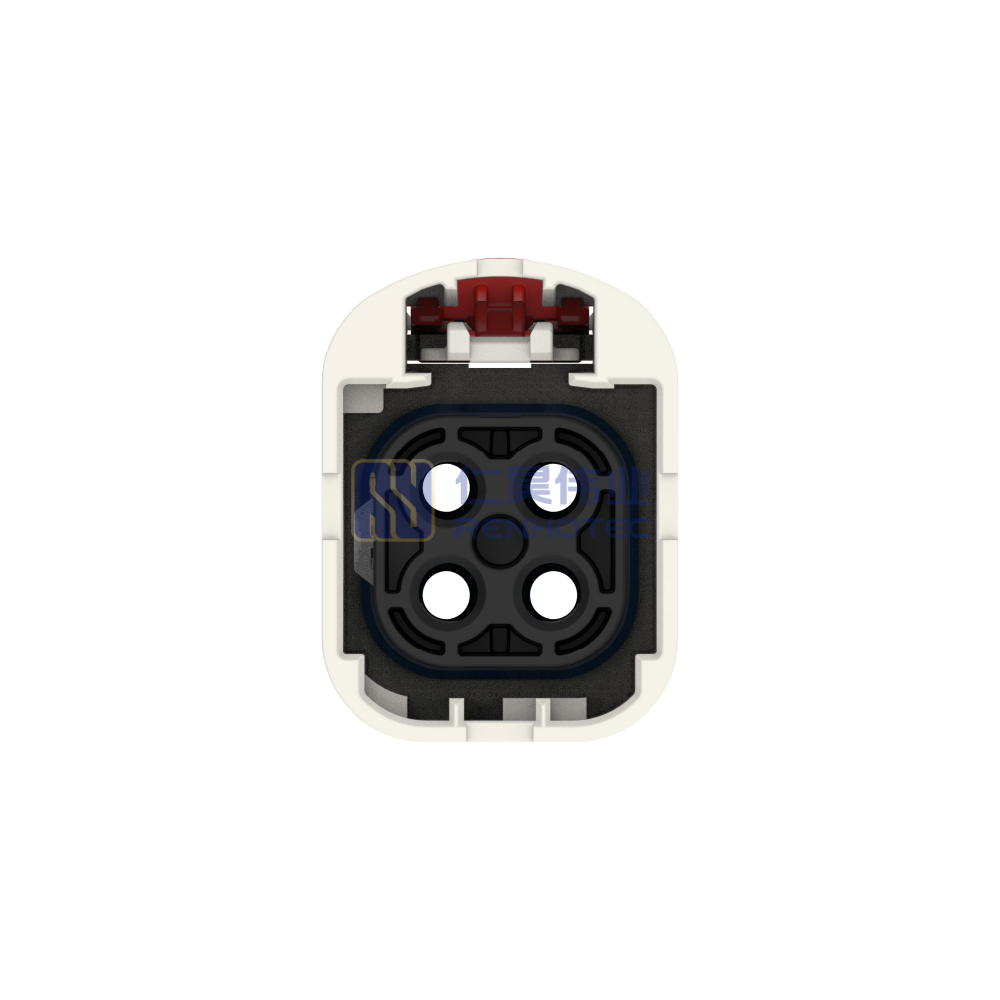

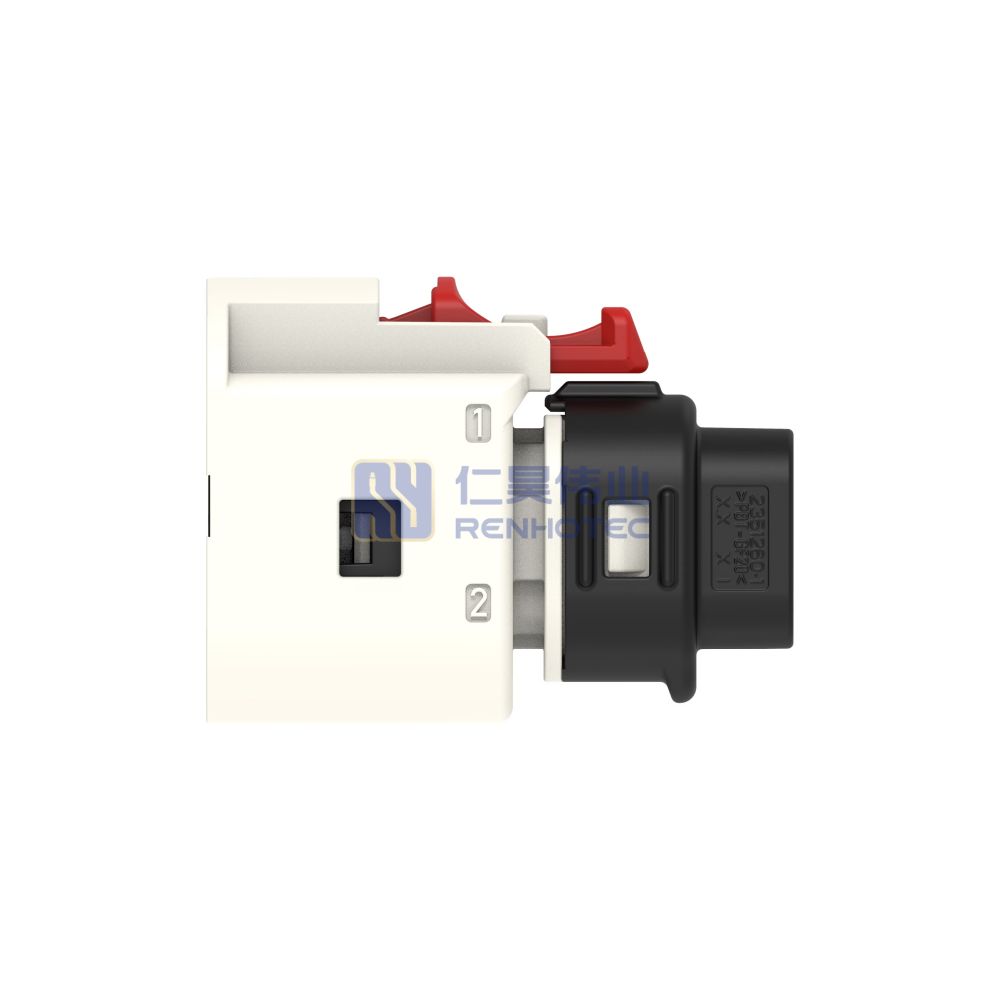

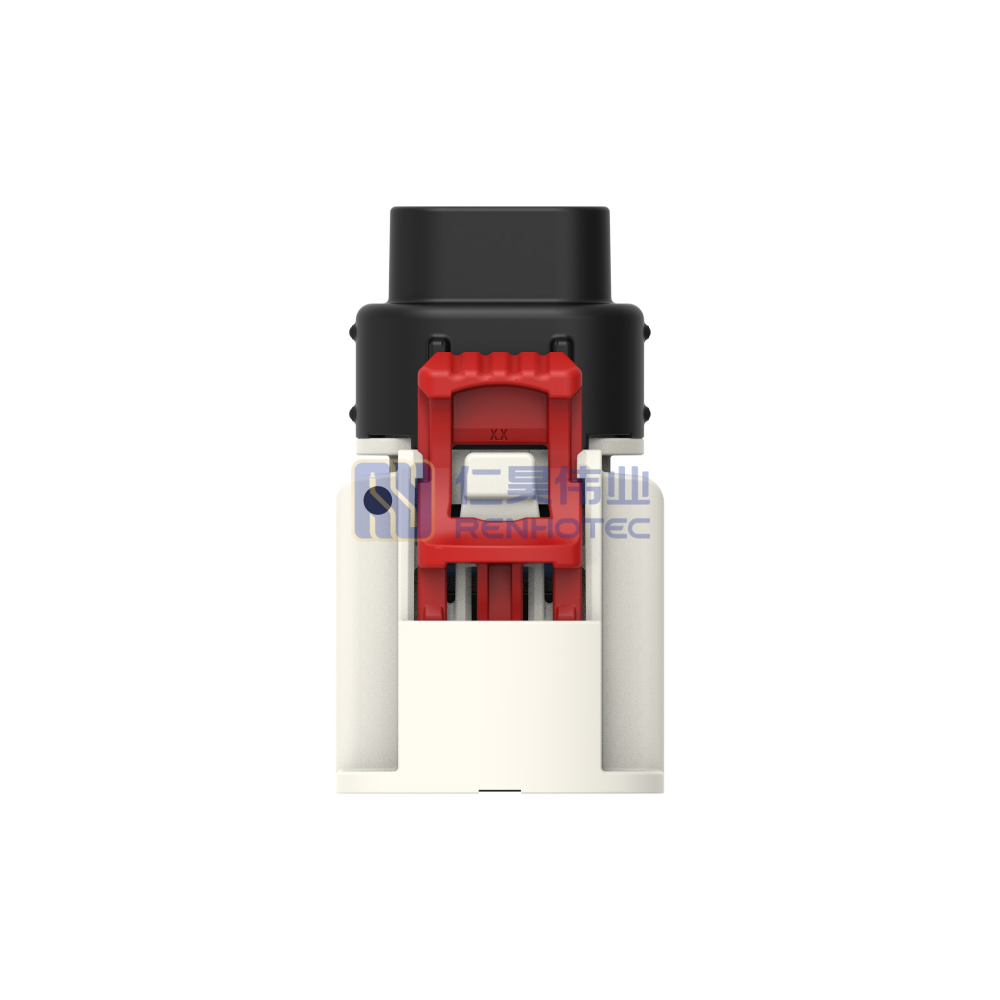

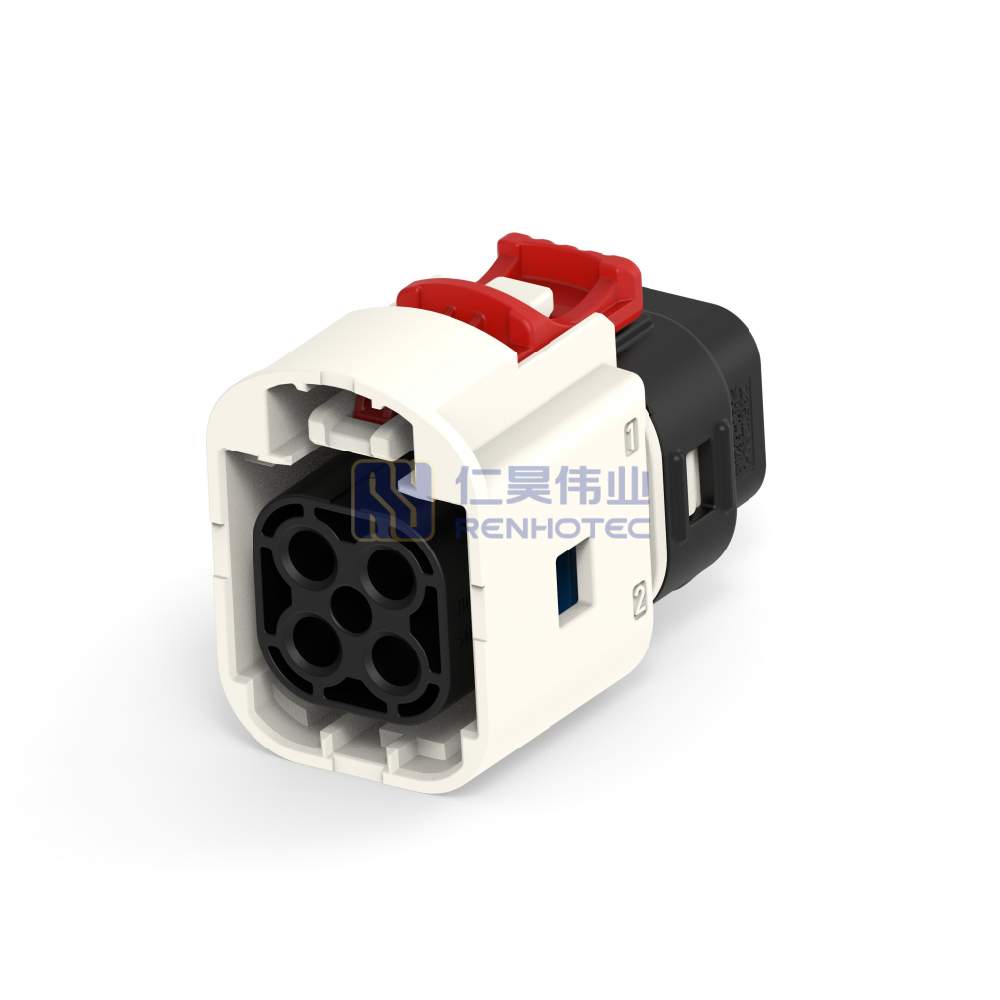

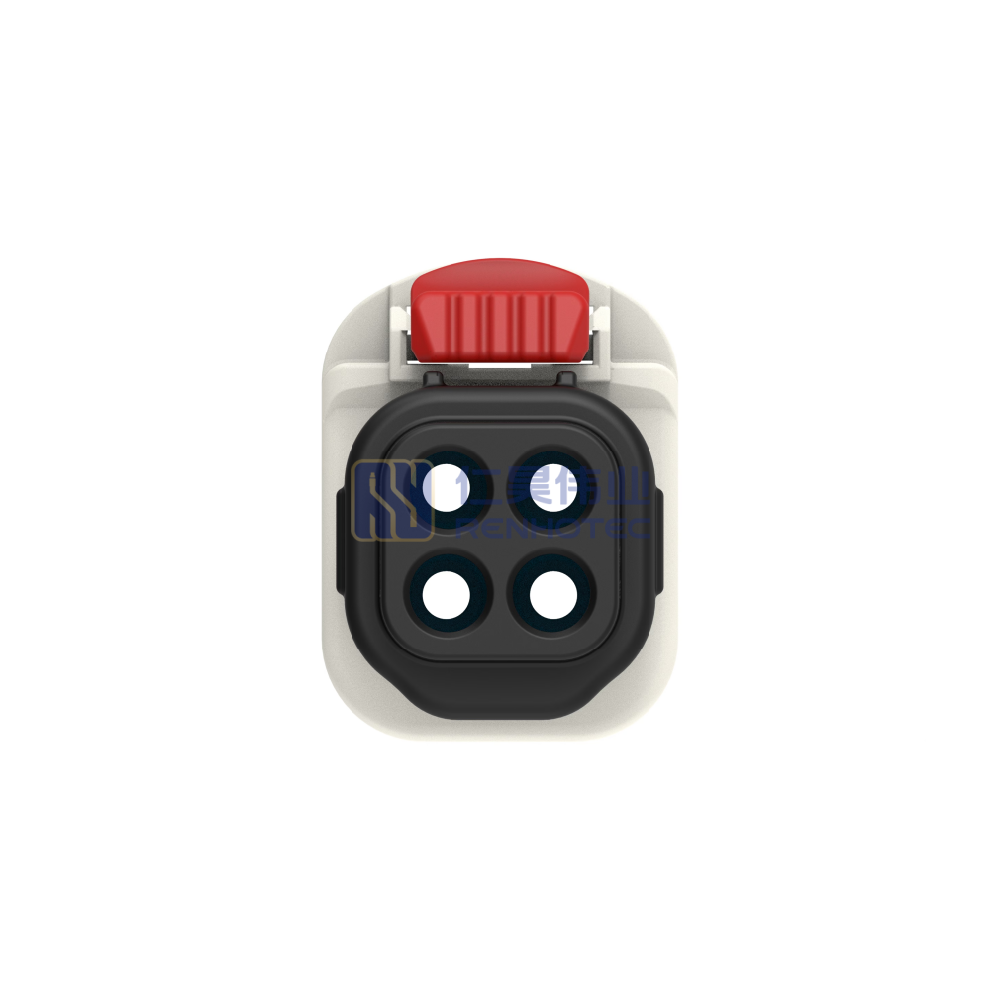

Wire-to-Board, Sealable, 180° Cable Exit, 4 Position, B Code, Housing for Female Terminals, 5 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Wire-to-Board
Sealable	Yes
Row Count	2
Position Count	4
Key Code	B
Pin Diameter	.4 mm [ .01 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black \| White
Pitch	5 mm [ .2 in ]
Shielded	No
Circuit Application	Signal
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	Yes
Termination Point	Wire & Cable	Connector System	Wire-to-Board
Sealable	Yes	Row Count	2
Position Count	4	Key Code	B
Pin Diameter	.4 mm [ .01 in ]	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black \| White	Pitch	5 mm [ .2 in ]
Shielded	No	Circuit Application	Signal
Max Temperature	105 °C [ 221 °F ]	Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals	Cable Exit Angle	180°
Cable Termination	Crimp	Position Assurance	Yes

Termination Point	Wire & Cable
Connector System	Wire-to-Board
Sealable	Yes
Row Count	2
Position Count	4
Key Code	B
Pin Diameter	.4 mm [ .01 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black \| White
Pitch	5 mm [ .2 in ]
Shielded	No
Circuit Application	Signal
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	RG 174
Position Assurance	Yes
