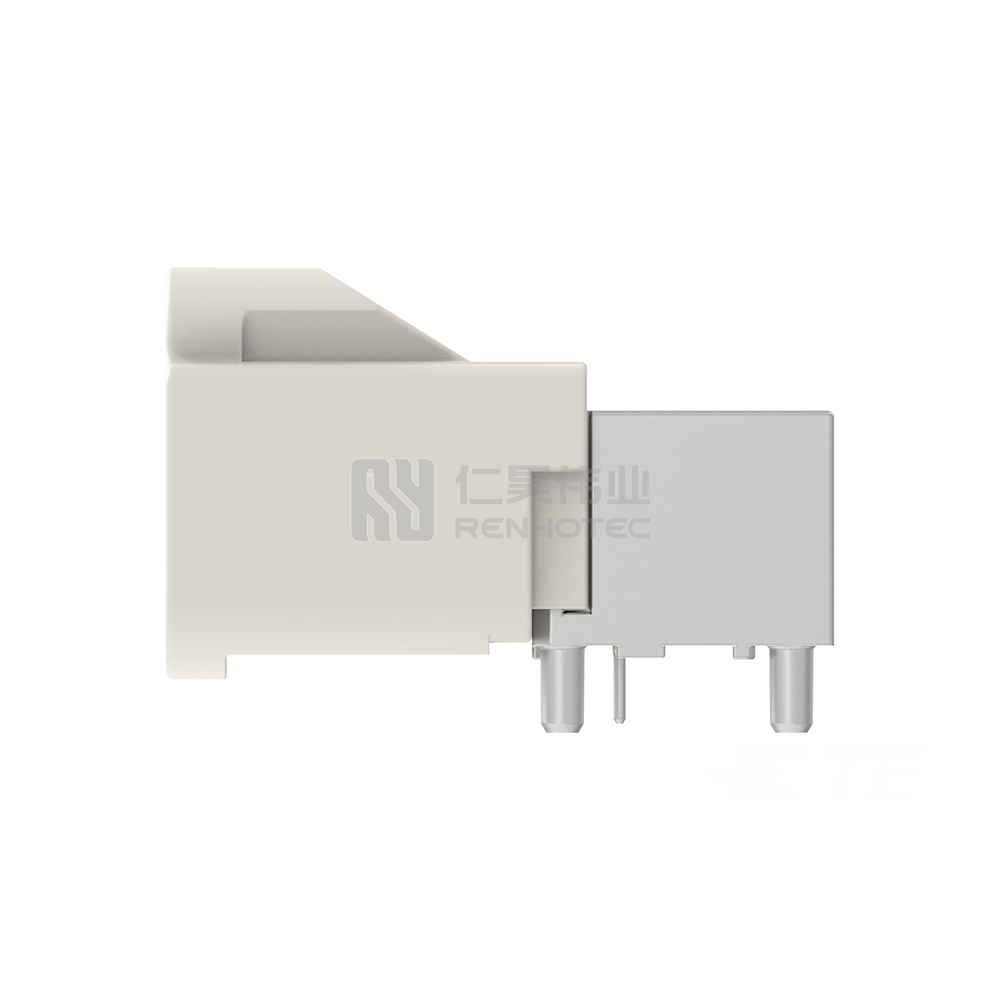

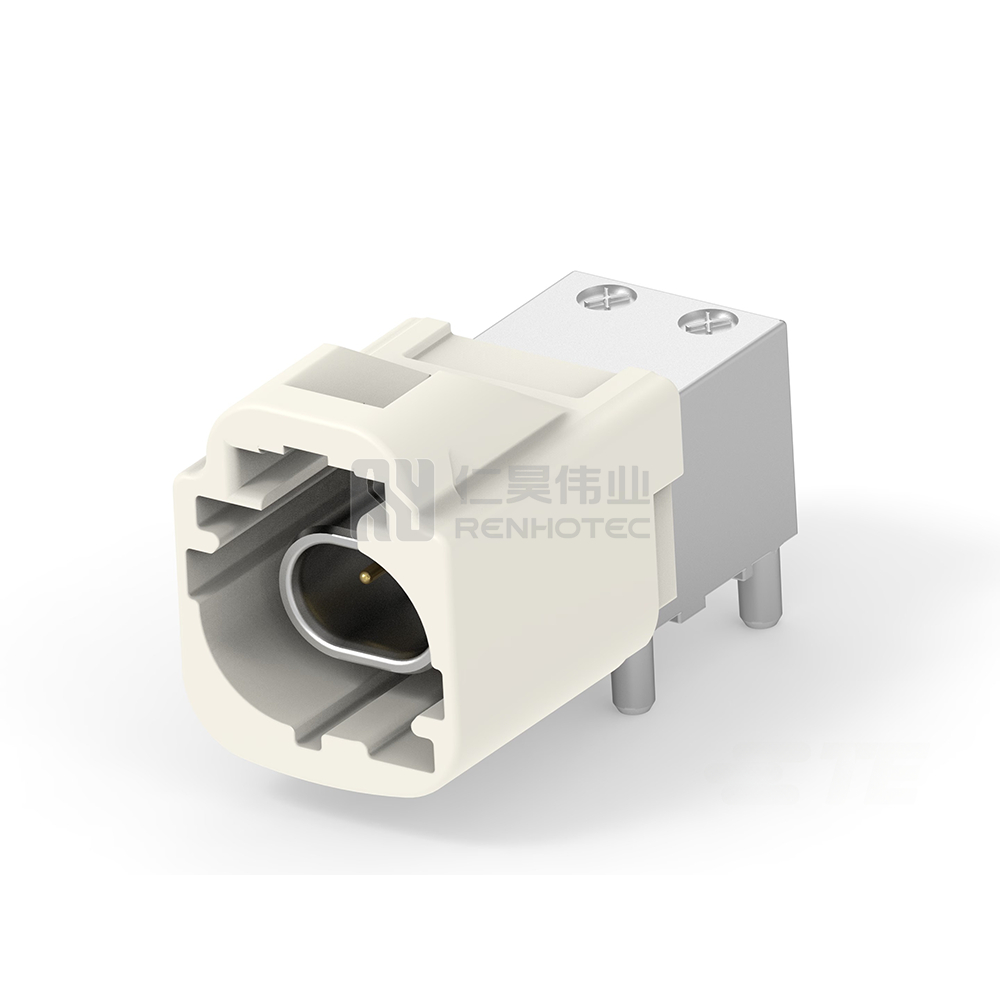

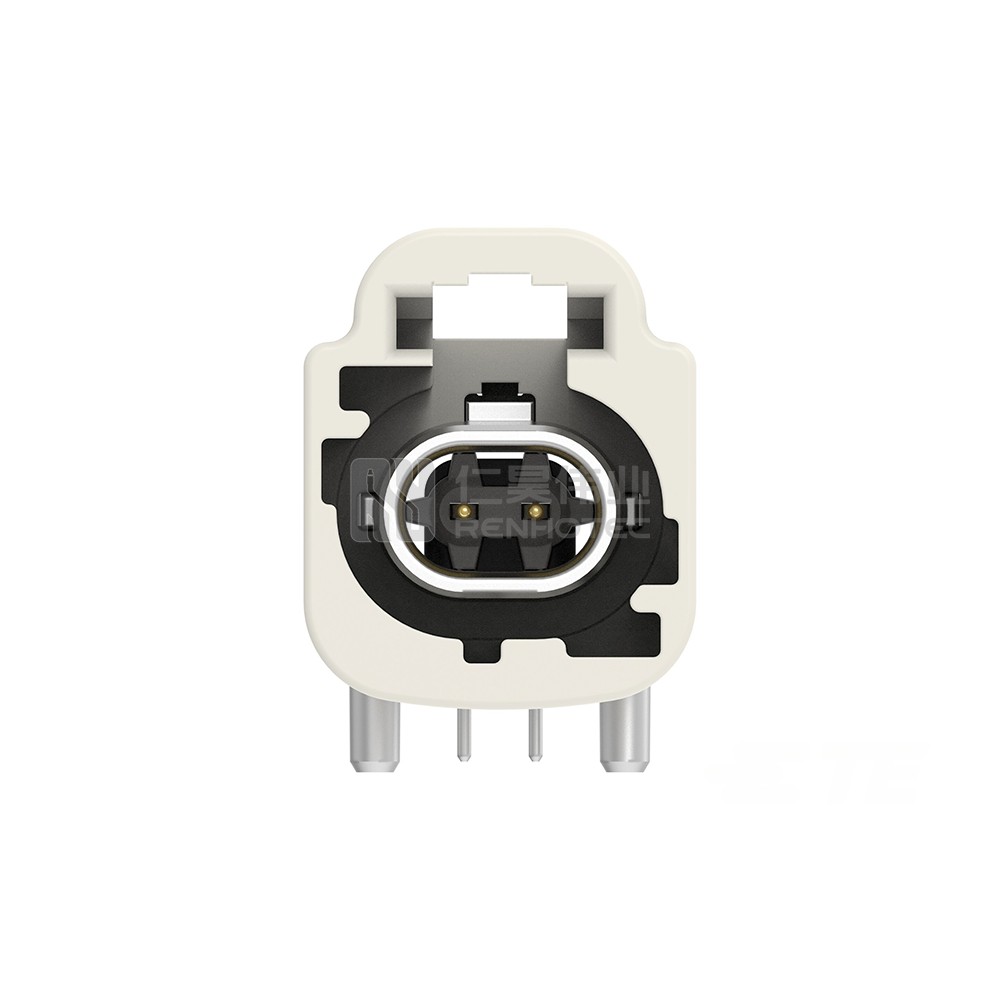

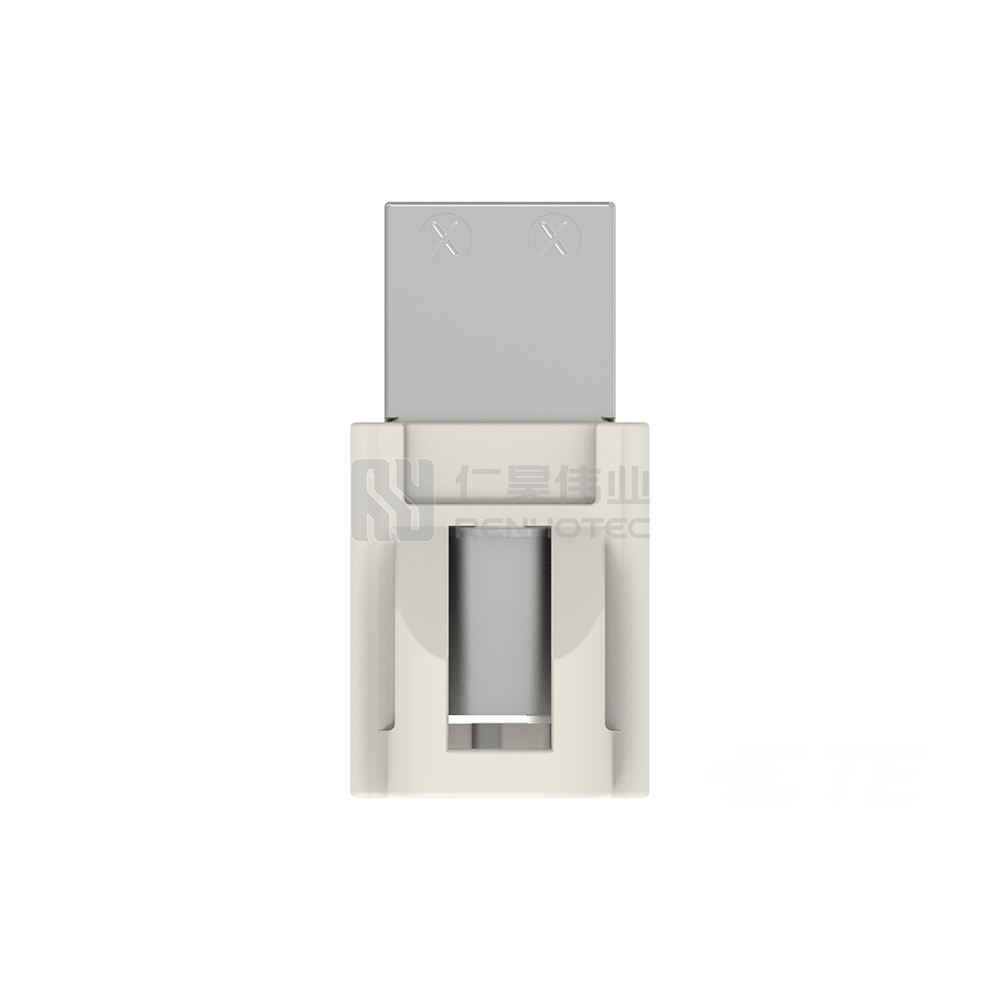

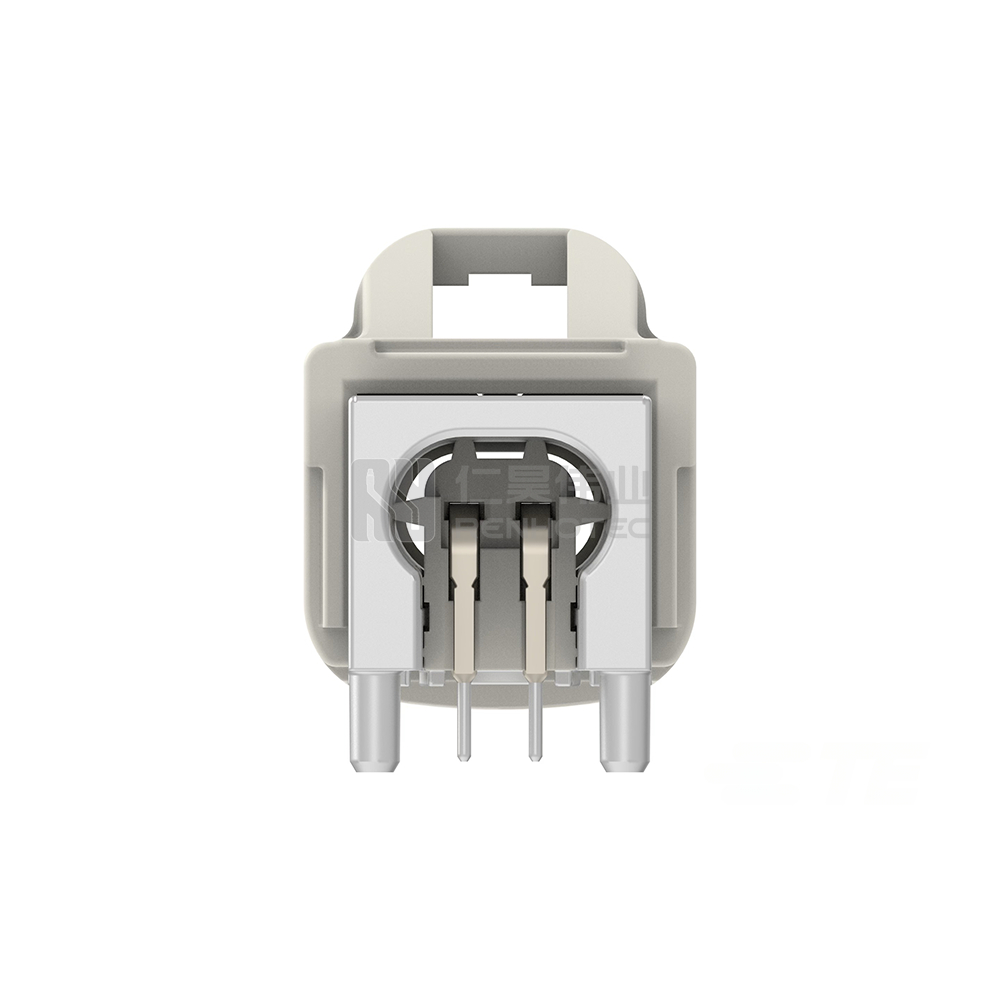

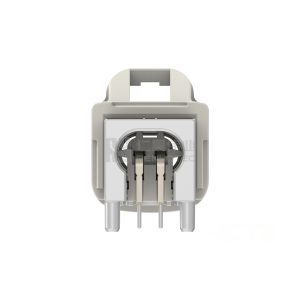

Wire-to-Board, Horizontal, 2 Position, Board Mount, B Code, 2 mm Centerline, Signal, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Wire-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

2
Key Code

B
Center Contact

With
Contact Plating

Gold (Au)
Pin Diameter

.5 mm [ .02 in ]
Max Current A

2
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

White
Pitch

2 mm [ .07 in ]
Shielded

No
Circuit Application

Signal
Max Temperature

105 °C [ 221 °F ]
Dielectric Material

Liquid Crystal Polymer (LCP)
Termination Point

Printed Circuit Board

 Connector System

Wire-to-Board
Sealable

No

 Row Count

1
PCB Orientation

Horizontal

 Position Count

2
Key Code

B

 Center Contact

With
Contact Plating

Gold (Au)

 Pin Diameter

.5 mm [ .02 in ]
Max Current A

2

 PCB Termination

Through Hole – Solder
Mating Retention

With

 PCB Retention

With
Mount Type

Board Mount

 Housing Color

White
Pitch

2 mm [ .07 in ]

 Shielded

No
Circuit Application

Signal

 Max Temperature

105 °C [ 221 °F ]
Dielectric Material

Liquid Crystal Polymer (LCP)

Product Specification

Contact Type

Pin
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Contact Type

Pin

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Termination Point

Printed Circuit Board
Connector System

Wire-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

2
Key Code

B
Contact Type

Pin
Center Contact

With
Contact Plating

Gold (Au)
Pin Diameter

.5 mm [ .02 in ]
Max Current A

2
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

White
Pitch

2 mm [ .07 in ]
Shielded

No
Circuit Application

Signal
Max Temperature

105 °C [ 221 °F ]
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Dielectric Material

Liquid Crystal Polymer (LCP)
