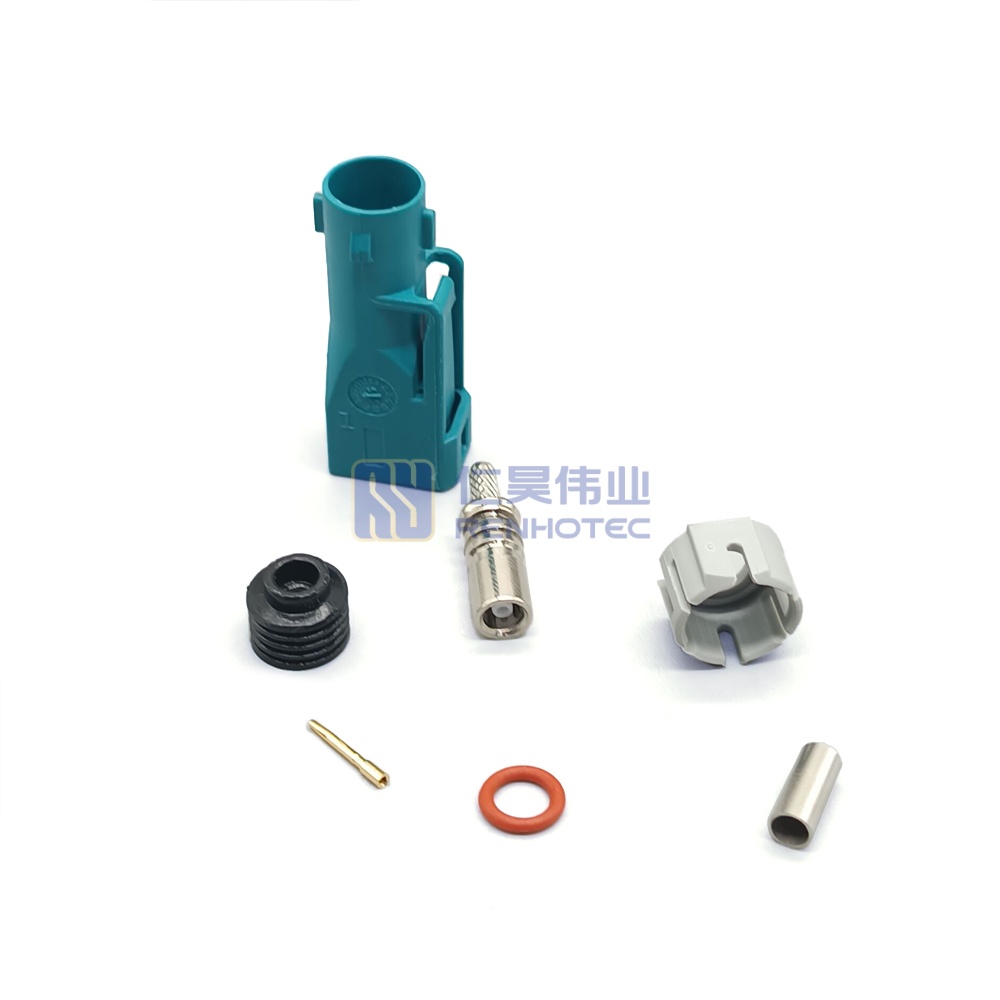

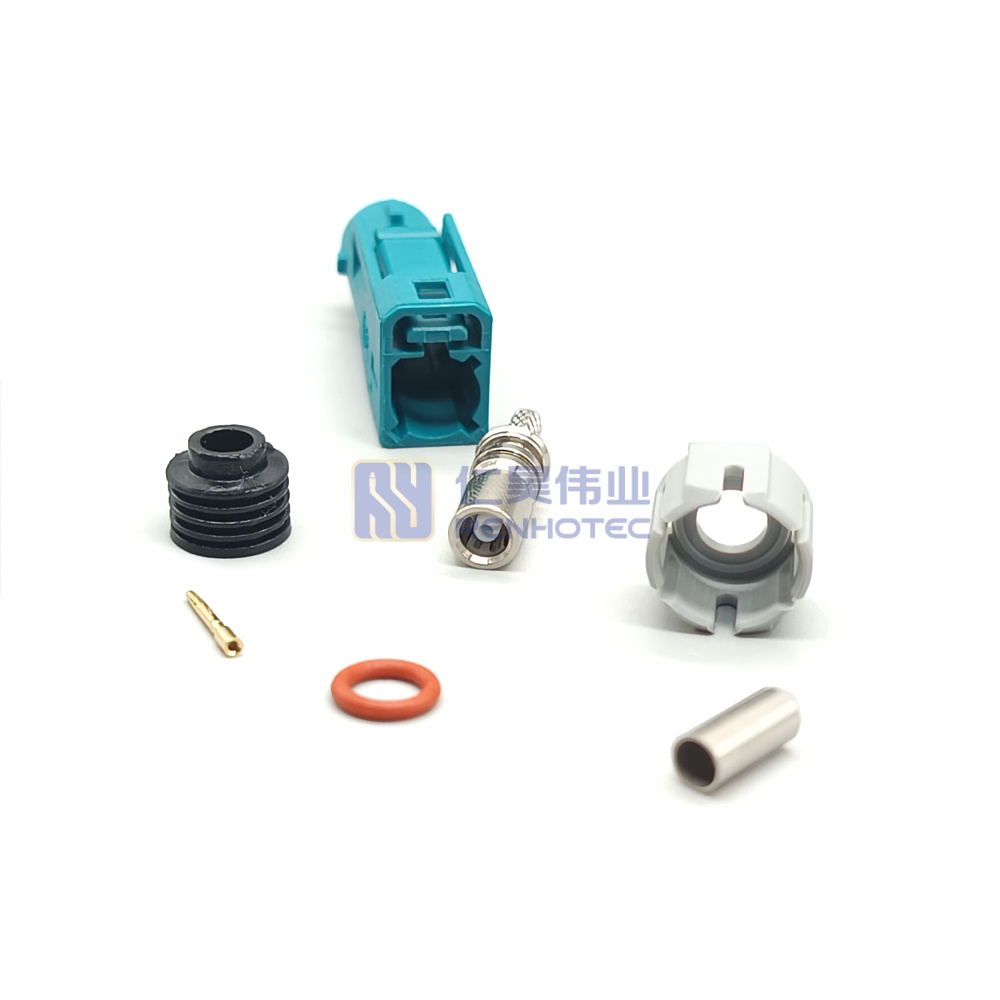

Water Proof FAKAR Female for RG316 Cable – DOSIN-877-2017
Designed to deliver stable RF performance in harsh automotive environments. Its waterproof construction and USCAR-2/USCAR-17 compliance make it a reliable choice for applications where vibration, temperature extremes, and moisture are daily challenges.
Product Specification
| Cable Type | RG316 |
||
|---|---|---|---|
| Insulator Material | High Temp Engineering Plastic |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC – 6 GHz |
||
| VSWR | 0~2 GHz：1.4 (-15.56 dB) Max, 2~3 GHz：1.5 (-13.98 dB) Max, 3~6 GHz：1.6 (-12.74 dB) Max |
||
| Dielectric Withstanding Voltage | ≥ 800 VRMS |
||
| Insulation Resistance | ≥ 100 MΩ |
||
| Mounting Feature | Cable Type |
||
| Temperature Range | -40°C to +105°C |
||
| Orientation | Stright |
||
| Cable Type | RG316 |
Insulator Material | High Temp Engineering Plastic |
| Impedance | 50 ohm |
Frequency Range | DC – 6 GHz |
| VSWR | 0~2 GHz：1.4 (-15.56 dB) Max, 2~3 GHz：1.5 (-13.98 dB) Max, 3~6 GHz：1.6 (-12.74 dB) Max |
Dielectric Withstanding Voltage | ≥ 800 VRMS |
| Insulation Resistance | ≥ 100 MΩ |
Mounting Feature | Cable Type |
| Temperature Range | -40°C to +105°C |
Orientation | Stright |
| Housing Material | High Temp Engineering Plastic |
||
|---|---|---|---|
| Back Cover | PA66 |
||
| Waterproof Ring | Silicone Rubber |
||
| Durability | ≥ 100 Cycles |
||
| Standards Certified | USCAR-2 & USCAR-17 |
||
| Outer Conductor Material | Brass |
||
| Center Contact Material | Copper |
||
| Center Contact Plating | Ni/Au Plated |
||
| Housing Material | High Temp Engineering Plastic |
Back Cover | PA66 |
| Waterproof Ring | Silicone Rubber |
Durability | ≥ 100 Cycles |
| Standards Certified | USCAR-2 & USCAR-17 |
Outer Conductor Material | Brass |
| Center Contact Material | Copper |
Center Contact Plating | Ni/Au Plated |
| Cable Type | RG316 |
|---|---|
| Insulator Material | High Temp Engineering Plastic |
| Housing Material | High Temp Engineering Plastic |
| Back Cover | PA66 |
| Waterproof Ring | Silicone Rubber |
| Impedance | 50 ohm |
| Frequency Range | DC – 6 GHz |
| VSWR | 0~2 GHz：1.4 (-15.56 dB) Max, 2~3 GHz：1.5 (-13.98 dB) Max, 3~6 GHz：1.6 (-12.74 dB) Max |
| Dielectric Withstanding Voltage | ≥ 800 VRMS |
| Insulation Resistance | ≥ 100 MΩ |
| Mounting Feature | Cable Type |
| Durability | ≥ 100 Cycles |
| Temperature Range | -40°C to +105°C |
| Standards Certified | USCAR-2 & USCAR-17 |
| Orientation | Stright |
| Outer Conductor Material | Brass |
| Center Contact Material | Copper |
| Center Contact Plating | Ni/Au Plated |
Drawing for Water Proof FAKAR Female for RG316 CableDownload
