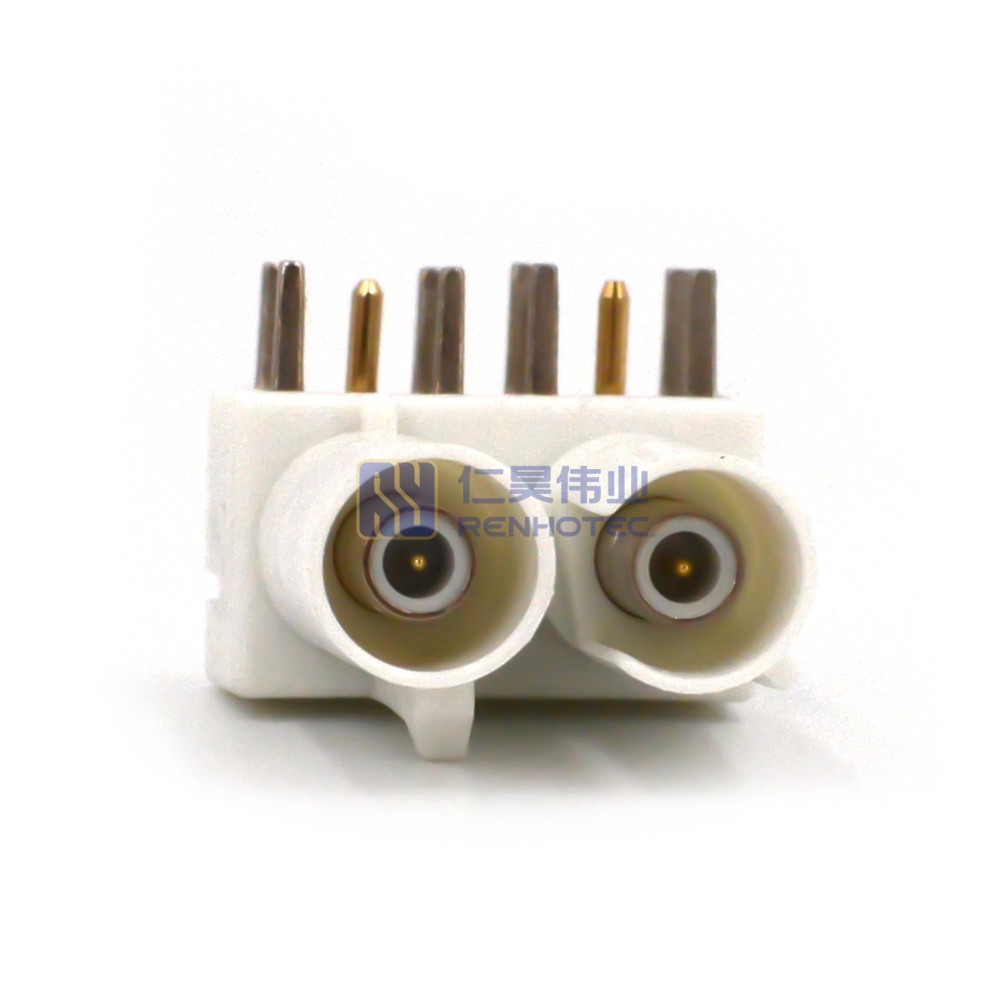

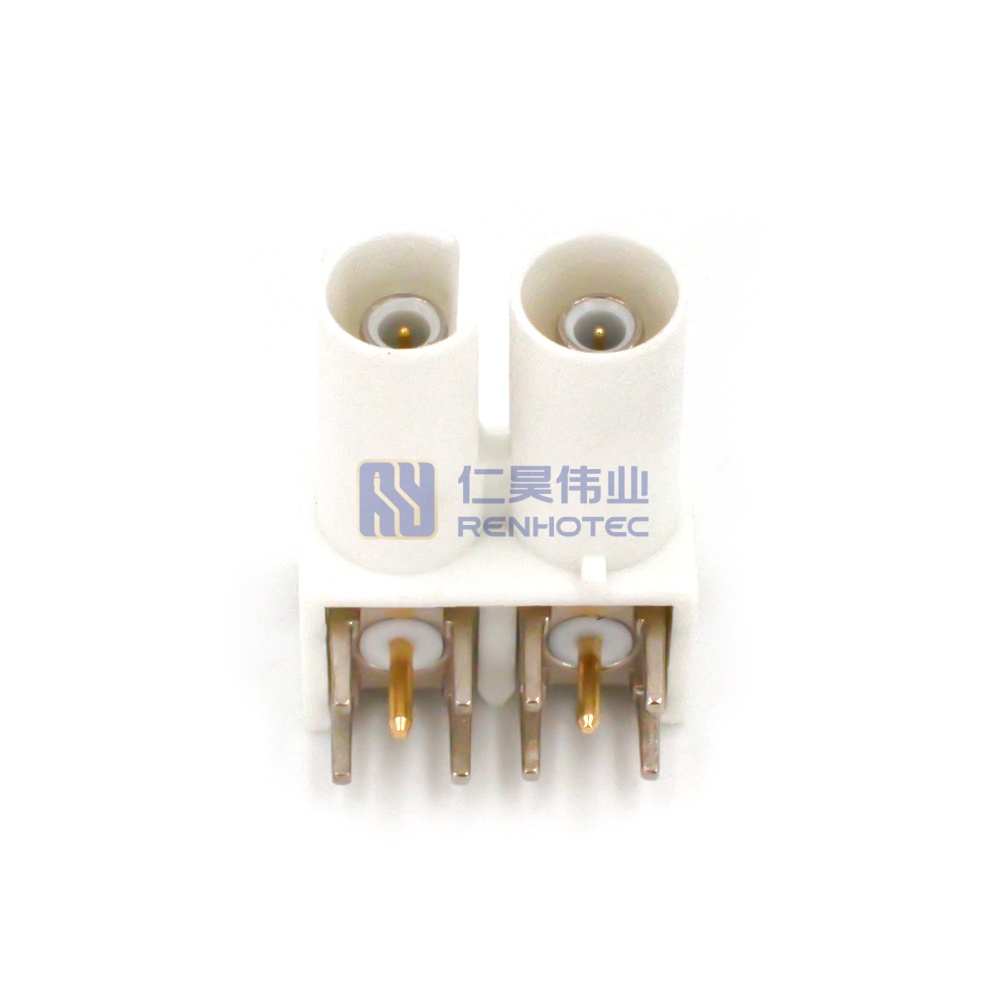

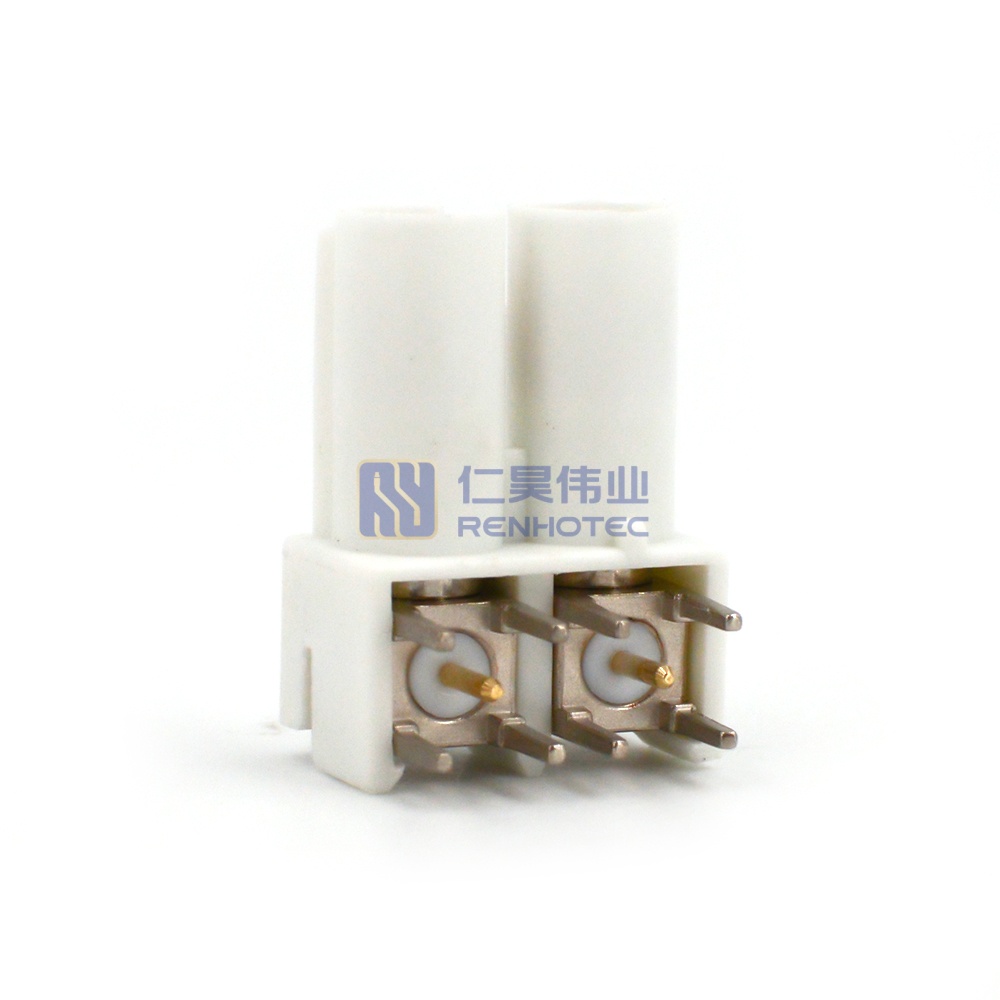

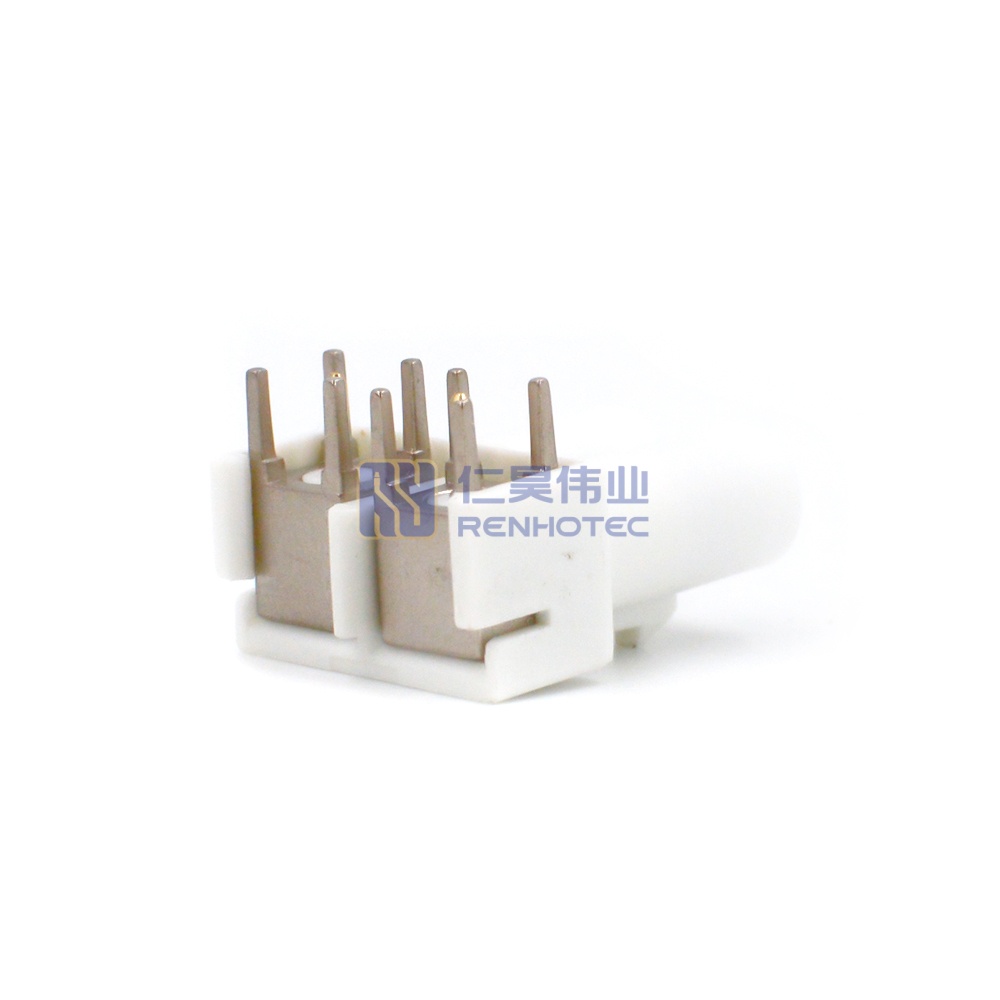

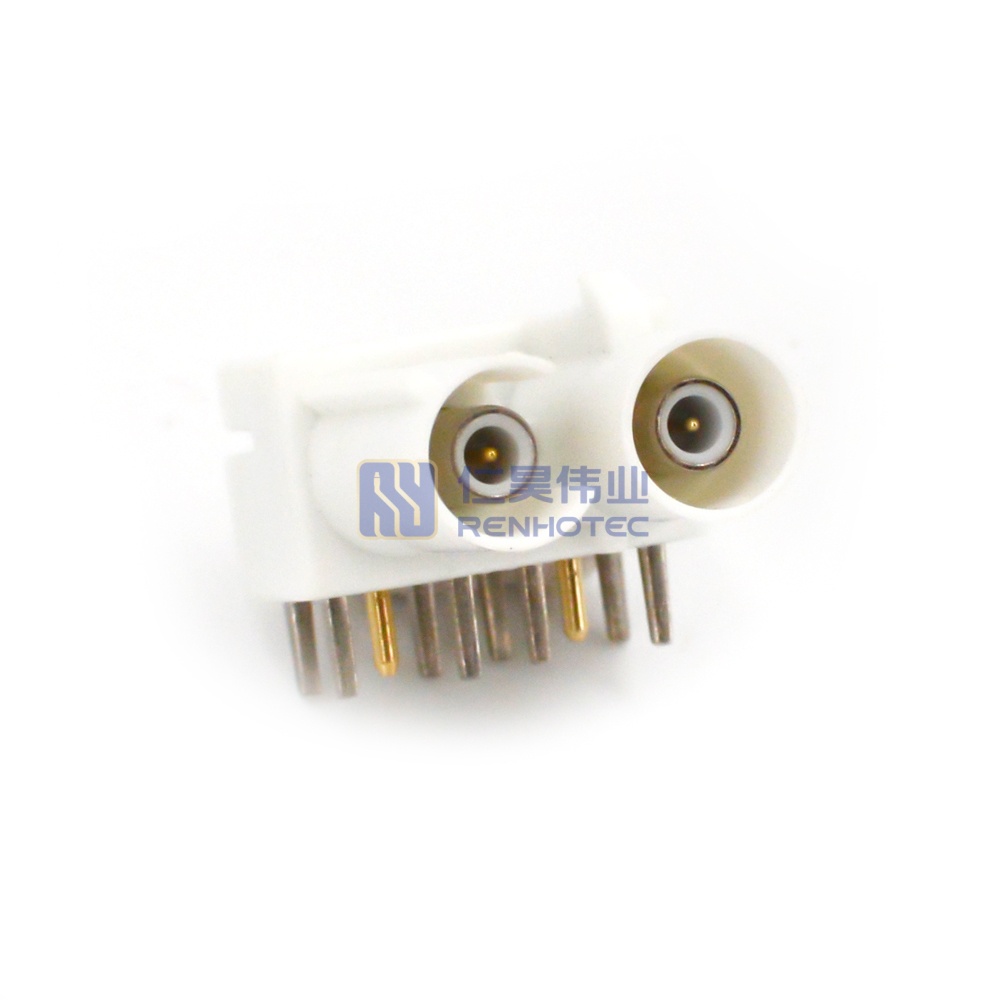

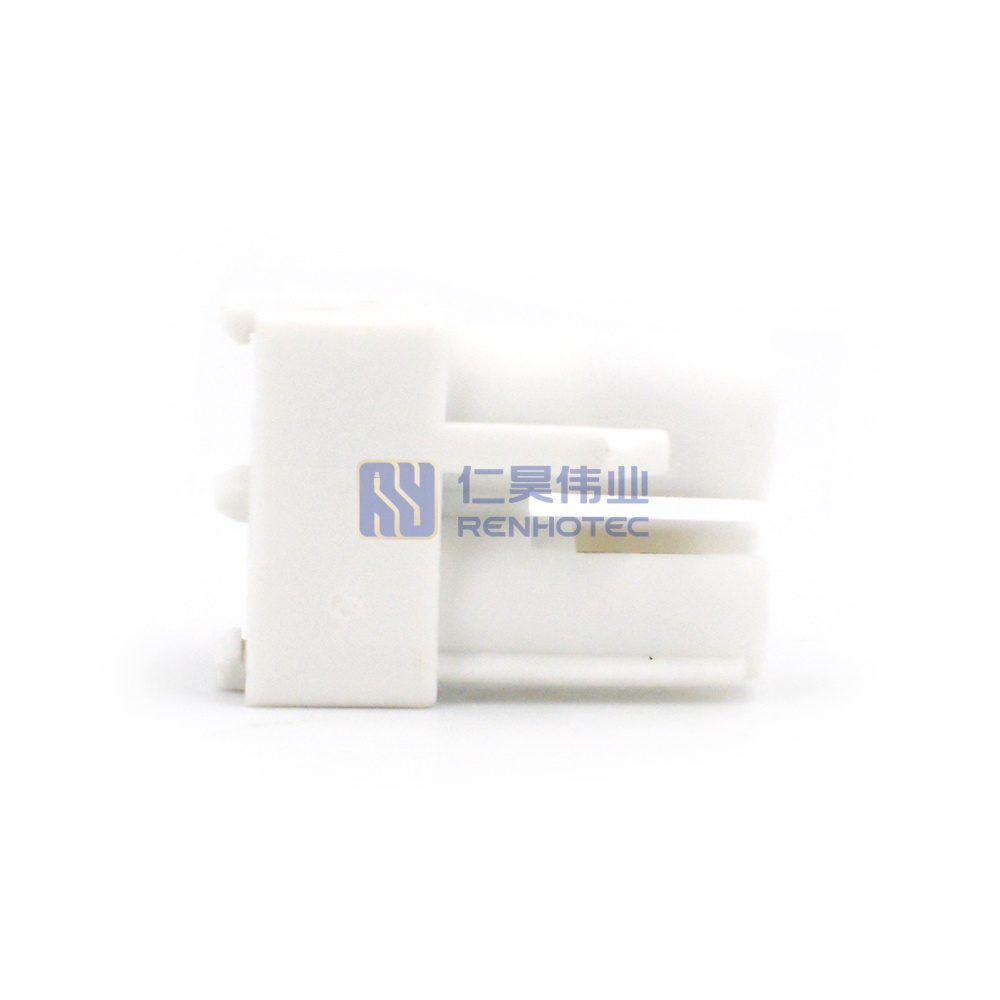

Dual Fakra Male B Code R/A PCB Mount Connector for GMSL Video Link
| Part Number | 33-1401-0556 |
||
|---|---|---|---|
| Key Code | B |
||
| Part Number | 33-1401-0556 |
Key Code | B |
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Orientation | Right Angle |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | PCB |
||
| Cable Color | White |
||
| Number of Ports | 2 |
||
| Plastic Housing | PA66 |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | PTFE |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Impedance | 50Ω |
||
| Frequency - Max | DC～6GHz |
||
| Connector Type | Plug |
Orientation | Right Angle |
| Mounting Type | Panel Mount |
Mounting Feature | PCB |
| Cable Color | White |
Number of Ports | 2 |
| Plastic Housing | PA66 |
Shell Material | Brass |
| Shell Finish | Nickel Plated |
Insulator Material | PTFE |
| Contact Material | Brass |
Contact Finish | Gold Plated |
| Impedance | 50Ω |
Frequency - Max | DC～6GHz |
| 基本单位 | 个 |
|---|---|
| Part Number | 33-1401-0556 |
| Connector Type | Plug |
| Orientation | Right Angle |
| Mounting Type | Panel Mount |
| Mounting Feature | PCB |
| Cable Color | White |
| Key Code | B |
| Number of Ports | 2 |
| Plastic Housing | PA66 |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Insulator Material | PTFE |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Impedance | 50Ω |
| Frequency - Max | DC～6GHz |
With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.
Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.
PCB End (Male)
Cable End (Male)
Cable End (Female)
- Secure primary locking system with tactile and audible locking
- Shock and vibration resistant coded housing
- Protection against unintentional opening by protective bar and protective strips
- High axial holding power of the coaxial insert due to secondary locking
- Mechanical and color coding system with 14 different codes
- Fastening groove for cable connectors for chassis mounting
- Coaxial insert and cable freely rotatable in the housing
- Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
- Efficient, automated further processing option
- Customized packaging possible
 |
 |
 |
 |
 |
 |
 |
|
| Code | A | B | C | D | E | F | G |
| Color | Deep Black | Cream White | Signal Blue | Bordeaux Violet | Leaf Green | Brown | Blue Gray |
| Application | Radio with phantom supply | Radio without phantom supply | GPS telematics or navigation | GSM Cellular Phone | TV (UHF) | TV (VHF) | SDARS terrestrial |
 |
 |
 |
 |
 |
 |
 |
|
| Code | H | I | K | L | M | N | Z |
| Color | Violet | Beige | Curry Yellow | Carmine Red | Pastel Orange | Pastel Green | Water Blue |
| Application | GPS telematics and navigation | Bluetooth Controlled Parking Heating |
SDARS satellite | Not defined | Keyless entry Tire pressure monitoring |
Not defined | Neutral |
Technical Frequently Asked Questions
What are the advantages of using a Dual FAKRA B-Code connector in GMSL systems?
The Dual FAKRA design allows for two independent video or data channels within a single integrated housing, significantly reducing the PCB footprint. The B-Code (White) keying is a standard identification for specific imaging or display links, helping engineers maintain organized and error-free connections in multi-camera GMSL2 architectures.
Does this dual-port header support high-speed signal integrity?
Yes. This connector is engineered to maintain a precise 50 Ohm impedance across both ports. The shielding architecture is designed to minimize internal crosstalk between channels, making it suitable for high-bandwidth automotive protocols like GMSL and FPD-Link up to 6GHz.
