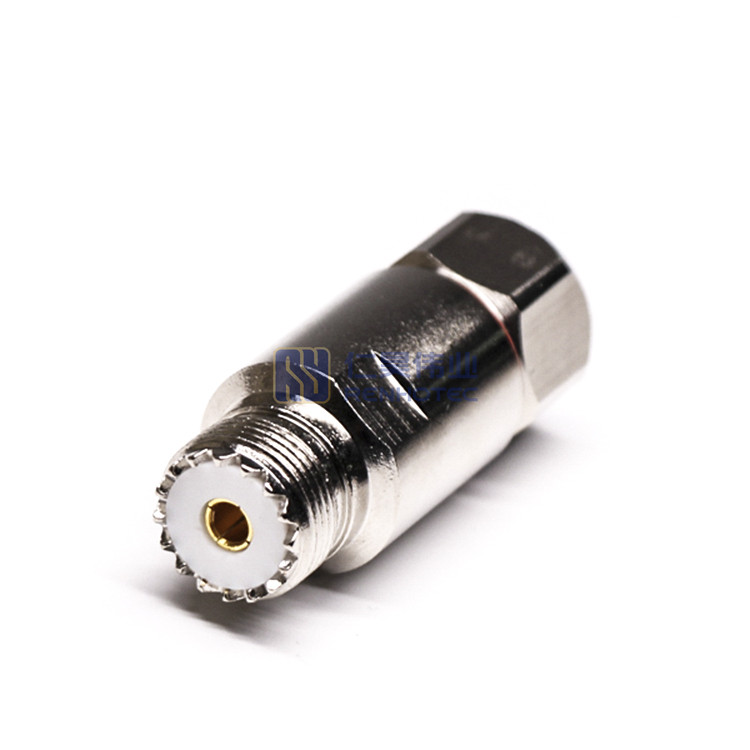

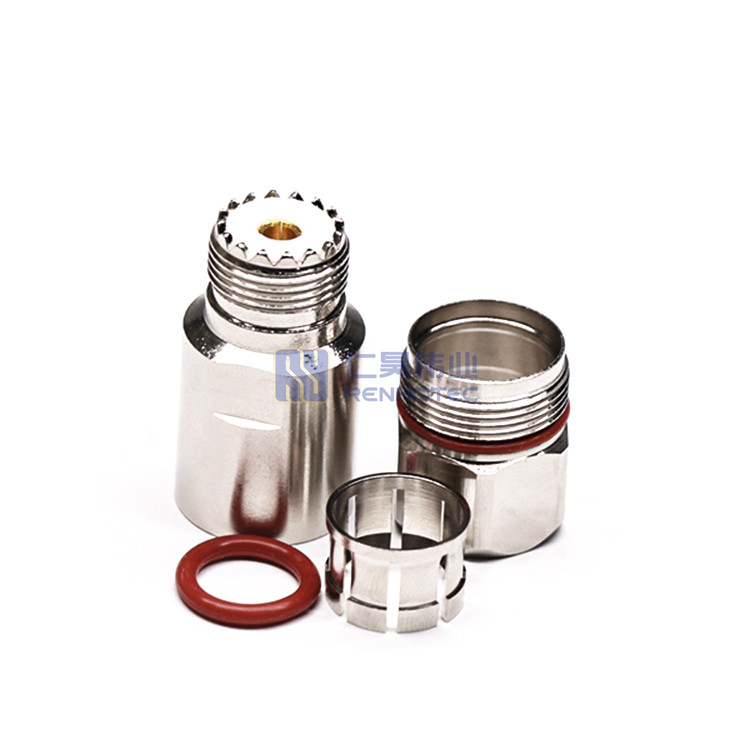

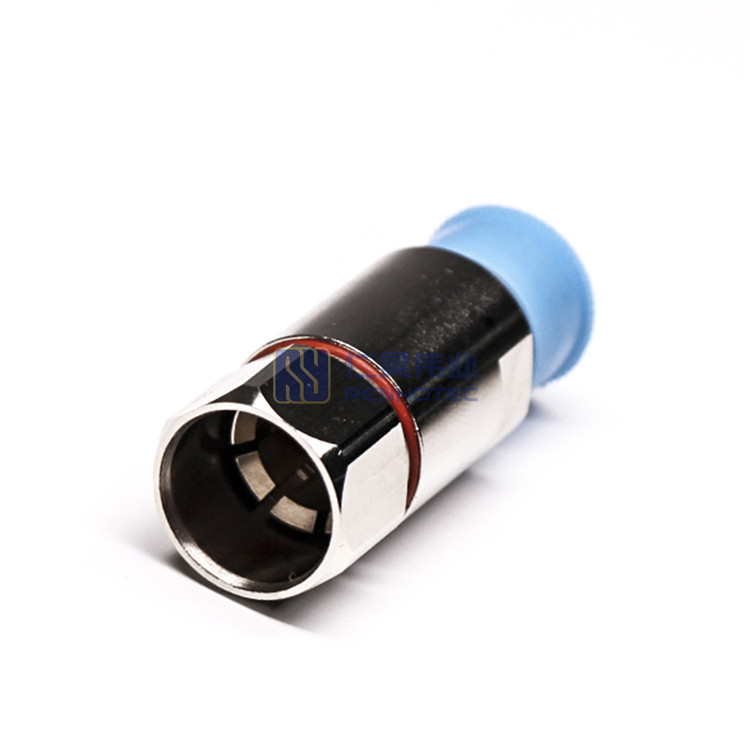

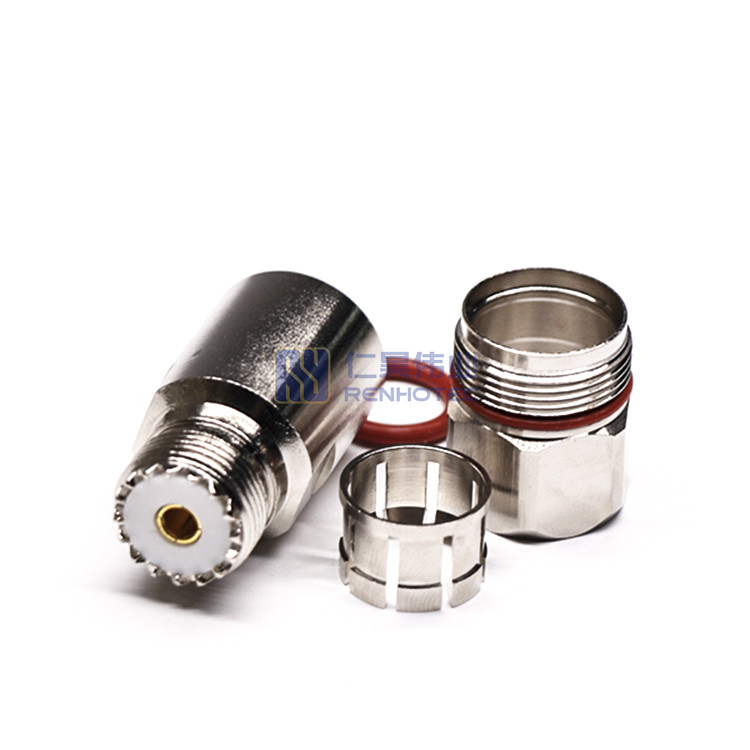

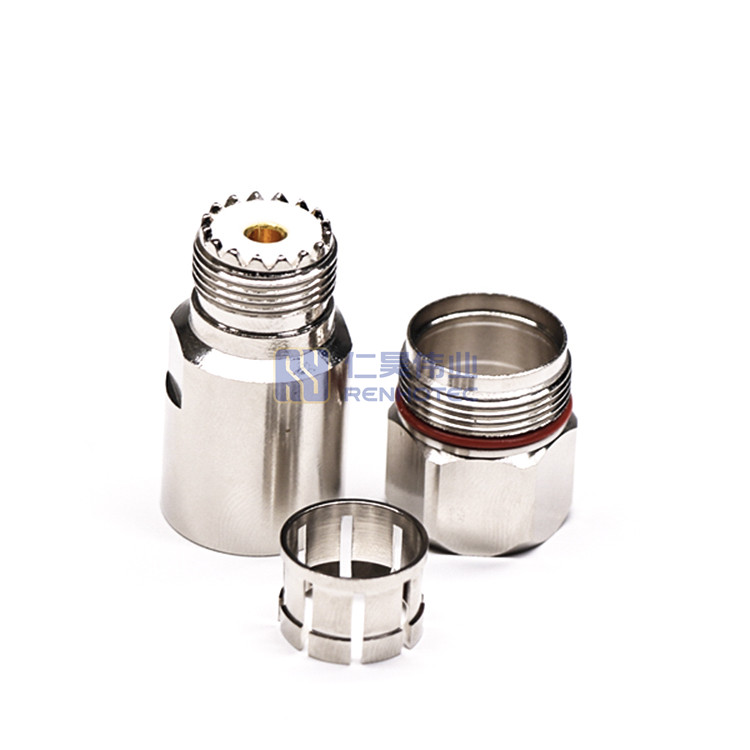

UHF Connector Straight Jack Clamp Cable Type
- Can be Customized for unique material or performance requirements
- Designed for low-frequency systems from 0.6-300MHz
- The threaded coupling mechanism is easy to assembly with high durability
- Reduce your cost for simple spec demands
UHF connector is designed in World War II or earlier, and invented in the 1930s by Amphenol engineer Edward Clarke Quackenbush for use in the radio industry. The most popular cable plug and corresponding chassis-mount socket carry the old Signal Corps nomenclatures PL-259 (plug) and SO-239 (socket).
The UHF connector is a name for a threaded RF connector. UHF coax connectors reliably carry signals at frequencies up to 100 MHz with thread coupling. Widely used for Antennas, Military, Public Address Systems, Low-frequency applications, etc.
UHF connectors feature a threaded coupling. UHF connectors are economical and popularly used because of their ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.
Interface
Application
Product Specification
| RF Series | UHF Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Orientation | Straight |
||
| Contact Type | Female Pin |
||
| Shield Termination | Clamp |
||
| Mounting Type | Cable Mount |
||
| Fastening Type | Threaded |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Frequency - Max | 300MHz |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | Teflon White |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Insultation Resistance | 5000 MΩ Min |
||
| Mating Durability | ≥500 cycles (For Beryllium Copper Contact) |
||
| Rated Voltage | 500 Volts Peak |
||
| Temperature Range | -55°C ~ +149°C (Mica-filled phenolic insulators), -55°C ~ +85°C (Copolymer of styrene and polystyrene), -65°C ~ +165°C (TFE insulators) |
||
| RF Series | UHF Type |
Connector Type | Jack |
| Orientation | Straight |
Contact Type | Female Pin |
| Shield Termination | Clamp |
Mounting Type | Cable Mount |
| Fastening Type | Threaded |
Number of Ports | 1 |
| Impedance | 50 ohm |
Frequency - Max | 300MHz |
| Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
| Insulator Material | Teflon White |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Insultation Resistance | 5000 MΩ Min |
| Mating Durability | ≥500 cycles (For Beryllium Copper Contact) |
Rated Voltage | 500 Volts Peak |
| Temperature Range | -55°C ~ +149°C (Mica-filled phenolic insulators), -55°C ~ +85°C (Copolymer of styrene and polystyrene), -65°C ~ +165°C (TFE insulators) |
| RF Series | UHF Type |
|---|---|
| Connector Type | Jack |
| Orientation | Straight |
| Contact Type | Female Pin |
| Shield Termination | Clamp |
| Mounting Type | Cable Mount |
| Fastening Type | Threaded |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Frequency - Max | 300MHz |
| Shell Material | Copper Alloy |
| Shell Finish | Nickel Plated |
| Insulator Material | Teflon White |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Insultation Resistance | 5000 MΩ Min |
| Mating Durability | ≥500 cycles (For Beryllium Copper Contact) |
| Rated Voltage | 500 Volts Peak |
| Temperature Range | -55°C ~ +149°C (Mica-filled phenolic insulators), -55°C ~ +85°C (Copolymer of styrene and polystyrene), -65°C ~ +165°C (TFE insulators) |
