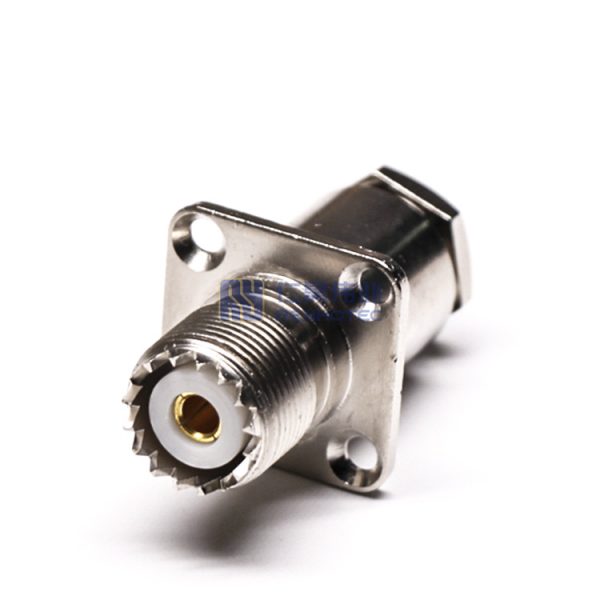

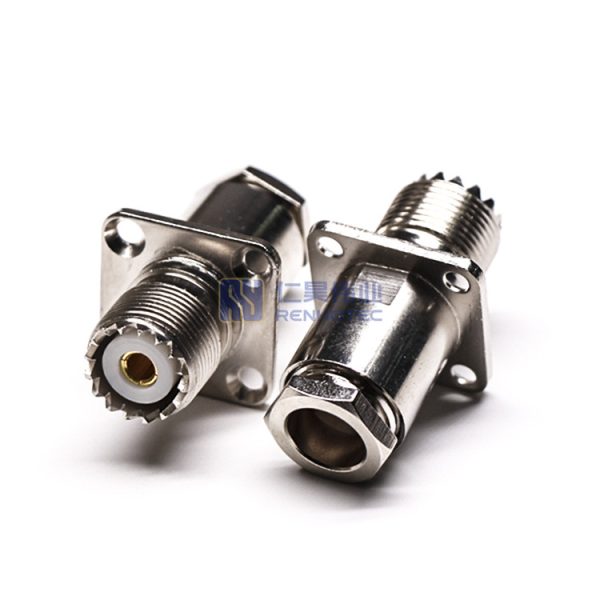

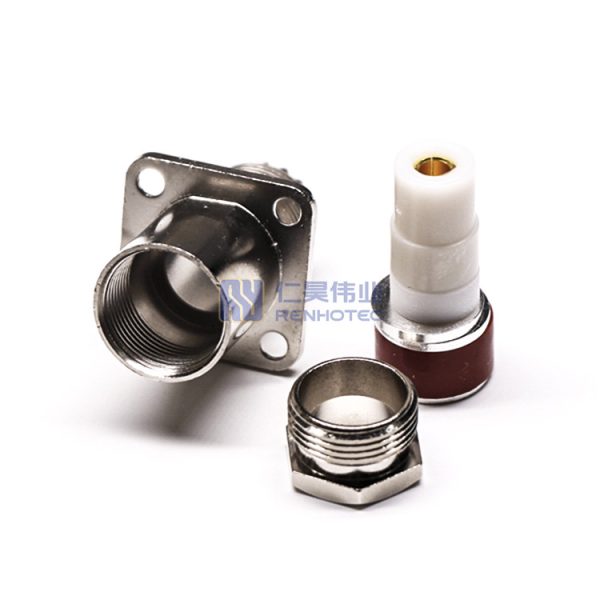

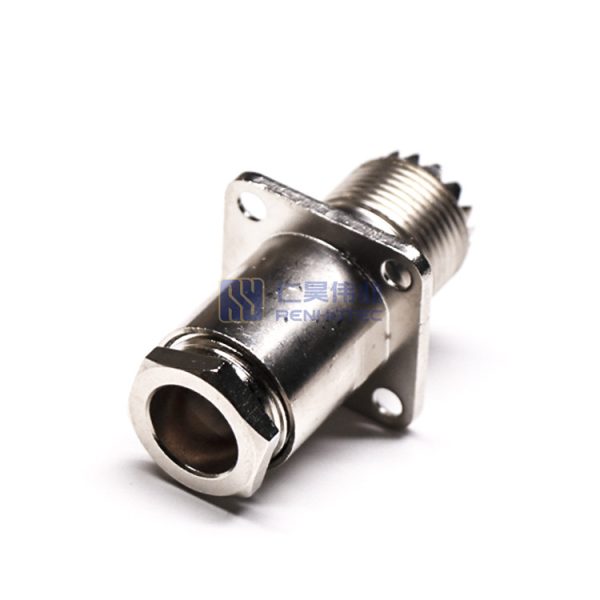

UHF Connector Straight Jack Clamp Panel Mount 4 Hole Flange – RHT-630-0121

High-quality UHF connector with straight jack design, ideal for panel mounting with 4 hole flange. Designed for secure and reliable RF connections in various applications.

UHF connector is designed in World War II or earlier, and invented in the 1930s by Amphenol engineer Edward Clarke Quackenbush for use in the radio industry. The most popular cable plug and corresponding chassis-mount socket carry the old Signal Corps nomenclatures PL-259 (plug) and SO-239 (socket).

The UHF connector is a name for a threaded RF connector. UHF coax connectors reliably carry signals at frequencies up to 100 MHz with thread coupling. Widely used for Antennas, Military, Public Address Systems, Low-frequency applications, etc.

UHF connectors feature a threaded coupling. UHF connectors are economical and popularly used because of their ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.

Interface

Application

Product Specification

RF Series

UHF Type

Connector Type

Jack

Orientation

Straight

Contact Type

Female Pin

Shield Termination

Clamp

Mounting Type

Panel Mount

Mounting Feature

4 Hole Flange

Fastening Type

Threaded

Number of Ports

1

Impedance

50 ohm

Frequency - Max

300MHz

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Insultation Resistance

5000 M? Min

Mating Durability

??500 cycles (For Beryllium Copper Contact)

Rated Voltage

500 Volts Peak

Temperature Range

-55??C ~ +149??C (Mica-filled phenolic insulators), -55??C ~ +85??C (Copolymer of styrene and polystyrene), -65??C ~ +165??C (TFE insulators)

RF Series

UHF Type

Connector Type

Jack

Orientation

Straight

Contact Type

Female Pin

Shield Termination

Clamp

Mounting Type

Panel Mount

Mounting Feature

4 Hole Flange

Fastening Type

Threaded

Number of Ports

1

Impedance

50 ohm

Frequency - Max

300MHz

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Insultation Resistance

5000 M? Min

Mating Durability

??500 cycles (For Beryllium Copper Contact)

Rated Voltage

500 Volts Peak

Temperature Range

-55??C ~ +149??C (Mica-filled phenolic insulators), -55??C ~ +85??C (Copolymer of styrene and polystyrene), -65??C ~ +165??C (TFE insulators)

RF Series

UHF Type

Connector Type

Jack

Orientation

Straight

Contact Type

Female Pin

Shield Termination

Clamp

Mounting Type

Panel Mount

Mounting Feature

4 Hole Flange

Fastening Type

Threaded

Number of Ports

1

Impedance

50 ohm

Frequency - Max

300MHz

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Contact Material

Brass

Contact Finish

Gold Plated

Insultation Resistance

5000 M? Min

Mating Durability

??500 cycles (For Beryllium Copper Contact)

Rated Voltage

500 Volts Peak

Temperature Range

-55??C ~ +149??C (Mica-filled phenolic insulators), -55??C ~ +85??C (Copolymer of styrene and polystyrene), -65??C ~ +165??C (TFE insulators)
