Threaded SMPM Male Surface Mount Smooth Bore – RHT-628-0016

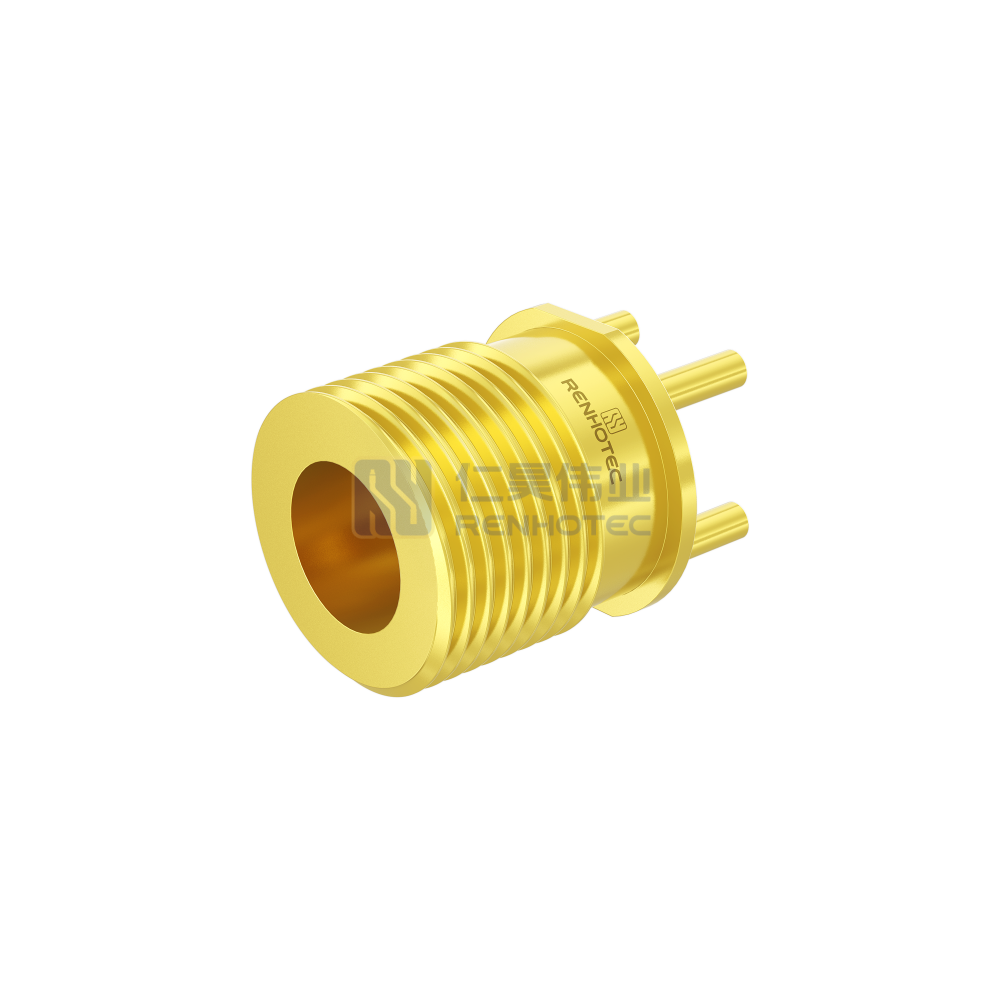

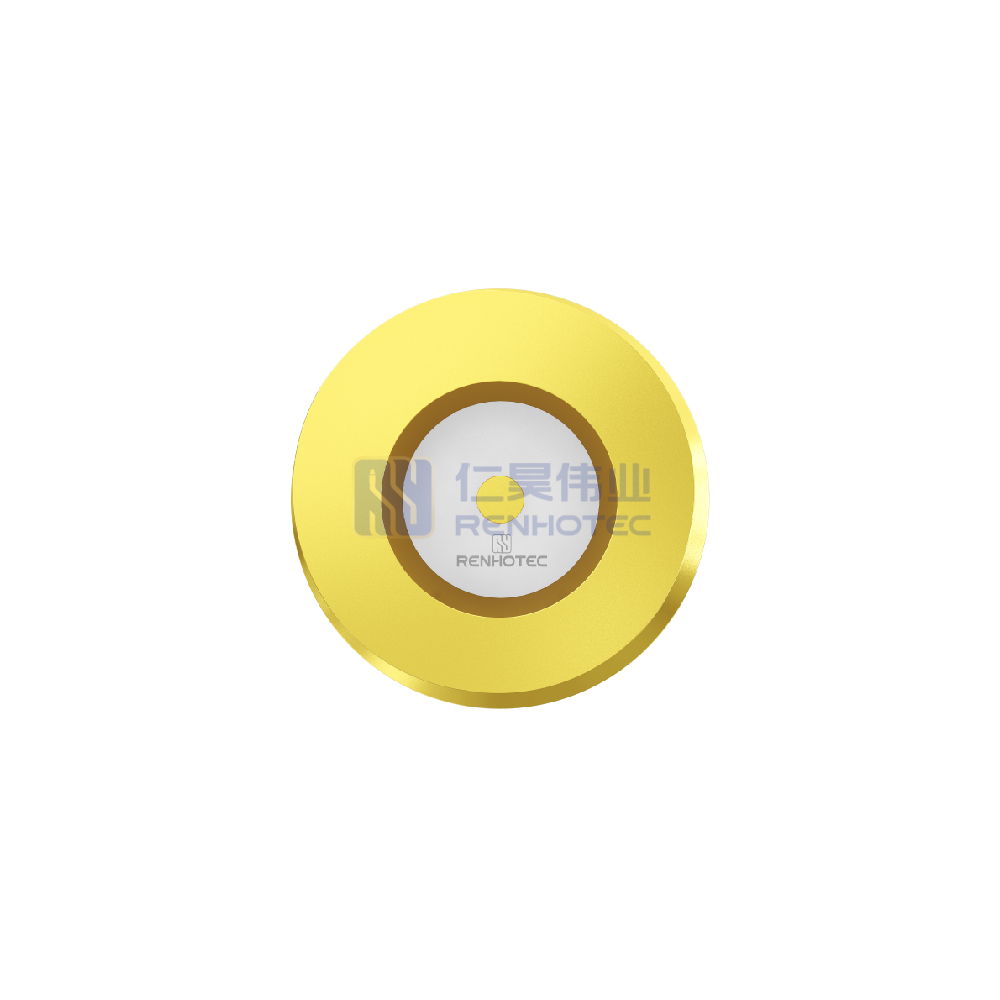

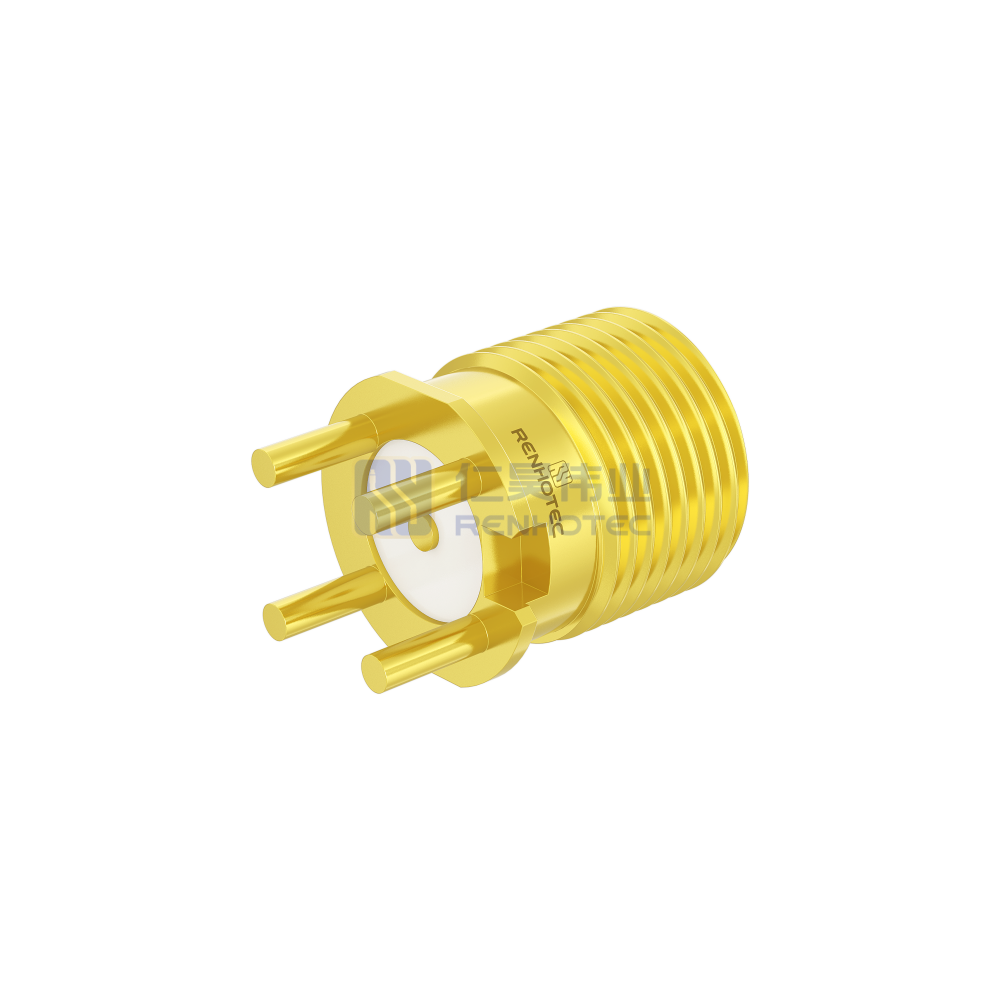

Threaded SMPM male connector, 50Ω, surface-mount smooth bore design with threaded coupling for secure mating, supports frequencies up to 65 GHz, suitable for high-speed digital and millimeter-wave applications requiring robust board-level RF interfaces.
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Contact Finish | Gold over Nickel |
||
| Contact Material | Brass |
||
| Contact Type | Male Pin |
||
| Frequency Range | DC-50GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | PEEK |
||
| Mounting Feature | SURFACE MOUNT |
||
| Mounting Type | PCB Mount |
||
| Orientation | Straight |
||
| RF Series | SMPM Type |
||
| Shell Finish | Gold over Nickel |
||
| Shell Material | Brass |
||
| Connector Type | Plug |
Contact Finish | Gold over Nickel |
| Contact Material | Brass |
Contact Type | Male Pin |
| Frequency Range | DC-50GHz |
Impedance | 50 ohm |
| Insulator Material | PEEK |
Mounting Feature | SURFACE MOUNT |
| Mounting Type | PCB Mount |
Orientation | Straight |
| RF Series | SMPM Type |
Shell Finish | Gold over Nickel |
| Shell Material | Brass |
| Connector Type | Plug |
|---|---|
| Contact Finish | Gold over Nickel |
| Contact Material | Brass |
| Contact Type | Male Pin |
| Frequency Range | DC-50GHz |
| Impedance | 50 ohm |
| Insulator Material | PEEK |
| Mounting Feature | SURFACE MOUNT |
| Mounting Type | PCB Mount |
| Orientation | Straight |
| RF Series | SMPM Type |
| Shell Finish | Gold over Nickel |
| Shell Material | Brass |
Renhotec Advantages
In-House Manufacturing
Support flexible manufacturing and order coordination.
Quality Control
Quality checks at key production stages help maintain product consistency and reliability.
Custom Engineering
OEM/ODM services, custom connector configurations, and prototype development.
Technical Support
Responsive assistance with product selection, configuration, and after-sales inquiries.
VSWR Test Report – SMP Connector Straight Plug
SMP RF Connectors for Compact, High-Frequency Applications
SMP connectors (GPO) are compact RF coaxial connectors designed for high-frequency signal transmission in applications where space efficiency and reliable electrical connections are important. Featuring a push-on coupling interface, SMP connectors support quick mating and compact interconnections in RF modules, microwave assemblies, and electronic equipment.
SMP Connector Types
Selecting the appropriate connector depends on the mating interface, mounting method, available space, and electrical design of the application.
Cable Mount
PCB Mount
Panel Mount
SMP Adapter
Features of SMP Connectors
- Interface Retention Styles
Full detent, limited detent, smooth bore and catcher’s mitt.
- 50 Ohm Impedance
For 50-ohm RF and microwave systems.
- Flexible Interconnections
Cable-to-board and board-to-board applications.
- Surface Mount Design
Standard surface mount and swept-contact configurations.
- Push-On & Blind Mate
Quick mating and blind-mate installation.
- Up to 40 GHz
Subject to connector configuration and specifications.
Applications
RF & Microwave Modules
SMP connectors are used to connect RF modules, amplifiers, filters, and PCB-mounted microwave circuits.
Antenna & Radar Systems
SMP provide compact coaxial connections between antenna elements, RF front-end modules, and circuit boards.
Test & Measurement Equipment
In RF test fixtures, microwave measurement modules, and compact test assemblies, SMP push-on mating interface allows convenient connection and disconnection during testing and equipment setup.
Aerospace & Satellite Electronics
SMP can be integrated into compact avionics, satellite communication, and RF subsystem assemblies where space-efficient interconnections are required. Blind-mate configurations can support connections between aligned electronic modules.
