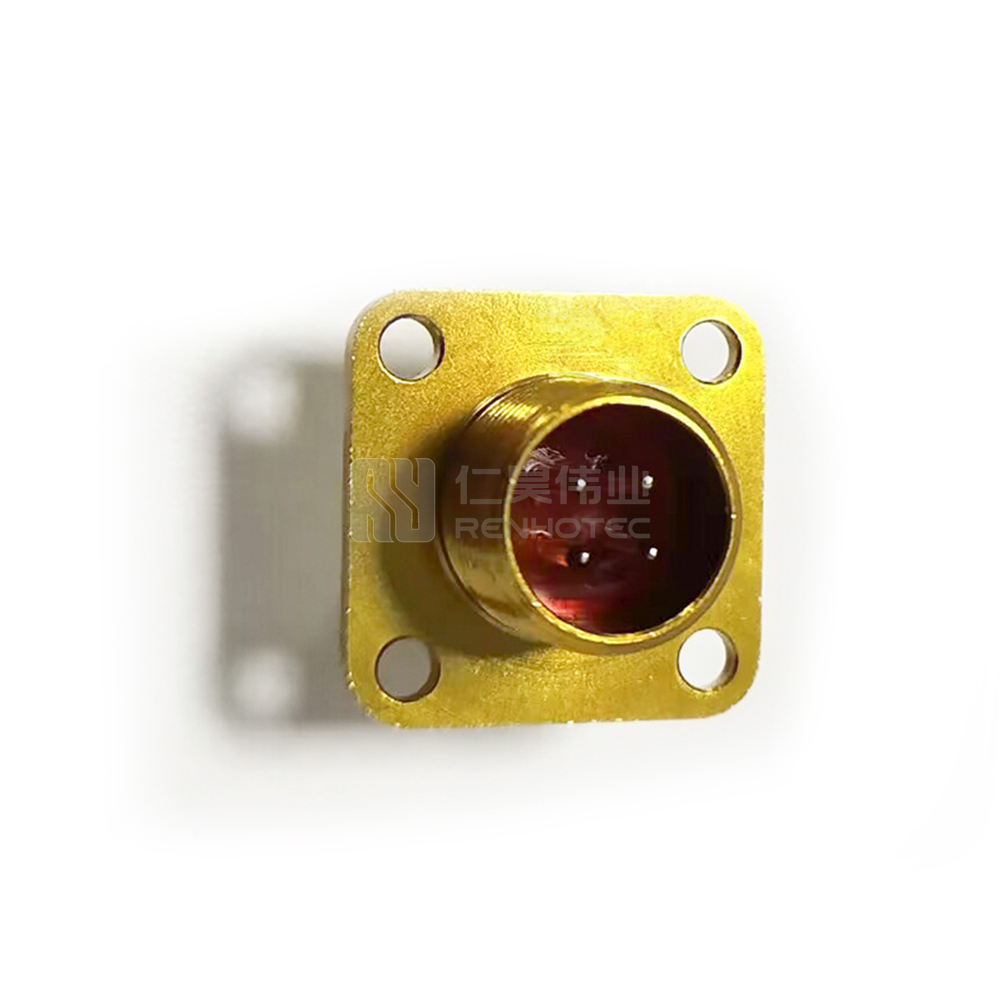

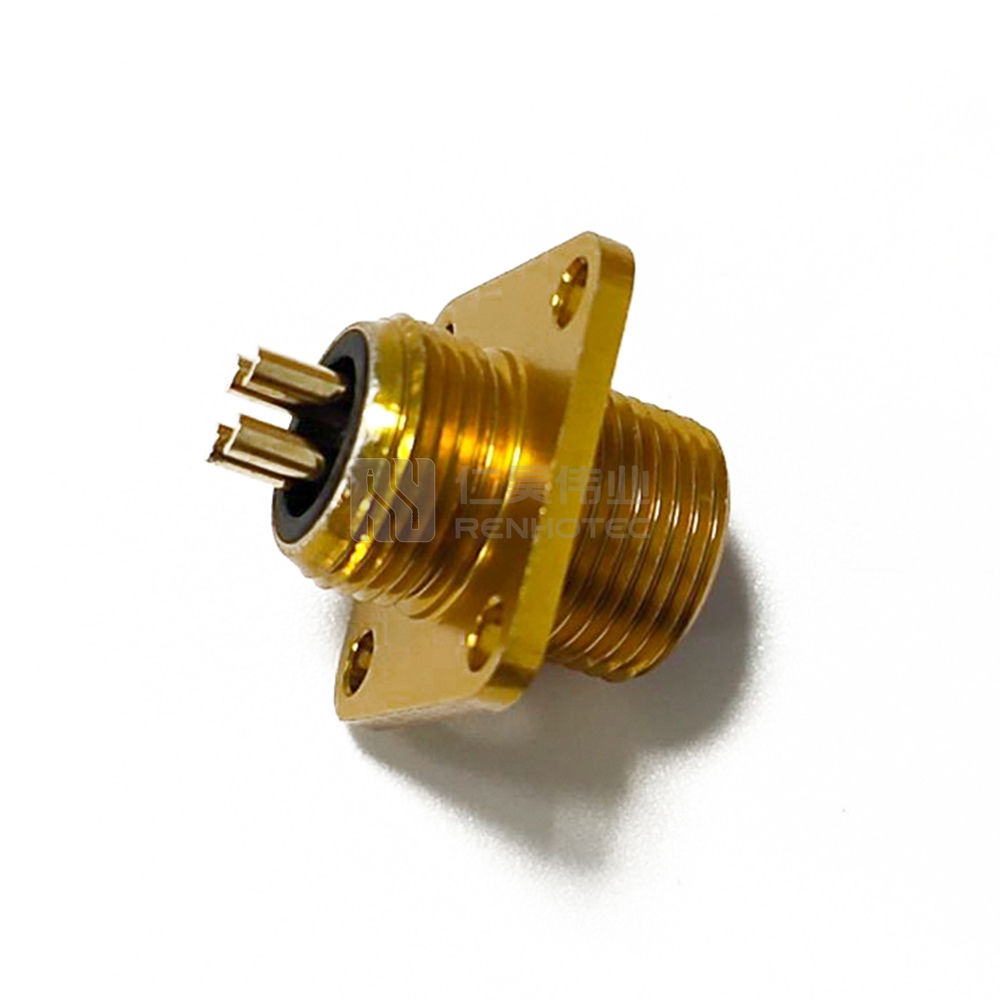

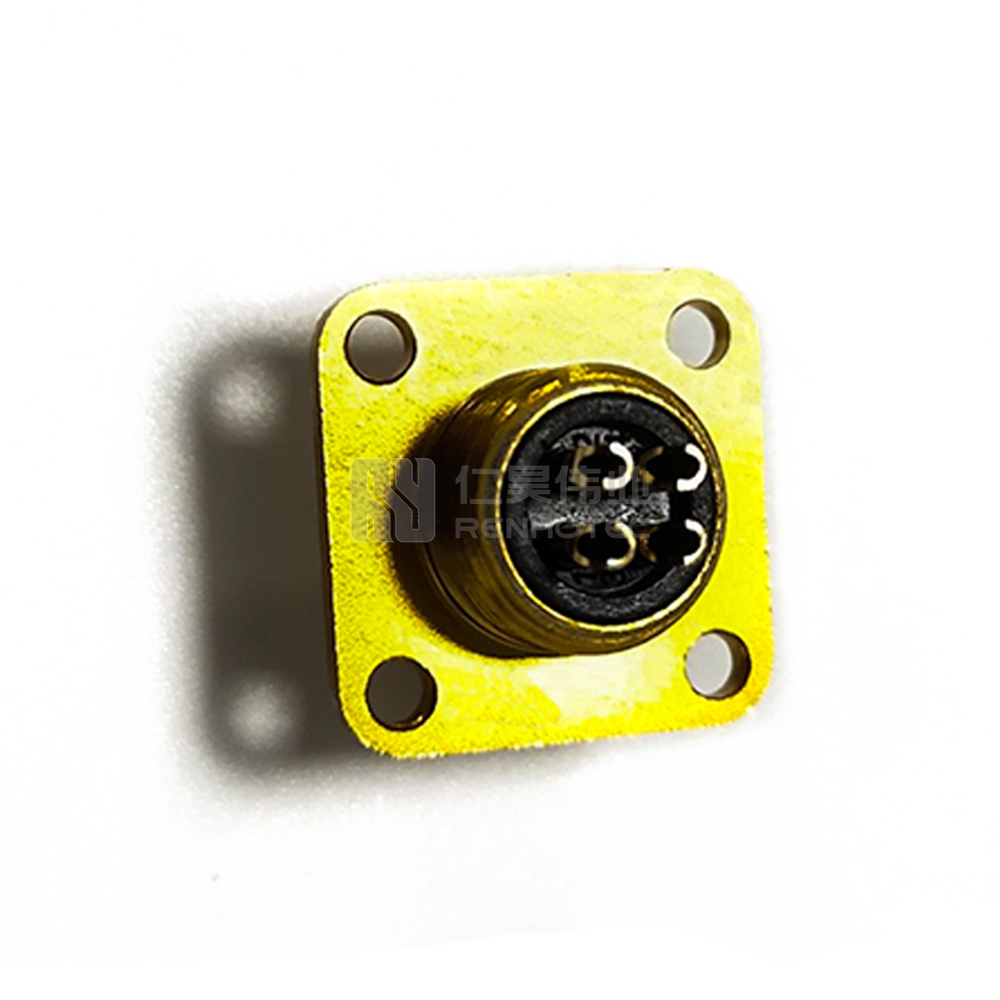

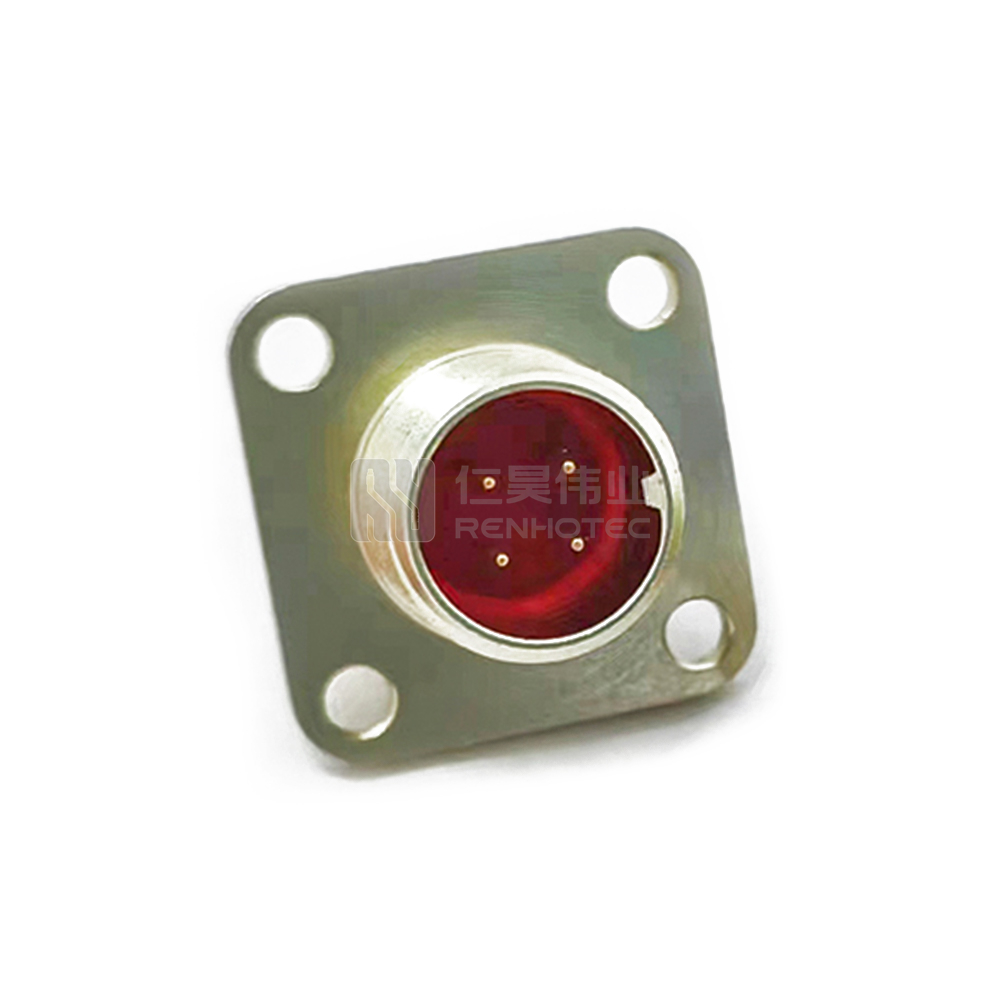

Threaded PC4ZJ 4 Pin Male Flange Socket Solder Cups

  • High Reliability: With metal housing and sealed structure, it can provide reliable connection and protection in harsh working environment.
  • Waterproof and dustproof: the connector has IP66 level waterproof and dustproof performance, able to work in wet and dusty environment.
  • Corrosion resistance: The connector’s shell is made of corrosion-resistant material, which can resist the erosion of chemicals and corrosive gases.
  • Multiple sizes and pin counts: The connectors offer a wide range of sizes and pin counts, suitable for different application scenarios and needs.

PC Series Russia Circular Connector

PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19.32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipments and instruments. There are two installation methods: flange type and cable type..

Product Number

Product Specification

Applications

  • Railroad Equipment
  • Outdoor LED Lights
  • Industrial Machinery
  • Generator
  • Automotive Manufacturing
  • Sensors
  • Intelligent Manufacturing
  • Construction Equipment
  • Excavators

Product Specification

Connector Type

Receptacle

Orientation

Straight

Contact Type

Male Pin

Number of Positions

4 Pin

Fastening Type

Threaded

Mounting Type

Panel Mount

Mounting Feature

Flange

Contact Termination Style

Solder Cup

Shell Material

Aluminum Alloy

Shell Finish

Gold Oxide

Insulator Material

PBT

Contact Material

Copper

Contact Finish

Gold Plated

Color

Golden Yellow/Light Yellow/Yellow Green

Ingress Protection

IP66

Rated Current

5A

Rated Voltage

200V

Operating Temperature

-40°C~+105°C

Connector Type

Receptacle

Orientation

Straight

Contact Type

Male Pin

Number of Positions

4 Pin

Fastening Type

Threaded

Mounting Type

Panel Mount

Mounting Feature

Flange

Contact Termination Style

Solder Cup

Shell Material

Aluminum Alloy

Shell Finish

Gold Oxide

Insulator Material

PBT

Contact Material

Copper

Contact Finish

Gold Plated

Color

Golden Yellow/Light Yellow/Yellow Green

Ingress Protection

IP66

Rated Current

5A

Rated Voltage

200V

Operating Temperature

-40°C~+105°C

Specifications

Wire Gauge

22~28AWG

Wire Gauge

22~28AWG

Connector Type

Receptacle

Orientation

Straight

Contact Type

Male Pin

Number of Positions

4 Pin

Fastening Type

Threaded

Mounting Type

Panel Mount

Mounting Feature

Flange

Contact Termination Style

Solder Cup

Wire Gauge

22~28AWG

Shell Material

Aluminum Alloy

Shell Finish

Gold Oxide

Insulator Material

PBT

Contact Material

Copper

Contact Finish

Gold Plated

Color

Golden Yellow/Light Yellow/Yellow Green

Ingress Protection

IP66

Rated Current

5A

Rated Voltage

200V

Operating Temperature

-40°C~+105°C
