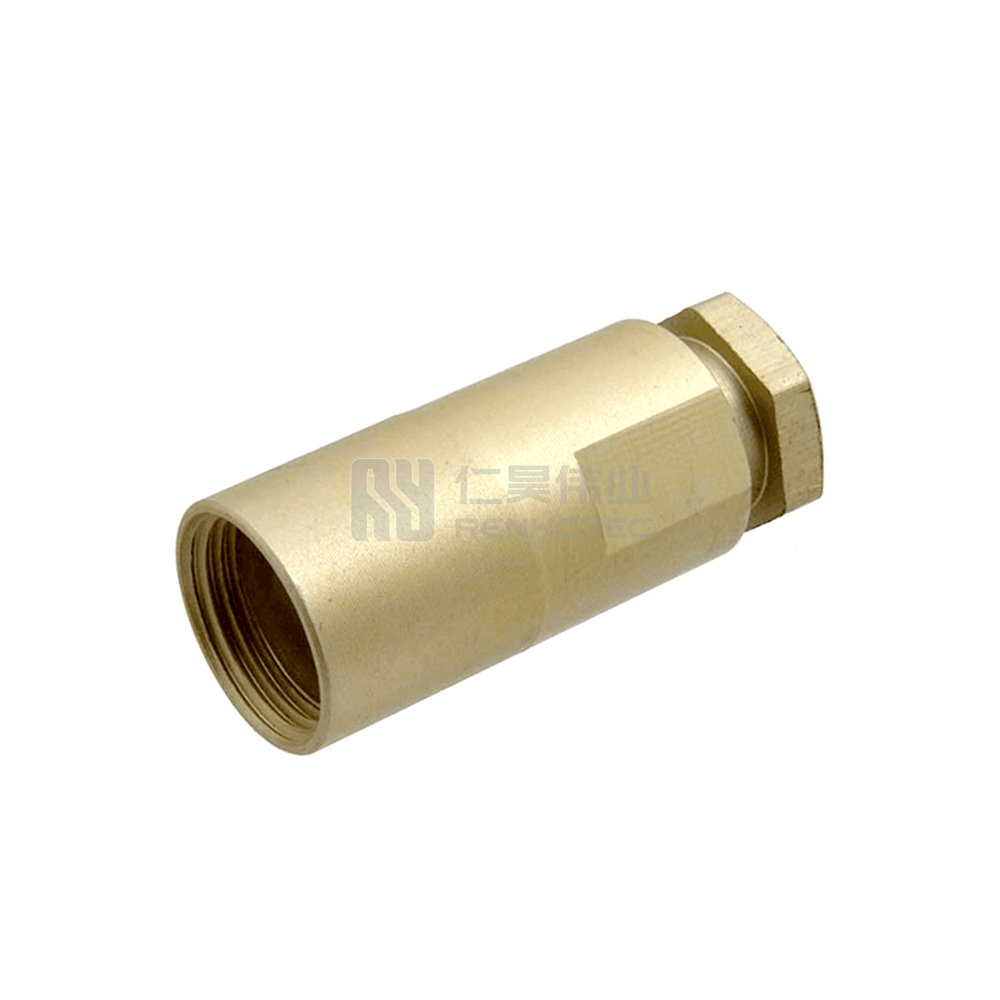

Threaded PC Series Casing
- High Reliability: With metal housing and sealed structure, it can provide reliable connection and protection in harsh working environment.
- Waterproof and dustproof: the connector has IP66 level waterproof and dustproof performance, able to work in wet and dusty environment.
- Corrosion resistance: The connector’s shell is made of corrosion-resistant material, which can resist the erosion of chemicals and corrosive gases.
- Multiple sizes and pin counts: The connectors offer a wide range of sizes and pin counts, suitable for different application scenarios and needs.
PC Series Russia Circular Connector
PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19.32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipments and instruments. There are two installation methods: flange type and cable type..
Product Number
Product Specification
Applications
- Railroad Equipment
- Outdoor LED Lights
- Industrial Machinery
- Generator
- Automotive Manufacturing
- Sensors
- Intelligent Manufacturing
- Construction Equipment
- Excavators
Product Specification
Connector Type | Casing |
||
---|---|---|---|
Orientation | Straight |
||
Fastening Type | Threaded |
||
Mounting Type | Cable Mount |
||
Contact Termination Style | Solder Cup |
||
Shell Material | Aluminum Alloy |
||
Shell Finish | Gold Oxide |
||
Insulator Material | PBT |
||
Contact Material | Copper |
||
Contact Finish | Gold Plated |
||
Color | Golden Yellow/Light Yellow/Yellow Green |
||
Ingress Protection | IP66 |
||
Rated Current | 5A |
||
Rated Voltage | 200V |
||
Operating Temperature | -40°C~+105°C |
||
Connector Type | Casing |
Orientation | Straight |
Fastening Type | Threaded |
Mounting Type | Cable Mount |
Contact Termination Style | Solder Cup |
Shell Material | Aluminum Alloy |
Shell Finish | Gold Oxide |
Insulator Material | PBT |
Contact Material | Copper |
Contact Finish | Gold Plated |
Color | Golden Yellow/Light Yellow/Yellow Green |
Ingress Protection | IP66 |
Rated Current | 5A |
Rated Voltage | 200V |
Operating Temperature | -40°C~+105°C |
Specifications
Wire Gauge | 22~28AWG |
---|---|
Wire Gauge | 22~28AWG |
Connector Type | Casing |
---|---|
Orientation | Straight |
Fastening Type | Threaded |
Mounting Type | Cable Mount |
Contact Termination Style | Solder Cup |
Wire Gauge | 22~28AWG |
Shell Material | Aluminum Alloy |
Shell Finish | Gold Oxide |
Insulator Material | PBT |
Contact Material | Copper |
Contact Finish | Gold Plated |
Color | Golden Yellow/Light Yellow/Yellow Green |
Ingress Protection | IP66 |
Rated Current | 5A |
Rated Voltage | 200V |
Operating Temperature | -40°C~+105°C |
