PC series small circular electrical connectors are small in size, with metal aluminum shell, light in weight, threaded connection, reliable electrical connection and easy to use. Currently there are 4, 7, 10, 19.32, 50 cores, which can interchanged with Russian PC-4, 7, 10, 19, 32, 50 core products. Widely used in electrical circuit connection on radio and electrical equipments and instruments. There are two installation methods: flange type and cable type..
Product Number
Product Specification
Applications
Railroad Equipment
Outdoor LED Lights
Industrial Machinery
Generator
Automotive Manufacturing
Sensors
Intelligent Manufacturing
Construction Equipment
Excavators

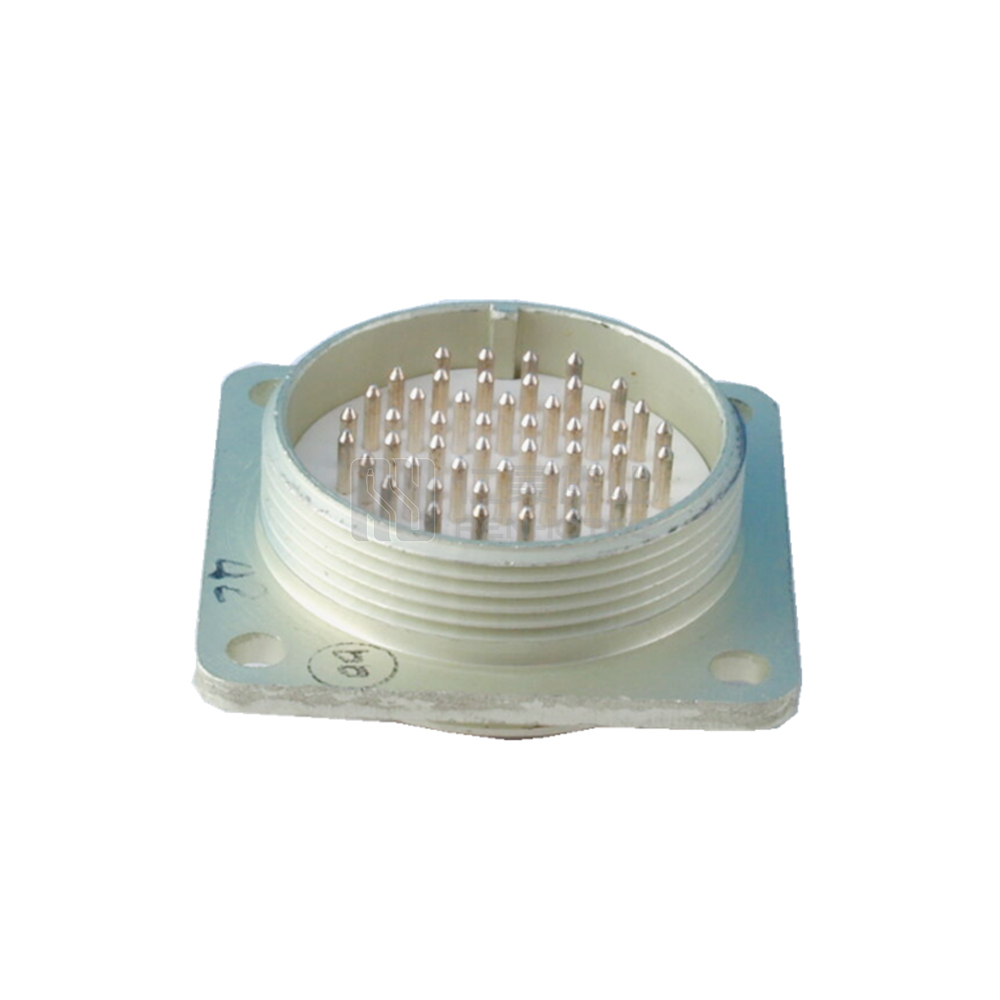

Product Specification
Connector Type
Receptacle
Orientation
Straight
Contact Type
Male Pin
Number of Positions
50 Pin
Fastening Type
Threaded
Mounting Type
Panel Mount
Mounting Feature
Flange
Contact Termination Style
Solder Cup
Shell Material
Aluminum Alloy
Shell Finish
Gold Oxide
Insulator Material
PBT
Contact Material
Copper
Contact Finish
Gold Plated
Color
Golden Yellow/Light Yellow/Yellow Green
Ingress Protection
IP66
Rated Current
5A
Rated Voltage
200V
Operating Temperature
-40°C～+105°C
Connector Type
Receptacle
Orientation
Straight
Contact Type
Male Pin
Number of Positions
50 Pin
Fastening Type
Threaded
Mounting Type
Panel Mount
Mounting Feature
Flange
Contact Termination Style
Solder Cup
Shell Material
Aluminum Alloy
Shell Finish
Gold Oxide
Insulator Material
PBT
Contact Material
Copper
Contact Finish
Gold Plated
Color
Golden Yellow/Light Yellow/Yellow Green
Ingress Protection
IP66
Rated Current
5A
Rated Voltage
200V
Operating Temperature
-40°C～+105°C
Specifications
Wire Gauge
22～28AWG
Wire Gauge
22～28AWG
Connector Type
Receptacle
Orientation
Straight
Contact Type
Male Pin
Number of Positions
50 Pin
Fastening Type
Threaded
Mounting Type
Panel Mount
Mounting Feature
Flange
Contact Termination Style
Solder Cup
Wire Gauge
22～28AWG
Shell Material
Aluminum Alloy
Shell Finish
Gold Oxide
Insulator Material
PBT
Contact Material
Copper
Contact Finish
Gold Plated
Color
Golden Yellow/Light Yellow/Yellow Green
Ingress Protection
IP66
Rated Current
5A
Rated Voltage
200V
Operating Temperature
-40°C～+105°C
