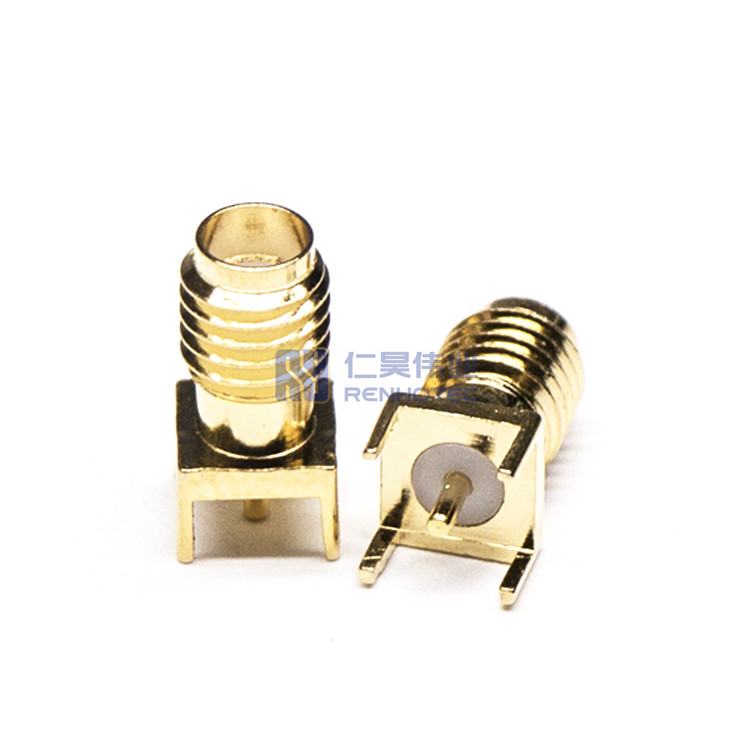

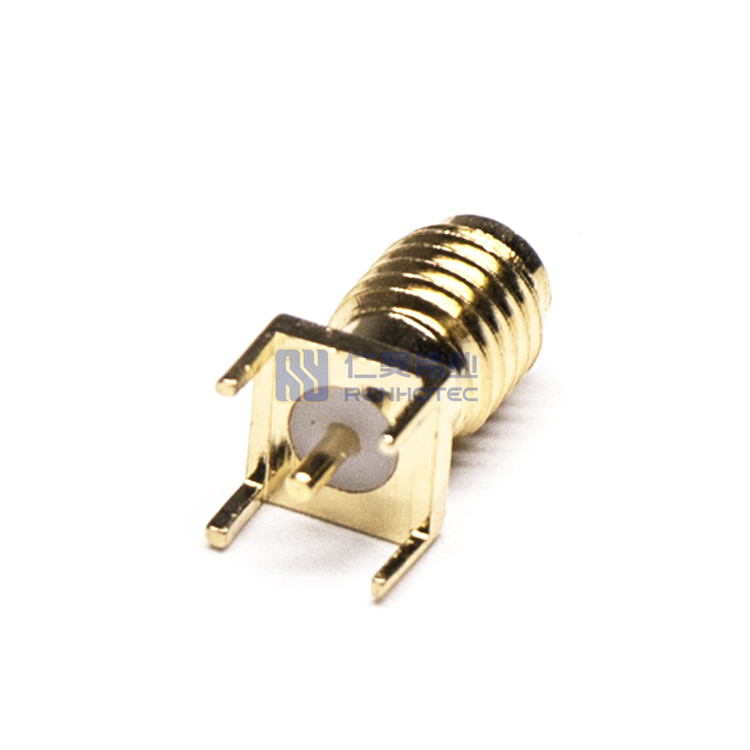

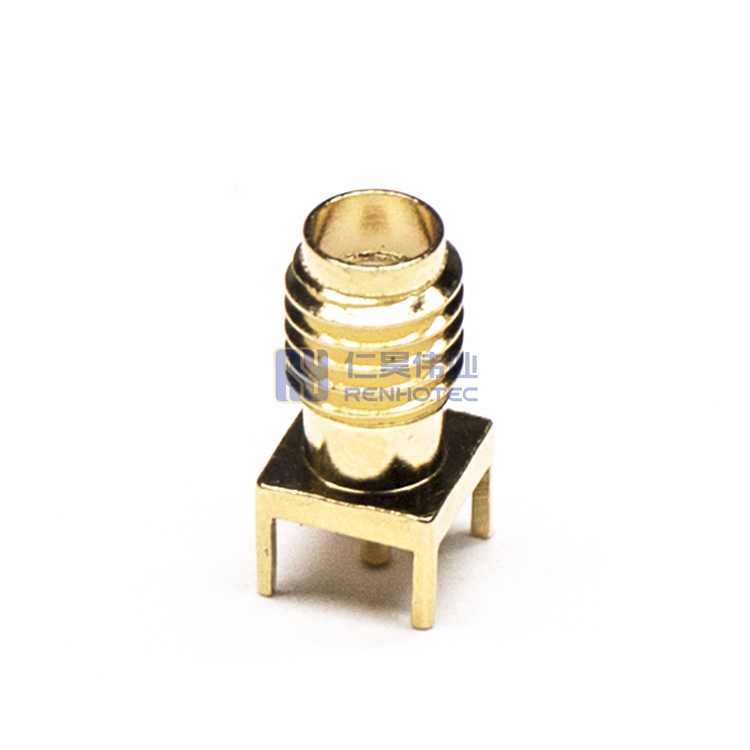

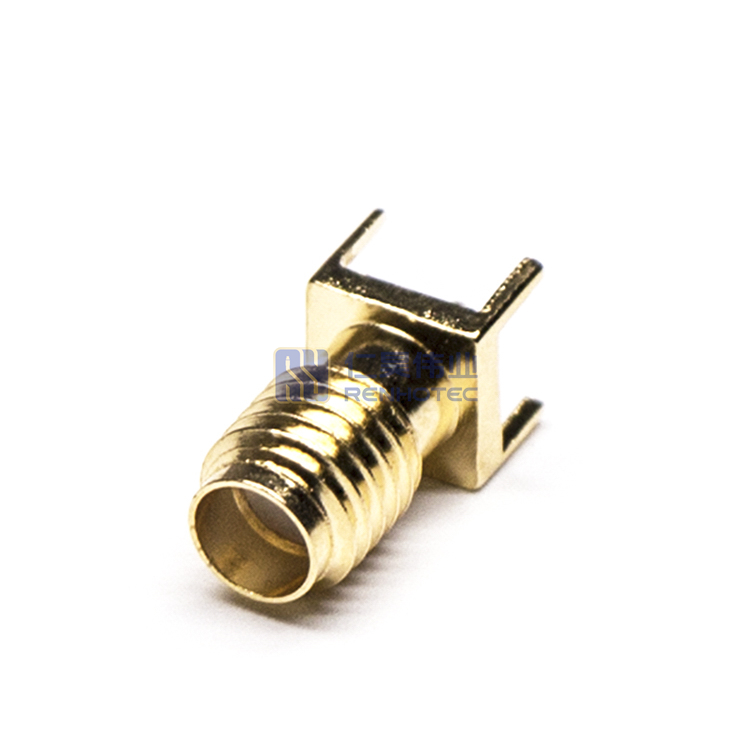

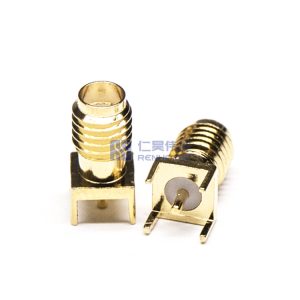

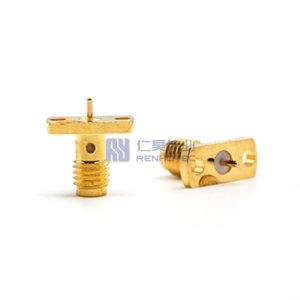

SSMA Connector Straight Jack Solder Panel Mount Through Hole
- Space-saving alternative to standard SMA
- 50 Ohm nominal impedance
- Ideal for high-frequency applications
- The threaded coupling mechanism provides reliability for rugged designs
SSMA connector is a 50 Ohm nominal impedance RF connector that utilizes a 10–36 threaded coupling and is essentially a scaled-down version of the SMA. They are characterized by compactness, high-frequency bandwidth, and highly reliable mechanical performance. The male contact was designed to be the same size as the cable conductor so that it could be used as the mating pin for optimized VSWR. Common applications included Mil-Aero, telecommunications, RFID, antennas, test and measurement, and radar systems.
Drawing of SSMA Connector
Product Specification
| RF Series | SSMA Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Orientation | Straight |
||
| Contact Termination Style | Solder |
||
| Shield Termination | Solder |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Through Hole |
||
| Fastening Type | Threaded |
||
| Impedance | 50 ohm |
||
| Insulator Material | Teflon White |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Gold Plated |
||
| Contact Material | Phosphor Bronze |
||
| Contact Finish | Gold Plated |
||
| Frequency Range | 0~6 GHz |
||
| Insultation Resistance | 5000 MΩ Min |
||
| Mating Durability | ≥ 500 Cycles |
||
| Working Voltage | 500 V rms |
||
| VSWR | 1.5MAX |
||
| Temperature Range | -55°C to +155°C |
||
| RF Series | SSMA Type |
Connector Type | Jack |
| Contact Type | Female Pin |
Orientation | Straight |
| Contact Termination Style | Solder |
Shield Termination | Solder |
| Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
| Fastening Type | Threaded |
Impedance | 50 ohm |
| Insulator Material | Teflon White |
Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
Contact Material | Phosphor Bronze |
| Contact Finish | Gold Plated |
Frequency Range | 0~6 GHz |
| Insultation Resistance | 5000 MΩ Min |
Mating Durability | ≥ 500 Cycles |
| Working Voltage | 500 V rms |
VSWR | 1.5MAX |
| Temperature Range | -55°C to +155°C |
| RF Series | SSMA Type |
|---|---|
| Connector Type | Jack |
| Contact Type | Female Pin |
| Orientation | Straight |
| Contact Termination Style | Solder |
| Shield Termination | Solder |
| Mounting Type | Panel Mount |
| Mounting Feature | Through Hole |
| Fastening Type | Threaded |
| Impedance | 50 ohm |
| Insulator Material | Teflon White |
| Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold Plated |
| Frequency Range | 0~6 GHz |
| Insultation Resistance | 5000 MΩ Min |
| Mating Durability | ≥ 500 Cycles |
| Working Voltage | 500 V rms |
| VSWR | 1.5MAX |
| Temperature Range | -55°C to +155°C |
