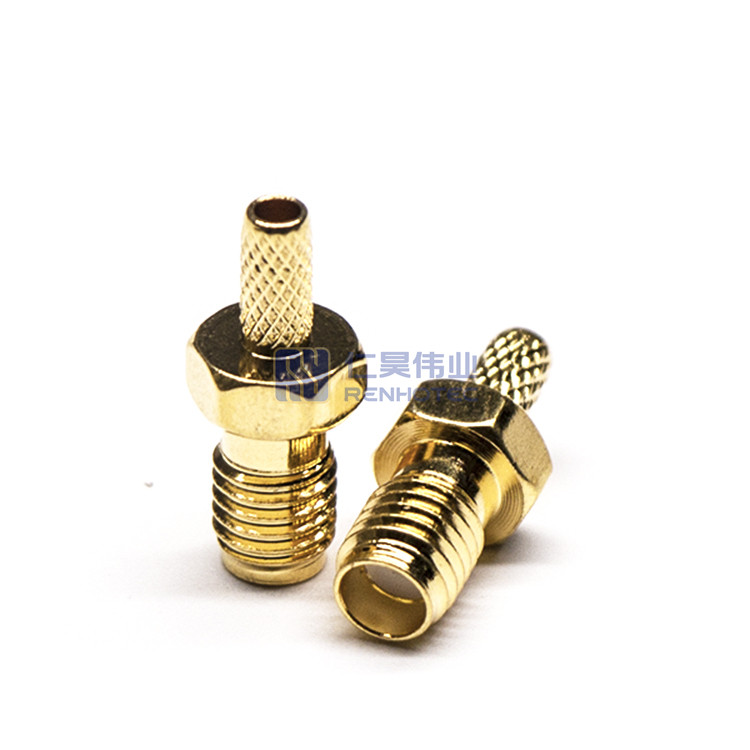

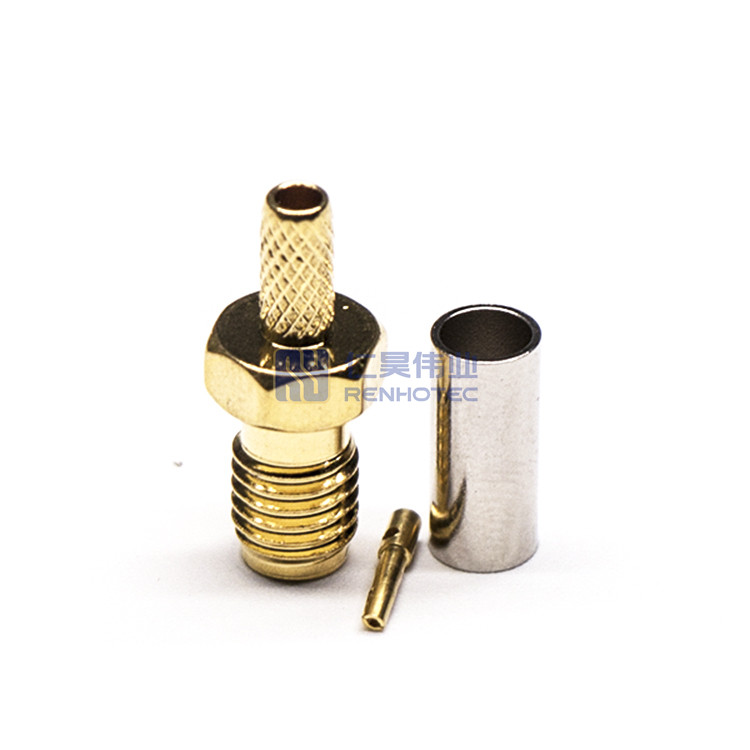

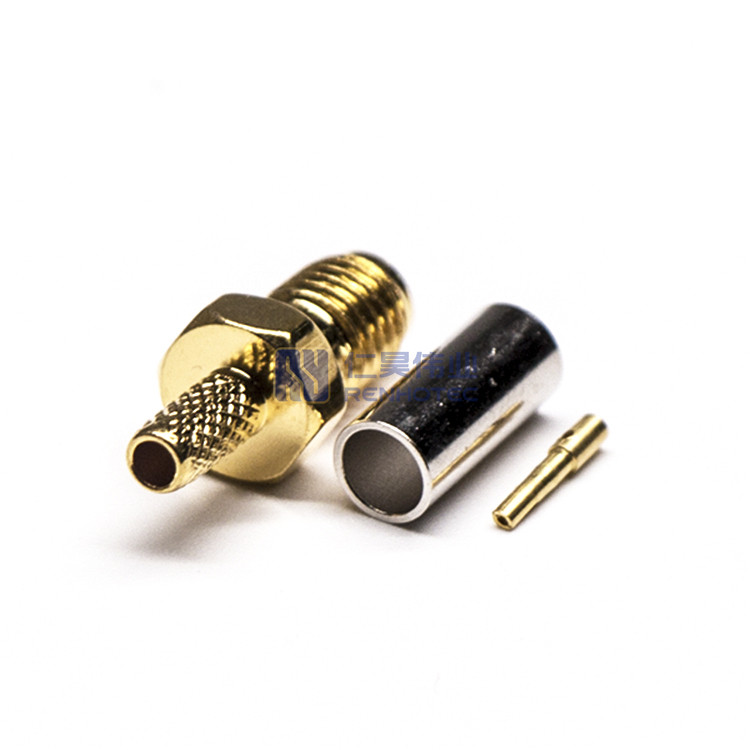

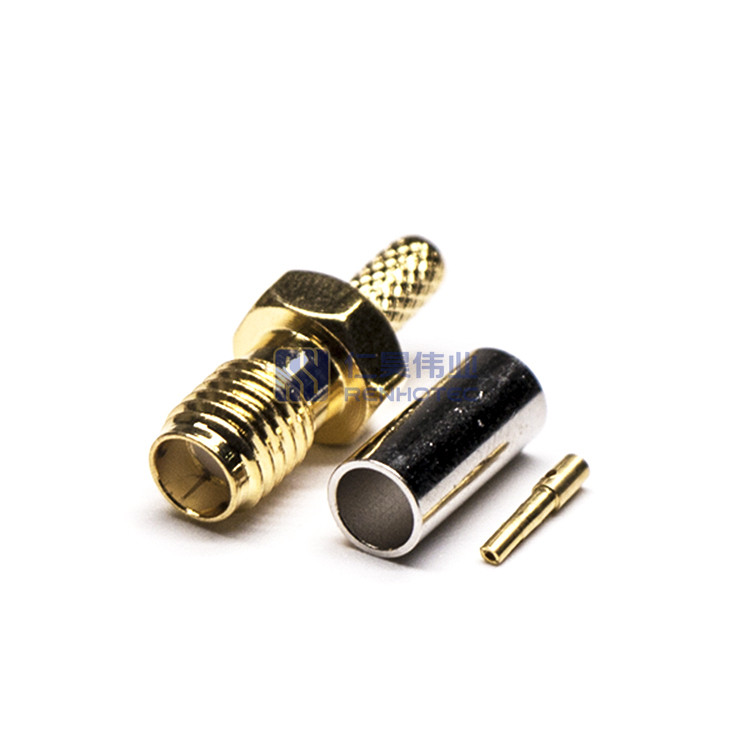

SSMA Connector Straight Jack Crimp Cable Type 50ohm

SKU: RHT-624-0003 Category:

Introduction

  • Space-saving alternative to standard SMA
  • 50 Ohm nominal impedance
  • Ideal for high-frequency applications
  • The threaded coupling mechanism provides reliability for rugged designs

SSMA connector is a 50 Ohm nominal impedance RF connector that utilizes a 10–36 threaded coupling and is essentially a scaled-down version of the SMA. They are characterized by compactness, high-frequency bandwidth, and highly reliable mechanical performance. The male contact was designed to be the same size as the cable conductor so that it could be used as the mating pin for optimized VSWR. Common applications included telecommunications, RFID, antennas, test and measurement, and radar systems.

Drawing of SSMA Connector

Product Specification

RF Series

SSMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Threaded

Impedance

50 ohm

Insulator Material

Teflon White

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

Frequency Range

0~6 GHz

Insultation Resistance

5000 MΩ Min

Mating Durability

≥ 500 Cycles

Working Voltage

500 V rms

VSWR

1.5MAX

Temperature Range

-55°C to +155°C

RF Series

SSMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Threaded

Impedance

50 ohm

Insulator Material

Teflon White

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

Frequency Range

0~6 GHz

Insultation Resistance

5000 MΩ Min

Mating Durability

≥ 500 Cycles

Working Voltage

500 V rms

VSWR

1.5MAX

Temperature Range

-55°C to +155°C

RF Series

SSMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Threaded

Impedance

50 ohm

Insulator Material

Teflon White

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

Frequency Range

0~6 GHz

Insultation Resistance

5000 MΩ Min

Mating Durability

≥ 500 Cycles

Working Voltage

500 V rms

VSWR

1.5MAX

Temperature Range

-55°C to +155°C
