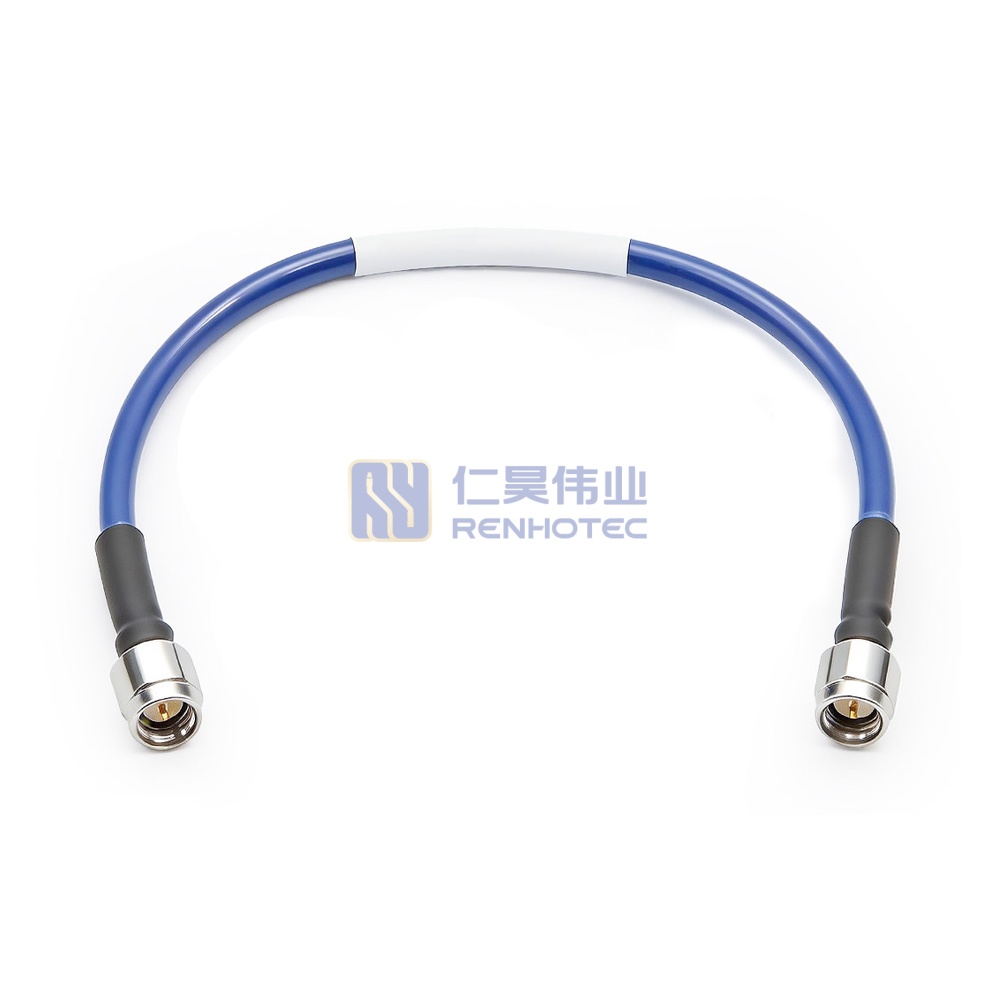

SMA Low Loss Phase Stable RF Test Cable, O.D. 3.6mm, Coaxial RF Cable, 18GHz – RHT-605-20645
| 1st Conn Outer Material | Stainless Steel Passivation |
||
|---|---|---|---|
| 1st Conn Inner Material | Brass Gold Plating |
||
| 2nd Conn Outer Material | Stainless Steel Passivation |
||
| 2nd Conn Inner Material | Brass Gold Plating |
||
| Operating Frequency | 40GHz |
||
| Velocity of Propagation | 0.76 |
||
| Static Bend Radius | 18mm |
||
| Dynamic Bend Radius | 36mm |
||
| Center Conductor Diameter | 0.72mm |
||
| Insulation Material | Low Density PTFE |
||
| Dielectric Layer Diameter | 2.05mm |
||
| Inner Shield Diameter | 2.22mm |
||
| Outer Shield Diameter | 2.66mm |
||
| Outer Jacket Material | Blue PUR |
||
| Outer Jacket Diameter | 3.60mm |
||
| 1st Conn Outer Material | Stainless Steel Passivation |
1st Conn Inner Material | Brass Gold Plating |
| 2nd Conn Outer Material | Stainless Steel Passivation |
2nd Conn Inner Material | Brass Gold Plating |
| Operating Frequency | 40GHz |
Velocity of Propagation | 0.76 |
| Static Bend Radius | 18mm |
Dynamic Bend Radius | 36mm |
| Center Conductor Diameter | 0.72mm |
Insulation Material | Low Density PTFE |
| Dielectric Layer Diameter | 2.05mm |
Inner Shield Diameter | 2.22mm |
| Outer Shield Diameter | 2.66mm |
Outer Jacket Material | Blue PUR |
| Outer Jacket Diameter | 3.60mm |
Product Specification
| RF Cable 1st Connector | SMA |
||
|---|---|---|---|
| RF Cable 2nd Connector | SMA |
||
| 1st Contact Type | Male Pin |
||
| 2nd Contact Type | Male Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Frequency Range | DC-18GHz |
||
| VSWR | 1.2 |
||
| Impedance | 50Ω |
||
| Dielectric Withstanding Voltage | 1000V, DC |
||
| Operating Temperature | -55℃~+85℃ |
||
| RF Cable 1st Connector | SMA |
RF Cable 2nd Connector | SMA |
| 1st Contact Type | Male Pin |
2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Frequency Range | DC-18GHz |
VSWR | 1.2 |
| Impedance | 50Ω |
Dielectric Withstanding Voltage | 1000V, DC |
| Operating Temperature | -55℃~+85℃ |
| 1st Conn Outer Material | Stainless Steel Passivation |
|---|---|
| 1st Conn Inner Material | Brass Gold Plating |
| 2nd Conn Outer Material | Stainless Steel Passivation |
| 2nd Conn Inner Material | Brass Gold Plating |
| RF Cable 1st Connector | SMA |
| RF Cable 2nd Connector | SMA |
| 1st Contact Type | Male Pin |
| 2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Frequency Range | DC-18GHz |
| VSWR | 1.2 |
| Operating Frequency | 40GHz |
| Impedance | 50Ω |
| Velocity of Propagation | 0.76 |
| Dielectric Withstanding Voltage | 1000V, DC |
| Static Bend Radius | 18mm |
| Dynamic Bend Radius | 36mm |
| Operating Temperature | -55℃~+85℃ |
| Center Conductor Diameter | 0.72mm |
| Insulation Material | Low Density PTFE |
| Dielectric Layer Diameter | 2.05mm |
| Inner Shield Diameter | 2.22mm |
| Outer Shield Diameter | 2.66mm |
| Outer Jacket Material | Blue PUR |
| Outer Jacket Diameter | 3.60mm |
