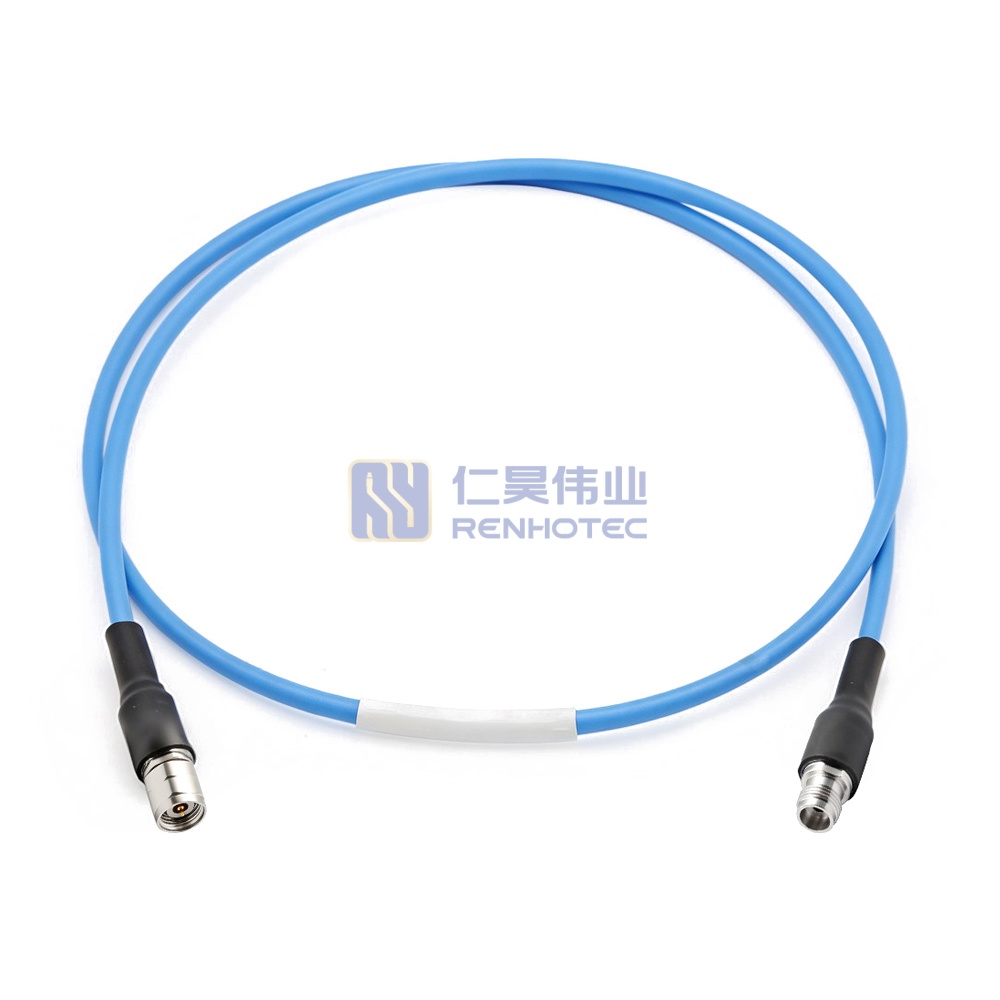

2.4mm RF Cable, 50GHz, O.D. 3.6mm, Low Loss, Phase Stable Cable Assembly – RHT-605-20644
| 1st Conn Outer Material | Stainless Steel Passivation |
||
|---|---|---|---|
| 1st Conn Inner Material | Beryllium Bronze Gold Plating |
||
| 2nd Conn Outer Material | Stainless Steel Passivation |
||
| 2nd Conn Inner Material | Beryllium Bronze Gold Plating |
||
| Operating Frequency | 50GHz |
||
| Velocity of Propagation | 0.76 |
||
| Shielding Effectiveness | >90dB |
||
| Static Bend Radius | 18mm |
||
| Dynamic Bend Radius | 36mm |
||
| Center Conductor Diameter | 0.72mm |
||
| Insulation Material | Low Density PTFE |
||
| Dielectric Layer Diameter | 2.10mm |
||
| Inner Shield Diameter | 2.25mm |
||
| Outer Shield Diameter | 3.01mm |
||
| Outer Jacket Material | Blue FEP |
||
| Outer Jacket Diameter | 3.60mm |
||
| 1st Conn Outer Material | Stainless Steel Passivation |
1st Conn Inner Material | Beryllium Bronze Gold Plating |
| 2nd Conn Outer Material | Stainless Steel Passivation |
2nd Conn Inner Material | Beryllium Bronze Gold Plating |
| Operating Frequency | 50GHz |
Velocity of Propagation | 0.76 |
| Shielding Effectiveness | >90dB |
Static Bend Radius | 18mm |
| Dynamic Bend Radius | 36mm |
Center Conductor Diameter | 0.72mm |
| Insulation Material | Low Density PTFE |
Dielectric Layer Diameter | 2.10mm |
| Inner Shield Diameter | 2.25mm |
Outer Shield Diameter | 3.01mm |
| Outer Jacket Material | Blue FEP |
Outer Jacket Diameter | 3.60mm |
Product Specification
| RF Cable 1st Connector | 2.4mm |
||
|---|---|---|---|
| RF Cable 2nd Connector | 2.4mm |
||
| 1st Contact Type | Male Pin |
||
| 2nd Contact Type | Male Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Frequency Range | DC-50GHz |
||
| VSWR | 1.35 |
||
| Impedance | 50Ω |
||
| Dielectric Withstanding Voltage | 1200V, DC |
||
| Operating Temperature | -55℃~+165℃ |
||
| RF Cable 1st Connector | 2.4mm |
RF Cable 2nd Connector | 2.4mm |
| 1st Contact Type | Male Pin |
2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Frequency Range | DC-50GHz |
VSWR | 1.35 |
| Impedance | 50Ω |
Dielectric Withstanding Voltage | 1200V, DC |
| Operating Temperature | -55℃~+165℃ |
| 1st Conn Outer Material | Stainless Steel Passivation |
|---|---|
| 1st Conn Inner Material | Beryllium Bronze Gold Plating |
| 2nd Conn Outer Material | Stainless Steel Passivation |
| 2nd Conn Inner Material | Beryllium Bronze Gold Plating |
| RF Cable 1st Connector | 2.4mm |
| RF Cable 2nd Connector | 2.4mm |
| 1st Contact Type | Male Pin |
| 2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Frequency Range | DC-50GHz |
| VSWR | 1.35 |
| Operating Frequency | 50GHz |
| Impedance | 50Ω |
| Velocity of Propagation | 0.76 |
| Shielding Effectiveness | >90dB |
| Dielectric Withstanding Voltage | 1200V, DC |
| Static Bend Radius | 18mm |
| Dynamic Bend Radius | 36mm |
| Operating Temperature | -55℃~+165℃ |
| Center Conductor Diameter | 0.72mm |
| Insulation Material | Low Density PTFE |
| Dielectric Layer Diameter | 2.10mm |
| Inner Shield Diameter | 2.25mm |
| Outer Shield Diameter | 3.01mm |
| Outer Jacket Material | Blue FEP |
| Outer Jacket Diameter | 3.60mm |
