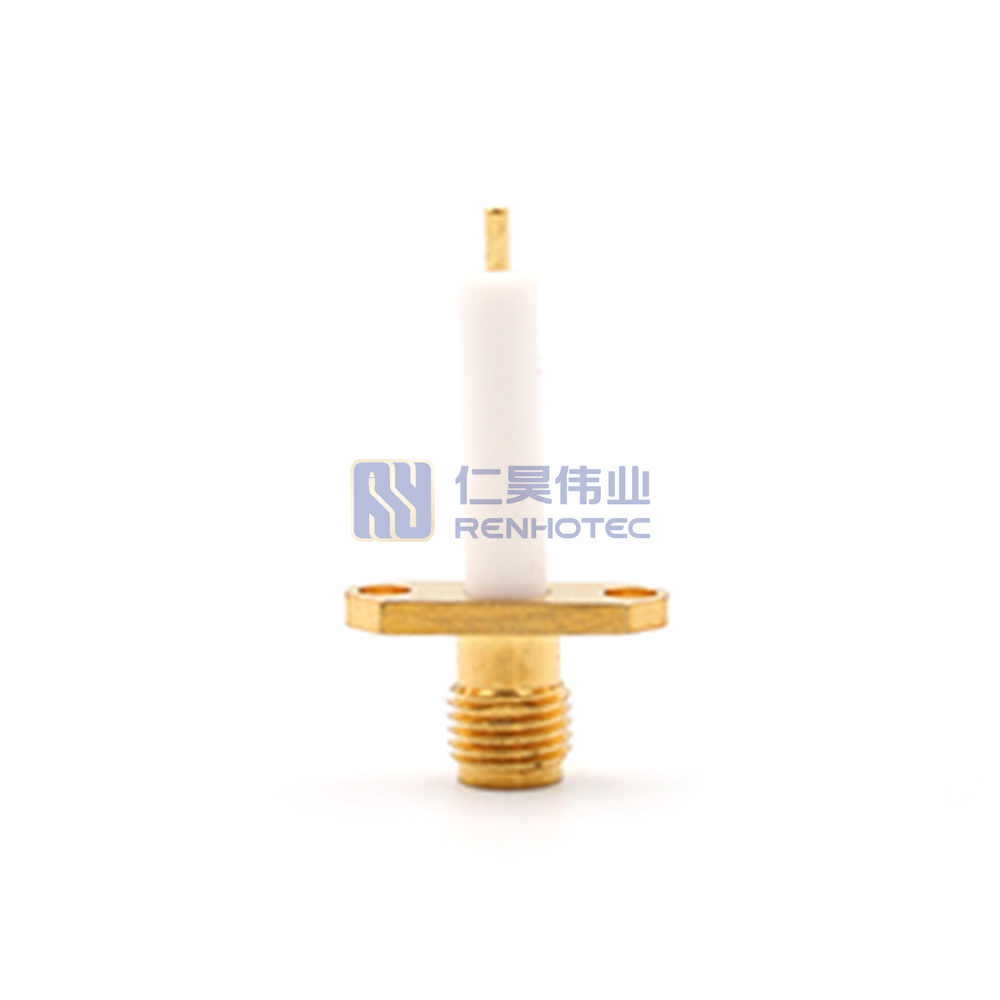

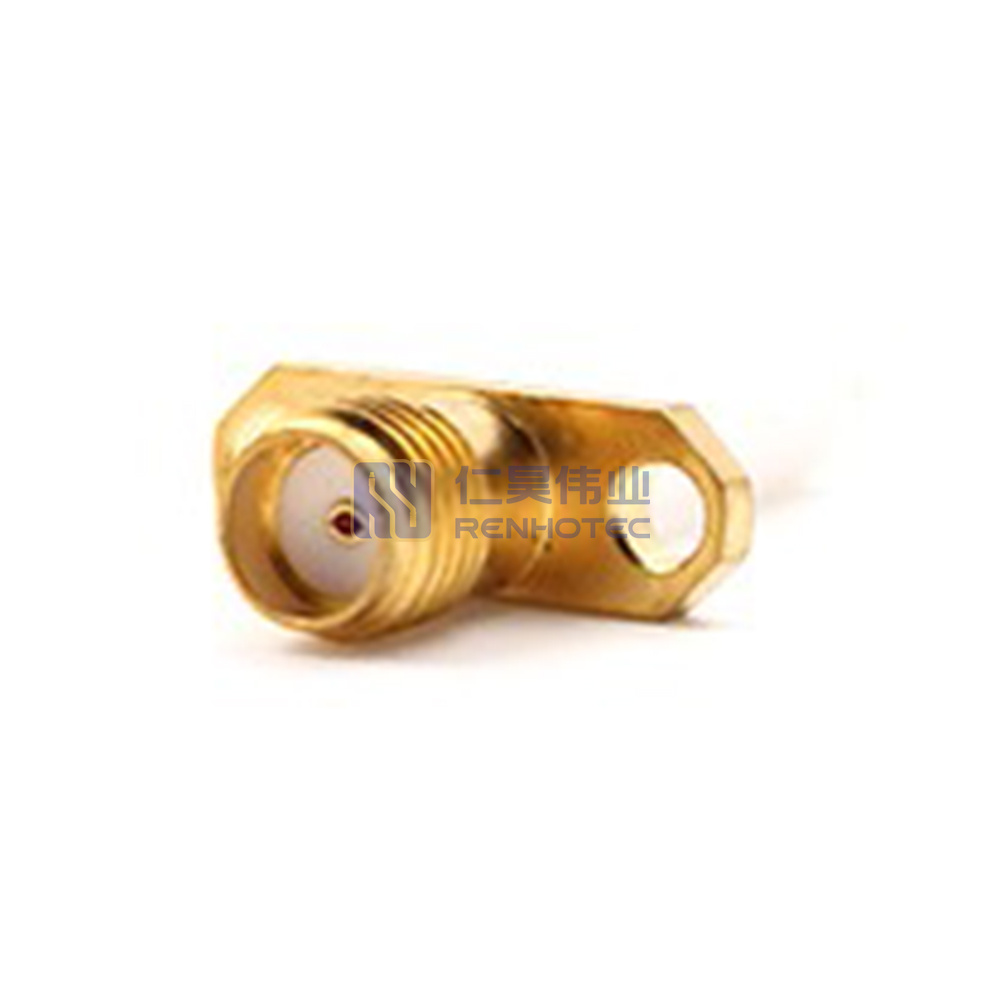

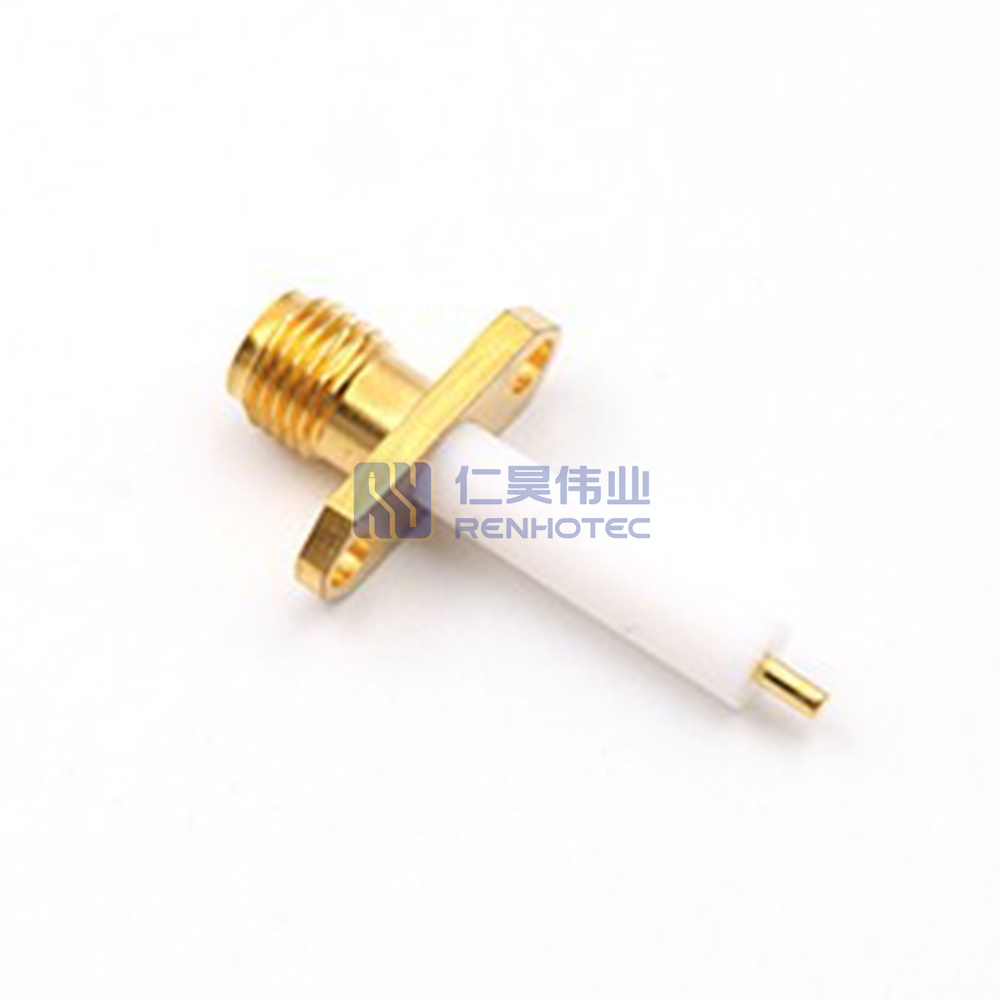

SMA Female 2 Holes Flange Connector for Terminal DC-18GHz – RHT-SMA-KFD902

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Frequency Range

DC-18GHz

Impedance

50 ohm

Insulation Resistance

≧5000mΩ

VSWR

≤1.20:1

Operating Temperature

-55℃ ~ +155℃

Shell Material

Brass

Contact Material

Beryllium Copper

Shell Finish

Gold Plated

Contact Finish

Gold Plated

Insulating Materials

Teflon

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Frequency Range

DC-18GHz

Impedance

50 ohm

Insulation Resistance

≧5000mΩ

VSWR

≤1.20:1

Operating Temperature

-55℃ ~ +155℃

Shell Material

Brass

Contact Material

Beryllium Copper

Shell Finish

Gold Plated

Contact Finish

Gold Plated

Insulating Materials

Teflon

Durability (Matings)

≧500

Durability (Matings)

≧500

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Frequency Range

DC-18GHz

Impedance

50 ohm

Insulation Resistance

≧5000mΩ

VSWR

≤1.20:1

Durability (Matings)

≧500

Operating Temperature

-55℃ ~ +155℃

Shell Material

Brass

Contact Material

Beryllium Copper

Shell Finish

Gold Plated

Contact Finish

Gold Plated

Insulating Materials

Teflon
