SKU: RHT-612-6025 Category: SMA Connector

Request for Quotation

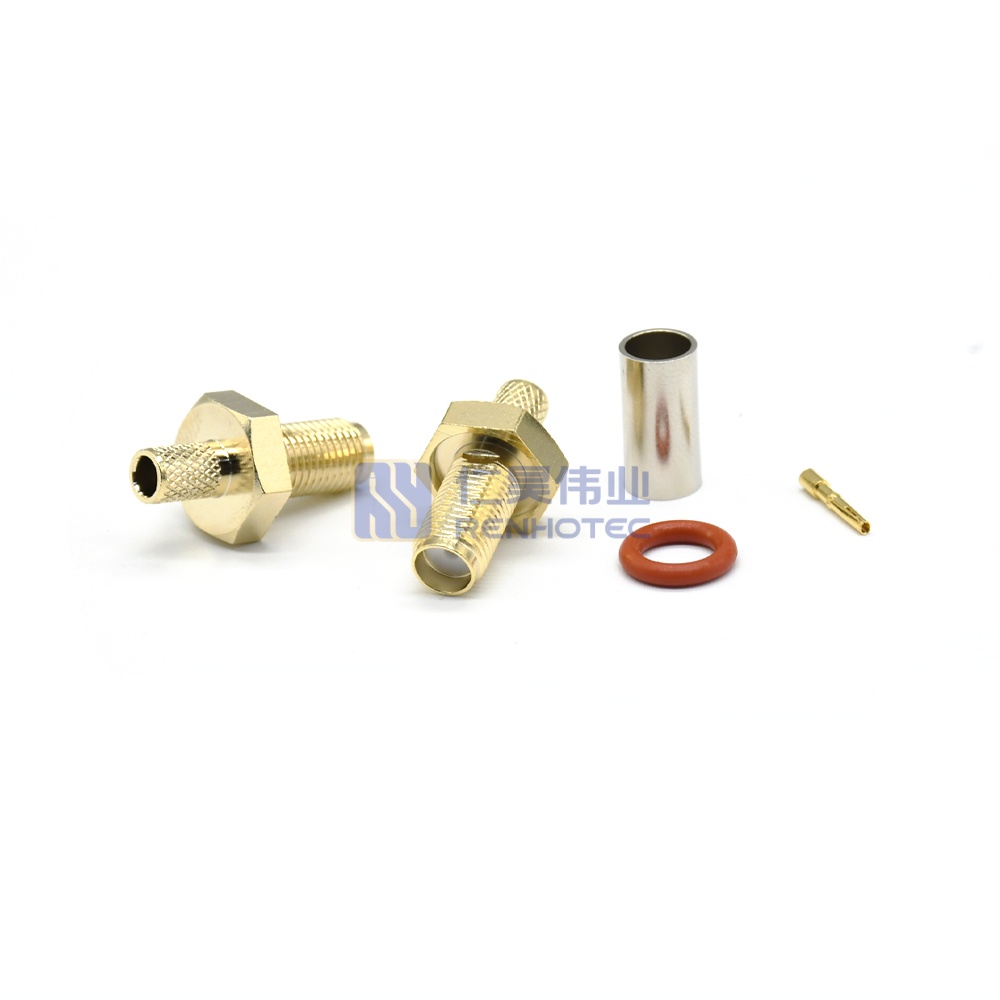

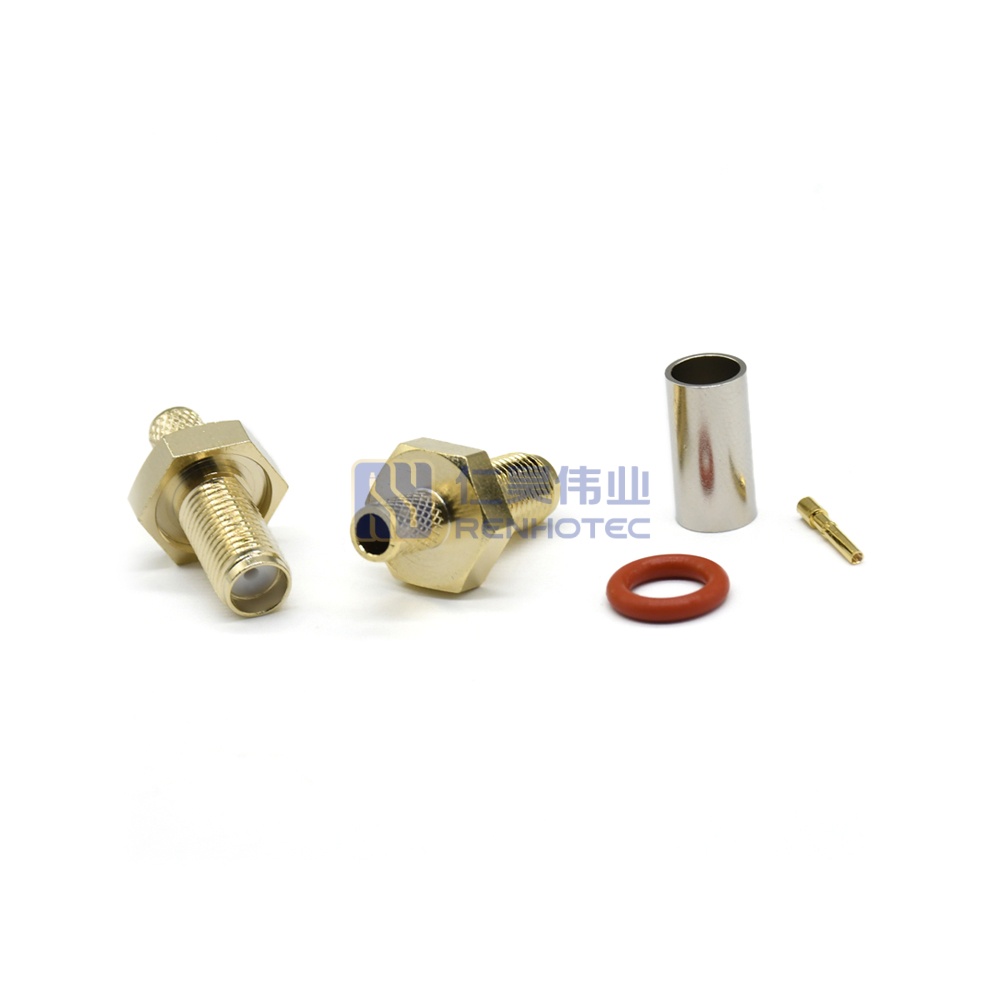

SMA Connector Straight Female Jack Cable Mount 50 Ohm – RHT-612-6025

Attributes

Product Specification

Center Contact Resistance	6mΩ Max
Connector Type	Jack
Contact Finish	Gold Plated
Contact Material	Brass
Contact Termination Style	Solder
Contact Type	Female Pin
Fastening Type	1/4-36 Threaded
Features	Waterproof
Frequency Range	DC-6GHz
Impedance	50 ohm
Insulator Material	PTFE
Insultation Resistance	5000 Ohms min
Mating Durability	≥ 500 Cycles
Mounting Type	Cable Mount
Temperature Range	-40°C to +155°C
Orientation	Straight
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
RF Series	SMA Type
Rated Voltage	335V rms
Shell Finish	Gold Plated
Shell Material	Brass
VSWR	1.5MAX
Center Contact Resistance	6mΩ Max	Connector Type	Jack
Contact Finish	Gold Plated	Contact Material	Brass
Contact Termination Style	Solder	Contact Type	Female Pin
Fastening Type	1/4-36 Threaded	Features	Waterproof
Frequency Range	DC-6GHz	Impedance	50 ohm
Insulator Material	PTFE	Insultation Resistance	5000 Ohms min
Mating Durability	≥ 500 Cycles	Mounting Type	Cable Mount
Temperature Range	-40°C to +155°C	Orientation	Straight
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)	RF Series	SMA Type
Rated Voltage	335V rms	Shell Finish	Gold Plated
Shell Material	Brass	VSWR	1.5MAX

Nut Material	Brass
Nut Finish	Gold Plated
Washer Material	Iron
Washer Finish	Gold Plated
O-Ring Material	Rubber
O-Ring Finish	Red
Copper Tube Material	Brass
Copper Tube Finish	Nickel Plated
Nut Material	Brass	Nut Finish	Gold Plated
Washer Material	Iron	Washer Finish	Gold Plated
O-Ring Material	Rubber	O-Ring Finish	Red
Copper Tube Material	Brass	Copper Tube Finish	Nickel Plated

Center Contact Resistance	6mΩ Max
Connector Type	Jack
Contact Finish	Gold Plated
Contact Material	Brass
Contact Termination Style	Solder
Contact Type	Female Pin
Fastening Type	1/4-36 Threaded
Features	Waterproof
Frequency Range	DC-6GHz
Impedance	50 ohm
Insulator Material	PTFE
Insultation Resistance	5000 Ohms min
Mating Durability	≥ 500 Cycles
Mounting Type	Cable Mount
Temperature Range	-40°C to +155°C
Orientation	Straight
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
RF Series	SMA Type
Rated Voltage	335V rms
Shell Finish	Gold Plated
Shell Material	Brass
VSWR	1.5MAX
Nut Material	Brass
Nut Finish	Gold Plated
Washer Material	Iron
Washer Finish	Gold Plated
O-Ring Material	Rubber
O-Ring Finish	Red
Copper Tube Material	Brass
Copper Tube Finish	Nickel Plated
