SKU: RHT-612-6074 Category: SMA Connector

RHT-612-6074 SMA Connector Specs & Datasheet

Request for Quotation

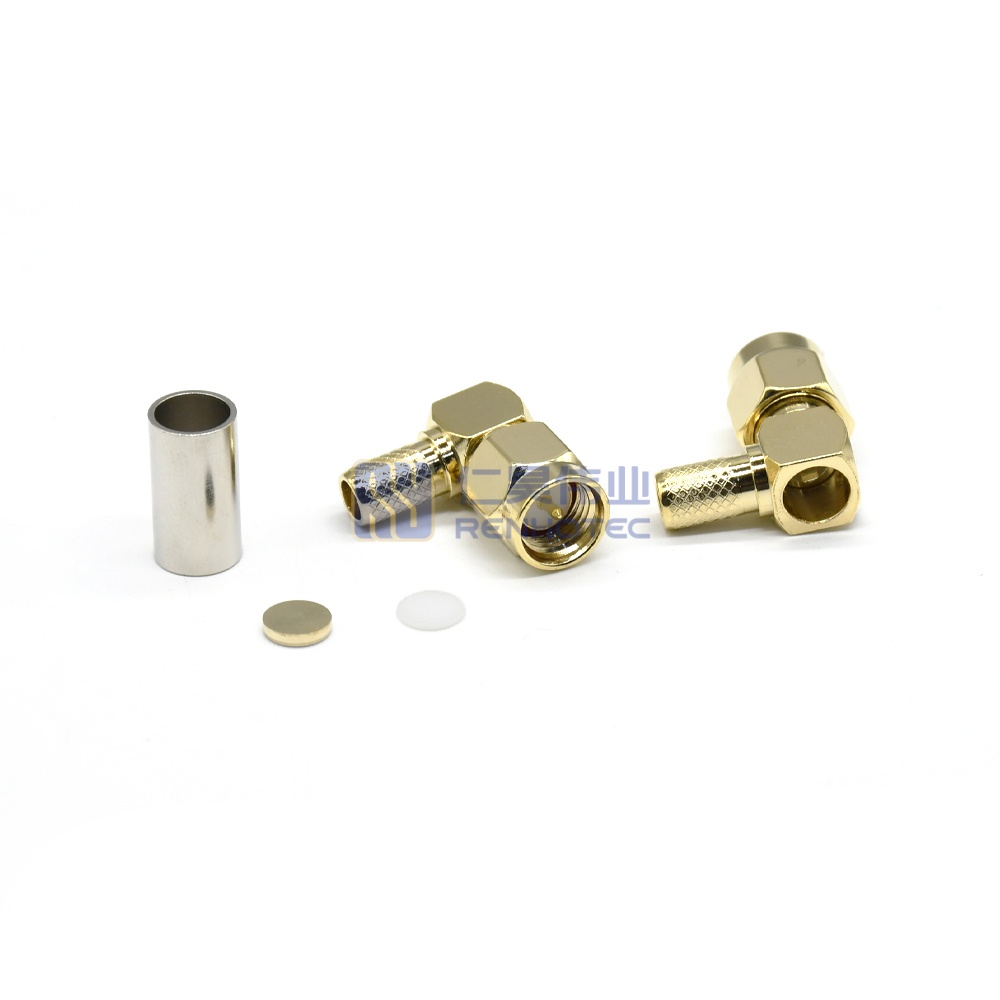

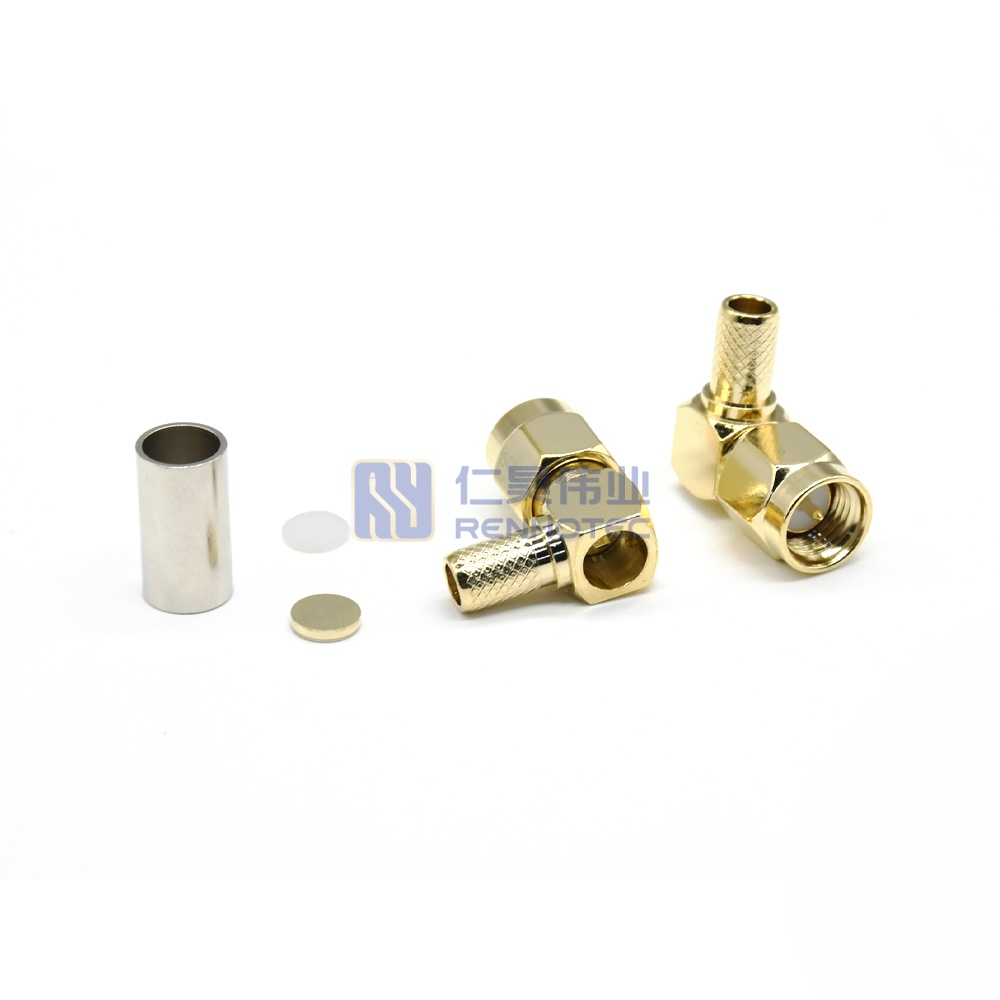

SMA Connector Right Angle Male Plug For RG58 Cable 50 Ohm – RHT-612-6074

Description
Attributes

SMA Coaxial Connectors

Own factory

Support customization

Real shooting

STRICTLY SELECT MATERIALS AND GUARD DETAILS

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

Center Contact Resistance	6mΩ Max
Connector Type	Plug
Contact Finish	Gold Plated
Contact Material	Brass
Contact Termination Style	Crimp
Contact Type	Male Pin
Fastening Type	1/4-36 Threaded
Features	Waterproof
Frequency Range	DC-6GHz
Impedance	50 ohm
Insulator Material	PTFE
Insultation Resistance	5000 Ohms min
Mating Durability	≥ 500 Cycles
Mounting Type	Cable Mount
Temperature Range	-60°C to +165°C
Orientation	Straight
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
RF Series	SMA Type
Rated Voltage	335V rms
Shell Finish	Gold Plated
Shell Material	Brass
VSWR	1.5MAX
Dielectric Withstanding Voltage	1000 VRMS Min
Center Contact Resistance	6mΩ Max	Connector Type	Plug
Contact Finish	Gold Plated	Contact Material	Brass
Contact Termination Style	Crimp	Contact Type	Male Pin
Fastening Type	1/4-36 Threaded	Features	Waterproof
Frequency Range	DC-6GHz	Impedance	50 ohm
Insulator Material	PTFE	Insultation Resistance	5000 Ohms min
Mating Durability	≥ 500 Cycles	Mounting Type	Cable Mount
Temperature Range	-60°C to +165°C	Orientation	Straight
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)	RF Series	SMA Type
Rated Voltage	335V rms	Shell Finish	Gold Plated
Shell Material	Brass	VSWR	1.5MAX
Dielectric Withstanding Voltage	1000 VRMS Min

Nut Material	Brass
Nut Finish	Gold Plated
Insulating Gasket Material	PTFE
O-Ring Material	Rubber
O-Ring Finish	Red
Copper Tube Material	Brass
Copper Tube Finish	Gold Plated
Metal Cover Finish	Gold Plated
Metal Snap Ring Material	Steel
Metal Snap Ring Finish	Passivation
Compatible cable	RG58 CABLE
Nut Material	Brass	Nut Finish	Gold Plated
Insulating Gasket Material	PTFE	O-Ring Material	Rubber
O-Ring Finish	Red	Copper Tube Material	Brass
Copper Tube Finish	Gold Plated	Metal Cover Finish	Gold Plated
Metal Snap Ring Material	Steel	Metal Snap Ring Finish	Passivation
Compatible cable	RG58 CABLE

Center Contact Resistance	6mΩ Max
Connector Type	Plug
Contact Finish	Gold Plated
Contact Material	Brass
Contact Termination Style	Crimp
Contact Type	Male Pin
Fastening Type	1/4-36 Threaded
Features	Waterproof
Frequency Range	DC-6GHz
Impedance	50 ohm
Insulator Material	PTFE
Insultation Resistance	5000 Ohms min
Mating Durability	≥ 500 Cycles
Mounting Type	Cable Mount
Temperature Range	-60°C to +165°C
Orientation	Straight
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
RF Series	SMA Type
Rated Voltage	335V rms
Shell Finish	Gold Plated
Shell Material	Brass
VSWR	1.5MAX
Dielectric Withstanding Voltage	1000 VRMS Min
Nut Material	Brass
Nut Finish	Gold Plated
Insulating Gasket Material	PTFE
O-Ring Material	Rubber
O-Ring Finish	Red
Copper Tube Material	Brass
Copper Tube Finish	Gold Plated
Metal Cover Finish	Gold Plated
Metal Snap Ring Material	Steel
Metal Snap Ring Finish	Passivation
Compatible cable	RG58 CABLE
