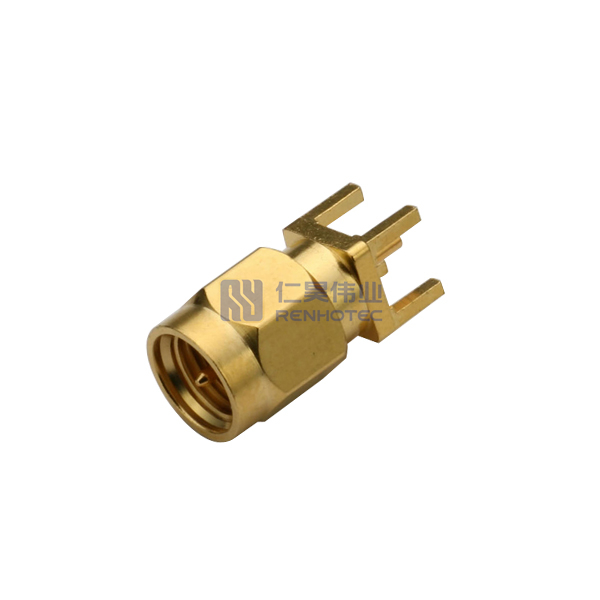

SMA Connector Plug Straight Panel Mount Through Hole – RHT-612-0265

The SMA Connector Plug Straight Panel Mount is ideal for secure and reliable RF connections. Designed for through hole installation, this connector ensures strong signal performance in various electronic applications such as telecommunications, aerospace, and test instruments.

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

SMA Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Straight
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Contact Termination Style

Solder
Fastening Type

1/4-36 Threaded
Impedance

50 ohm
Insulator Material

PTFE
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Contact Material

Phosphor Bronze
Contact Finish

Gold Plated
VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX
Frequency Range

DC-6GHz
Center Contact Resistance

6 M? Max
Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)
Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)
Rated Voltage

335 Volts RMS Continuous
Mating Durability

?? 500 Cycles
Temperature Range

-65?? to +165??
RF Series

SMA Type

 Connector Type

Plug
Contact Type

Male Pin

 Orientation

Straight
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Contact Termination Style

Solder

 Fastening Type

1/4-36 Threaded
Impedance

50 ohm

 Insulator Material

PTFE
Shell Material

Copper Alloy

 Shell Finish

Gold Plated
Contact Material

Phosphor Bronze

 Contact Finish

Gold Plated
VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

 Frequency Range

DC-6GHz
Center Contact Resistance

6 M? Max

 Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)
Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

 Rated Voltage

335 Volts RMS Continuous
Mating Durability

?? 500 Cycles

 Temperature Range

-65?? to +165??
RF Series

SMA Type
Connector Type

Plug
Contact Type

Male Pin
Orientation

Straight
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Contact Termination Style

Solder
Fastening Type

1/4-36 Threaded
Impedance

50 ohm
Insulator Material

PTFE
Shell Material

Copper Alloy
Shell Finish

Gold Plated
Contact Material

Phosphor Bronze
Contact Finish

Gold Plated
VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX
Frequency Range

DC-6GHz
Center Contact Resistance

6 M? Max
Outer Contact Resistance

?Q 2.0 M?? (Milliohms Max.)
Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)
Rated Voltage

335 Volts RMS Continuous
Mating Durability

?? 500 Cycles
Temperature Range

-65?? to +165??

SMA male connector is identified by inside 1/4″-36 threads and a 5/16″ hex nut, and SMA female connector is identified by outside 1/4″-36 threads.

SMA Male / Plug Connectors: the center pin (male pin) is surrounded by a barrel with threads on the inside

SMA Female / Jack Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the outside

RP-SMA Male/Plug Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the inside

RP-SMA Female / Jack Connectors: the center pin (male pin) is surrounded by a barrel with threads on the outside

SMA Body: Brass or stainless steel

Insulator: Made of PTFE

Center pin: Made of brass, beryllium copper, phosphor bronze

Please feel free to submit your product requirements and we will provide you with the most suitable suggestions.

The frequency of SMA connectors commonly used in the international market is generally 0-6Ghz. We can also customize 0-18Ghz, pls send us the dimension, performance and usage environment requirements, we’ll provide you product solution.

Durability : 500 mating cycles min. Power rating at 1 GHz : 450W. Temperature range : -65°C / +165°C.

Yes, the center pin of an SMA connector can indeed be plated with a thicker layer of material. Plating thickness can be adjusted based on the specific requirements of the application, such as improved conductivity, increased durability, or enhanced corrosion resistance.

It has MOQ requirement, pls send us your product requirement.

Yes, we can customize different thread length to meet specific requirements, pls advise the thread length, our professional engineer team will provide you product solution.

Drawing for SMA Connector Plug Straight Panel Mount Through HoleDownload
