SKU: RHT-612-0245 Category:

[yith_ywraq_button_quote]

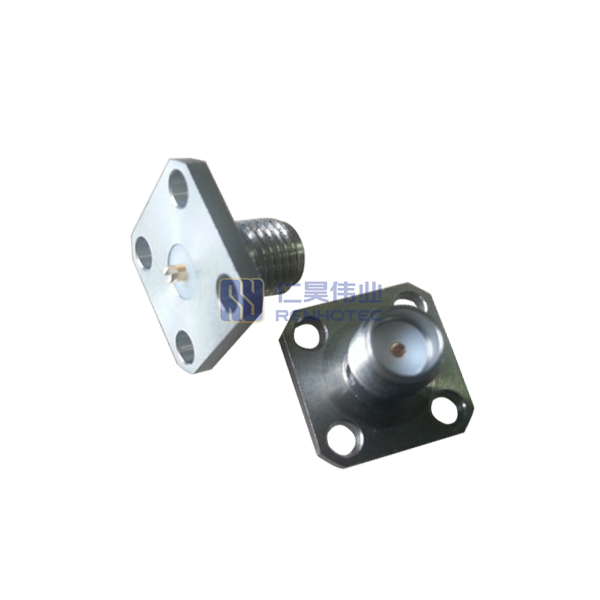

SMA Connector Jack Straight Panel Mount Four Flange – RHT-612-0245

  • Lightweight, compact, and vibration-proof design
  • High-strength designs for harsh environments
  • Available in brass and stainless steel with gold, nickel, and passivated plating
  • Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables, and industry-standard semi-rigid and conformable cables
  • Subminiature design: Space-saving vertical mating

The SMA (SubMiniature version A) connector is a semi-precision coaxial RF connector developed in the 1960s. As the smallest connector interface for coaxial cables, it has a screw-type coupling mechanism. The connector has a 50 Ω impedance. The SMA connector is typically rated for mode-free operation from DC to 18 GHz and sometimes more.

The SMA connector comes in various formats, male, female, straight, right-angled, bulkhead fitting, and many more, enabling it to meet most requirements. Its sub-miniature size enables it to be used, even within relatively small items of electronic equipment.

Material of SMA connector

Product Specification

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Panel Mount

Mounting Feature

4 Hole Flange

Contact Termination Style

Solder

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ≦ 1.5MAX, Straight type≦1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 MΩ Max

Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)

Insultation Resistance

≧ 5 x 10³ MΩ (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

≥ 500 Cycles

Temperature Range

-65℃ to +165℃

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Panel Mount

Mounting Feature

4 Hole Flange

Contact Termination Style

Solder

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ≦ 1.5MAX, Straight type≦1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 MΩ Max

Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)

Insultation Resistance

≧ 5 x 10³ MΩ (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

≥ 500 Cycles

Temperature Range

-65℃ to +165℃

RF Series

SMA Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Straight

Mounting Type

Panel Mount

Mounting Feature

4 Hole Flange

Contact Termination Style

Solder

Fastening Type

1/4-36 Threaded

Impedance

50 ohm

Insulator Material

PTFE

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Contact Material

Phosphor Bronze

Contact Finish

Gold Plated

VSWR

R/A type ≦ 1.5MAX, Straight type≦1.3 MAX

Frequency Range

DC-6GHz

Center Contact Resistance

6 MΩ Max

Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)

Insultation Resistance

≧ 5 x 10³ MΩ (Megohms MIN.)

Rated Voltage

335 Volts RMS Continuous

Mating Durability

≥ 500 Cycles

Temperature Range

-65℃ to +165℃

Download Drawing
