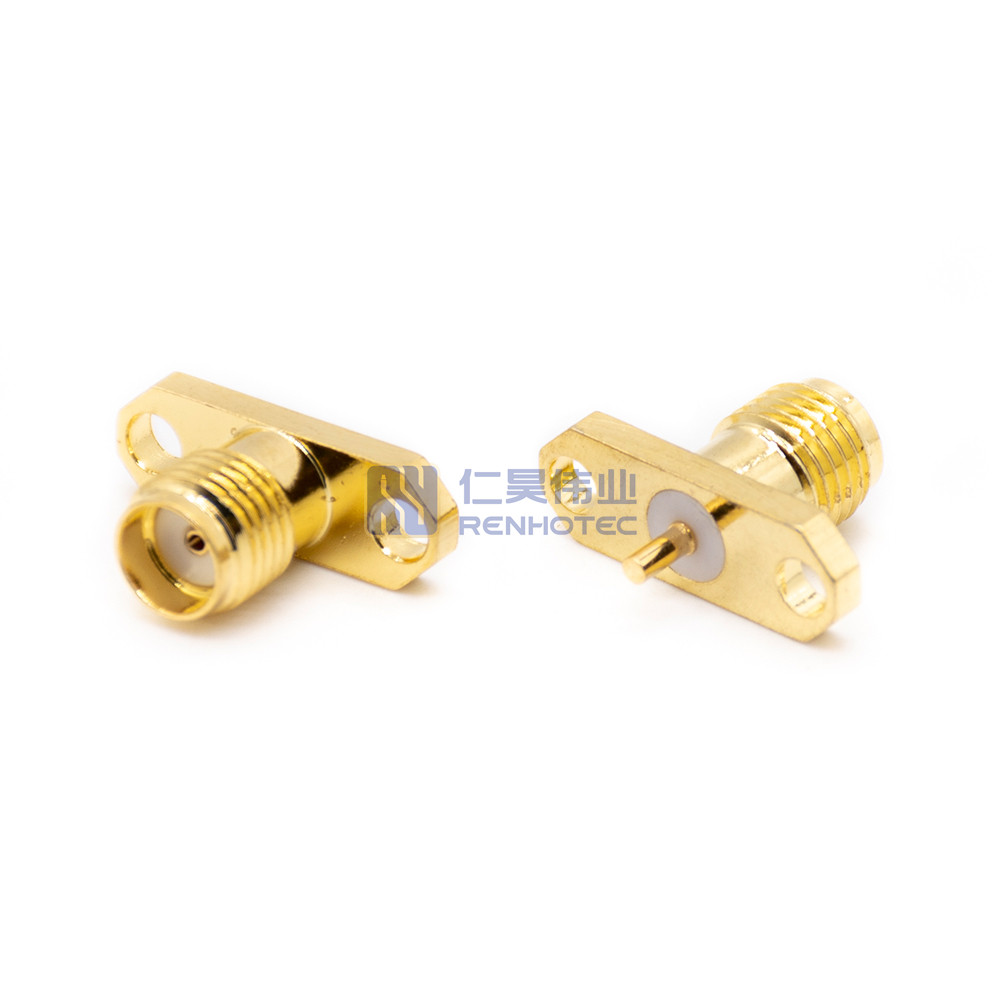

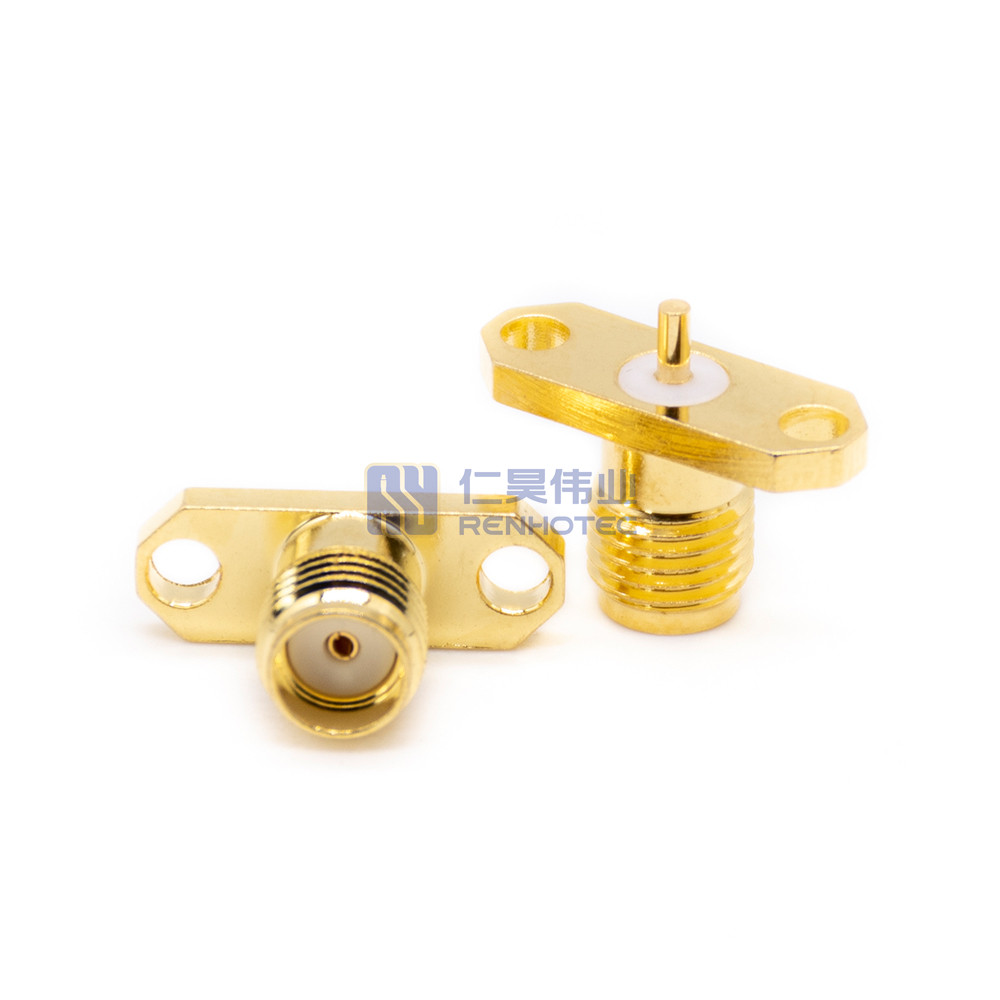

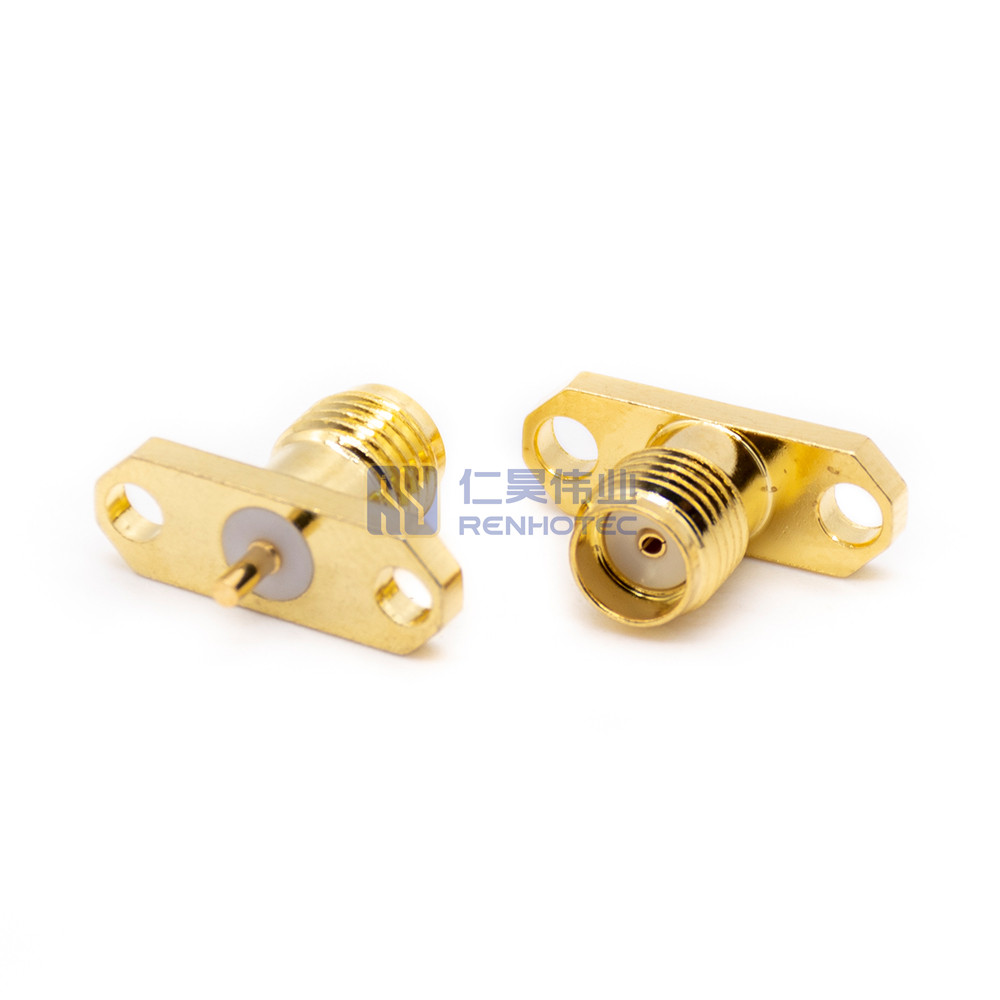

SMA Connector Female Straight Panel Mount Two Flange 50 Ohm – RHT-612-0224

Q: What are SMA connectors made of?

SMA Body : Brass or stainless steel Insulator : Made of PTFE Center pin : Made of brass, beryllium copper, phosphor bronze Please feel free to submit your product requirements and we will provide you with the most suitable suggestions.

Ideal for telecom, WLAN and RF applications, this female SMA connector ensures a secure and reliable connection. It features a straight panel mount design with a two-hole flange and a 50-ohm impedance for excellent signal transmission quality.

SMA Coaxial Connectors

Own factory

Support customization

Real shooting

STRICTLY SELECT MATERIALS AND GUARD DETAILS

The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.

Light weight, compact and antivibration design for harsh environments

Available in brass and stainless steel with gold, nickel and passivated plating

Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable

Subminiature design:Space-saving vertical mating

Complete Variety

SMA Male

SMA Female

RP-SMA Male

RP-SMA Female

Crimp Type

Crimp with Solder

Solder Typ

Solder Cup

For Antenna

Through Hole

Edge Mount

Offset Type

Flange Type

Bulkhead Type

Product Application

Telecommunications

PC / LAN

Antenna

Instrumentation

GPS

Base Stations

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series	SMA Type
Connector Type	Jack
Contact Type	Female Pin
Orientation	Straight
Mounting Type	Panel Mount
Mounting Feature	2 Hole Flange
Contact Termination Style	Solder
Fastening Type	1/4-36 Threaded
Impedance	50 ohm
Insulator Material	PTFE
Shell Material	Copper Alloy
Shell Finish	Gold Plated
Contact Material	Phosphor Bronze
Contact Finish	Gold Plated
VSWR	R/A type ≤ 1.5MAX, Straight type ≤ 1.3 MAX
Frequency Range	DC-6GHz
Center Contact Resistance	6 MΩ Max
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
Insultation Resistance	≥5 × 10³MΩ (Megohms MIN.)
Rated Voltage	335 Volts RMS Continuous
Mating Durability	≥ 500 Cycles
Temperature Range	-65°C to +165°C
RF Series	SMA Type	Connector Type	Jack
Contact Type	Female Pin	Orientation	Straight
Mounting Type	Panel Mount	Mounting Feature	2 Hole Flange
Contact Termination Style	Solder	Fastening Type	1/4-36 Threaded
Impedance	50 ohm	Insulator Material	PTFE
Shell Material	Copper Alloy	Shell Finish	Gold Plated
Contact Material	Phosphor Bronze	Contact Finish	Gold Plated
VSWR	R/A type ≤ 1.5MAX, Straight type ≤ 1.3 MAX	Frequency Range	DC-6GHz
Center Contact Resistance	6 MΩ Max	Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
Insultation Resistance	≥5 × 10³MΩ (Megohms MIN.)	Rated Voltage	335 Volts RMS Continuous
Mating Durability	≥ 500 Cycles	Temperature Range	-65°C to +165°C

RF Series	SMA Type
Connector Type	Jack
Contact Type	Female Pin
Orientation	Straight
Mounting Type	Panel Mount
Mounting Feature	2 Hole Flange
Contact Termination Style	Solder
Fastening Type	1/4-36 Threaded
Impedance	50 ohm
Insulator Material	PTFE
Shell Material	Copper Alloy
Shell Finish	Gold Plated
Contact Material	Phosphor Bronze
Contact Finish	Gold Plated
VSWR	R/A type ≤ 1.5MAX, Straight type ≤ 1.3 MAX
Frequency Range	DC-6GHz
Center Contact Resistance	6 MΩ Max
Outer Contact Resistance	≦ 0.2 MΩ (Milliohms Max.)
Insultation Resistance	≥5 × 10³MΩ (Megohms MIN.)
Rated Voltage	335 Volts RMS Continuous
Mating Durability	≥ 500 Cycles
Temperature Range	-65°C to +165°C

How to identify SMA connector and RP-SMA connector?

SMA male connector is identified by inside 1/4″-36 threads and a 5/16″ hex nut, and SMA female connector is identified by outside 1/4″-36 threads.

SMA Male / Plug Connectors: the center pin (male pin) is surrounded by a barrel with threads on the inside

SMA Female / Jack Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the outside

RP-SMA Male/Plug Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the inside

RP-SMA Female / Jack Connectors: the center pin (male pin) is surrounded by a barrel with threads on the outside

What are SMA connectors made of?

SMA Body: Brass or stainless steel

Insulator: Made of PTFE

Center pin: Made of brass, beryllium copper, phosphor bronze

Please feel free to submit your product requirements and we will provide you with the most suitable suggestions.

What’s frequency range of SMA connector? Can you customize 0-18Ghz SMA connector?

The frequency of SMA connectors commonly used in the international market is generally 0-6Ghz. We can also customize 0-18Ghz, pls send us the dimension, performance and usage environment requirements, we’ll provide you product solution.

How durable is the SMA connector?

Durability : 500 mating cycles min. Power rating at 1 GHz : 450W. Temperature range : -65°C / +165°C.

Can the center pin of the SMA be plated thicker? For example, 10 U

Yes, the center pin of an SMA connector can indeed be plated with a thicker layer of material. Plating thickness can be adjusted based on the specific requirements of the application, such as improved conductivity, increased durability, or enhanced corrosion resistance.

It has MOQ requirement, pls send us your product requirement.

Can you customize long thread SMA connector?

Yes, we can customize different thread length to meet specific requirements, pls advise the thread length, our professional engineer team will provide you product solution.
