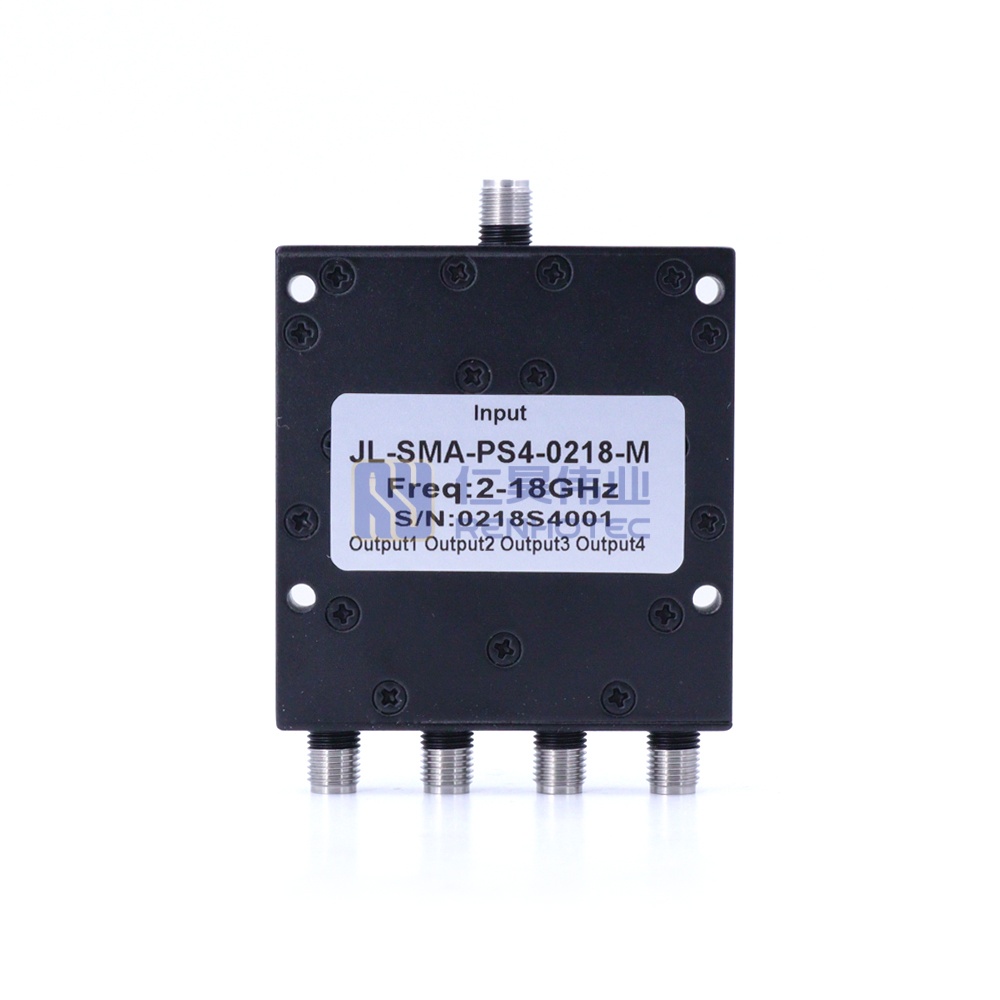

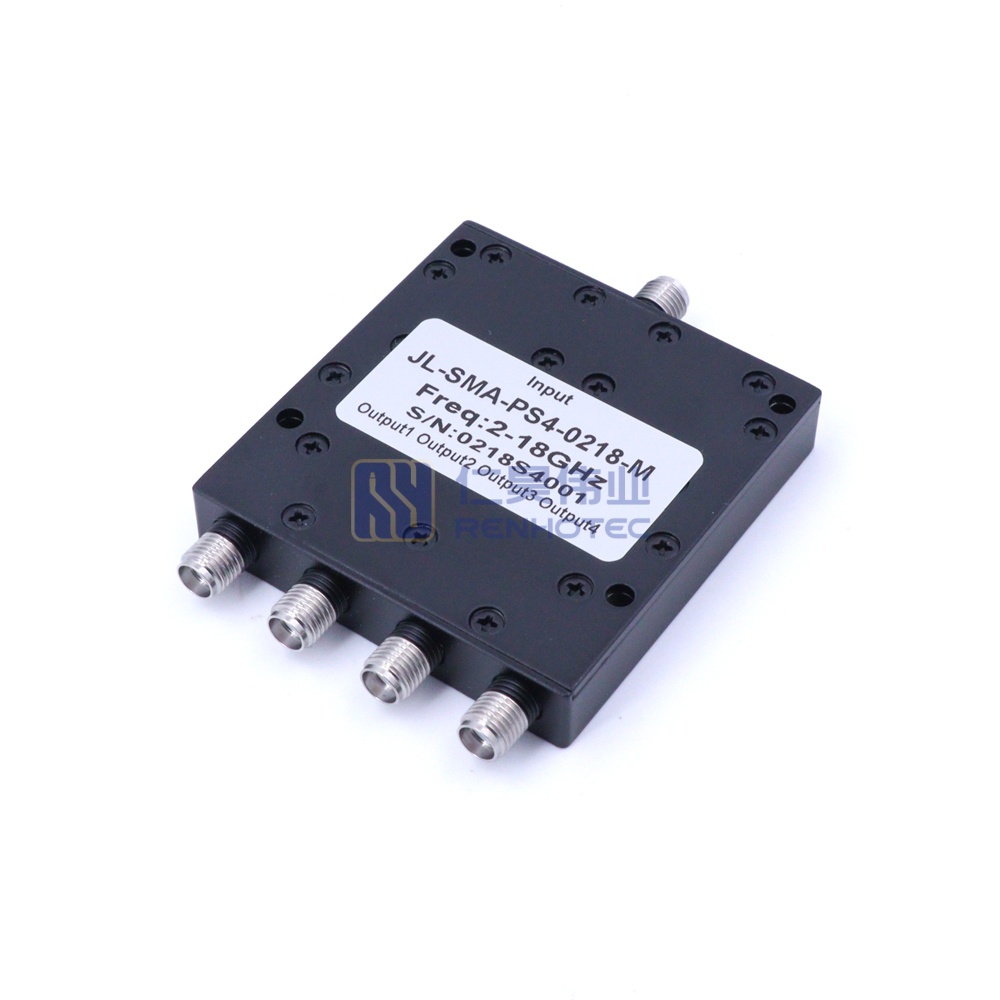

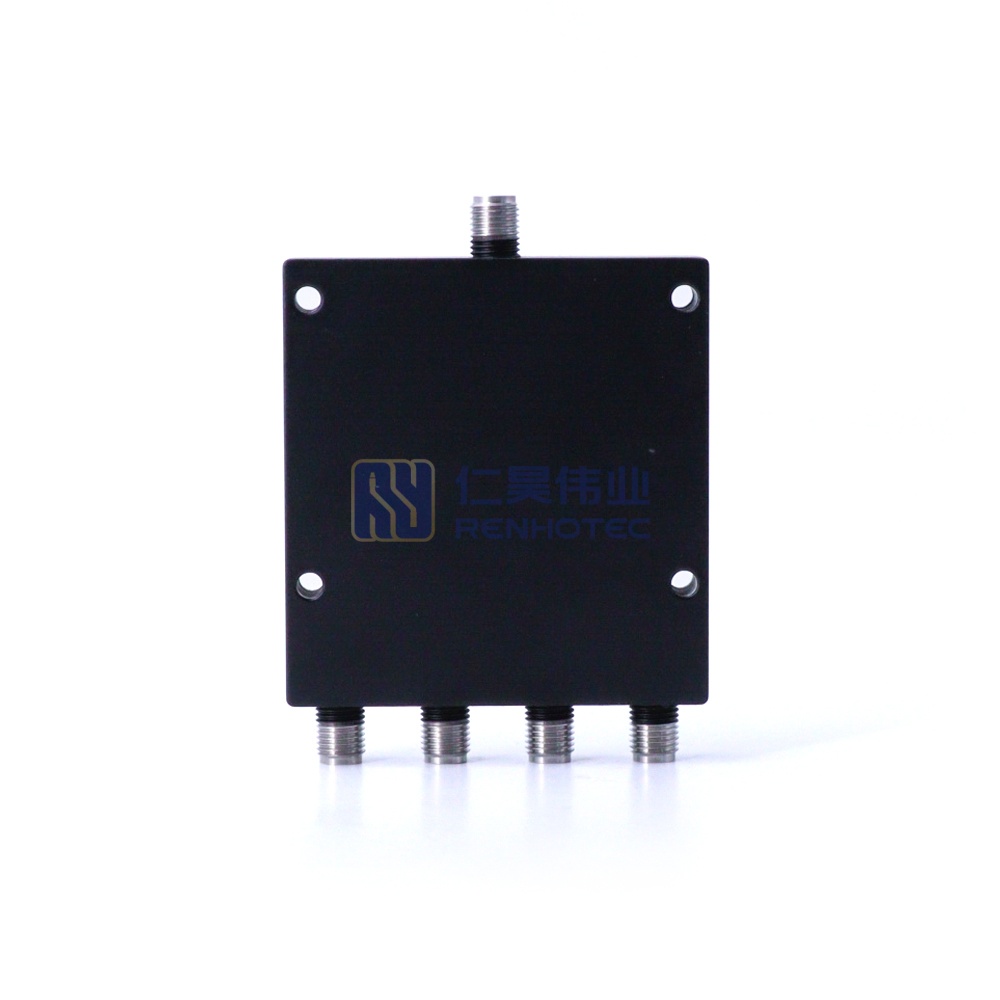

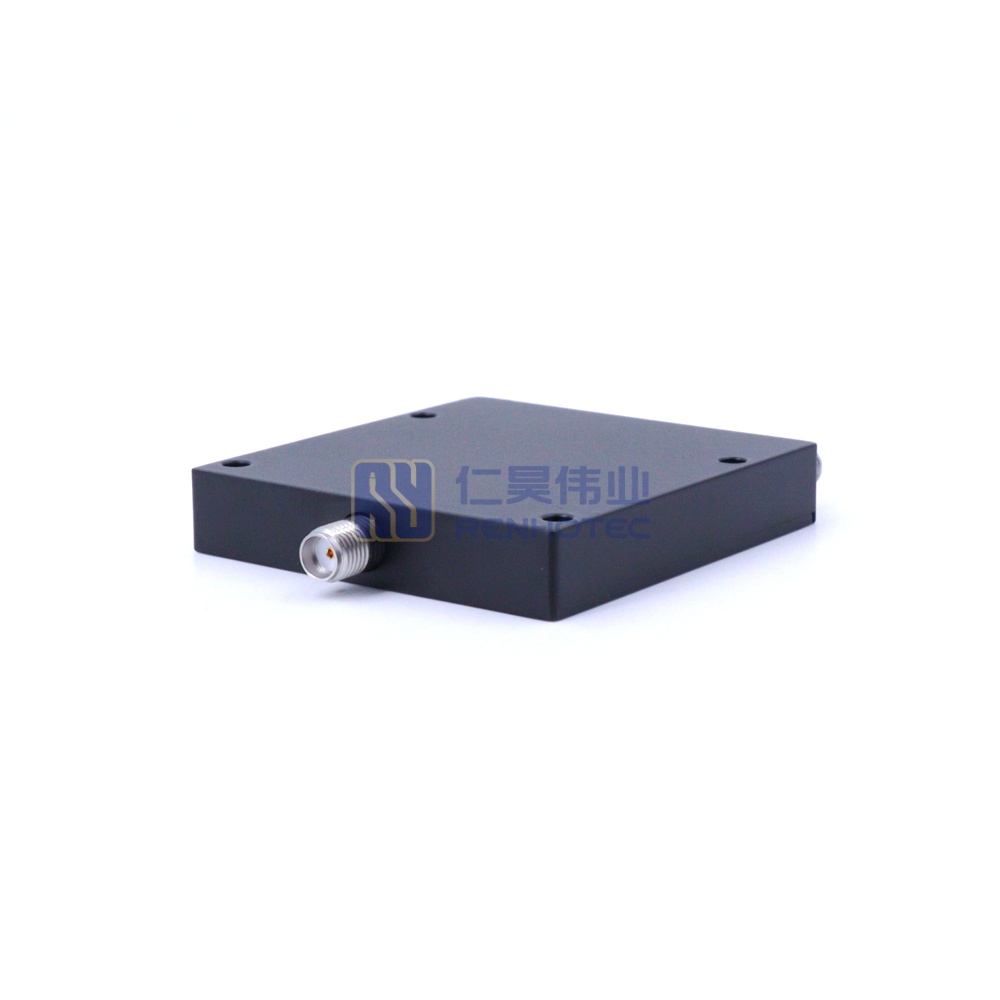

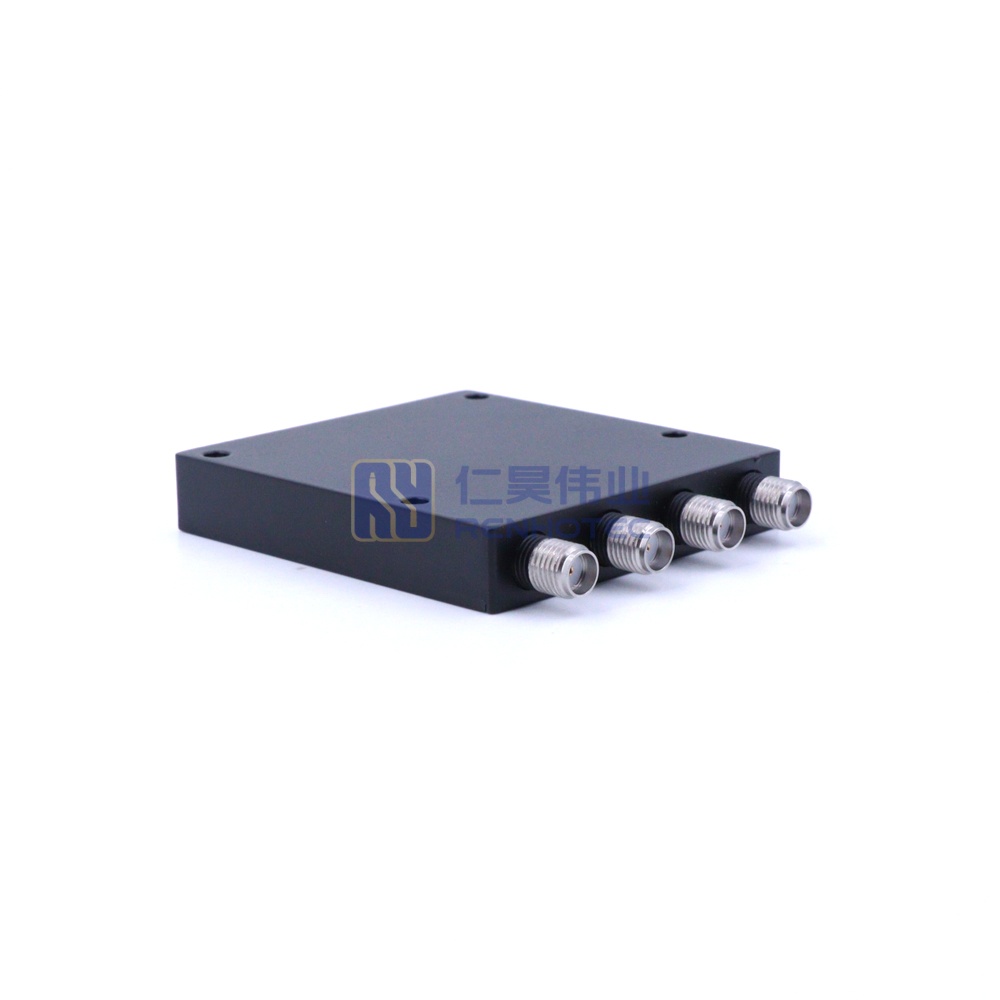

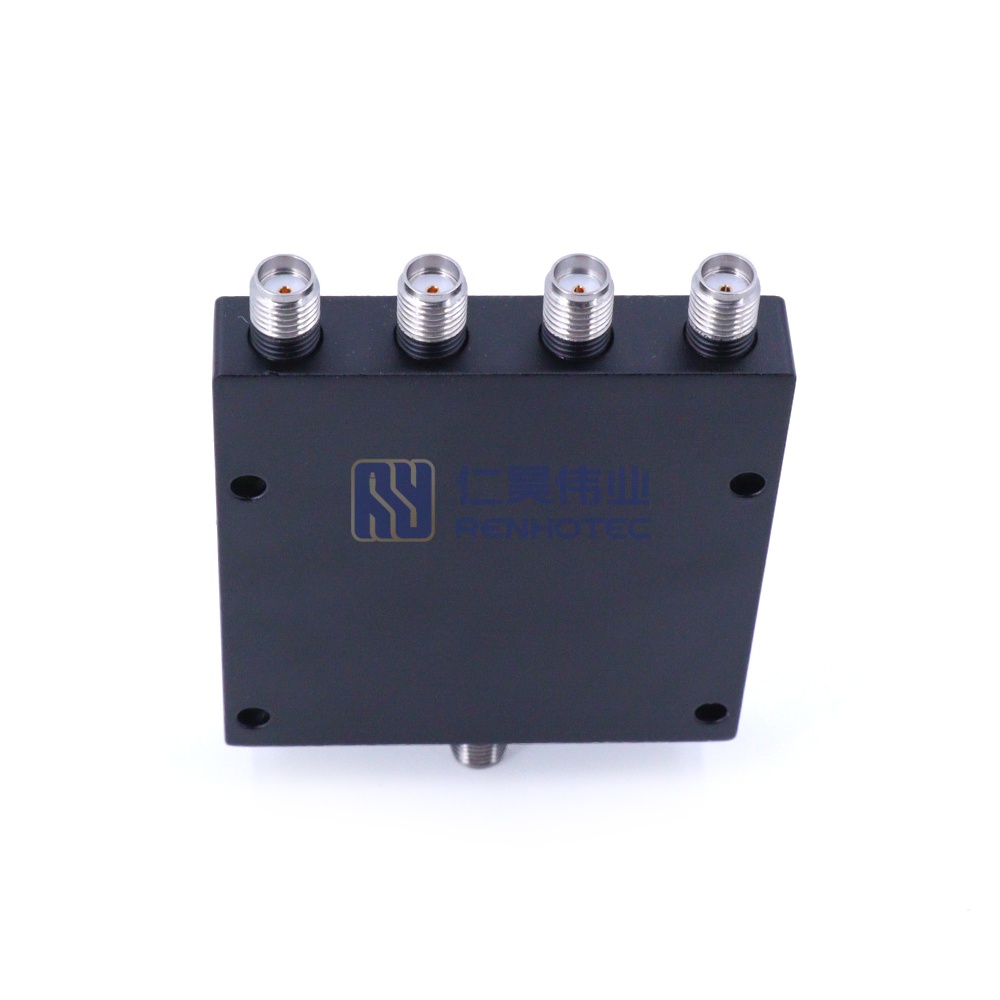

SMA 4-Way Power Divider 2-18GHz RF Combiner/Divider GPS Signal Power Divider
Product Specification
| Connector Type | SMA Female |
||
|---|---|---|---|
| Frequency Range | 2-18 GHz |
||
| Impedance | 50 Ω |
||
| Connector Type | SMA Female |
Frequency Range | 2-18 GHz |
| Impedance | 50 Ω |
| Input Port VSWR | ≤1.5 |
||
|---|---|---|---|
| Output Port VSWR | ≤1.4 |
||
| Insertion Loss | ≤1.6dB (excluding theoretical loss 6.0dB) |
||
| Operation Temperature | -45°C ~ +85°C |
||
| Service Life | ≥500 |
||
| Isolation | ≥18dB |
||
| Amplitude Balance | ±0.4dB |
||
| Phase Balance | ±6° |
||
| Power | Splitter: 20W; Combiner: 1W |
||
| Input Port VSWR | ≤1.5 |
Output Port VSWR | ≤1.4 |
| Insertion Loss | ≤1.6dB (excluding theoretical loss 6.0dB) |
Operation Temperature | -45°C ~ +85°C |
| Service Life | ≥500 |
Isolation | ≥18dB |
| Amplitude Balance | ±0.4dB |
Phase Balance | ±6° |
| Power | Splitter: 20W; Combiner: 1W |
| Connector Type | SMA Female |
|---|---|
| Frequency Range | 2-18 GHz |
| Input Port VSWR | ≤1.5 |
| Output Port VSWR | ≤1.4 |
| Impedance | 50 Ω |
| Insertion Loss | ≤1.6dB (excluding theoretical loss 6.0dB) |
| Operation Temperature | -45°C ~ +85°C |
| Service Life | ≥500 |
| Isolation | ≥18dB |
| Amplitude Balance | ±0.4dB |
| Phase Balance | ±6° |
| Power | Splitter: 20W; Combiner: 1W |
