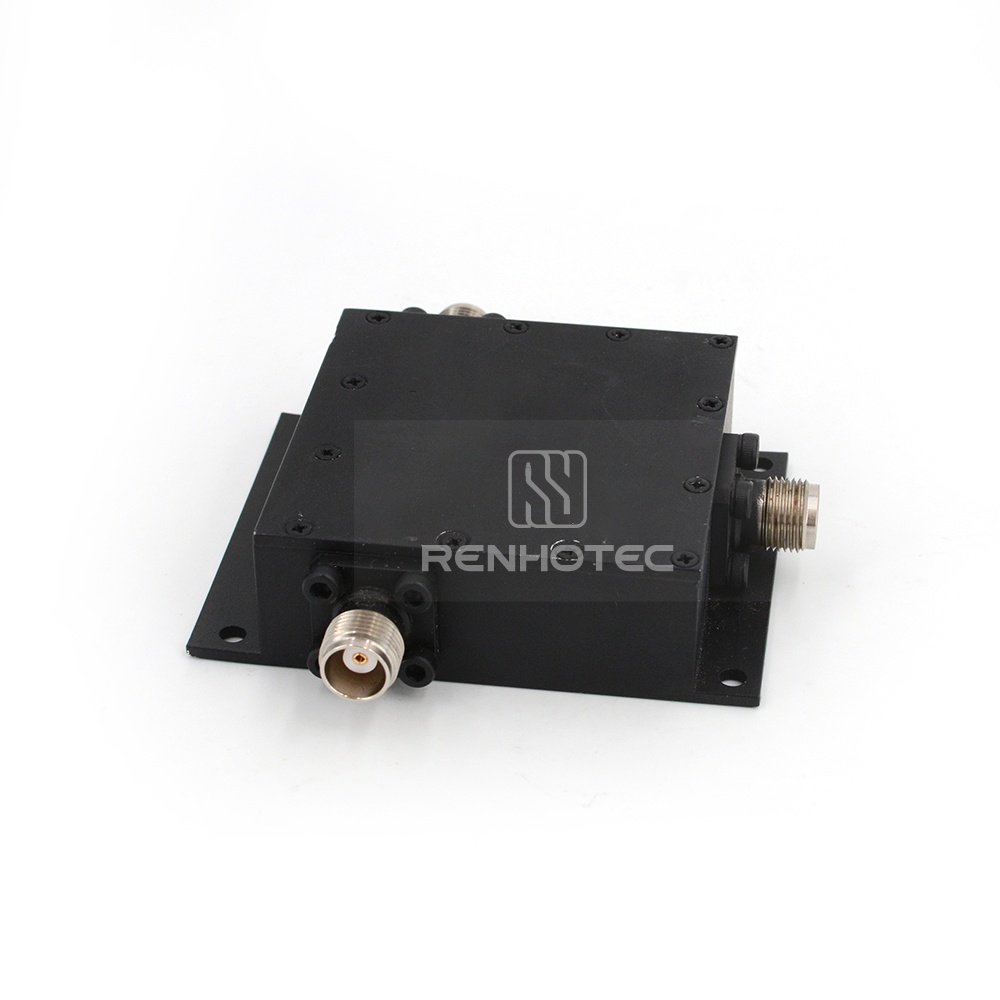

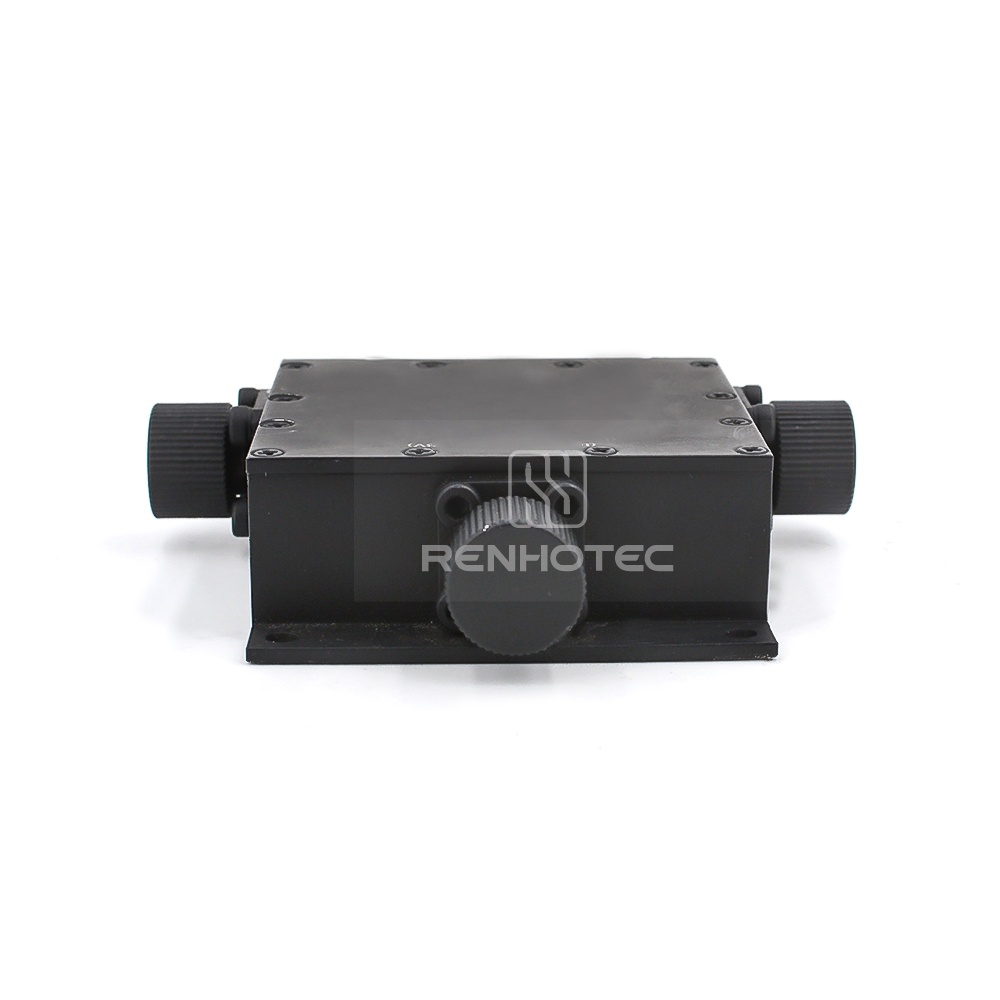

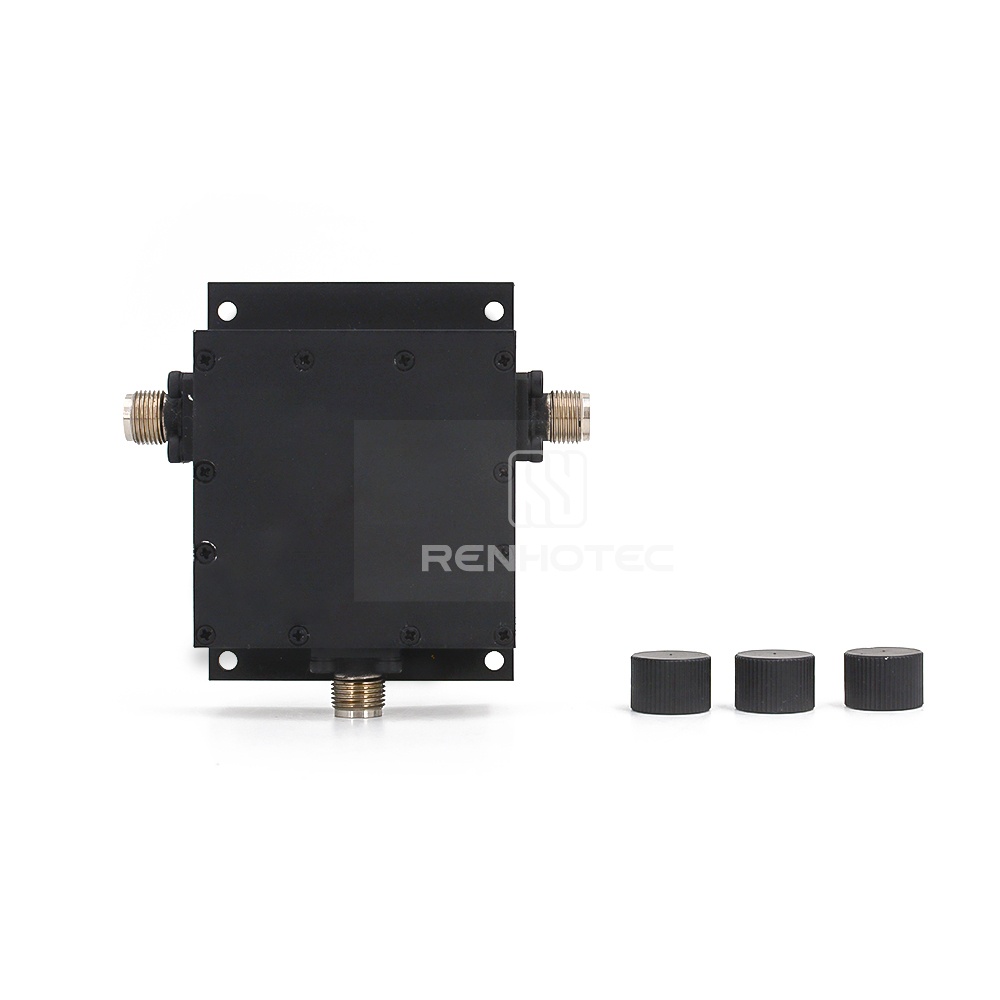

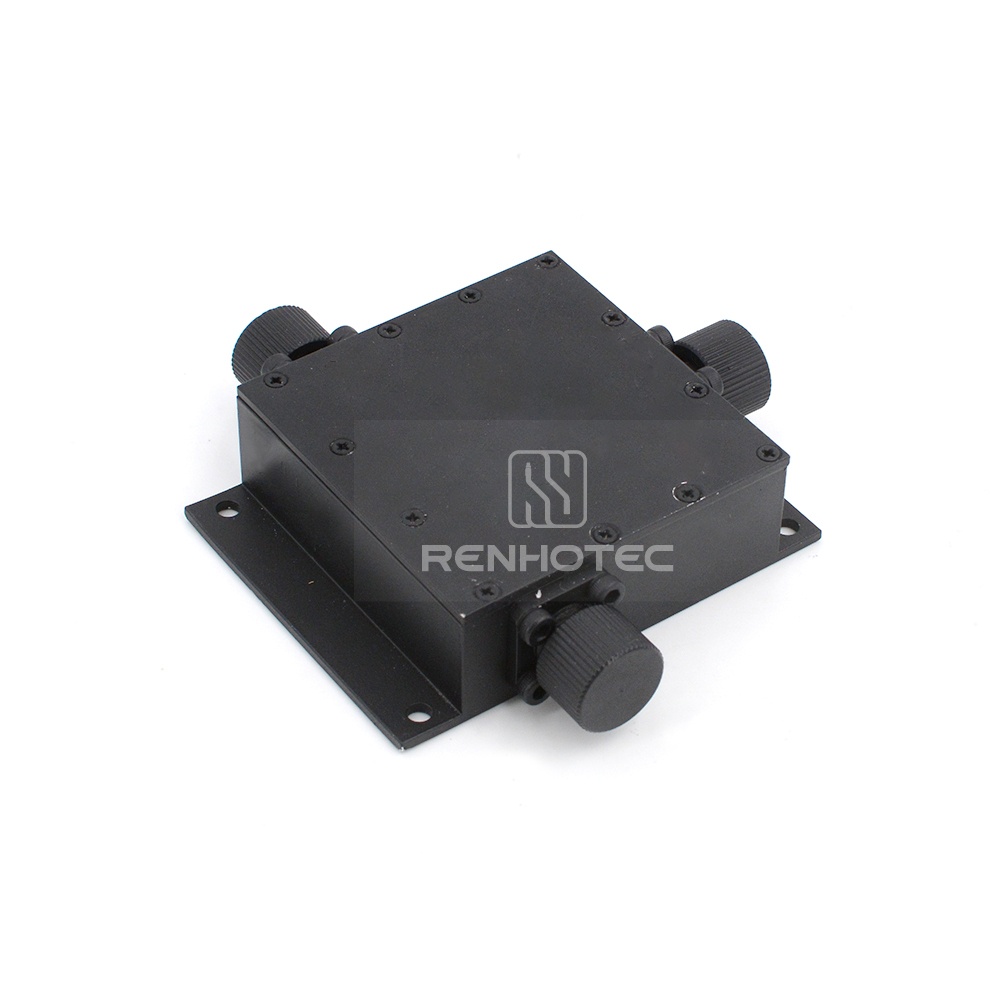

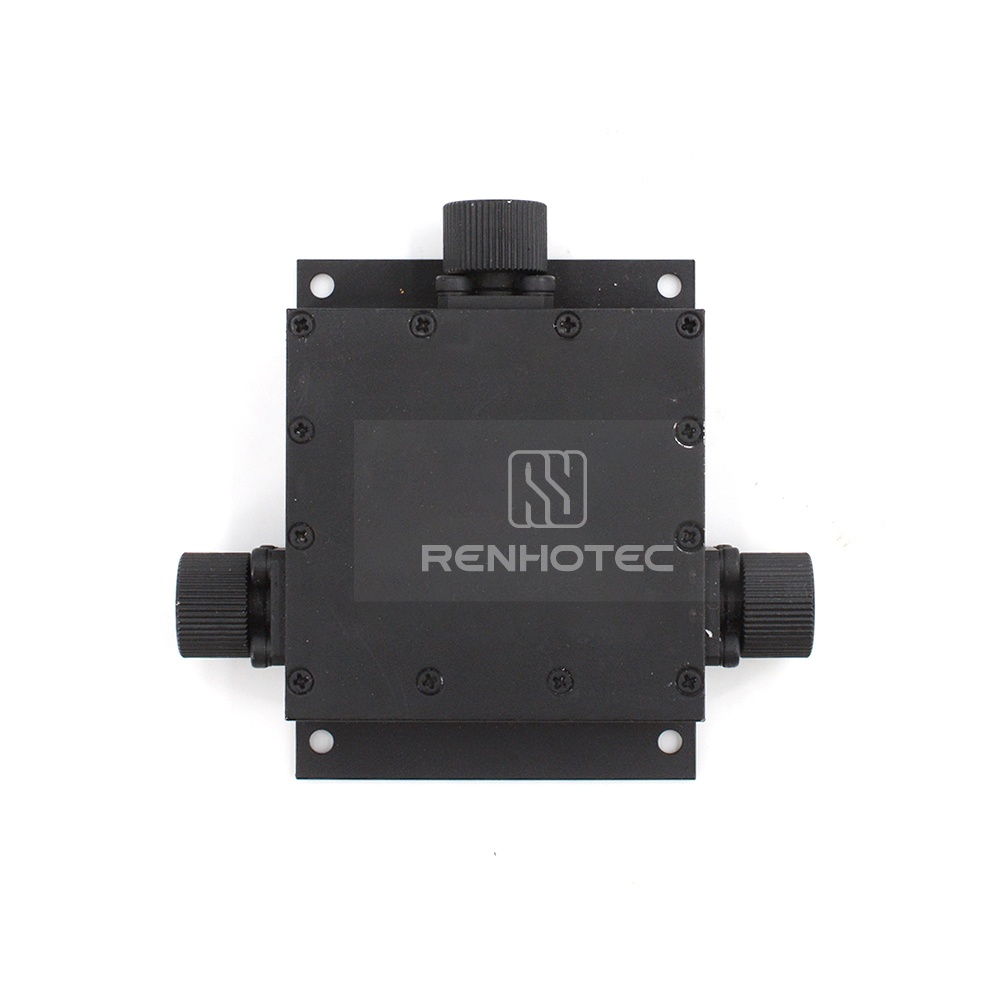

RHT-PD2-A10-DC-P-TFI 2 Way TNC Female Microstrip Power Divider Combiner 50-3000MHz

A power divider, also known as a power splitter, splits input signal power into multiple output ports. It can also be used in reverse as a combiner to merge multiple signals, offering a flexible solution for signal transmission and processing.

Its key advantage is precise signal control: the optimized design provides high port isolation to reduce crosstalk; low VSWR ensures minimal reflection and efficient transmission; and stable amplitude and phase balance deliver consistent multi-signal performance, meeting the demands of precision systems.

Product Features

• Flexible distribution/combination: Distributes one signal to multiple channels or works in reverse as a combiner, adapting to various systems.
• High isolation: Optimized design provides high isolation, reducing crosstalk and ensuring stable, independent signal transmission.
• Low reflection & high efficiency: Low VSWR ensures good port matching, minimizing reflection and energy loss for efficient transmission.
• Strong signal consistency: Stable amplitude and phase balance ensure synchronization and consistency in precision RF systems.
• Excellent VSWR: Ideal for high-precision applications.
• Wide frequency range: Meets testing and measurement needs across RF communication fields.
• Reliable design: High temperature resistance, compact size, and fast response.

Series types

Microstrip Series:

• Small size, low VSWR, low insertion loss, high isolation
• Customizable for frequency ranges up to 60 GHz
• Suitable for laboratory and production testing of RF communication products
• Highly reliable with wear and corrosion resistance for long service life

Satellite Positioning Series:

• Distributes and amplifies GPS/Galileo/GNSS signals to multiple GPS receivers
• Provides DC power supply for GPS active antennas

Resistor Series:

• Customizable frequency range up to 60 GHz (DC–60 GHz)
• Excellent electrical performance, designed to meet high-precision testing requirements

Connector Types

N, SMA, 2.92 mm, BNC, TNC

Application Scenarios

• Communication field: satellite communication, wireless base stations, mobile communication, wireless communication, Wi-Fi networks, Bluetooth devices, radio and television.
• Electronic equipment and systems: radar systems, avionics, electronic warfare.
• Medical and test equipment: testing and measurement instruments, RF test equipment, network analyzers.
