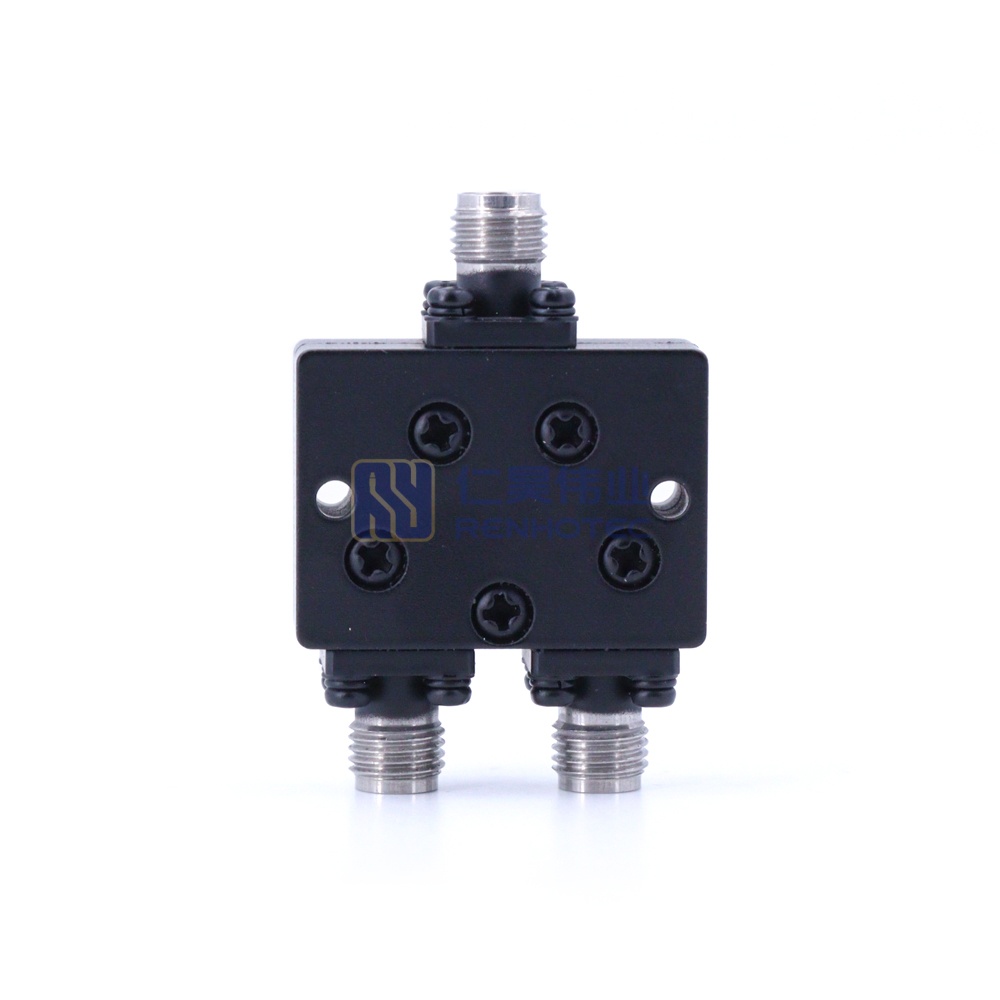

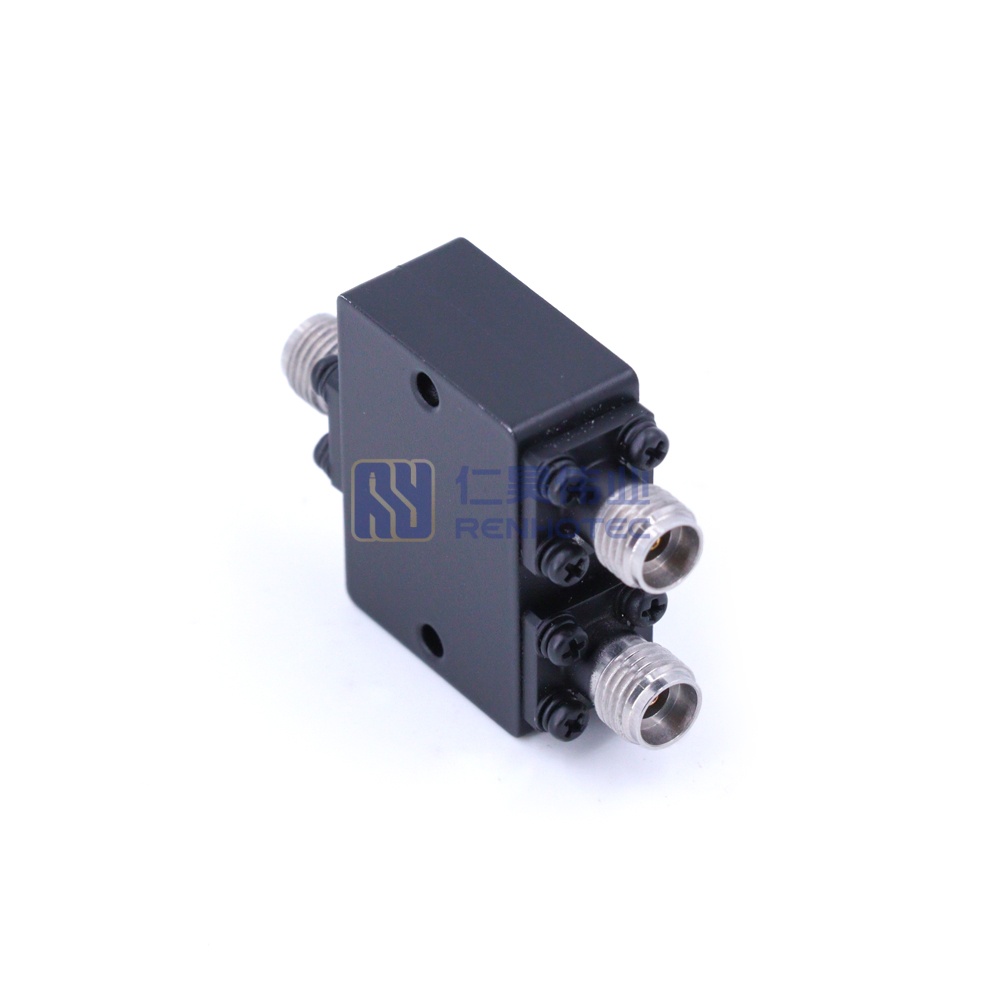

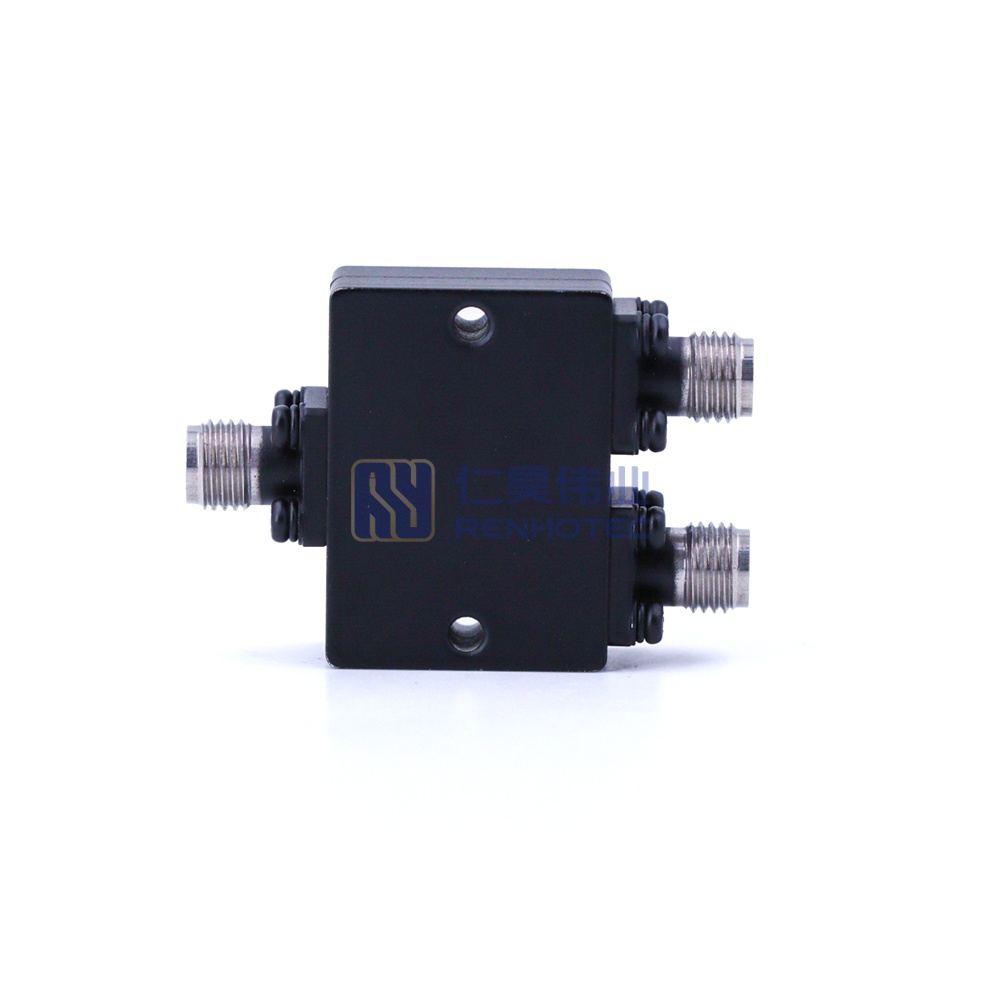

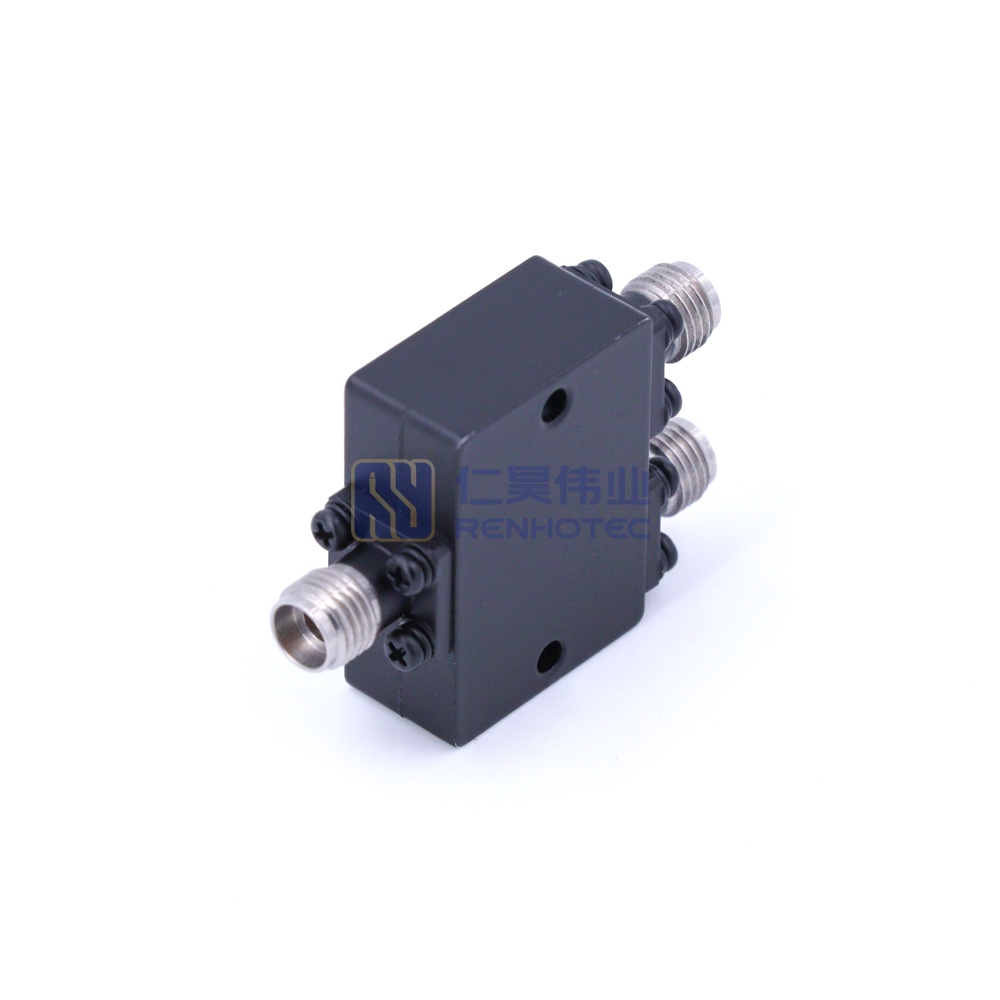

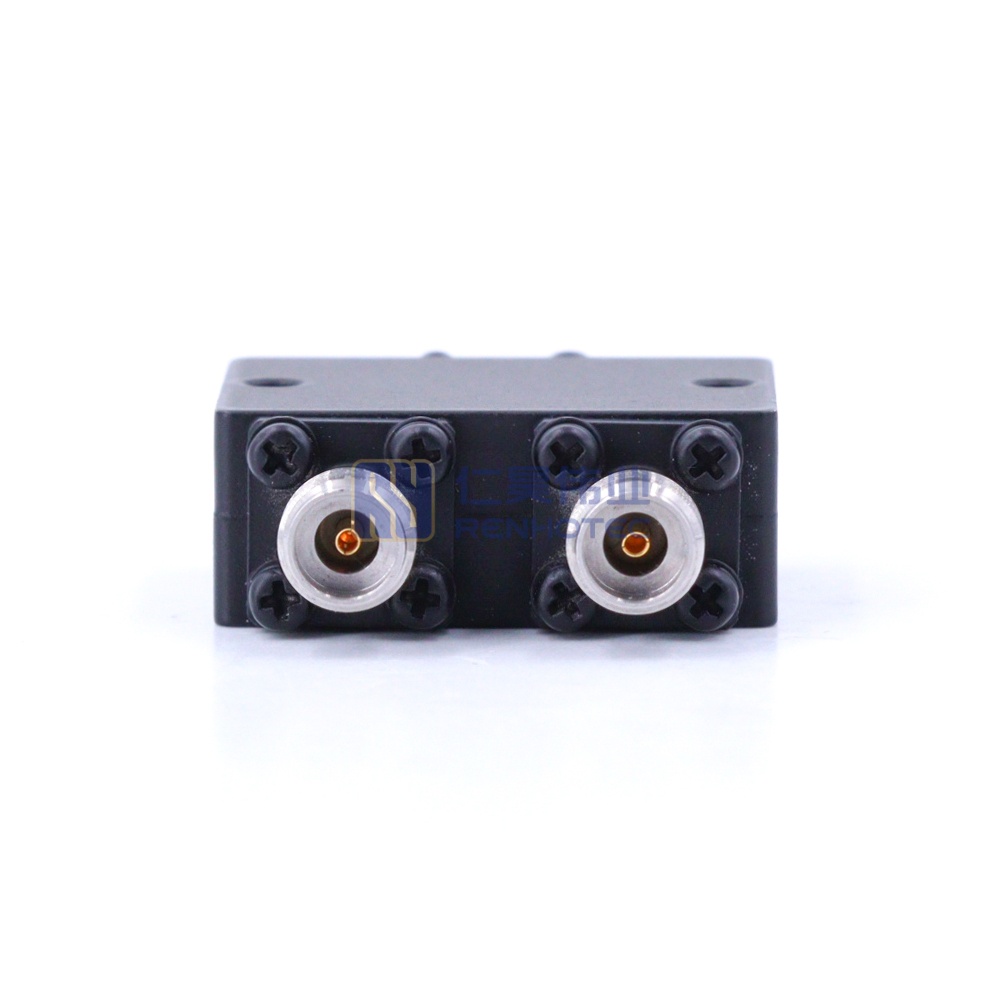

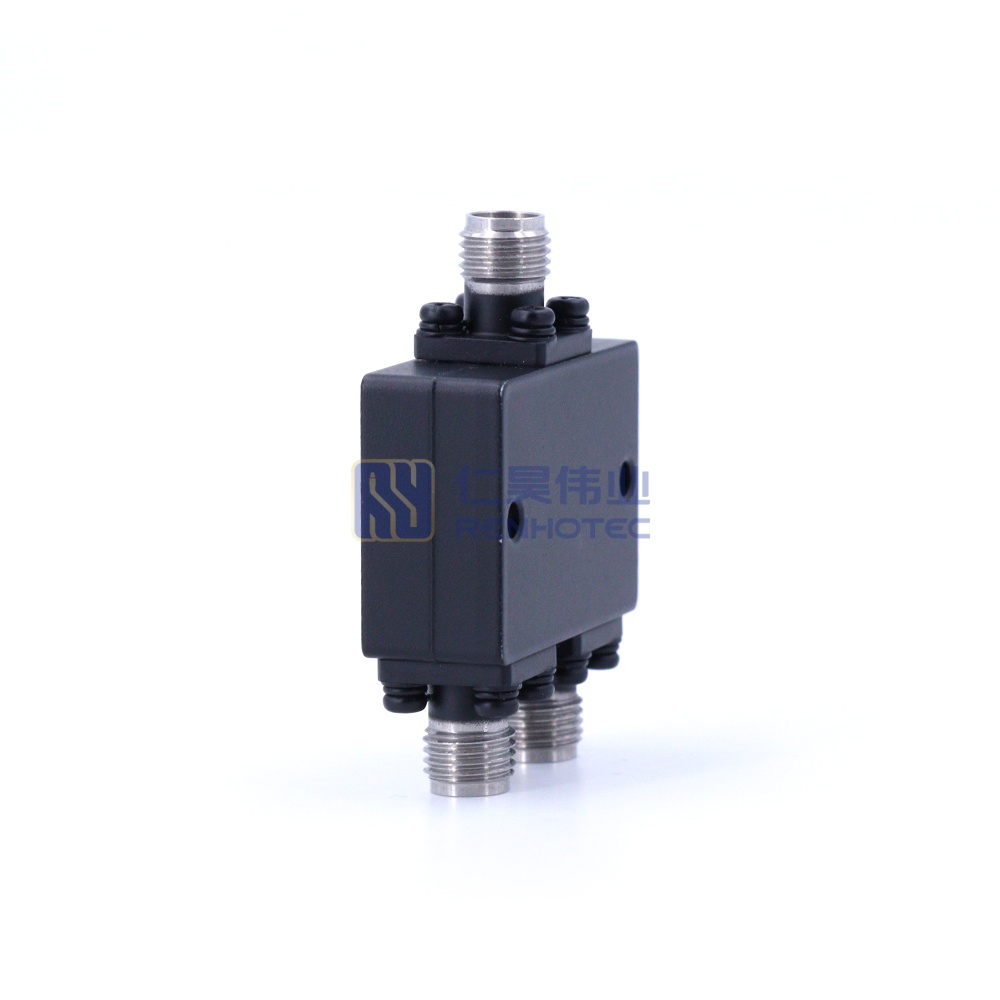

2.92mm Coaxial 2 Way Power Divider/Combiner RF Signal Divider 18-40GHz
Built for ultra-high-frequency microwave and millimeter-wave applications, this precision coaxial two-way divider provides high electrical performance and low insertion loss up to 40GHz for advanced engineering test benches.
Product Specification
| Connector Type | 2.92mm Female |
||
|---|---|---|---|
| Frequency Range | 18-40 GHz |
||
| Impedance | 50 Ω |
||
| Connector Type | 2.92mm Female |
Frequency Range | 18-40 GHz |
| Impedance | 50 Ω |
| Input Port VSWR | Typ.1.28 / Max.1.5 |
||
|---|---|---|---|
| Output Port VSWR | Typ.1.26 / Max.1.5 |
||
| Insertion Loss | ≤1.0dB (excluding theoretical loss 3.0dB) |
||
| Operation Temperature | -45°C ~ +85°C |
||
| Service Life | ≥500 |
||
| Isolation | Typ.22dB / Min.18dB |
||
| Amplitude Balance | ±0.4dB |
||
| Phase Balance | ±5° |
||
| Power | Splitter: 20W; Combiner: 1W |
||
| Input Port VSWR | Typ.1.28 / Max.1.5 |
Output Port VSWR | Typ.1.26 / Max.1.5 |
| Insertion Loss | ≤1.0dB (excluding theoretical loss 3.0dB) |
Operation Temperature | -45°C ~ +85°C |
| Service Life | ≥500 |
Isolation | Typ.22dB / Min.18dB |
| Amplitude Balance | ±0.4dB |
Phase Balance | ±5° |
| Power | Splitter: 20W; Combiner: 1W |
| Connector Type | 2.92mm Female |
|---|---|
| Frequency Range | 18-40 GHz |
| Input Port VSWR | Typ.1.28 / Max.1.5 |
| Output Port VSWR | Typ.1.26 / Max.1.5 |
| Impedance | 50 Ω |
| Insertion Loss | ≤1.0dB (excluding theoretical loss 3.0dB) |
| Operation Temperature | -45°C ~ +85°C |
| Service Life | ≥500 |
| Isolation | Typ.22dB / Min.18dB |
| Amplitude Balance | ±0.4dB |
| Phase Balance | ±5° |
| Power | Splitter: 20W; Combiner: 1W |
