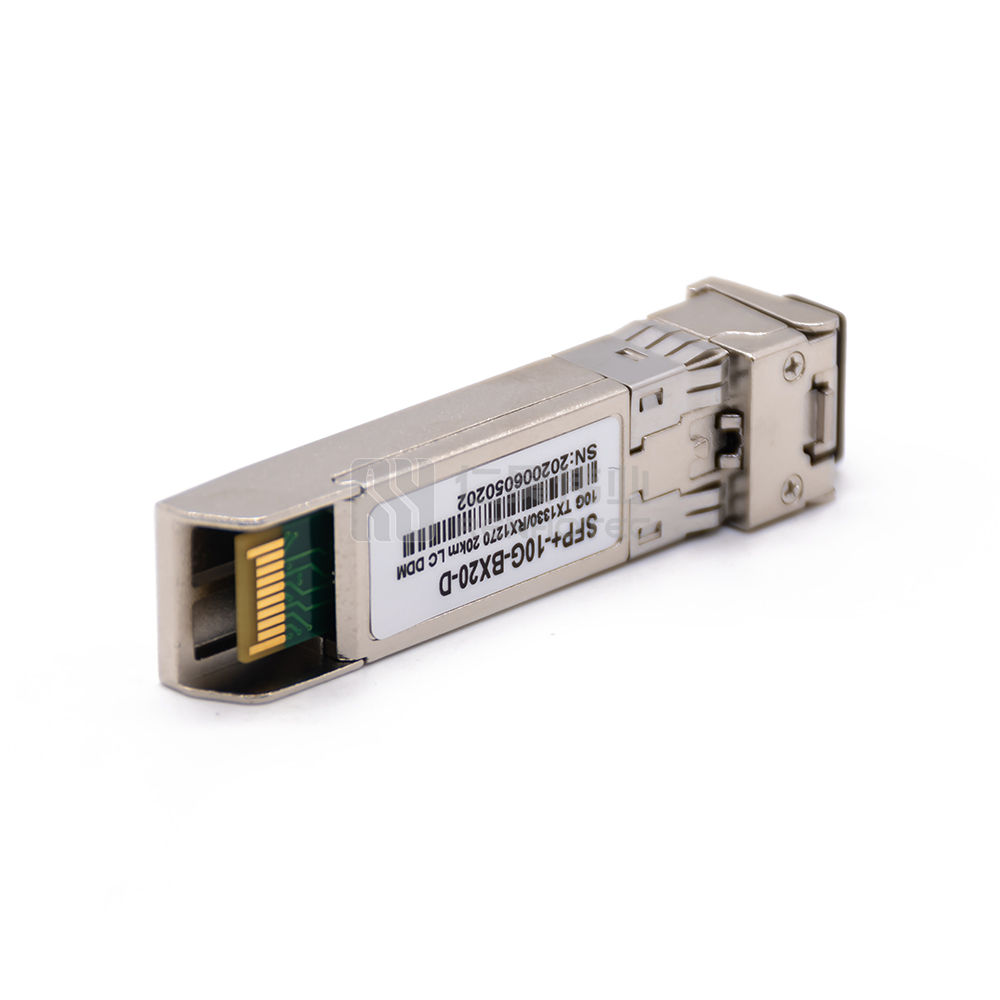

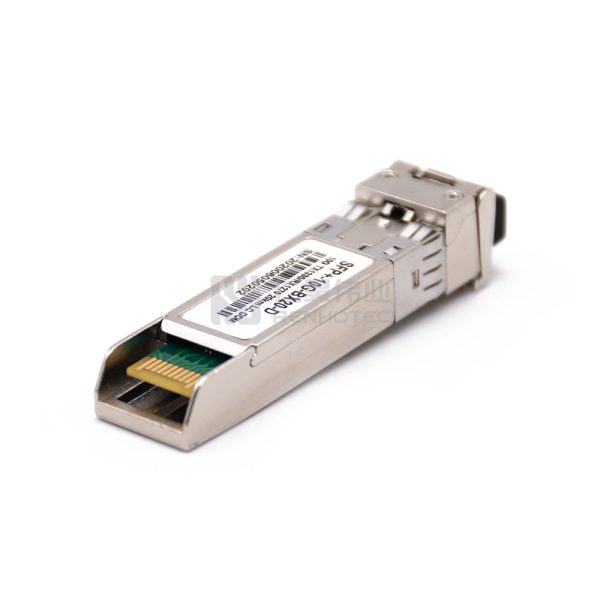

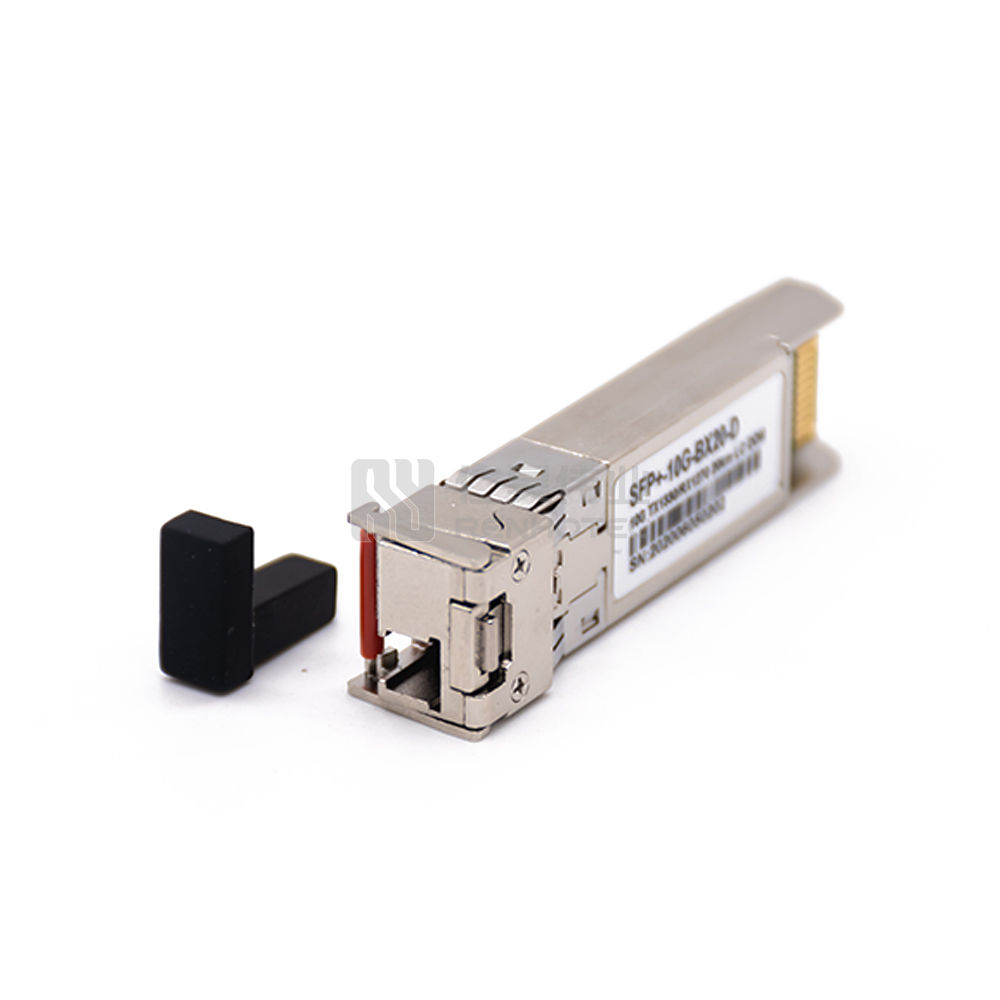

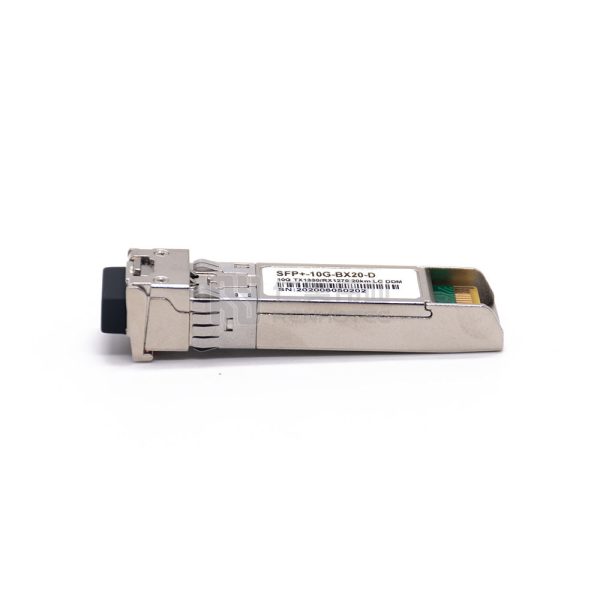

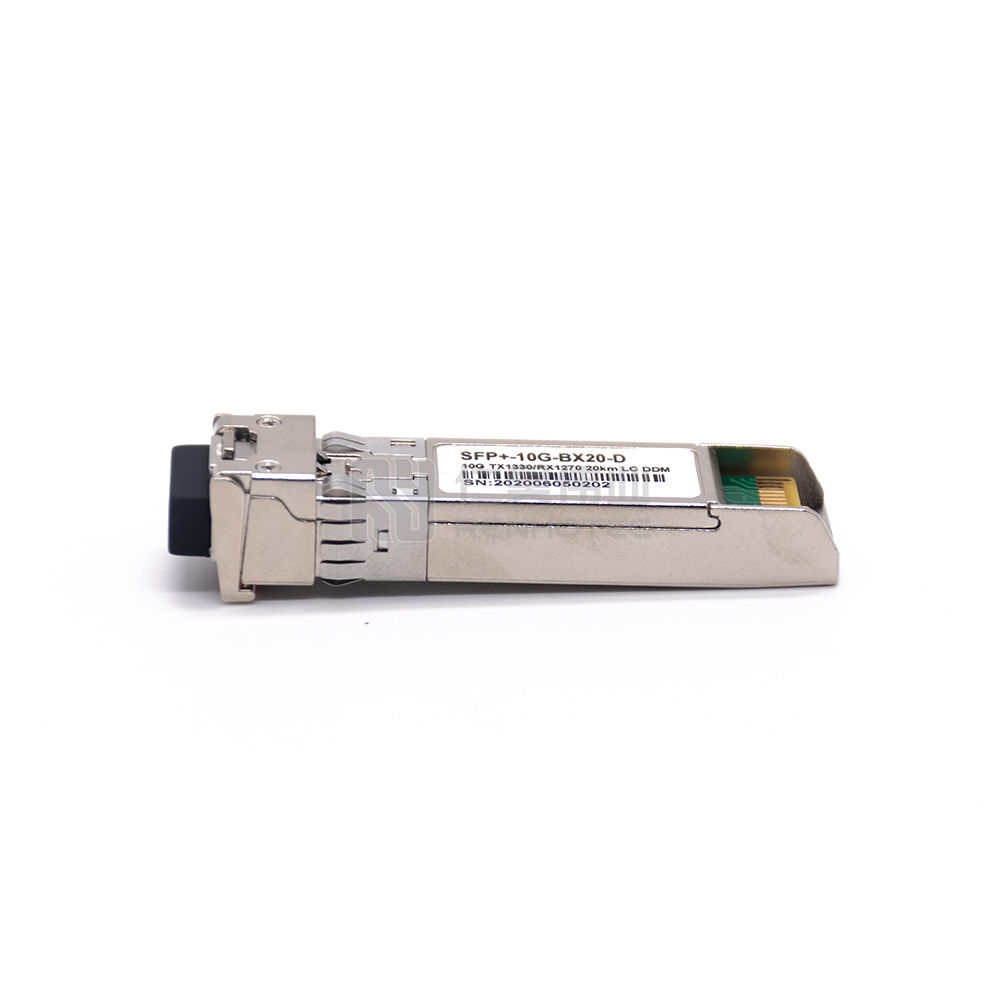

SFP+-10G-BX20-D, 10G SFP+ T1330/R1270 20km DOM Simplex LC SMF Optical Transceiver Module
Introduction
- Supports data rates of up to 10 Gbps
- Compatible with a wide range of networking equipment
- Hot-pluggable for easy installation and removal
- Low power consumption for reduced energy costs
- Supports digital diagnostic monitoring (DDM) for real-time performance monitoring
- Can transmit up to 300 meters over multimode fiber and up to 10 kilometers over single-mode fiber
Renhotec SFP+ 10Gb Modules
Renhotec 10Gb SFP+ modules are high-speed, hot-pluggable optical transceivers designed for 10 Gigabit Ethernet and other high-speed networking applications. They support data rates up to 10Gbps and can operate over a range of distances depending on the specific module. Renhotec 10Gb SFP+ modules are compatible with a wide range of networking equipment and are easy to install and replace, thanks to their hot-pluggable design. They are ideal for network administrators looking for a reliable and cost-effective solution for high-speed networking.
Connectivity Solution


Features
10G Connectivity & Low-Power

The Optical Transceiver provides fast and reliable 10G connectivity in data center environments. Its low power consumption feature makes it an energy-efficient option for large-scale data center environments, reducing power costs and minimizing environmental impact.
Strict Quality Control Requirements

Renhotec follows strict quality control requirements to ensure the reliable performance of its optical modules. By adhering to these requirements, they can provide high-quality products that meet the needs of their customers and provide reliable performance over an extended period.
Specifications
Compatible Brands | Cisco, Huawei, ZTE, HP |
---|---|
Form Factor | SFP+ |
Max Data Rate | 10Gbps |
Wavelength | 1330nm-TX/1270nm-RX |
Max Cable Distance | 20km |
Connector | Duplex LC |
DOM/DDM | Supported |
Mode | Single Mode |
Transmitter Type | DFB |
Receiver Type | PIN |
TX Power | -0.5~-6dBm |
Receiver Sensitivity | <-14.5dBm |
Protocols | IEEE 802.3ae, SFP+ MSA |
Compatible Brands | Cisco, Huawei, ZTE, HP |
---|---|
Form Factor | SFP+ |
Max Data Rate | 10Gbps |
Wavelength | 1330nm-TX/1270nm-RX |
Max Cable Distance | 20km |
Connector | Duplex LC |
DOM/DDM | Supported |
Mode | Single Mode |
Transmitter Type | DFB |
Receiver Type | PIN |
TX Power | -0.5~-6dBm |
Receiver Sensitivity | <-14.5dBm |
Protocols | IEEE 802.3ae, SFP+ MSA |
