RF Connectors SMP Thread-In Male Receptacle – RHT-628-0033
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-628-0033 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-628-0033 |
| Radiall | R222561001 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.

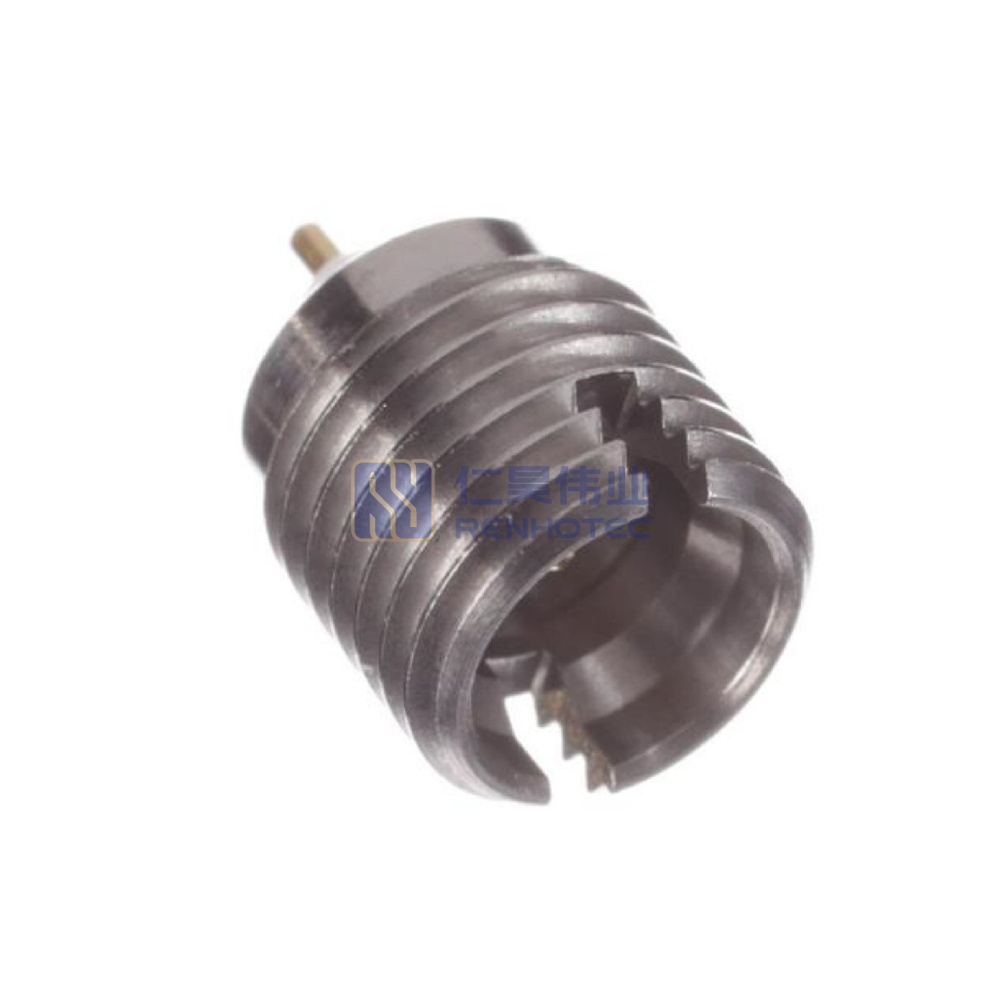

SMP thread-in male receptacle, 50Ω, threaded mounting for secure panel or chassis installation, robust mechanical retention withstands vibration, supports 18 GHz operation, commonly deployed in military communication systems, avionics, and ruggedized test equipment.
| Body Material | Stainless Steel |
||
|---|---|---|---|
| Center Contact Material | Beryllium Copper |
||
| Center Contact Plating | Gold Plated |
||
| Contact Termination | Solder |
||
| Dielectric Material | PTFE |
||
| Frequency | 12 GHz |
||
| Gender | Male |
||
| Mating Cycles | 100 Cycles |
||
| Test voltage | 500 V rms |
||
| Body Material | Stainless Steel |
Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
Contact Termination | Solder |
| Dielectric Material | PTFE |
Frequency | 12 GHz |
| Gender | Male |
Mating Cycles | 100 Cycles |
| Test voltage | 500 V rms |
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Contact Type | Male Pin |
||
| Impedance | 50 ohm |
||
| Fastening Type | Snap-On |
||
| Insulation Resistance | 5000MΩ Min |
||
| Mounting Type | Through Hole |
||
| Operating Temperature | -65°C to +165°C |
||
| Working Voltage | 335 V rms |
||
| RF Series | SMP Type |
Connector Type | Jack |
| Contact Type | Male Pin |
Impedance | 50 ohm |
| Fastening Type | Snap-On |
Insulation Resistance | 5000MΩ Min |
| Mounting Type | Through Hole |
Operating Temperature | -65°C to +165°C |
| Working Voltage | 335 V rms |
| Body Material | Stainless Steel |
|---|---|
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
| RF Series | SMP Type |
| Connector Type | Jack |
| Contact Type | Male Pin |
| Impedance | 50 ohm |
| Contact Termination | Solder |
| Dielectric Material | PTFE |
| Fastening Type | Snap-On |
| Frequency | 12 GHz |
| Gender | Male |
| Insulation Resistance | 5000MΩ Min |
| Mating Cycles | 100 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C to +165°C |
| Test voltage | 500 V rms |
| Working Voltage | 335 V rms |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
