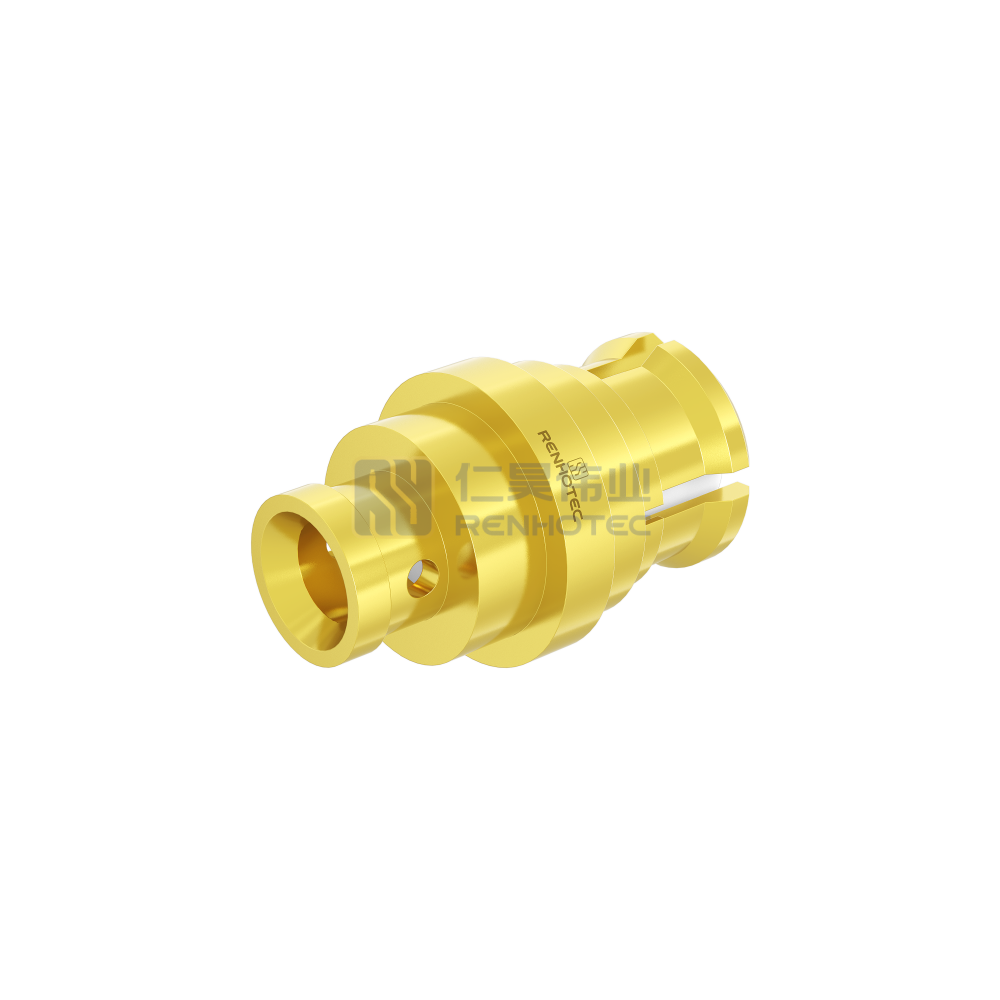

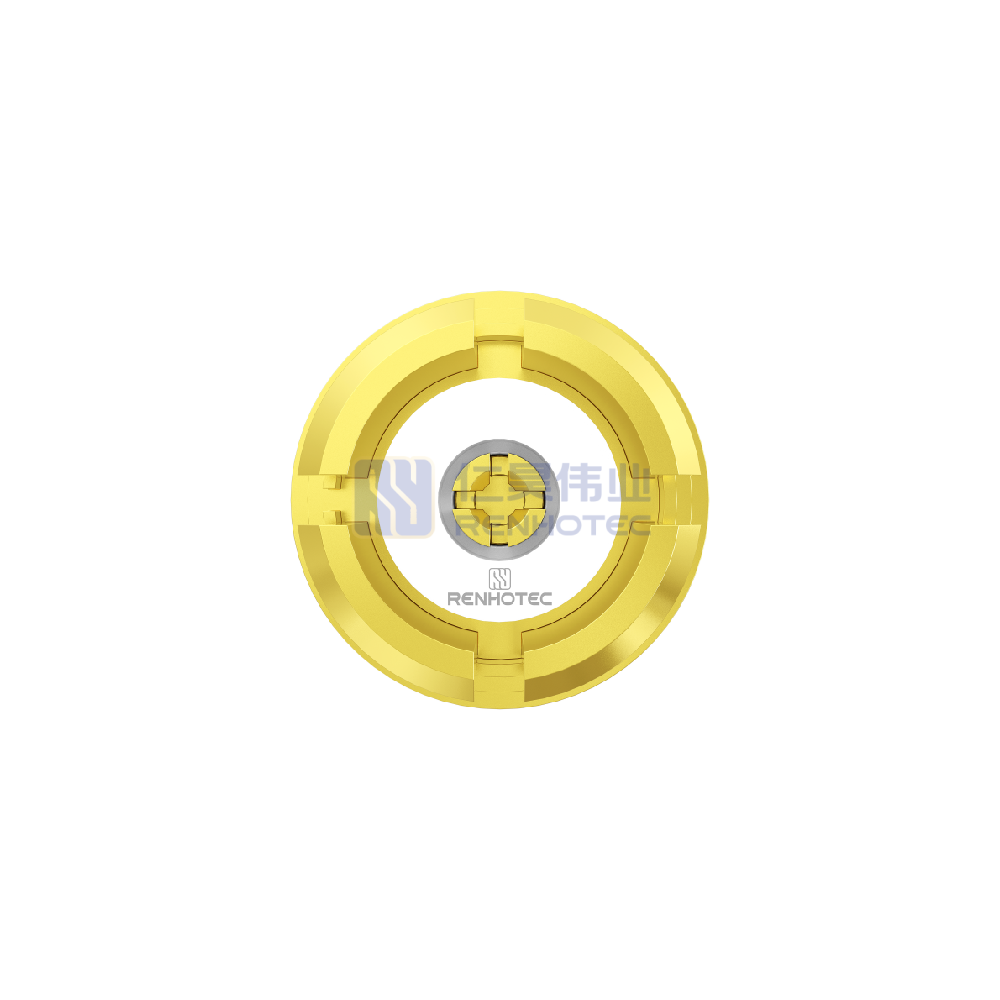

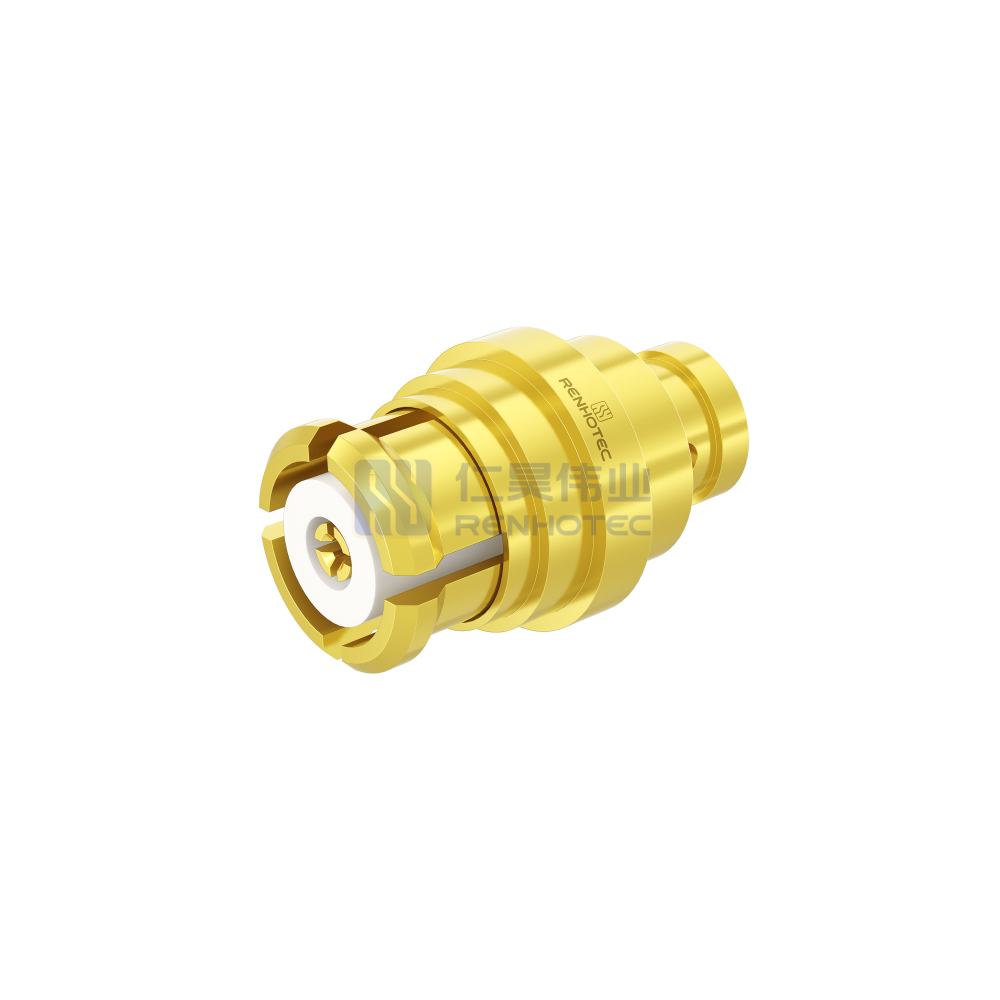

R/A SMP Jack for RG405 Cable – RHT-628-0010
Right-angle SMP jack, 50Ω, crimp termination for RG405 semi-rigid cable, compact right-angle body enables dense board-to-cable routing, supports DC to 18 GHz with stable return loss, suitable for microwave modules, phased array antennas, and high-frequency test interconnects.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Impedance | 50 ohm |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Phosphor copper |
||
| Frequency Range | DC-6GHz |
||
| Insulation Resistance | 5000 Ohms min |
||
| Insulator Material | PTFE |
||
| Orientation | Straight |
||
| Shell Finish | Gold Plated |
||
| Shell Material | Phosphor Copper |
||
| Suitable Cable | RG405 |
||
| Temperature Range | -55°C to +155°C |
||
| VSWR | 1.2 MAX |
||
| Working Voltage | 500 V rms |
||
| RF Series | SMP Type |
Connector Type | Jack |
| Contact Type | Female Pin |
Impedance | 50 ohm |
| Contact Finish | Gold Plated |
Contact Material | Phosphor copper |
| Frequency Range | DC-6GHz |
Insulation Resistance | 5000 Ohms min |
| Insulator Material | PTFE |
Orientation | Straight |
| Shell Finish | Gold Plated |
Shell Material | Phosphor Copper |
| Suitable Cable | RG405 |
Temperature Range | -55°C to +155°C |
| VSWR | 1.2 MAX |
Working Voltage | 500 V rms |
| RF Series | SMP Type |
|---|---|
| Connector Type | Jack |
| Contact Type | Female Pin |
| Impedance | 50 ohm |
| Contact Finish | Gold Plated |
| Contact Material | Phosphor copper |
| Frequency Range | DC-6GHz |
| Insulation Resistance | 5000 Ohms min |
| Insulator Material | PTFE |
| Orientation | Straight |
| Shell Finish | Gold Plated |
| Shell Material | Phosphor Copper |
| Suitable Cable | RG405 |
| Temperature Range | -55°C to +155°C |
| VSWR | 1.2 MAX |
| Working Voltage | 500 V rms |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
