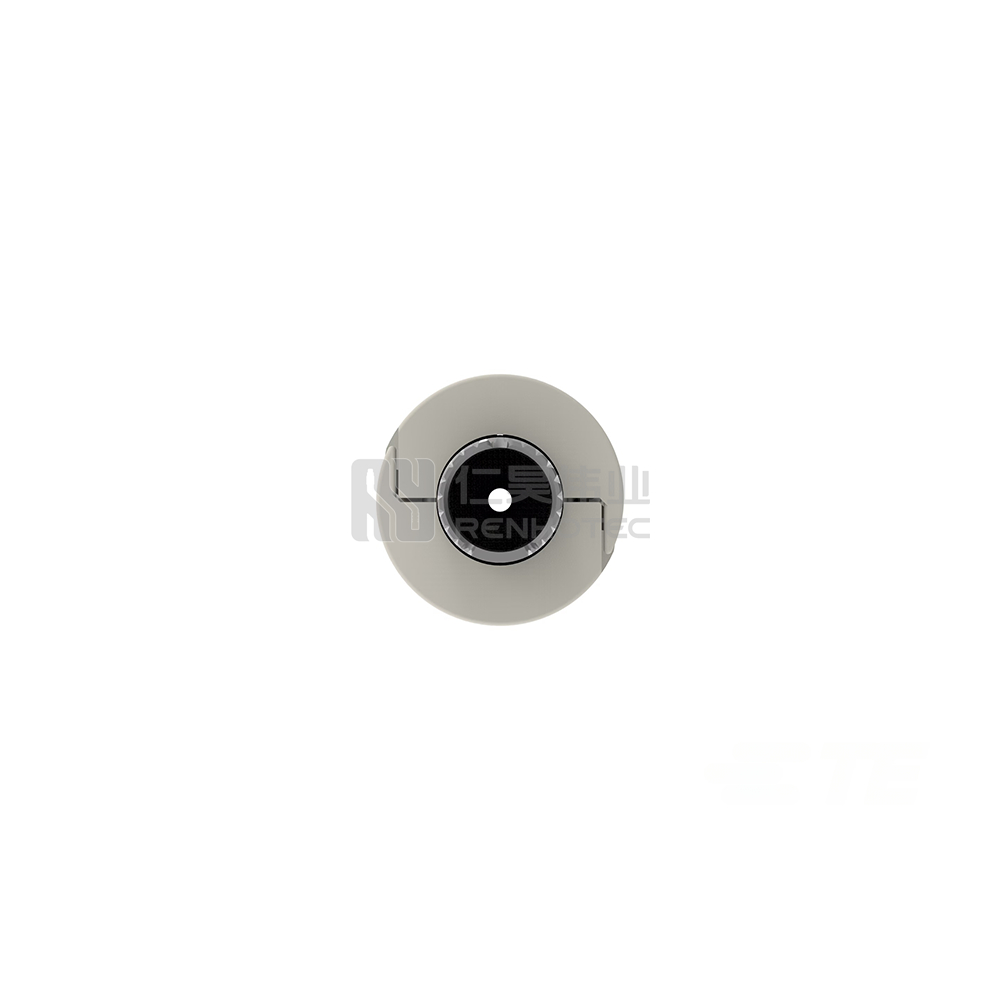

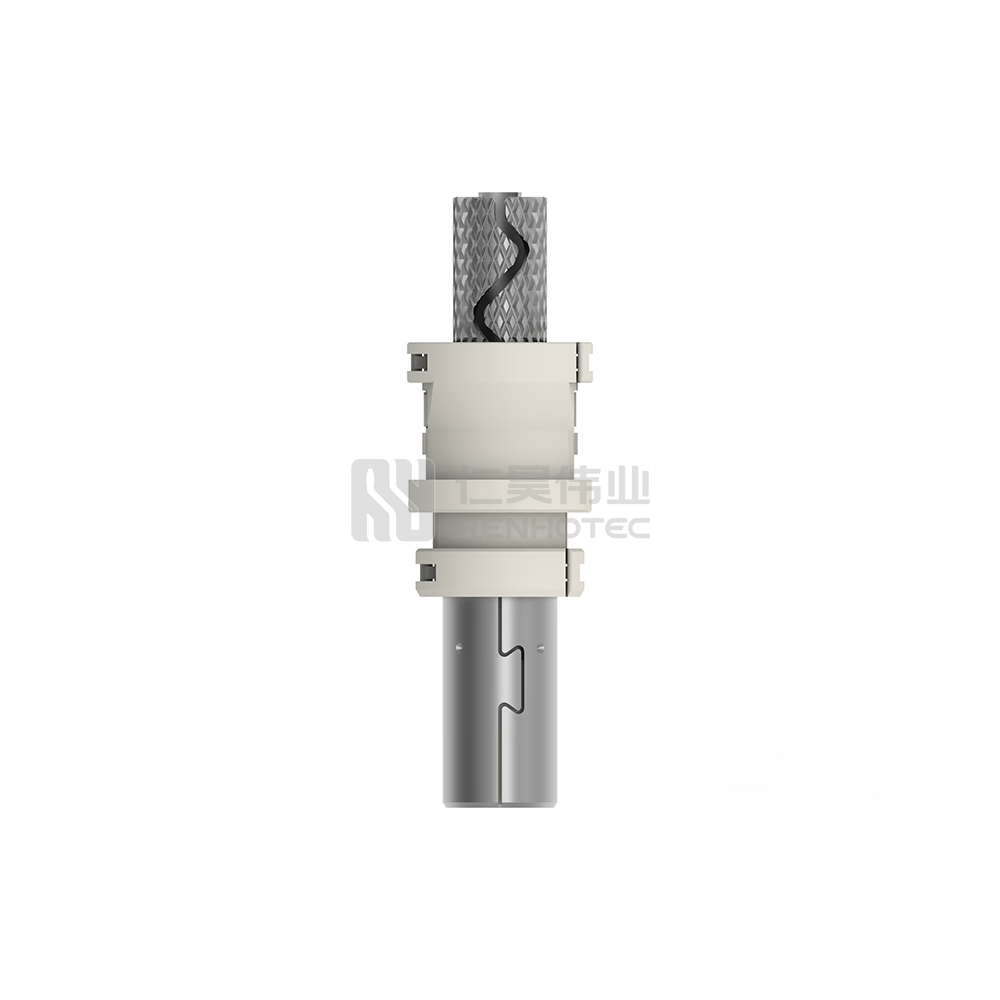

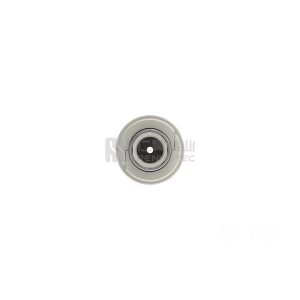

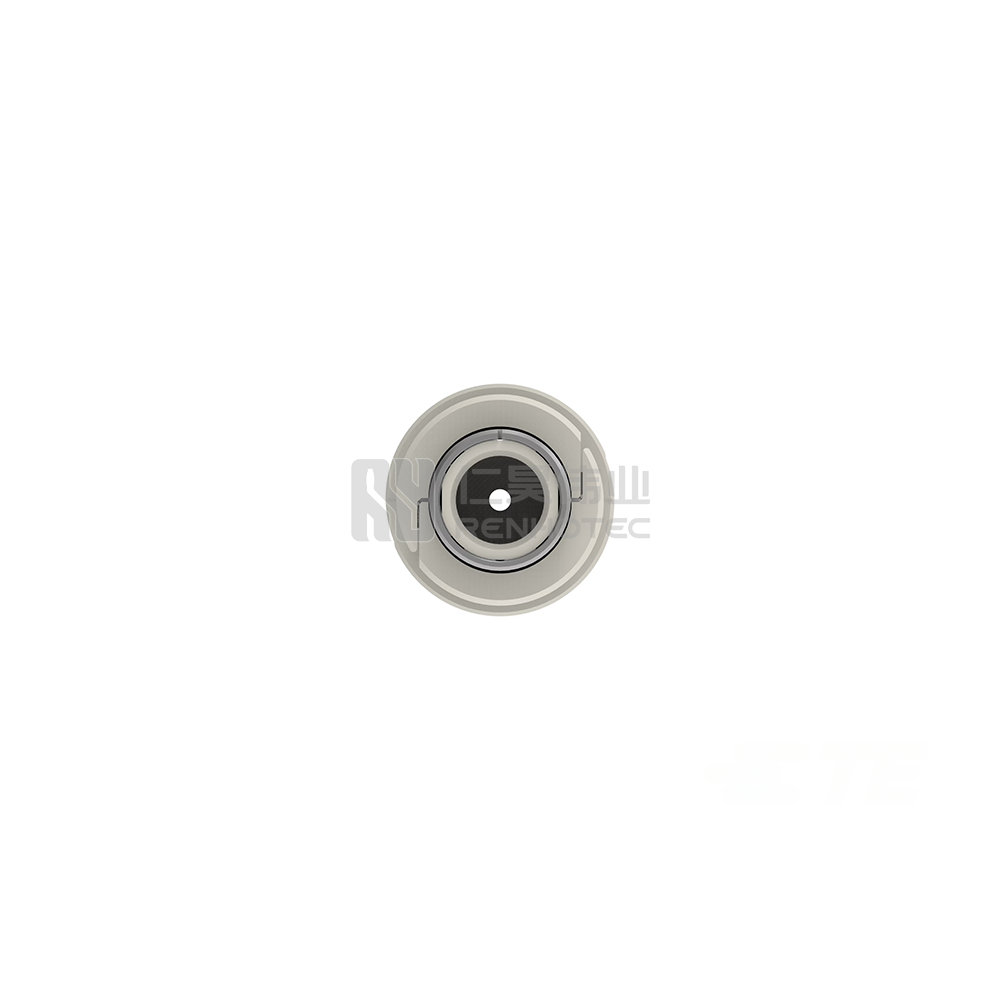

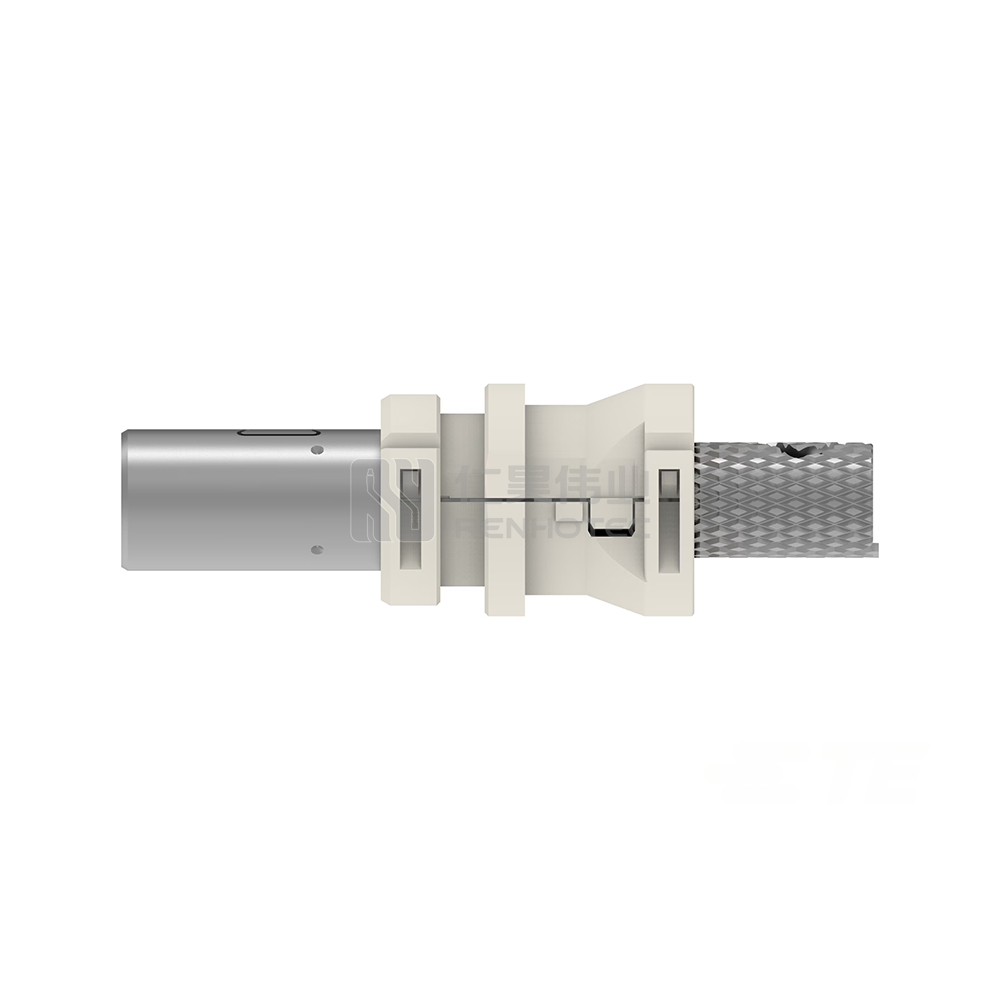

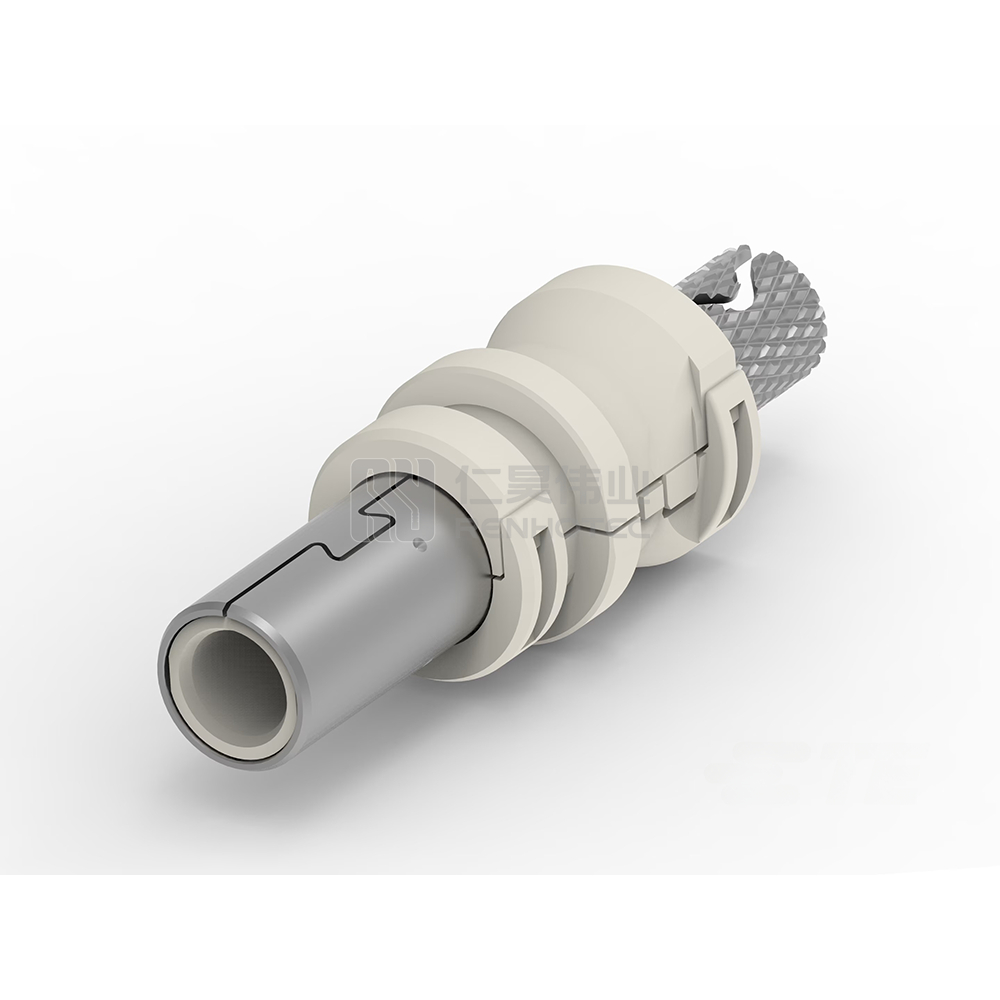

Pin Terminal, Gold (Au),0.5 mm Pin Diameter, Terminates To Wire & Cable, 11.33 mm Tab Length, FAKRA

Gold-plated FAKRA pin terminal with 0.5mm diameter for reliable, corrosion-resistant connections in automotive and telecom applications. Solves signal loss and durability issues by ensuring secure, high-performance terminations to wire and cable.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues
good reviews

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Package Qty

2500
Package Method

Reel
Primary Color

Natural
Automotive Accessory Type

Terminal
Primary Material

Phosphor Bronze
Package Qty

2500

 Package Method

Reel
Primary Color

Natural

 Automotive Accessory Type

Terminal
Primary Material

Phosphor Bronze

Product Specification

Temperature Range

-40 – 125 °C [ -40 – 257 °F ]
Temperature Range

-40 – 125 °C [ -40 – 257 °F ]
Package Qty

2500
Temperature Range

-40 – 125 °C [ -40 – 257 °F ]
Package Method

Reel
Primary Color

Natural
Automotive Accessory Type

Terminal
Primary Material

Phosphor Bronze
