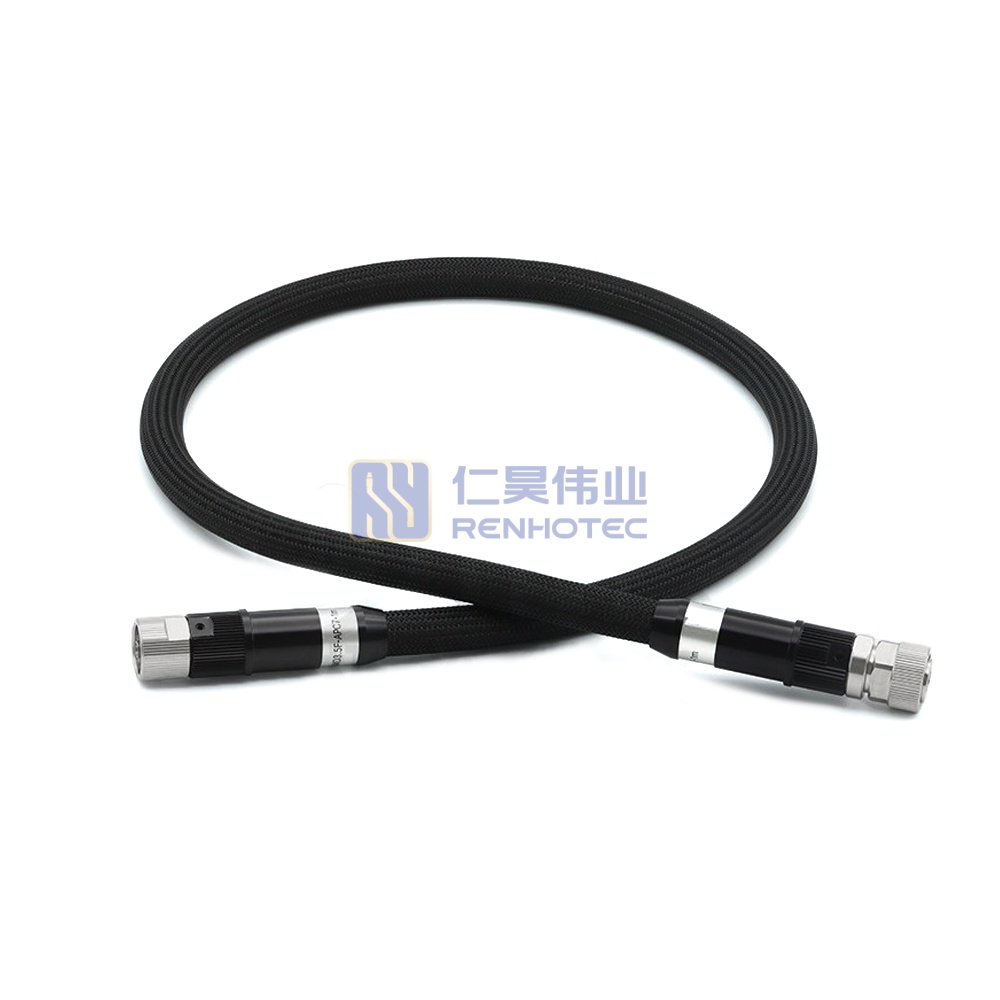

NMD 3.5mm to APC-7mm VNA Test Cable Assembly, 26.5GHz – RHT-605-20640

SKU RHT-605-20640 Category Other Cable Assemblies, High Frequency Cable Assemblies

1st Conn Outer Material	Stainless Steel Passivation
1st Conn Inner Material	Beryllium Bronze Gold Plating
2nd Conn Outer Material	Stainless Steel Passivation
2nd Conn Inner Material	Beryllium Bronze Gold Plating
Shielding Effectiveness	>90dB
Outer Jacket Material	PTFE
Outer Jacket Diameter	15.2mm
1st Conn Outer Material	Stainless Steel Passivation	1st Conn Inner Material	Beryllium Bronze Gold Plating
2nd Conn Outer Material	Stainless Steel Passivation	2nd Conn Inner Material	Beryllium Bronze Gold Plating
Shielding Effectiveness	>90dB	Outer Jacket Material	PTFE
Outer Jacket Diameter	15.2mm

RF Cable 1st Connector	NMD3.5mm
RF Cable 2nd Connector	APC
1st Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Straight
Frequency Range	DC-26.5GHz
VSWR	1.3:1
Impedance	50Ω
Dielectric Withstanding Voltage	500V, DC
Operating Temperature	-55℃~+105℃
RF Cable 1st Connector	NMD3.5mm	RF Cable 2nd Connector	APC
1st Contact Type	Female Pin	1st Connector Orientation	Straight
2nd Connector Orientation	Straight	Frequency Range	DC-26.5GHz
VSWR	1.3:1	Impedance	50Ω
Dielectric Withstanding Voltage	500V, DC	Operating Temperature	-55℃~+105℃

1st Conn Outer Material	Stainless Steel Passivation
1st Conn Inner Material	Beryllium Bronze Gold Plating
2nd Conn Outer Material	Stainless Steel Passivation
2nd Conn Inner Material	Beryllium Bronze Gold Plating
RF Cable 1st Connector	NMD3.5mm
RF Cable 2nd Connector	APC
1st Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Straight
Frequency Range	DC-26.5GHz
VSWR	1.3:1
Impedance	50Ω
Shielding Effectiveness	>90dB
Dielectric Withstanding Voltage	500V, DC
Operating Temperature	-55℃~+105℃
Outer Jacket Material	PTFE
Outer Jacket Diameter	15.2mm
