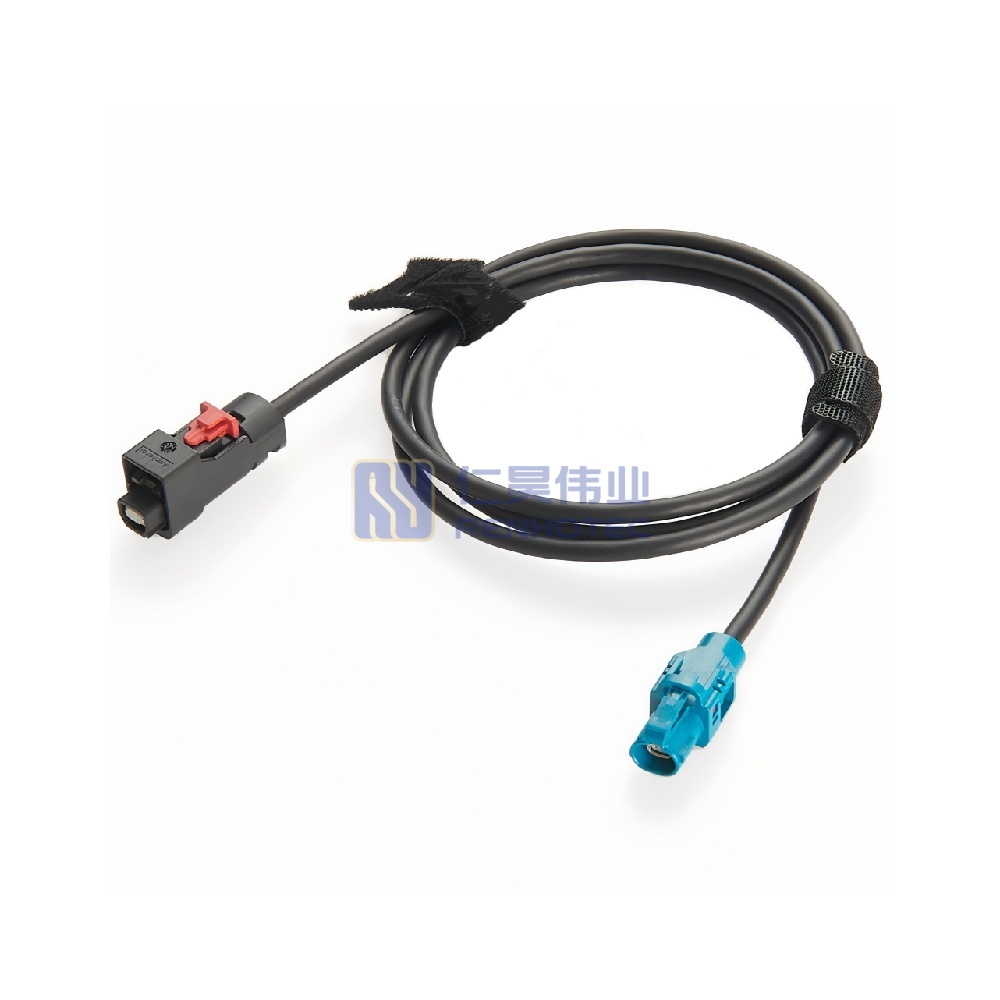

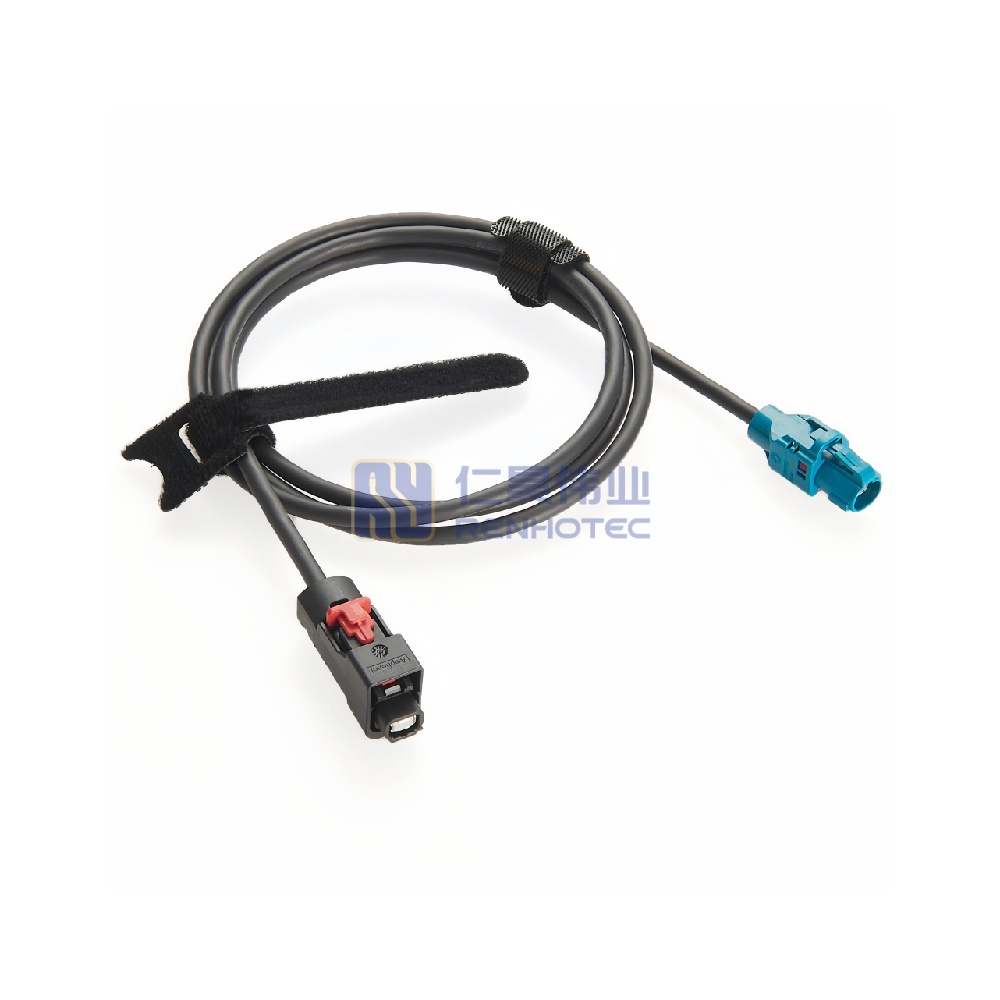

NETBridge to H-MTD Automotive Ethernet Cable – RHT-605-20830
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20830 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20830 |
| Rosenberger Part No. | E6K10A-1CAZ5-Z |
| Amphenol Part No. | NTHCF011A10S |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
| Combination | H-MTD + NETBridge |
||
|---|---|---|---|
| Length | Customized |
||
| Combination | H-MTD + NETBridge |
Length | Customized |
Product Specification

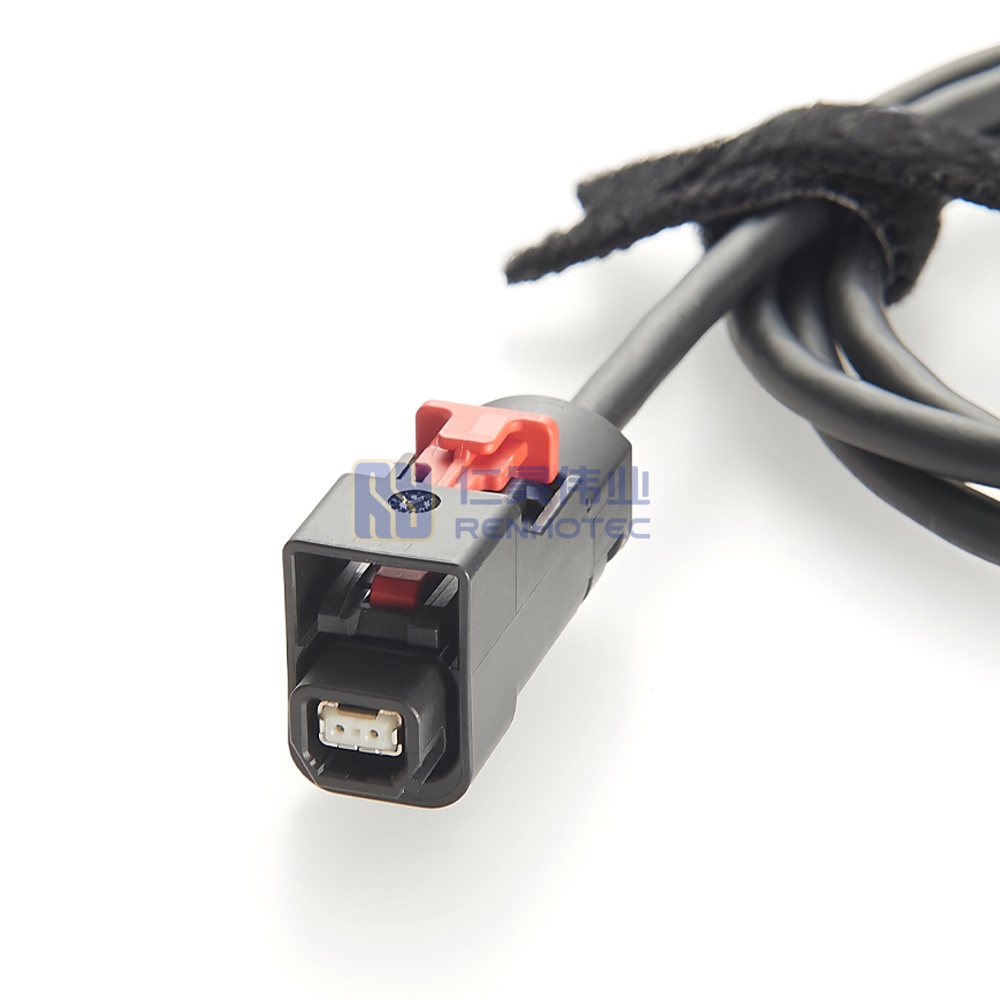

| 1st Connector | NTHCF011A10S |
||
|---|---|---|---|
| 1st Connector Orientation | Straight |
||
| 1st Contact Type | Female Pin |
||

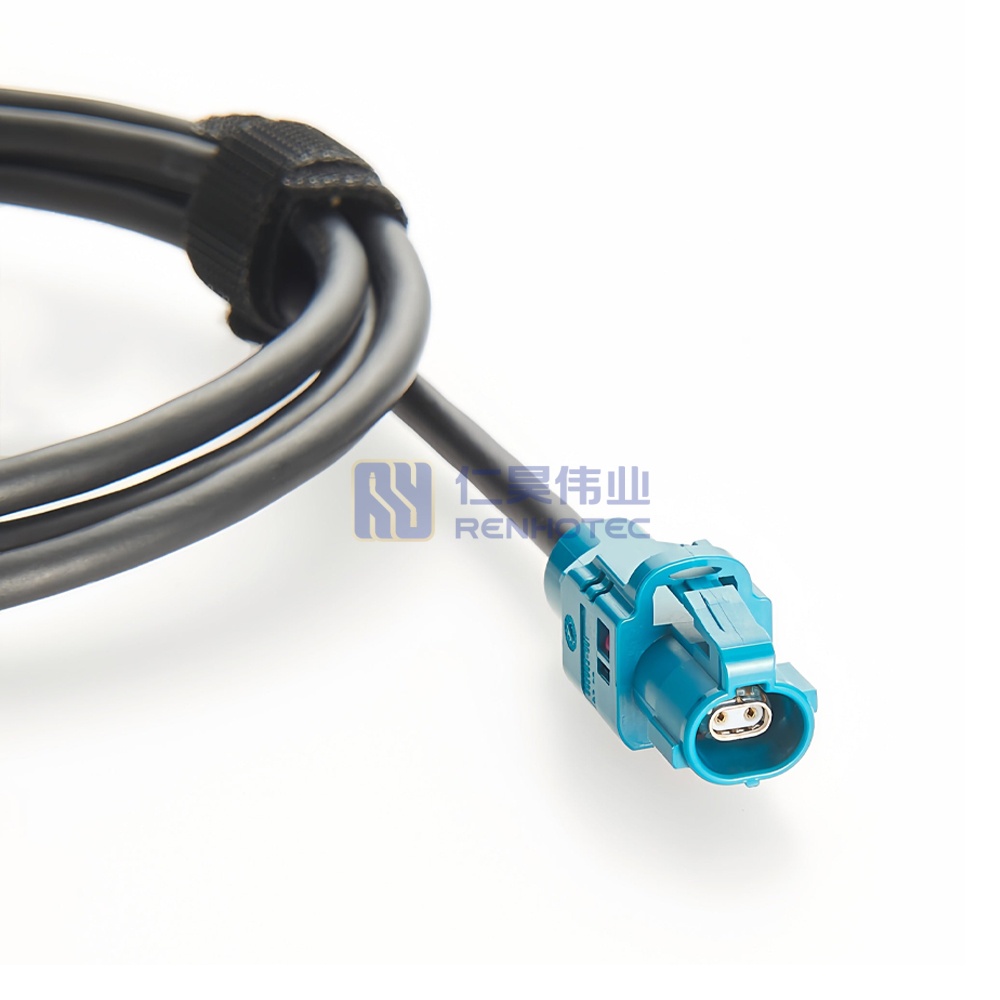

| 2nd Connector | E6K10A-1CAZ5-Z |
||
| 2nd Connector Orientation | Straight |
||
| 2nd Contact Type | Female Pin |
||
| Cable Type | GG 2Speed 251 |
||
| Frequency Range | DC – 6 GHz |
||
| Impedance | 50 Ω Nominal |
||
| Temperature Range | -40°C to +105°C |
||
| 1st Connector | NTHCF011A10S |
1st Connector Orientation | Straight |
| 1st Contact Type | Female Pin |
2nd Connector | E6K10A-1CAZ5-Z |
| 2nd Connector Orientation | Straight |
2nd Contact Type | Female Pin |
| Cable Type | GG 2Speed 251 |
Frequency Range | DC – 6 GHz |
| Impedance | 50 Ω Nominal |
Temperature Range | -40°C to +105°C |
| Combination | H-MTD + NETBridge |
|---|---|
| 1st Connector | NTHCF011A10S |
| 1st Connector Orientation | Straight |
| 1st Contact Type | Female Pin |
| 2nd Connector | E6K10A-1CAZ5-Z |
| 2nd Connector Orientation | Straight |
| 2nd Contact Type | Female Pin |
| Cable Type | GG 2Speed 251 |
| Frequency Range | DC – 6 GHz |
| Impedance | 50 Ω Nominal |
| Length | Customized |
| Temperature Range | -40°C to +105°C |
