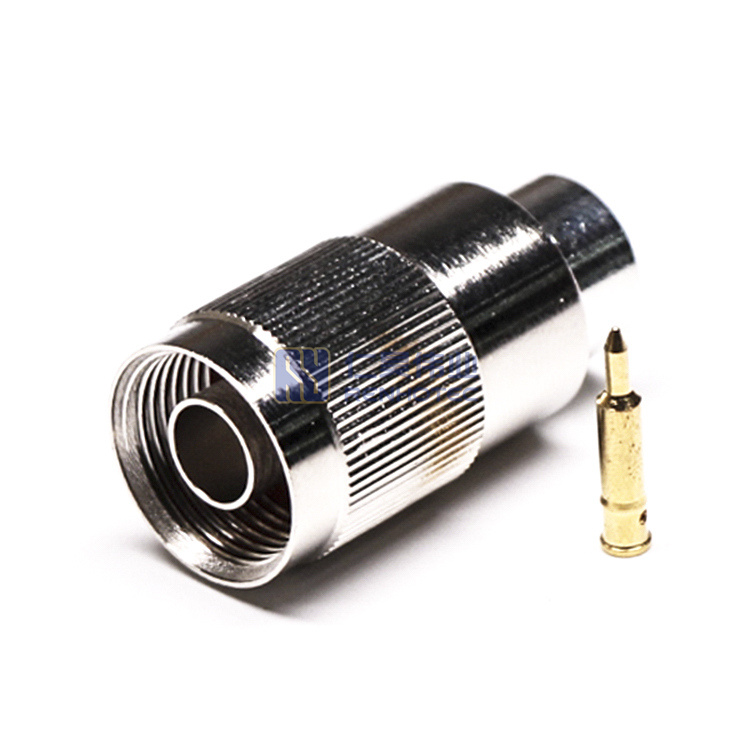

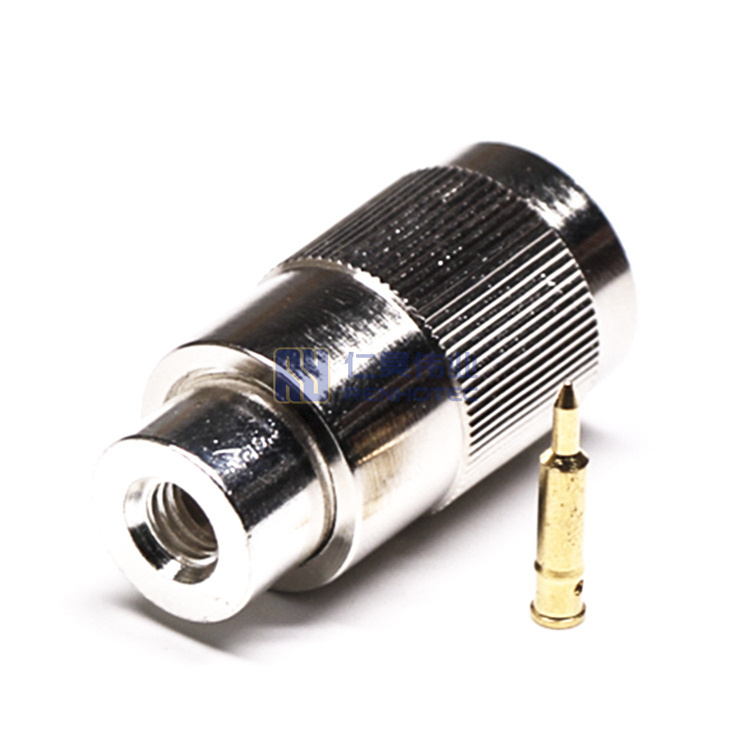

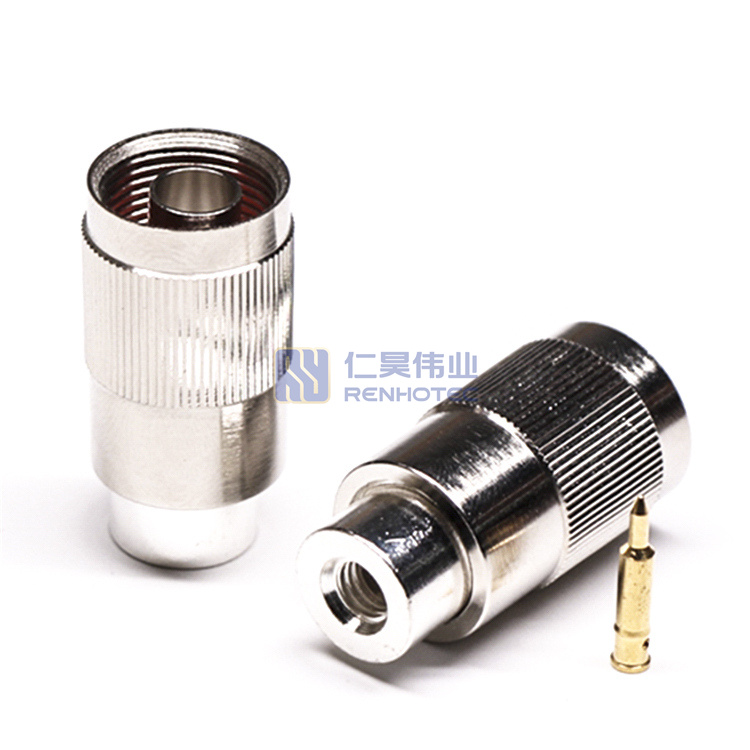

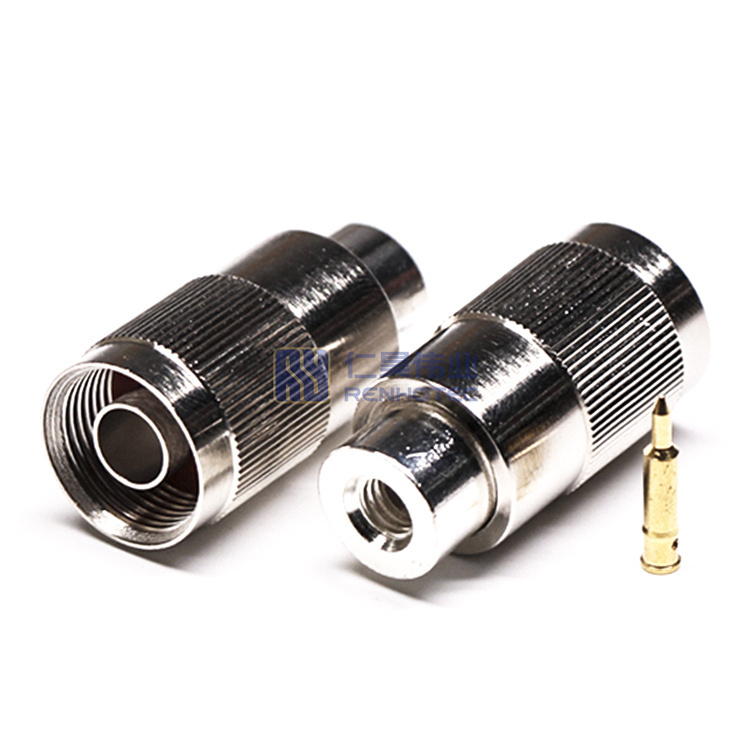

N Type Connector Male Straight Solder Cable Type 50ohm – RHT-614-0203

High-quality N Type Connector Male Straight Solder designed for 50ohm cable type. Ensures reliable connections and optimal performance for your electronic devices.

NO.1

Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs

NO.2

Threaded coupling mechanism ideal for vibration resistance

NO.3

Accommodates a wide range of coaxial cables including low loss types

NO.4

Broad line of industrial and commercial grade products available

Complete Variety

N Type Cable Connector

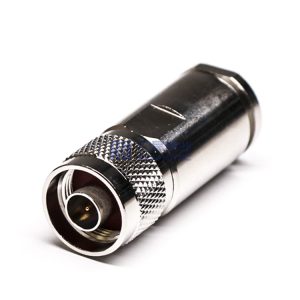

N Crimp Type

N Crimp Type

N Solder Type

N Solder Cup

N Type PCB/Panel Connector

N Through Hole Type

N Edge Mount Type

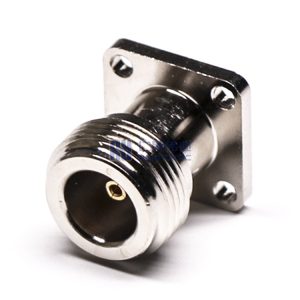

N Flange Type

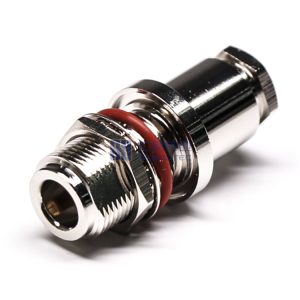

N Bulkhead Type

Product Application

Instrumentation

Computer/LAN

Satellite Communications

Automotive/ Aerospace

Broadcasting

Cable Modems

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

After sales system

Actively follow up andpromptly address anyissues

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

N Type
Orientation

Straight
Connector Type

Plug
Contact Type

Male Pin
Contact Material

Brass
Contact Finish

Gold Plated
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

Teflon White
Fastening Type

Threaded
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Cable Mount
Number of Ports

1
Impedance

50 ohm
Frequency Range

0~11 GHz
Mating Durability

?? 500 Cycles
Ingress Protection

IP65
Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)
VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX
Working Voltage

1000 V rms
Withstand Voltage

1500V V RMS Max
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
Coupling Nut Retention

30 in-lbs. MIN
Operating Temperature

-65°C～+165°C
Contact Retention

6 lbs min.
Dielectric Withstanding Voltage

2500 V rms
Center Contact Resistance

?Q 1.0 M?? (Milliohms Max.)
Outer Contact Resistance

?Q 0.2 M?? (Milliohms Max.)
RF Series

N Type

 Orientation

Straight
Connector Type

Plug

 Contact Type

Male Pin
Contact Material

Brass

 Contact Finish

Gold Plated
Shell Material

Copper Alloy

 Shell Finish

Nickel Plated
Insulator Material

Teflon White

 Fastening Type

Threaded
Contact Termination Style

Solder

 Shield Termination

Solder
Mounting Type

Cable Mount

 Number of Ports

1
Impedance

50 ohm

 Frequency Range

0~11 GHz
Mating Durability

?? 500 Cycles

 Ingress Protection

IP65
Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

 VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX
Working Voltage

1000 V rms

 Withstand Voltage

1500V V RMS Max
Vibration

MIL-STD-202 Meth. 204

 Corrosion Resistance

MIL-STD-202 Meth. 101
Coupling Nut Retention

30 in-lbs. MIN

 Operating Temperature

-65°C～+165°C
Contact Retention

6 lbs min.

 Dielectric Withstanding Voltage

2500 V rms
Center Contact Resistance

?Q 1.0 M?? (Milliohms Max.)

 Outer Contact Resistance

?Q 0.2 M?? (Milliohms Max.)
RF Series

N Type
Orientation

Straight
Connector Type

Plug
Contact Type

Male Pin
Contact Material

Brass
Contact Finish

Gold Plated
Shell Material

Copper Alloy
Shell Finish

Nickel Plated
Insulator Material

Teflon White
Fastening Type

Threaded
Contact Termination Style

Solder
Shield Termination

Solder
Mounting Type

Cable Mount
Number of Ports

1
Impedance

50 ohm
Frequency Range

0~11 GHz
Mating Durability

?? 500 Cycles
Ingress Protection

IP65
Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)
VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX
Working Voltage

1000 V rms
Withstand Voltage

1500V V RMS Max
Vibration

MIL-STD-202 Meth. 204
Corrosion Resistance

MIL-STD-202 Meth. 101
Coupling Nut Retention

30 in-lbs. MIN
Operating Temperature

-65°C～+165°C
Contact Retention

6 lbs min.
Dielectric Withstanding Voltage

2500 V rms
Center Contact Resistance

?Q 1.0 M?? (Milliohms Max.)
Outer Contact Resistance

?Q 0.2 M?? (Milliohms Max.)

N-type connectors find wide use in many lower frequency microwave systems, where ruggedness and/or low cost are needed. Many spectrum analyzers use such connectors for their inputs, and antennas which operate in the 0-11 GHz range often connect to a coaxial cable with type N connections.

The frequency of N-type connectors commonly used in the international market is generally DC-6GHz, if you require a full 11GHz, we can customize it for you.

Yes,our N-type connectors can achieve IP67 waterproof rating, which is a stable waterproof solution with a threaded coupling mechanism for increased vibration resistance. Also the waterproof test report is available for your reference.

N-type Connectors has large range of frequency, but low working efficiency, suitable for many different applications like Antennas, Cellular, Military, Aerospace and Base Stations, while DIN Connectors with high working efficiency, small and narrow range of frequency, being used for transmission lines with high power such as the connections of mobile information transmission, mobile radio transmission and applications with lower frequency.
