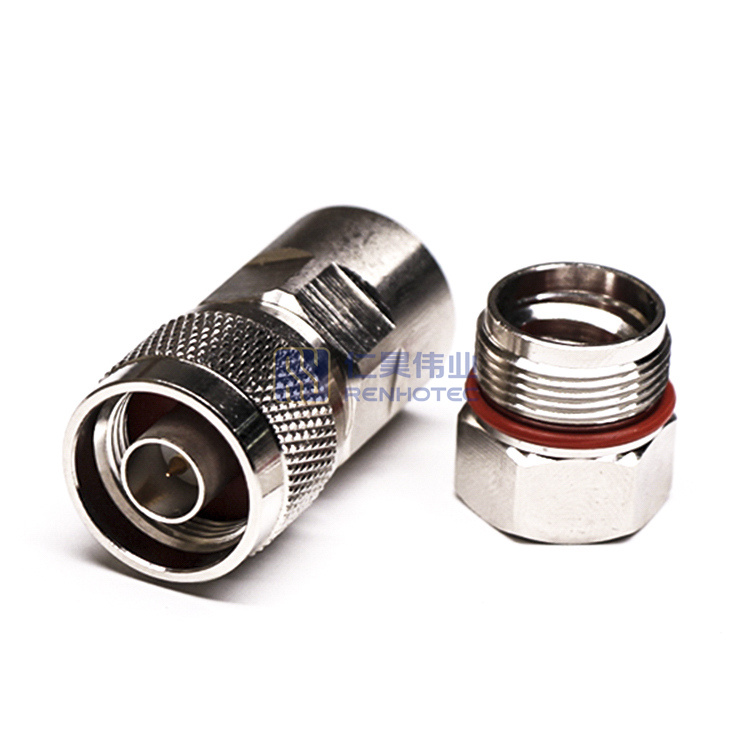

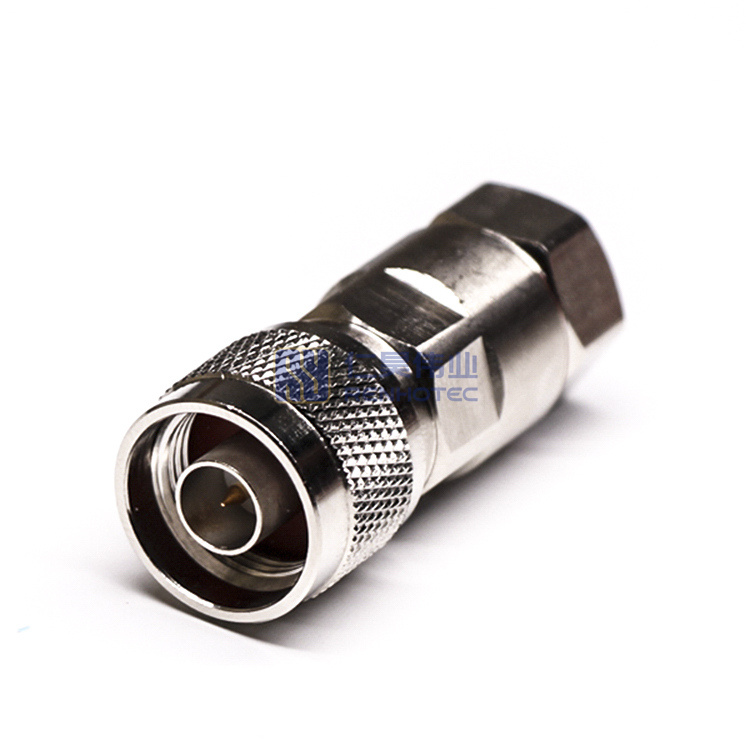

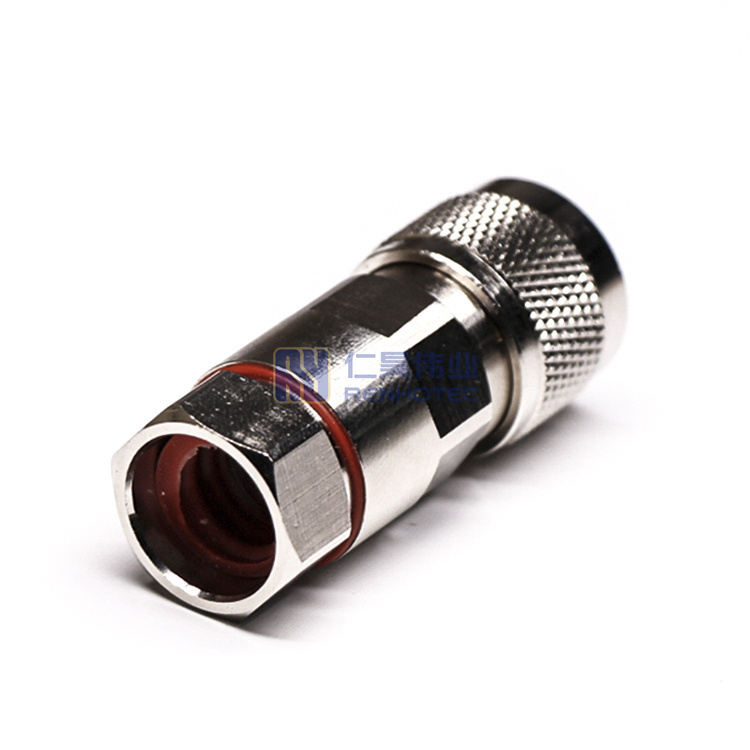

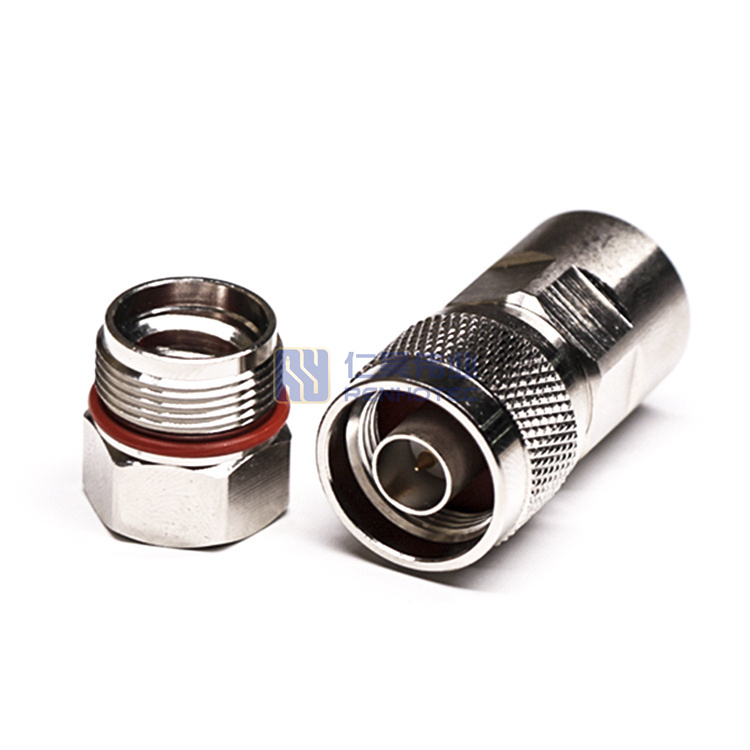

N Type Connector Male Straight Clamp Cable Type 50ohm – RHT-614-0204

High-quality N Type male connector designed for straight clamp cable applications at 50ohm impedance. Ensure secure and reliable RF connections with this durable and efficient connector.

NO.1

Excellent RF performance from DC to 11 GHz, and DC to 18 GHz on extended range designs

NO.2

Threaded coupling mechanism ideal for vibration resistance

NO.3

Accommodates a wide range of coaxial cables including low loss types

NO.4

Broad line of industrial and commercial grade products available

Complete Variety

N Type Cable Connector

N Crimp Type

N Crimp Type

N Solder Type

N Solder Cup

N Type PCB/Panel Connector

N Through Hole Type

N Edge Mount Type

N Flange Type

N Bulkhead Type

Product Application

Instrumentation

Computer/LAN

Satellite Communications

Automotive/ Aerospace

Broadcasting

Cable Modems

Our Advantages

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

RF Series

N Type

Orientation

Straight

Connector Type

Plug

Contact Type

Male Pin

Contact Material

Brass

Contact Finish

Gold Plated

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Fastening Type

Threaded

Shield Termination

Clamp

Mounting Type

Cable Mount

Number of Ports

1

Impedance

50 ohm

Frequency Range

0~11 GHz

Mating Durability

?? 500 Cycles

Ingress Protection

IP65

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Working Voltage

1000 V rms

Withstand Voltage

1500V V RMS Max

Vibration

MIL-STD-202 Meth. 204

Corrosion Resistance

MIL-STD-202 Meth. 101

Coupling Nut Retention

30 in-lbs. MIN

Operating Temperature

-65??C~+165??C

Contact Retention

6 lbs min.

Dielectric Withstanding Voltage

2500 V rms

Center Contact Resistance

?Q 1.0 M?? (Milliohms Max.)

Outer Contact Resistance

?Q 0.2 M?? (Milliohms Max.)

RF Series

N Type

Orientation

Straight

Connector Type

Plug

Contact Type

Male Pin

Contact Material

Brass

Contact Finish

Gold Plated

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Fastening Type

Threaded

Shield Termination

Clamp

Mounting Type

Cable Mount

Number of Ports

1

Impedance

50 ohm

Frequency Range

0~11 GHz

Mating Durability

?? 500 Cycles

Ingress Protection

IP65

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Working Voltage

1000 V rms

Withstand Voltage

1500V V RMS Max

Vibration

MIL-STD-202 Meth. 204

Corrosion Resistance

MIL-STD-202 Meth. 101

Coupling Nut Retention

30 in-lbs. MIN

Operating Temperature

-65??C~+165??C

Contact Retention

6 lbs min.

Dielectric Withstanding Voltage

2500 V rms

Center Contact Resistance

?Q 1.0 M?? (Milliohms Max.)

Outer Contact Resistance

?Q 0.2 M?? (Milliohms Max.)

RF Series

N Type

Orientation

Straight

Connector Type

Plug

Contact Type

Male Pin

Contact Material

Brass

Contact Finish

Gold Plated

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

Teflon White

Fastening Type

Threaded

Shield Termination

Clamp

Mounting Type

Cable Mount

Number of Ports

1

Impedance

50 ohm

Frequency Range

0~11 GHz

Mating Durability

?? 500 Cycles

Ingress Protection

IP65

Insultation Resistance

?R 5 x 103 M?? (Megohms MIN.)

VSWR

R/A type ?Q 1.5MAX, Straight type?Q1.3 MAX

Working Voltage

1000 V rms

Withstand Voltage

1500V V RMS Max

Vibration

MIL-STD-202 Meth. 204

Corrosion Resistance

MIL-STD-202 Meth. 101

Coupling Nut Retention

30 in-lbs. MIN

Operating Temperature

-65??C~+165??C

Contact Retention

6 lbs min.

Dielectric Withstanding Voltage

2500 V rms

Center Contact Resistance

?Q 1.0 M?? (Milliohms Max.)

Outer Contact Resistance

?Q 0.2 M?? (Milliohms Max.)

N-type connectors find wide use in many lower frequency microwave systems, where ruggedness and/or low cost are needed. Many spectrum analyzers use such connectors for their inputs, and antennas which operate in the 0-11 GHz range often connect to a coaxial cable with type N connections.

The frequency of N-type connectors commonly used in the international market is generally DC-6GHz, if you require a full 11GHz, we can customize it for you.

Yes,our N-type connectors can achieve IP67 waterproof rating, which is a stable waterproof solution with a threaded coupling mechanism for increased vibration resistance. Also the waterproof test report is available for your reference.

N-type Connectors has large range of frequency, but low working efficiency, suitable for many different applications like Antennas, Cellular, Military, Aerospace and Base Stations, while DIN Connectors with high working efficiency, small and narrow range of frequency, being used for transmission lines with high power such as the connections of mobile information transmission, mobile radio transmission and applications with lower frequency.

Drawing for N Type Connector Male Straight Clamp Cable Type 50ohmDownload
