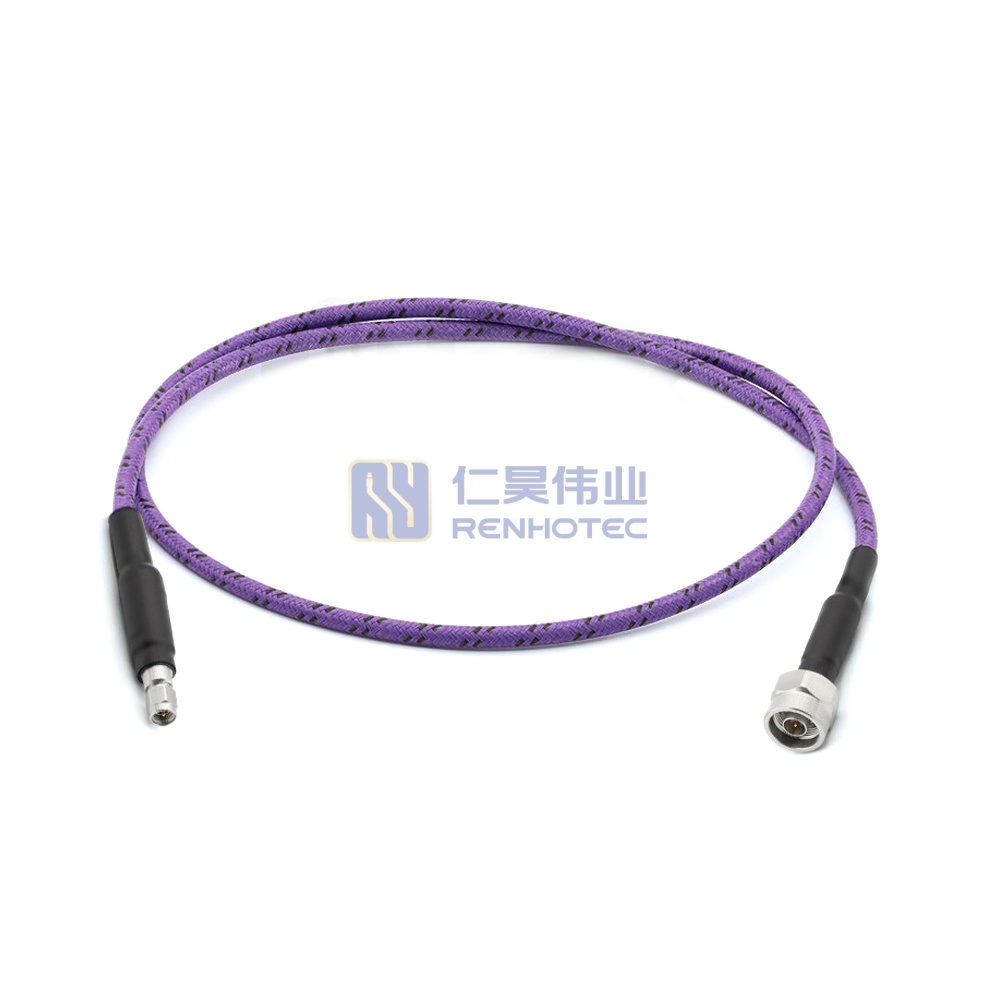

N to 3.5mm, 18GHz, Low Loss, Amplitude & Phase Stable, RF Coaxial Cable, CXN3449 Equivalent/Imported – RHT-605-20637
| 1st Conn Outer Material | Stainless Steel Passivation |
||
|---|---|---|---|
| 1st Conn Inner Material | Brass Gold Plating |
||
| 2nd Conn Outer Material | Stainless Steel Passivation |
||
| 2nd Conn Inner Material | Brass Gold Plating |
||
| Operating Frequency | 26.5GHz |
||
| Velocity of Propagation | 0.85 |
||
| Shielding Effectiveness | >90dB |
||
| Static Bend Radius | 80mm |
||
| Center Conductor Diameter | 1.4mm |
||
| Insulation Material | ePTFE |
||
| Dielectric Layer Diameter | 3.75mm |
||
| Inner Shield Diameter | 3.95mm |
||
| Outer Shield Diameter | 4.35mm |
||
| Outer Jacket Material | Gray FEP |
||
| Outer Jacket Diameter | 4.8mm |
||
| 1st Conn Outer Material | Stainless Steel Passivation |
1st Conn Inner Material | Brass Gold Plating |
| 2nd Conn Outer Material | Stainless Steel Passivation |
2nd Conn Inner Material | Brass Gold Plating |
| Operating Frequency | 26.5GHz |
Velocity of Propagation | 0.85 |
| Shielding Effectiveness | >90dB |
Static Bend Radius | 80mm |
| Center Conductor Diameter | 1.4mm |
Insulation Material | ePTFE |
| Dielectric Layer Diameter | 3.75mm |
Inner Shield Diameter | 3.95mm |
| Outer Shield Diameter | 4.35mm |
Outer Jacket Material | Gray FEP |
| Outer Jacket Diameter | 4.8mm |
Product Specification
| RF Cable 1st Connector | N |
||
|---|---|---|---|
| RF Cable 2nd Connector | 3.5mm |
||
| 1st Contact Type | Male Pin |
||
| 2nd Contact Type | Male Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Frequency Range | DC-18GHz |
||
| VSWR | ≤1.25 |
||
| Impedance | 50Ω |
||
| Operating Temperature | -55℃~+165℃ |
||
| RF Cable 1st Connector | N |
RF Cable 2nd Connector | 3.5mm |
| 1st Contact Type | Male Pin |
2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Frequency Range | DC-18GHz |
VSWR | ≤1.25 |
| Impedance | 50Ω |
Operating Temperature | -55℃~+165℃ |
| 1st Conn Outer Material | Stainless Steel Passivation |
|---|---|
| 1st Conn Inner Material | Brass Gold Plating |
| 2nd Conn Outer Material | Stainless Steel Passivation |
| 2nd Conn Inner Material | Brass Gold Plating |
| RF Cable 1st Connector | N |
| RF Cable 2nd Connector | 3.5mm |
| 1st Contact Type | Male Pin |
| 2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Frequency Range | DC-18GHz |
| VSWR | ≤1.25 |
| Operating Frequency | 26.5GHz |
| Impedance | 50Ω |
| Velocity of Propagation | 0.85 |
| Shielding Effectiveness | >90dB |
| Static Bend Radius | 80mm |
| Operating Temperature | -55℃~+165℃ |
| Center Conductor Diameter | 1.4mm |
| Insulation Material | ePTFE |
| Dielectric Layer Diameter | 3.75mm |
| Inner Shield Diameter | 3.95mm |
| Outer Shield Diameter | 4.35mm |
| Outer Jacket Material | Gray FEP |
| Outer Jacket Diameter | 4.8mm |
