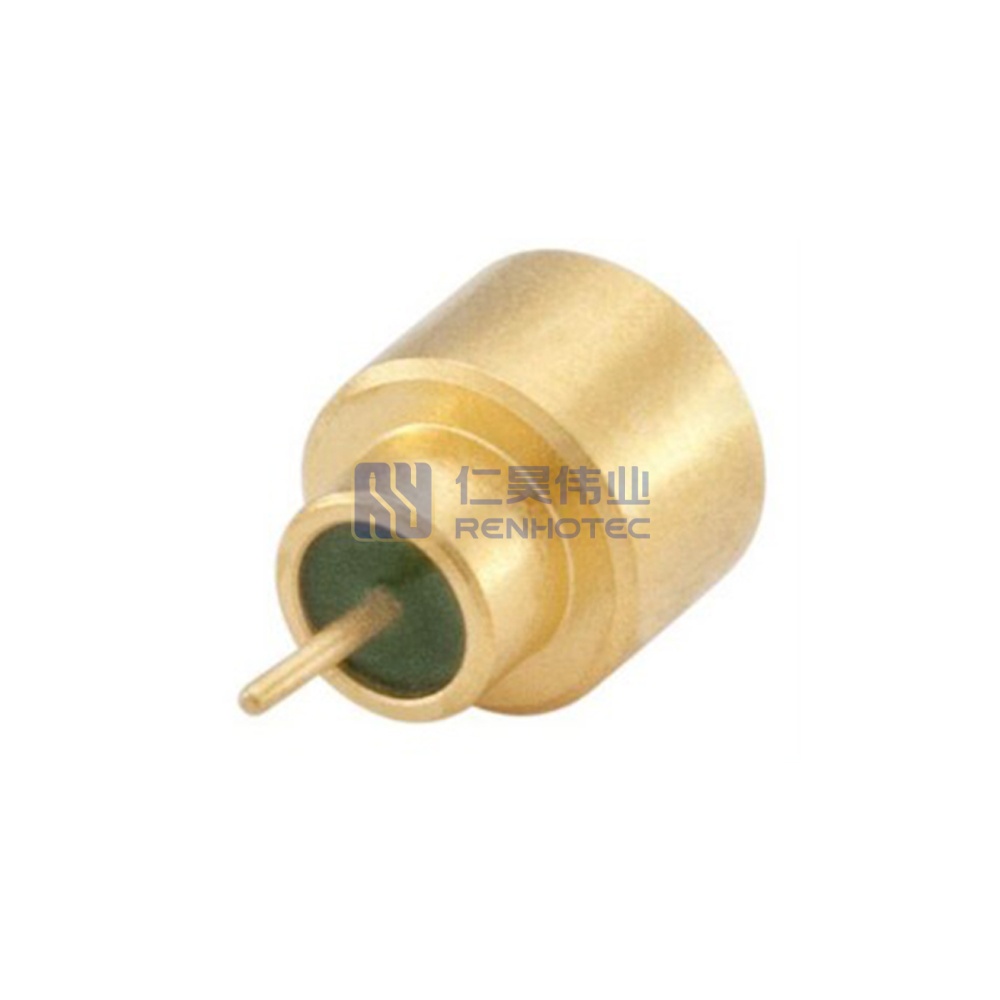

Mini SMP Plug for PCB Connector - RHT-628-2018

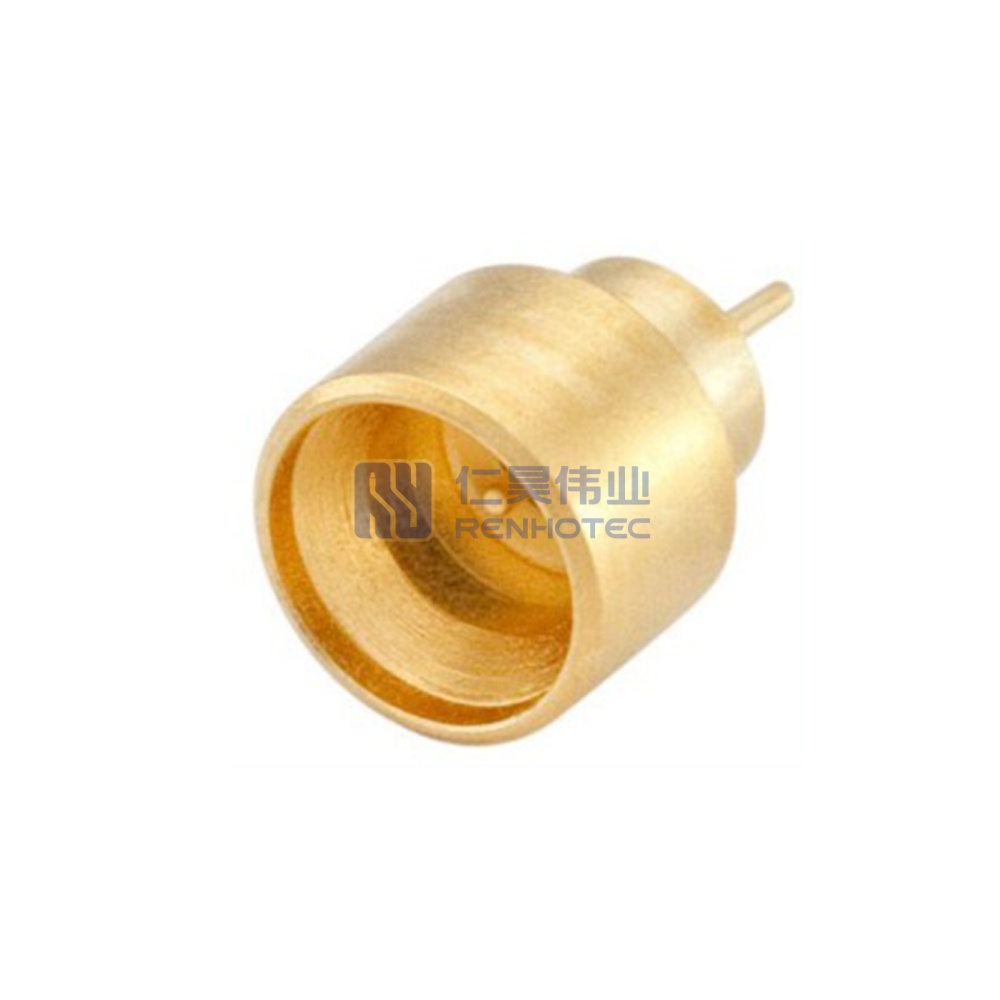

Mini SMP Plug for PCB Connector - RHT-628-2018 - Image 2

Mini SMP Plug for PCB Connector – RHT-628-2018

SKU RHT-628-2018 Category SMP Connector

Product Files

Open drawing and specification files.

Drawing PDF Catalog PDF RHT-628-2018 SMP Connectors Specs & Datasheet PDF

Mini SMP plug, 50Ω, reduced-size board-mounted male connector for high-density PCB layouts, supports frequencies up to 65 GHz, provides robust surface-mount attachment, suitable for compact 5G radios, automotive sensors, and miniature RF front-end modules.

Center Contact Captivation

5N
Disengagement Force

Full Detent 29 N Typical
Engagement Force

Full Detent 19 N Typical
Mating Cycles

100 Cycles mini
Return loss

≥12 dB, 18 to 40 GHz, ≥17 dB, 6 to 18 GHz, ≥26 dB, DC to 6 GHz
Center Contact Captivation

5N

 Disengagement Force

Full Detent 29 N Typical
Engagement Force

Full Detent 19 N Typical

 Mating Cycles

100 Cycles mini
Return loss

≥12 dB, 18 to 40 GHz, ≥17 dB, 6 to 18 GHz, ≥26 dB, DC to 6 GHz

Product Specification

Center Contact Resistance

≤6mΩ
Connector Type

Plug
Contact Finish

Gold Plated
Contact Material

Beryllium Copper
Contact Type

Male Pin
Frequency Range

0-65GHz
Impedance

50 ohm
Insulation Resistance

5GΩ min
Insulator Material

Glass Sintering
Mounting Type

PCB Mount
Orientation

Straight
Outer Contact Resistance

≤2mΩ
RF Series

Mini SMP Type
Shell Finish

Gold Plated
Shell Material

Beryllium Copper
Temperature Range

-55°C to +155°C
VSWR

1.5 MAX
Working Voltage

325 V rms
Center Contact Resistance

≤6mΩ

 Connector Type

Plug
Contact Finish

Gold Plated

 Contact Material

Beryllium Copper
Contact Type

Male Pin

 Frequency Range

0-65GHz
Impedance

50 ohm

 Insulation Resistance

5GΩ min
Insulator Material

Glass Sintering

 Mounting Type

PCB Mount
Orientation

Straight

 Outer Contact Resistance

≤2mΩ
RF Series

Mini SMP Type

 Shell Finish

Gold Plated
Shell Material

Beryllium Copper

 Temperature Range

-55°C to +155°C
VSWR

1.5 MAX

 Working Voltage

325 V rms
Center Contact Captivation

5N
Center Contact Resistance

≤6mΩ
Connector Type

Plug
Contact Finish

Gold Plated
Contact Material

Beryllium Copper
Contact Type

Male Pin
Disengagement Force

Full Detent 29 N Typical
Engagement Force

Full Detent 19 N Typical
Frequency Range

0-65GHz
Impedance

50 ohm
Insulation Resistance

5GΩ min
Insulator Material

Glass Sintering
Mating Cycles

100 Cycles mini
Mounting Type

PCB Mount
Orientation

Straight
Outer Contact Resistance

≤2mΩ
RF Series

Mini SMP Type
Return loss

≥12 dB, 18 to 40 GHz, ≥17 dB, 6 to 18 GHz, ≥26 dB, DC to 6 GHz
Shell Finish

Gold Plated
Shell Material

Beryllium Copper
Temperature Range

-55°C to +155°C
VSWR

1.5 MAX
Working Voltage

325 V rms

Renhotec Advantages

In-House Manufacturing

Support flexible manufacturing and order coordination.

Quality Control

Quality checks at key production stages help maintain product consistency and reliability.

Custom Engineering

OEM/ODM services, custom connector configurations, and prototype development.

Technical Support

Responsive assistance with product selection, configuration, and after-sales inquiries.

SMP connector VSWR Test report

VSWR Test Report – SMP Connector Straight Plug

SMP RF Connectors for Compact, High-Frequency Applications

SMP connectors (GPO) are compact RF coaxial connectors designed for high-frequency signal transmission in applications where space efficiency and reliable electrical connections are important. Featuring a push-on coupling interface, SMP connectors support quick mating and compact interconnections in RF modules, microwave assemblies, and electronic equipment.

A collection of various gold-plated SMP coaxial connectors and components displayed on a white background, including straight, right-angle, surface-mount, and through-hole types.

SMP Connector Types

Selecting the appropriate connector depends on the mating interface, mounting method, available space, and electrical design of the application.

Cable Mount

A close-up of a gold-plated SMP coaxial connector designed for PCB mounting, featuring four grounding legs and a central contact pin.

PCB Mount

Panel Mount

SMP Adapter

Technical cross-sectional diagrams of four SMP coaxial connector types: SMP Female, SMP Male (Full Detent), SMP Male (Limited Detent), and SMP Male (Smooth Bore).

Features of SMP Connectors

  • Interface Retention Styles
    Full detent, limited detent, smooth bore and catcher’s mitt.
  • 50 Ohm Impedance
    For 50-ohm RF and microwave systems.
  • Flexible Interconnections
    Cable-to-board and board-to-board applications.
  • Surface Mount Design
    Standard surface mount and swept-contact configurations.
  • Push-On & Blind Mate
    Quick mating and blind-mate installation.
  • Up to 40 GHz
    Subject to connector configuration and specifications.

Applications

Close-up of a gold-plated SMP coaxial connector soldered onto a green PCB, directly connected to a gold RF trace, illustrating its surface-mount application in RF and microwave modules.

RF & Microwave Modules

SMP connectors are used to connect RF modules, amplifiers, filters, and PCB-mounted microwave circuits.

A white wireless router with a yellow Ethernet cable in the foreground, and a blurred person using a smartphone in the background, illustrating wireless networking and telecommunications applications where SMP connectors are used.

Antenna & Radar Systems

SMP provide compact coaxial connections between antenna elements, RF front-end modules, and circuit boards.

Test & Measurement Equipment

In RF test fixtures, microwave measurement modules, and compact test assemblies, SMP push-on mating interface allows convenient connection and disconnection during testing and equipment setup.

Aerospace & Satellite Electronics

SMP can be integrated into compact avionics, satellite communication, and RF subsystem assemblies where space-efficient interconnections are required. Blind-mate configurations can support connections between aligned electronic modules.
