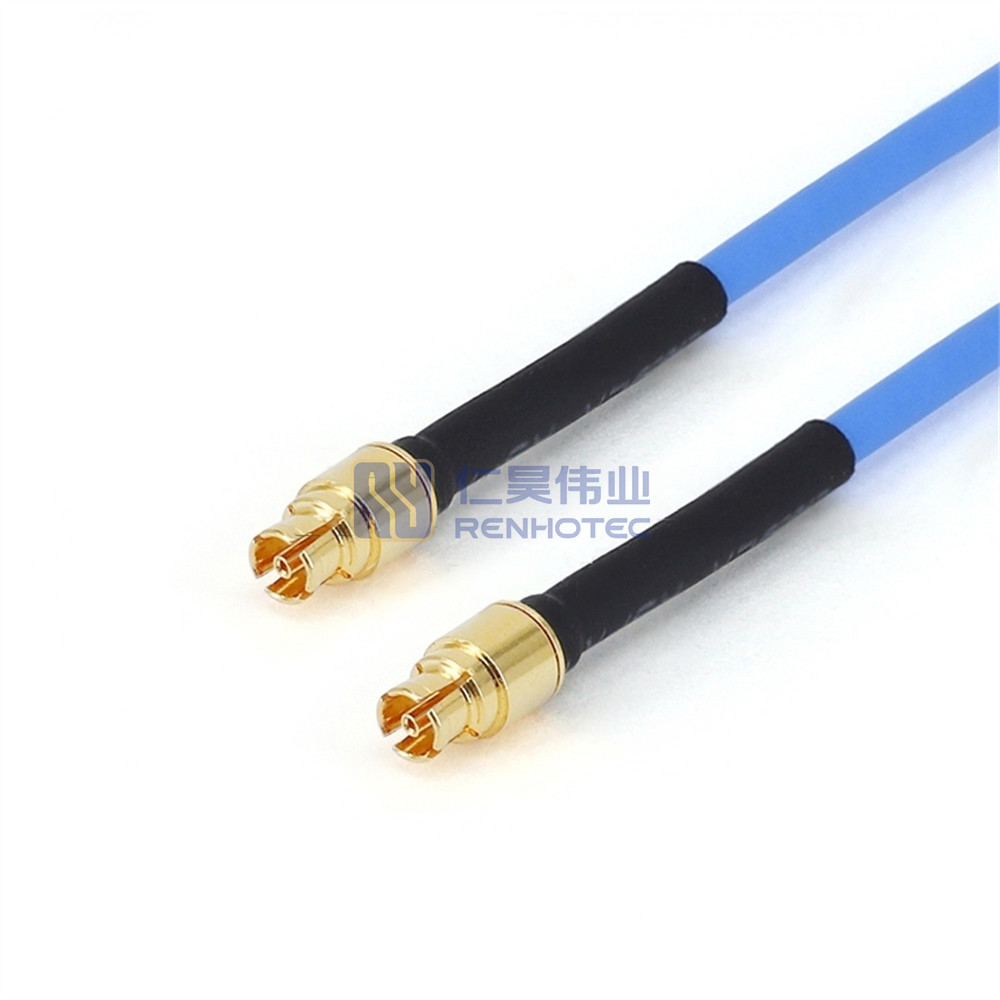

Mini-SMP Female to Mini-SMP Female with GUT-047-Form-FEP Coax Cable, EHF

SKU RF-Mini-SMPF-MiniSMPF-50-01 Category High Frequency Cable Assemblies, SMP Cable Assemblies

Mini-SMP female to Mini-SMP female connectors ensure secure and robust connections for high-frequency RF communications.
Constructed with GUT-047-Form-FEP coaxial cable, specially designed for EHF (Extremely High Frequency) applications, providing excellent signal integrity and minimal attenuation.
The flexible design allows for easy handling and installation, making it suitable for various configurations and compact spaces.
Lightweight structure enhances usability without compromising performance in demanding environments.
Minimizes signal loss, making it perfect for high-speed data applications, RF testing, and specialized communication systems.

Attributes
Description

Product Specification

RF Cable 1st Connector	Mini-SMP
RF Cable 2nd Connector	MiniSMP
1st Contact Type	Female Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Straight
RF Cable Style	Mini-SMP to Mini-SMP
Armor Material	FEP
Cable Type	GUT-047-Form-FEP
Contact Material	Silver Plated Copper
Frequency Range	DC-40GHz
Impedance	50 ohm
Insulating Materials	Solid PTFE
Temperature Range	-40°C to +125°C
RF Cable 1st Connector	Mini-SMP	RF Cable 2nd Connector	MiniSMP
1st Contact Type	Female Pin	2nd Contact Type	Female Pin
1st Connector Orientation	Straight	2nd Connector Orientation	Straight
RF Cable Style	Mini-SMP to Mini-SMP	Armor Material	FEP
Cable Type	GUT-047-Form-FEP	Contact Material	Silver Plated Copper
Frequency Range	DC-40GHz	Impedance	50 ohm
Insulating Materials	Solid PTFE	Temperature Range	-40°C to +125°C

RF Cable 1st Connector	Mini-SMP
RF Cable 2nd Connector	MiniSMP
1st Contact Type	Female Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Straight
2nd Connector Orientation	Straight
RF Cable Style	Mini-SMP to Mini-SMP
Armor Material	FEP
Cable Type	GUT-047-Form-FEP
Contact Material	Silver Plated Copper
Frequency Range	DC-40GHz
Impedance	50 ohm
Insulating Materials	Solid PTFE
Temperature Range	-40°C to +125°C

Why Choose RENHOTEC

RENHOTEC supports custom coaxial cable assemblies for prototype development, sample evaluation, and small-batch production.

100% VNA Testing

VNA testing for applicable cable assemblies to evaluate electrical performance against specified requirements.

Prototype to Production

Support for sample development, prototype evaluation, and small-batch production.

Flexible Cable Options

Cable types, lengths, and assembly structures can be specified according to project requirements.

High-Frequency Coaxial Cable Assemblies

RENHOTEC provides high-frequency coaxial cable assemblies for RF and microwave applications, including equipment interconnections, test and measurement systems, and compact electronic modules. Designed around high-frequency connector interfaces and coaxial cable configurations, these assemblies support different connection layouts, frequency requirements, and installation constraints.

Six high-frequency RF cable assemblies of various sizes arranged diagonally. The connectors are labeled 1.0mm, 1.85mm, 2.4mm, 2.92mm, 3.5mm, and SMP. Cables come in gray, blue, purple, and black with metallic connectors and black heat-shrink boots.

Connector Interface Options

SMP to SMP and Mini-SMP to Mini-SMP
SMA to SMP, Mini-SMP, or SSMP
1.85mm to Mini-SMP
2.4mm to SMP, Mini-SMP, or SMPS
2.92mm to SMPS or SSMP
Other compatible interface combinations based on project requirements

Coaxial Cable Options for Custom Assemblies

RENHOTEC offers a range of RF coaxial cables for SMP series cable assemblies, including flexible, semi-rigid, and other cable configurations. Cable selection and connector compatibility depend on the specific assembly requirements.
