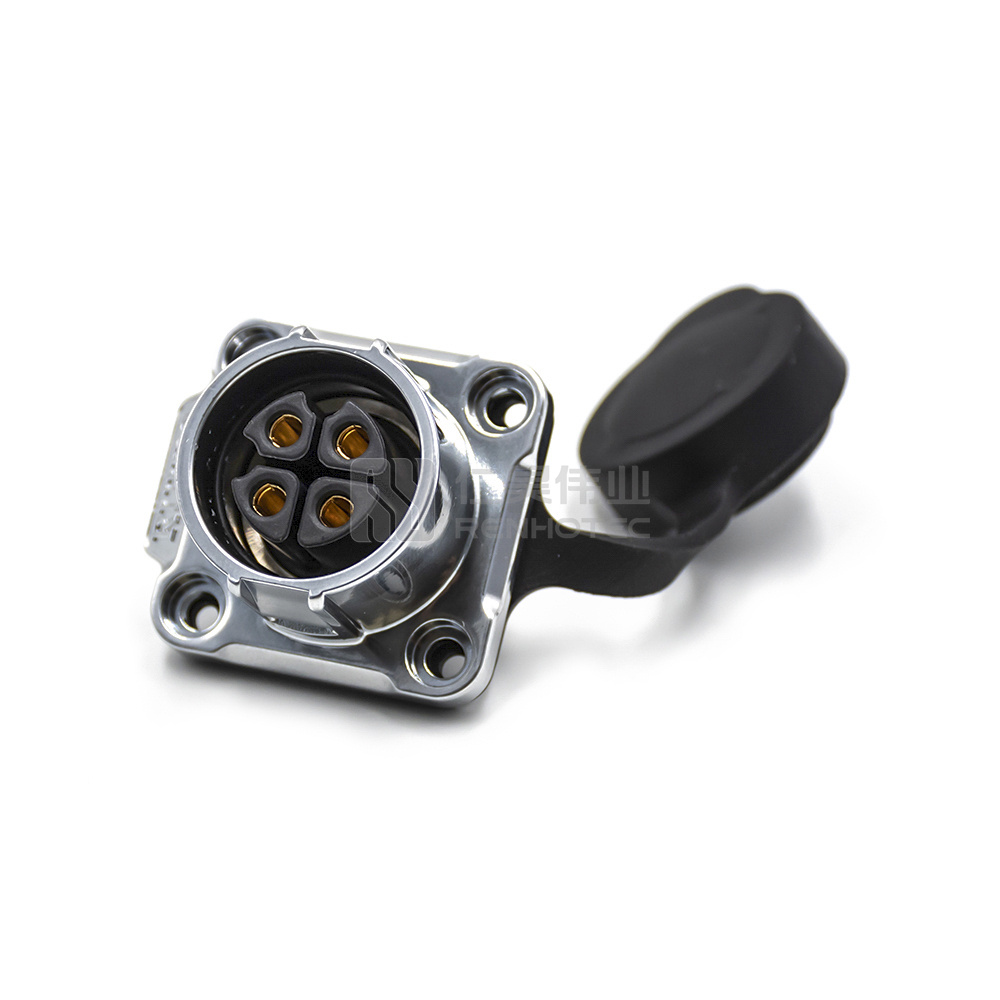

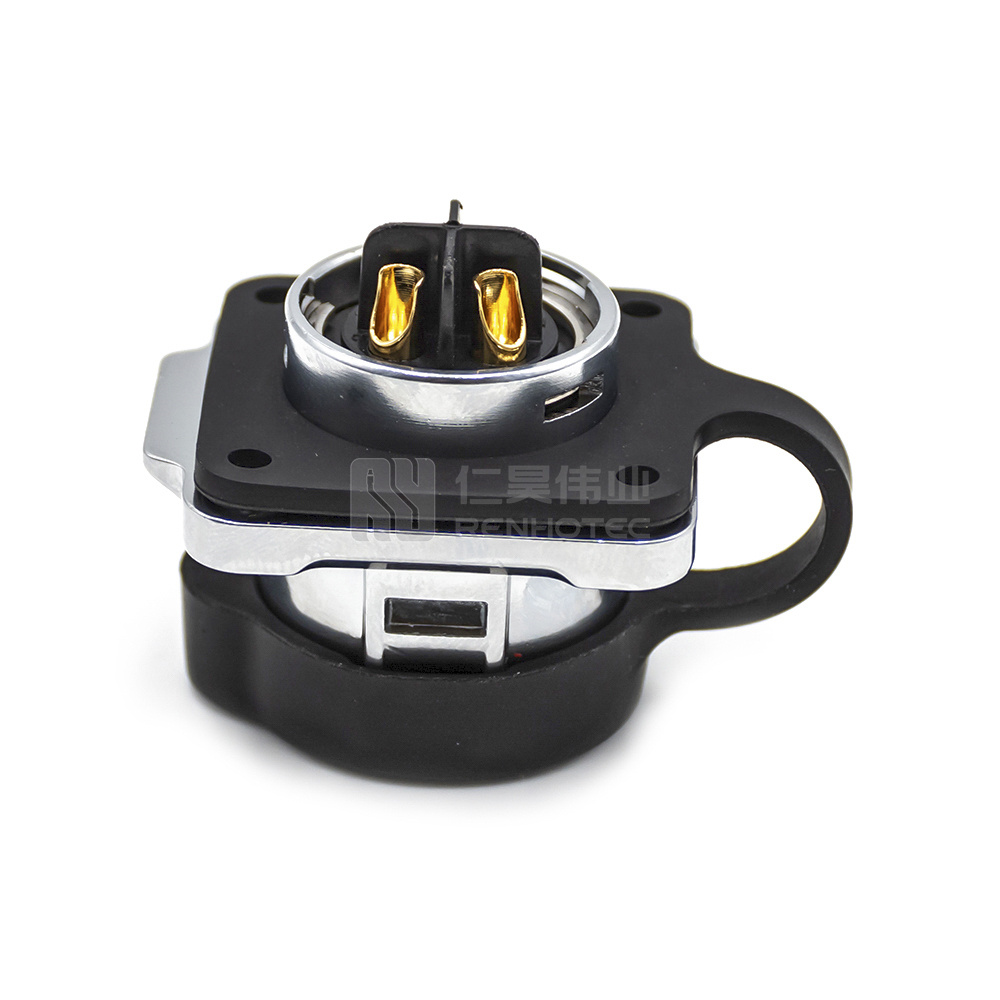

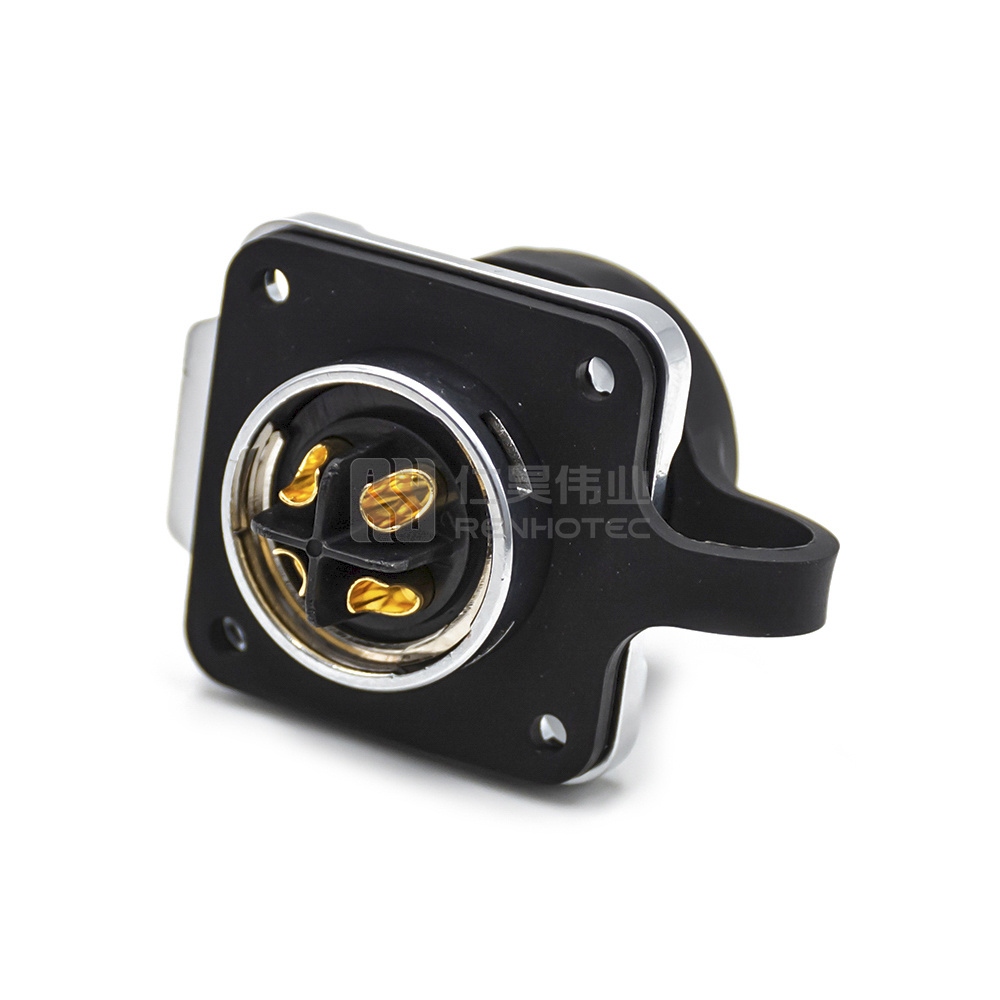

LP-20 Waterproof Circular Power Connector 4-Pin Female Sockets
- Easy to use, quick to plug and remove.
- High-quality PA66, high-performance engineering plastic core.
- Red dot to red dot error-proof.
- Good waterproof performance, good sealing performance.
- Double-locking buckles are more reliable.
- The working performance is stable and should be used in a wide range.
Waterproof Power/Data Transmission Connector
RK series power waterproof connectors are high-reliability, multipurpose connectors, compatible with LP series, and mainly used for power and signal transmission in harsh environments. It has a waterproof design to ensure connector stability and reliability in harsh environments. The connectors are waterproof, dust-proof, shock-proof and high-temperature resistant, suitable for a variety of outdoor environments and industrial applications. In addition, this series of power waterproof connectors also has the advantages of being easy to plug and pull, reliable contact, corrosion resistance, etc., and is a cost-effective connector.
According to the panel installation size, it can be divided into RK12 (12mm) series; RK16 (18mm) series; RK20 (22mm) series; RK24 (25mm) series.
How to choose
Product Dimensions

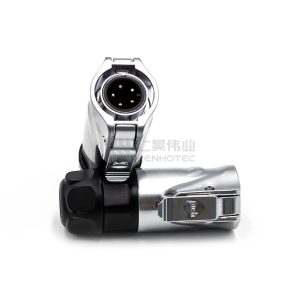

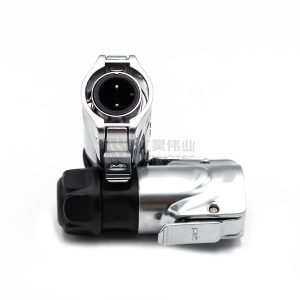

Docking Cable Plug

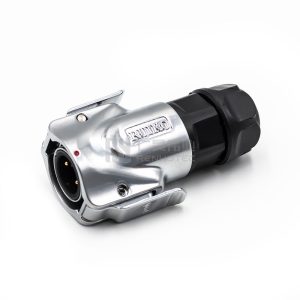

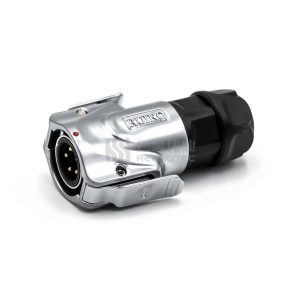

Plug
Flange Socket
Bulkhead Socket
How to Order
Application
RK series waterproof power and data connectors are ideal for waterproof, dustproof and corrosion-resistant applications such as outdoor lighting, LED displays, solar photovoltaics, power tools, electric vehicles, marine vessels, marine engineering, petrochemical and other sectors.
- New energy fields: photovoltaic systems, servo motors, e-bikes, inverters and solar chargers.
- Automation equipment: mobile robots, automated warehouse handling systems and torque transducers.
- Communication systems: disinfection robots, vehicle monitoring systems and monitors.
- Lighting: horticultural LEDs, stage lighting, streetlights, LED video walls and landscape lighting.
Industrial Automation
Solar Photovoltaic System
Communication Equipment
LED Plant Growth Lamp
LED Display Screen
Aerospace
Product Specification
Connector Type | Receptacle |
||
---|---|---|---|
Orientation | Straight |
||
Contact Type | Female Pin |
||
Fastening Type | Push-Pull |
||
Mounting Type | Panel Mount |
||
Contact Termination Style | Solder |
||
Contact Material | Phosphor Bronze |
||
Ingress Protection | IP67 |
||
Shell Material | Zinc Alloy |
||
Number of Ports | 4 |
||
Shell Finish | Chromium Plating |
||
Temperature Range | -20℃~+85℃ |
||
Features | Metal Chain |
||
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Contact Termination Style | Solder |
Contact Material | Phosphor Bronze |
Ingress Protection | IP67 |
Shell Material | Zinc Alloy |
Number of Ports | 4 |
Shell Finish | Chromium Plating |
Temperature Range | -20℃~+85℃ |
Features | Metal Chain |
Connector Type | Receptacle |
---|---|
Orientation | Straight |
Contact Type | Female Pin |
Fastening Type | Push-Pull |
Mounting Type | Panel Mount |
Contact Termination Style | Solder |
Insulation Material | PA66 |
Contact Material | Phosphor Bronze |
Ingress Protection | IP67 |
Rated Current | 20A |
Shell Material | Zinc Alloy |
Number of Ports | 4 |
Shell Finish | Chromium Plating |
Wire Range | 2.5-4.0mm2/14-12AWG |
Temperature Range | -20℃~+85℃ |
Features | Metal Chain |
