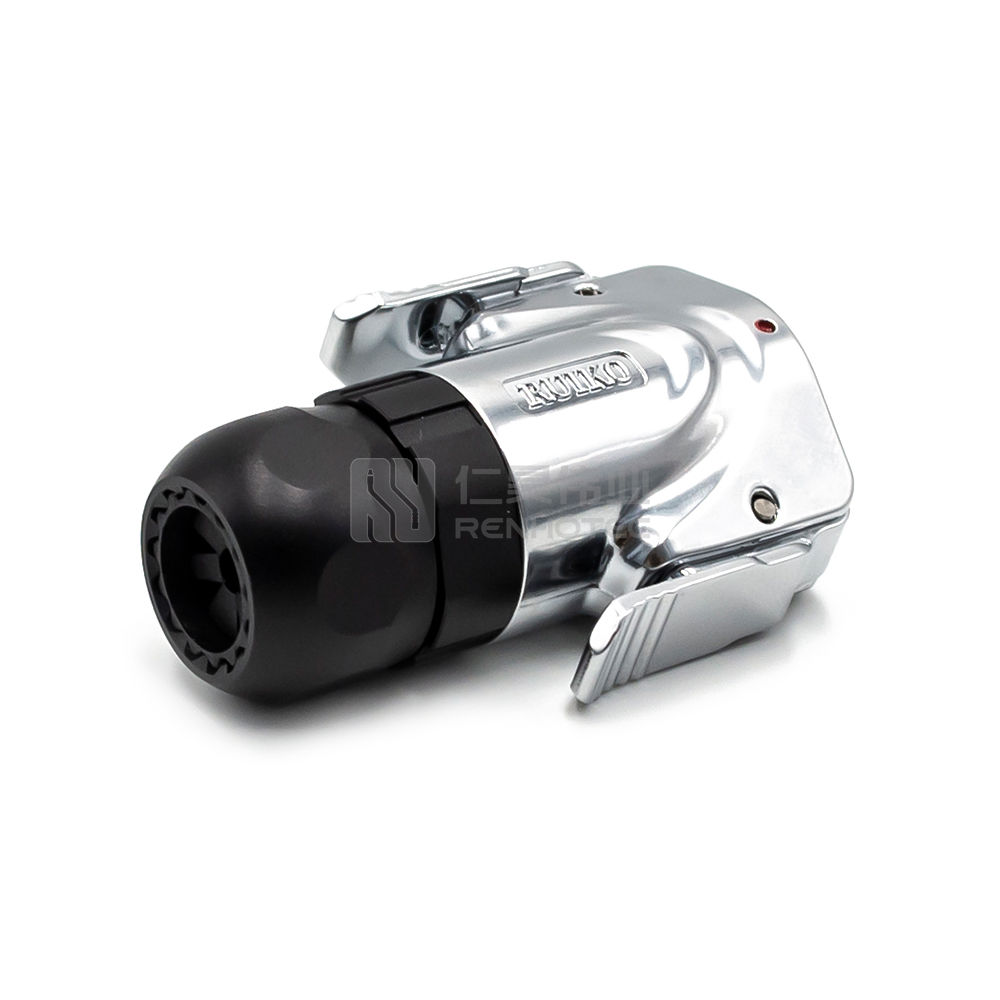

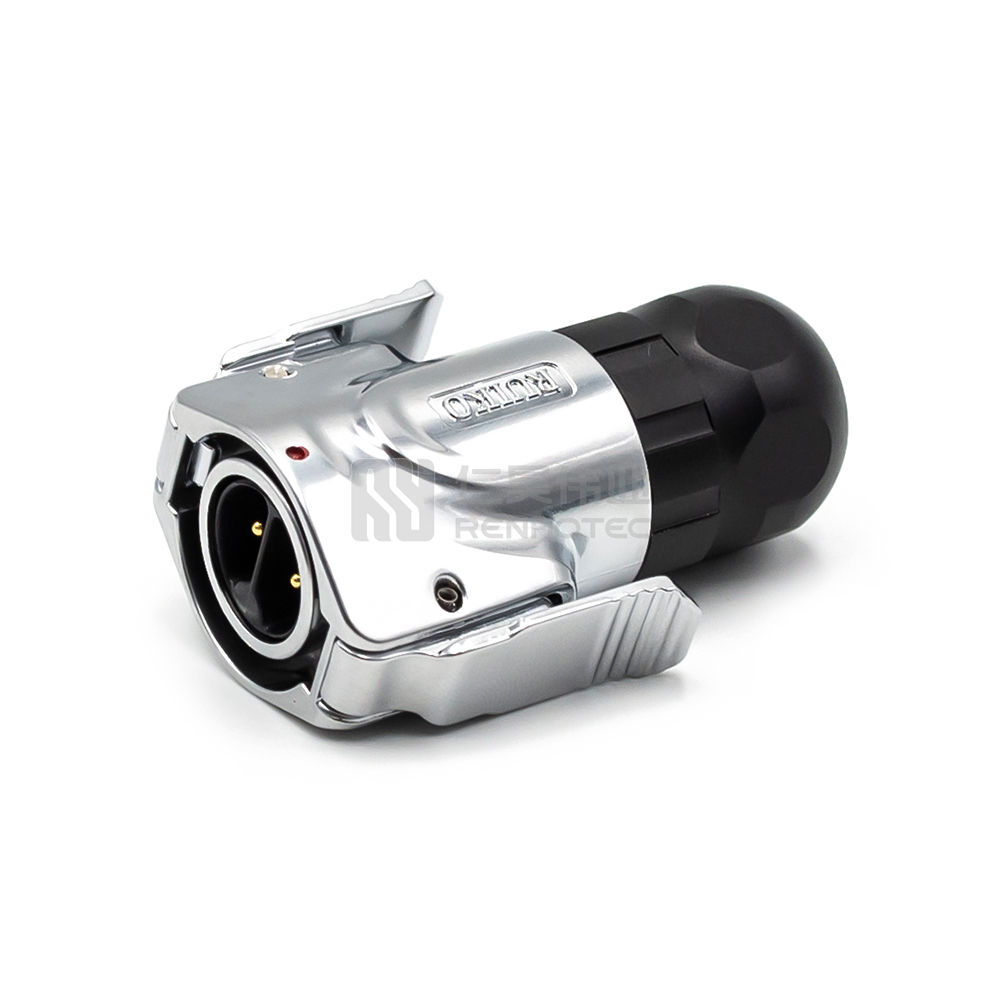

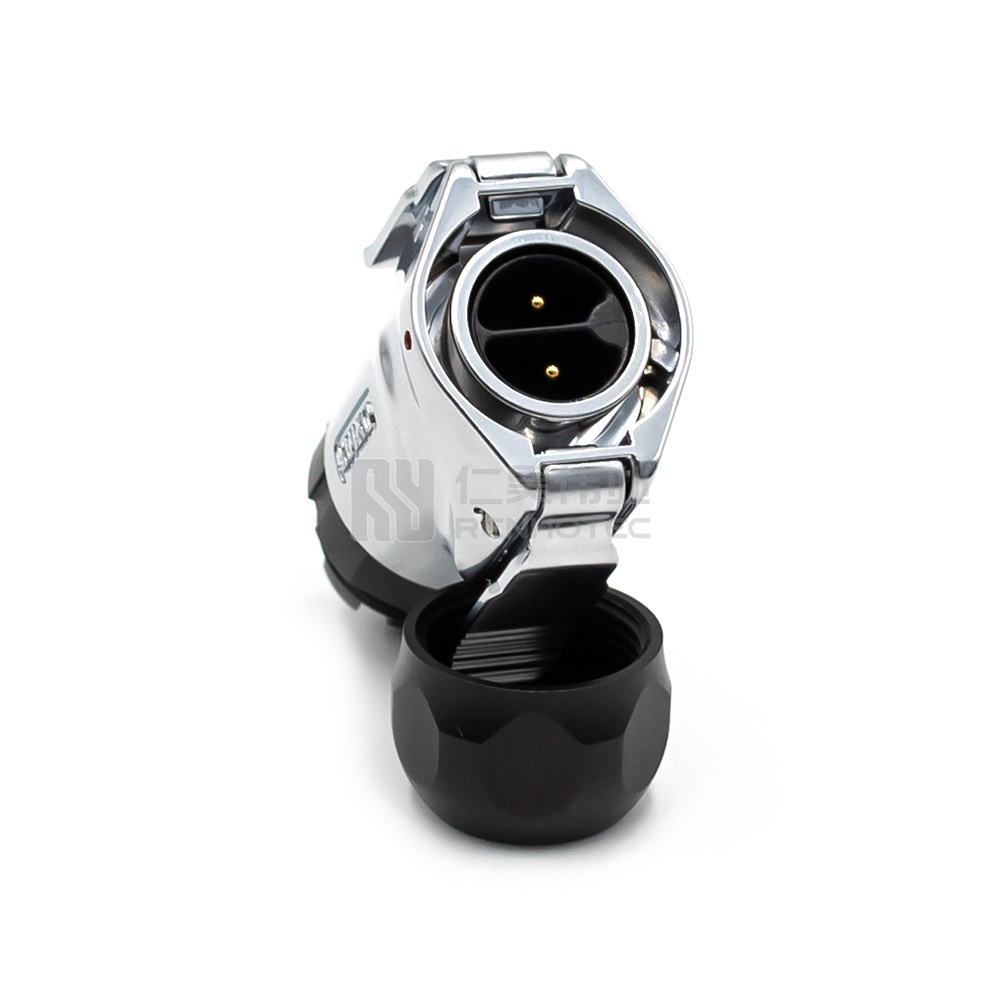

LP-16 Waterproof Circular Power Connector 2-Pin Male Plug

  • Easy to use, quick to plug and remove.
  • High-quality PA66, high-performance engineering plastic core.
  • Red dot to red dot error-proof.
  • Good waterproof performance, good sealing performance.
  • Double-locking buckles are more reliable.
  • The working performance is stable and should be used in a wide range.

Waterproof Power/Data Transmission Connector

RK Series Power Waterproof Connectors are high-reliability, multipurpose connectors, compatible with LP series, and mainly used for power and signal transmission in harsh environments. It has a waterproof design to ensure connector stability and reliability in harsh environments. The connectors are waterproof, dust-proof, shock-proof and high-temperature resistant, suitable for a variety of outdoor environments and industrial applications. In addition, this series of power waterproof connectors also has the advantages of being easy to plug and pull, reliable contact, corrosion resistance, etc., and is a cost-effective connector.

According to the panel installation size, it can be divided into RK12 (12mm) series; RK16 (18mm) series; RK20 (22mm) series; RK24 (25mm) series.

Waterproof Power/Data Transmission Connector

How to choose

Specification

Product Dimensions

LP16Plug Size-1

Docking Cable Plug

LP16 Plug Size

Plug

LP16 Flange Socket Size

Panel Socket

LP16 Socket Size

Flange Socket

How to Order

Application

RK series waterproof power and data connectors are ideal for waterproof, dustproof and corrosion-resistant applications such as outdoor lighting, LED displays, solar photovoltaics, power tools, electric vehicles, marine vessels, marine engineering, petrochemical and other sectors.

  • New energy fields: photovoltaic systems, servo motors, e-bikes, inverters and solar chargers.
  • Automation equipment: mobile robots, automated warehouse handling systems and torque transducers.
  • Communication systems: disinfection robots, vehicle monitoring systems and monitors.
  • Lighting: horticultural LEDs, stage lighting, streetlights, LED video walls and landscape lighting.
Industry

Industrial Automation

Solar Photovoltaic System

Solar Photovoltaic System

Communication Equipment

Communication Equipment

LED Plant Growth Lamp

LED Plant Growth Lamp

LED Dispaly Screen

LED Display Screen

Aerospace

Aerospace

Product Specification

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Fastening Type

Push-Pull

Mounting Type

Panel Mount

Contact Termination Style

Solder

Contact Material

Brass

Ingress Protection

IP67

Shell Material

Zinc Alloy

Number of Ports

2

Shell Finish

Chromium Plating

Temperature Range

-20℃~+85℃

Features

Metal Chain

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Fastening Type

Push-Pull

Mounting Type

Panel Mount

Contact Termination Style

Solder

Contact Material

Brass

Ingress Protection

IP67

Shell Material

Zinc Alloy

Number of Ports

2

Shell Finish

Chromium Plating

Temperature Range

-20℃~+85℃

Features

Metal Chain

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Fastening Type

Push-Pull

Mounting Type

Panel Mount

Contact Termination Style

Solder

Insulation Material

PA66

Contact Material

Brass

Ingress Protection

IP67

Rated Current

10A

Shell Material

Zinc Alloy

Number of Ports

2

Shell Finish

Chromium Plating

Wire Range

1.0-1.5mm2/18-16AWG

Temperature Range

-20℃~+85℃

Features

Metal Chain
