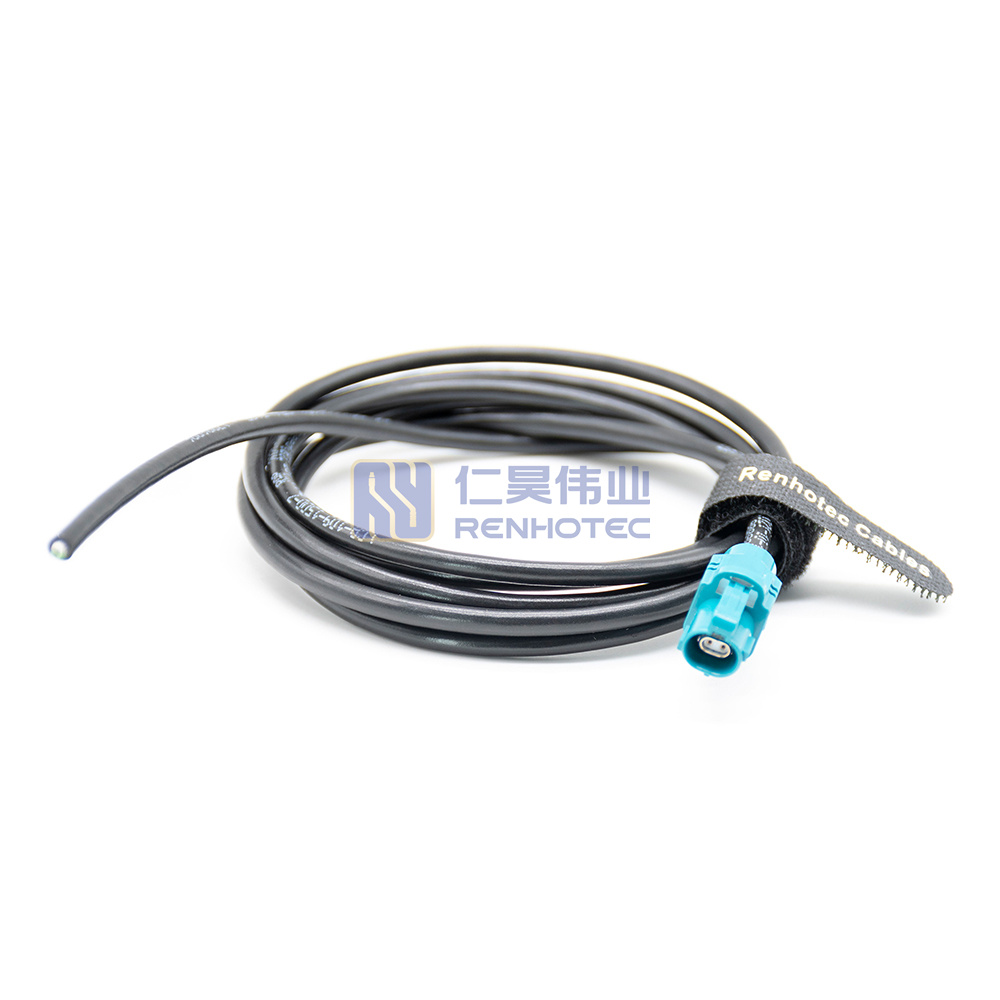

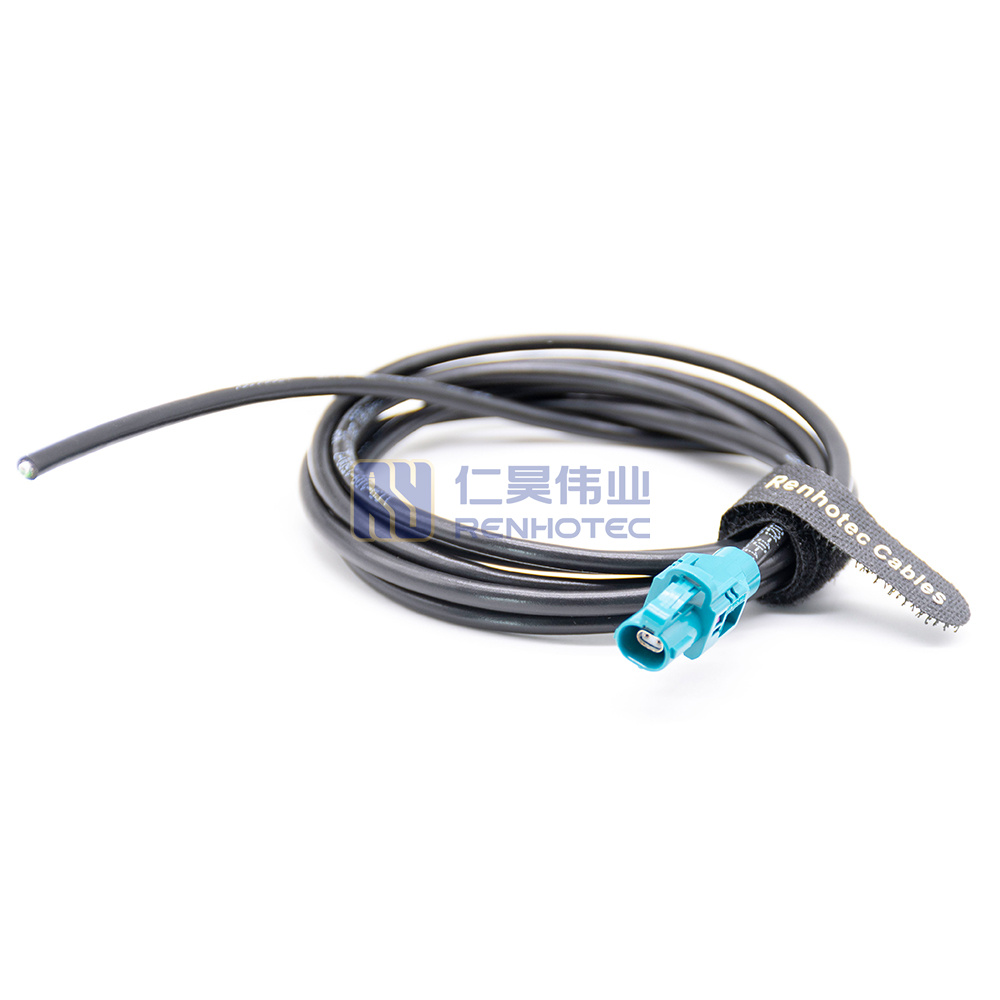

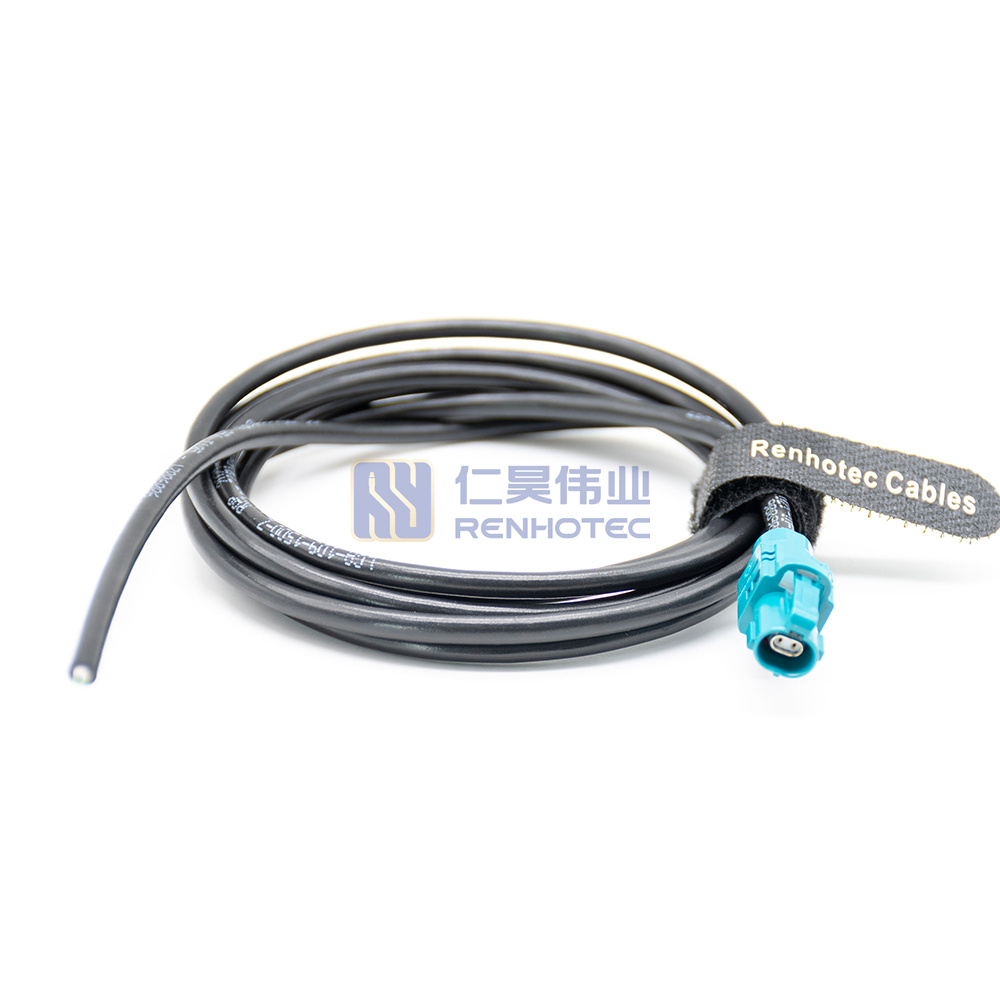

H-MTD Female Cable with GG 2Speed 251, Compatible with E6K10A-1CAZ5-Z – RHT-605-20223
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20223 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20223 |
| Rosenberger Part No. | E6K10A-1CAZ5-Z |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
- Supports up to 10 GHz bandwidth and 100 Ω impedance for multi-gigabit automotive Ethernet.
- Ruggedized design, PBT-GF20 straight jack housing, rated for -40 °C to +105 °C operating environments.
- Designed for ADAS, automotive Ethernet backbones, high-res camera systems, and LiDAR/Radar networks.
| Combination | H-MTD Single Ended |
||
|---|---|---|---|
| 1st Connector Key Code | Z |
||
| Cable Jacket | PVC |
||
| Gender | Jack |
||
| Housing Material | PBT-GF20 |
||
| Key Code | Z |
||
| Mating Cycles | min. 25 |
||
| Outer Jacket Diameter | 4.0mm |
||
| Return loss | ≥ 30 dB, 0.01 GHz to 3 GHz; ≥ 25 dB, 3 GHz to 6 GHz; ≥ 20 dB, 6 GHz to 10 GHz |
||
| Secondary Lock Material | PBT-GF30 |
||
| Combination | H-MTD Single Ended |
1st Connector Key Code | Z |
| Cable Jacket | PVC |
Gender | Jack |
| Housing Material | PBT-GF20 |
Key Code | Z |
| Mating Cycles | min. 25 |
Outer Jacket Diameter | 4.0mm |
| Return loss | ≥ 30 dB, 0.01 GHz to 3 GHz; ≥ 25 dB, 3 GHz to 6 GHz; ≥ 20 dB, 6 GHz to 10 GHz |
Secondary Lock Material | PBT-GF30 |
Product Specification
| 1st Contact Type | Female Pin |
||
|---|---|---|---|
| Color | Water blue |
||
| Contact Material | Bronze |
||
| Frequency Range | DC – 10 GHz |
||
| Impedance | 100 Ω |
||
| Insulation Resistance | ≥ 100 MΩ |
||
| Orientation | Straight |
||
| Rated Current | ≤ 1.5 A DC |
||
| Suitable Cable | GG 2Speed® 251 |
||
| Temperature Range | -40 °C to +105 °C |
||
| Working Voltage | ≤ 60 V DC |
||
| 1st Contact Type | Female Pin |
Color | Water blue |
| Contact Material | Bronze |
Frequency Range | DC – 10 GHz |
| Impedance | 100 Ω |
Insulation Resistance | ≥ 100 MΩ |
| Orientation | Straight |
Rated Current | ≤ 1.5 A DC |
| Suitable Cable | GG 2Speed® 251 |
Temperature Range | -40 °C to +105 °C |
| Working Voltage | ≤ 60 V DC |
| Combination | H-MTD Single Ended |
|---|---|
| 1st Connector Key Code | Z |
| 1st Contact Type | Female Pin |
| Cable Jacket | PVC |
| Color | Water blue |
| Contact Material | Bronze |
| Frequency Range | DC – 10 GHz |
| Gender | Jack |
| Housing Material | PBT-GF20 |
| Impedance | 100 Ω |
| Insulation Resistance | ≥ 100 MΩ |
| Key Code | Z |
| Mating Cycles | min. 25 |
| Orientation | Straight |
| Outer Jacket Diameter | 4.0mm |
| Rated Current | ≤ 1.5 A DC |
| Return loss | ≥ 30 dB, 0.01 GHz to 3 GHz; ≥ 25 dB, 3 GHz to 6 GHz; ≥ 20 dB, 6 GHz to 10 GHz |
| Secondary Lock Material | PBT-GF30 |
| Suitable Cable | GG 2Speed® 251 |
| Temperature Range | -40 °C to +105 °C |
| Working Voltage | ≤ 60 V DC |
