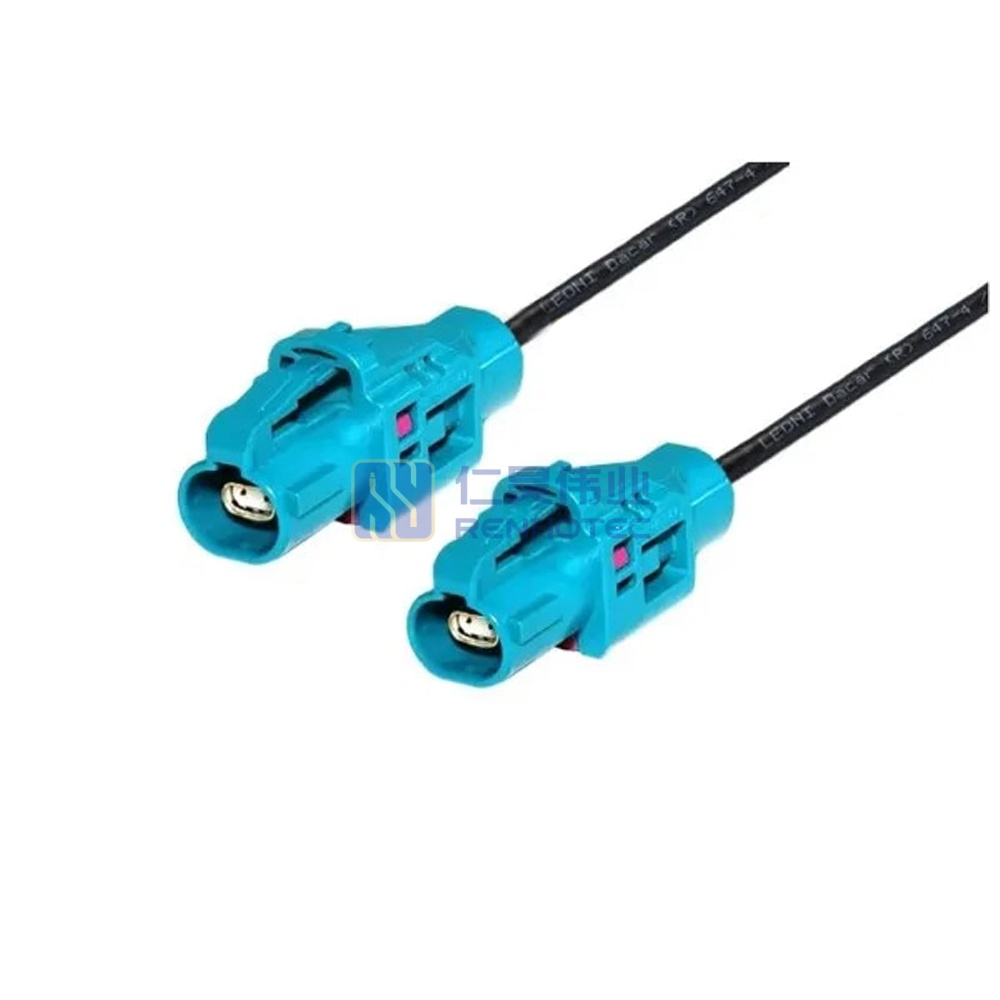

H-MTD E6K10A-1BZZ5-Z Single Port Jack to Jack Automotive Ethernet Cable Assembly with DACAR 647-4 Wire 100Ω Shielded Twisted Pair Cable
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-E6K10A-1BZZ5-Z-E6K10A can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-E6K10A-1BZZ5-Z-E6K10A |
| Rosenberger Part No. | E6K10A-1BZZ5-Z |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
| Combination | H-MTD + H-MTD |
||
|---|---|---|---|
| 1st Connector Key Code | Z |
||
| 1st Housing Design | Single Housing |
||
| 2nd Connector Key Code | Z |
||
| 2nd Housing Design | Single Housing |
||
| Combination | H-MTD + H-MTD |
1st Connector Key Code | Z |
| 1st Housing Design | Single Housing |
2nd Connector Key Code | Z |
| 2nd Housing Design | Single Housing |
| 1st Contact Type | Female Pin |
||
|---|---|---|---|
| 2nd Contact Type | Female Pin |
||
| Cable Color | Black |
||
| Cable length | 50CM, 100CM，200CM, 500CM |
||
| Frequency Range | DC – 10 GHz |
||
| Impedance | 100 Ω |
||
| Ingress Protection | IP40 |
||
| Operating Temperature | -40°C~+105°C |
||
| Suitable Cable | Dacar 647-4 |
||
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Cable Color | Black |
Cable length | 50CM, 100CM，200CM, 500CM |
| Frequency Range | DC – 10 GHz |
Impedance | 100 Ω |
| Ingress Protection | IP40 |
Operating Temperature | -40°C~+105°C |
| Suitable Cable | Dacar 647-4 |
Specifications
| Shielding | Shielded |
|---|---|
| Shielding | Shielded |
| Combination | H-MTD + H-MTD |
|---|---|
| 1st Connector Key Code | Z |
| 1st Contact Type | Female Pin |
| 1st Housing Design | Single Housing |
| 2nd Connector Key Code | Z |
| 2nd Contact Type | Female Pin |
| 2nd Housing Design | Single Housing |
| Cable Color | Black |
| Cable length | 50CM, 100CM，200CM, 500CM |
| Frequency Range | DC – 10 GHz |
| Impedance | 100 Ω |
| Ingress Protection | IP40 |
| Operating Temperature | -40°C~+105°C |
| Shielding | Shielded |
| Suitable Cable | Dacar 647-4 |
