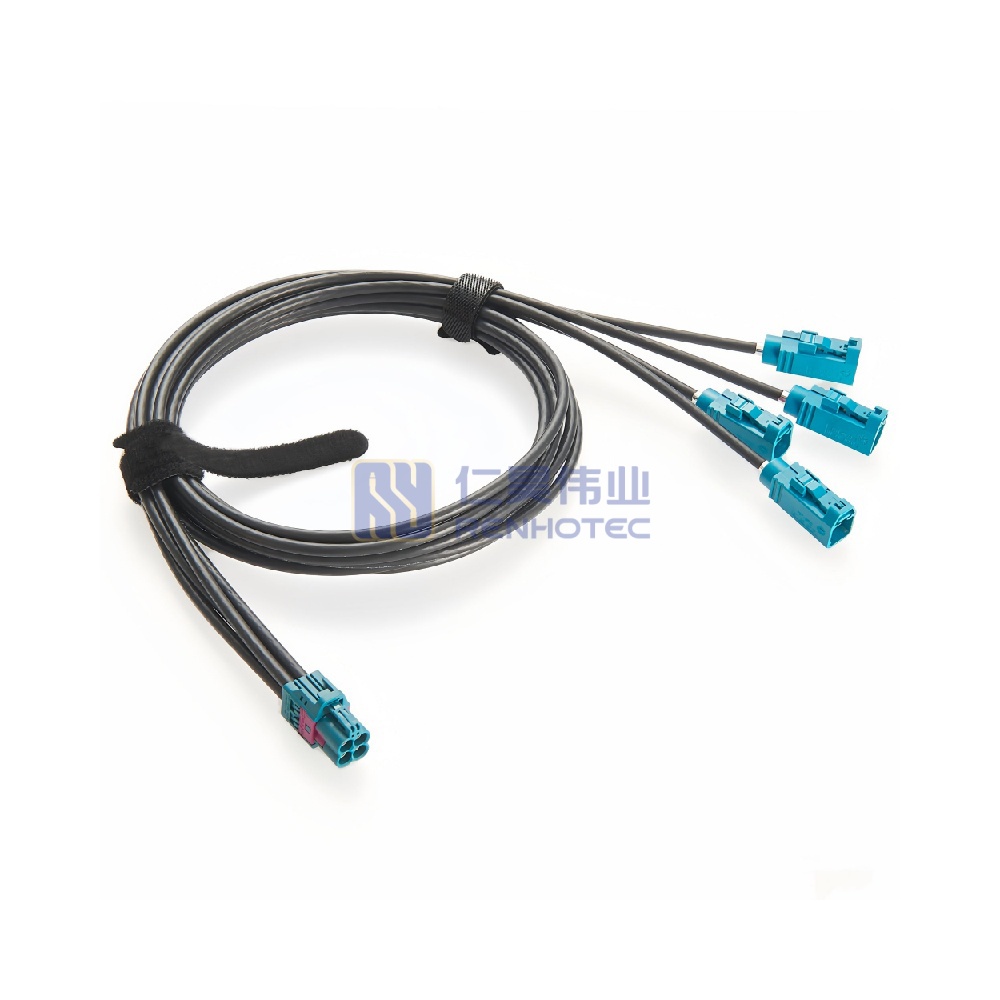

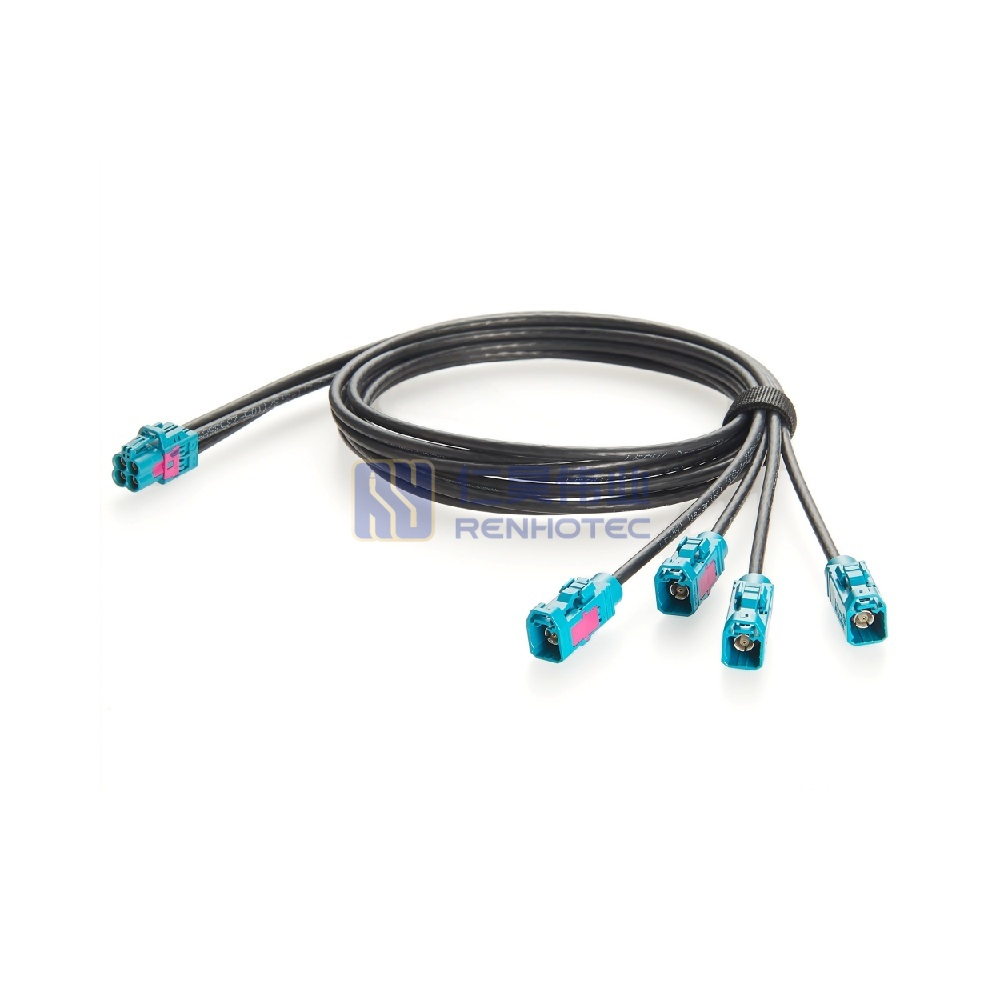

GMSL2 Mini Fakra Female to Fakra Female for ZED X Camera – RHT-605-20818
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20818 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20818 |
| Rosenberger Part No. | 1st Connector AMK12D-1M4Z5-Z; 2nd Connector 59Z113-000-Z |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification

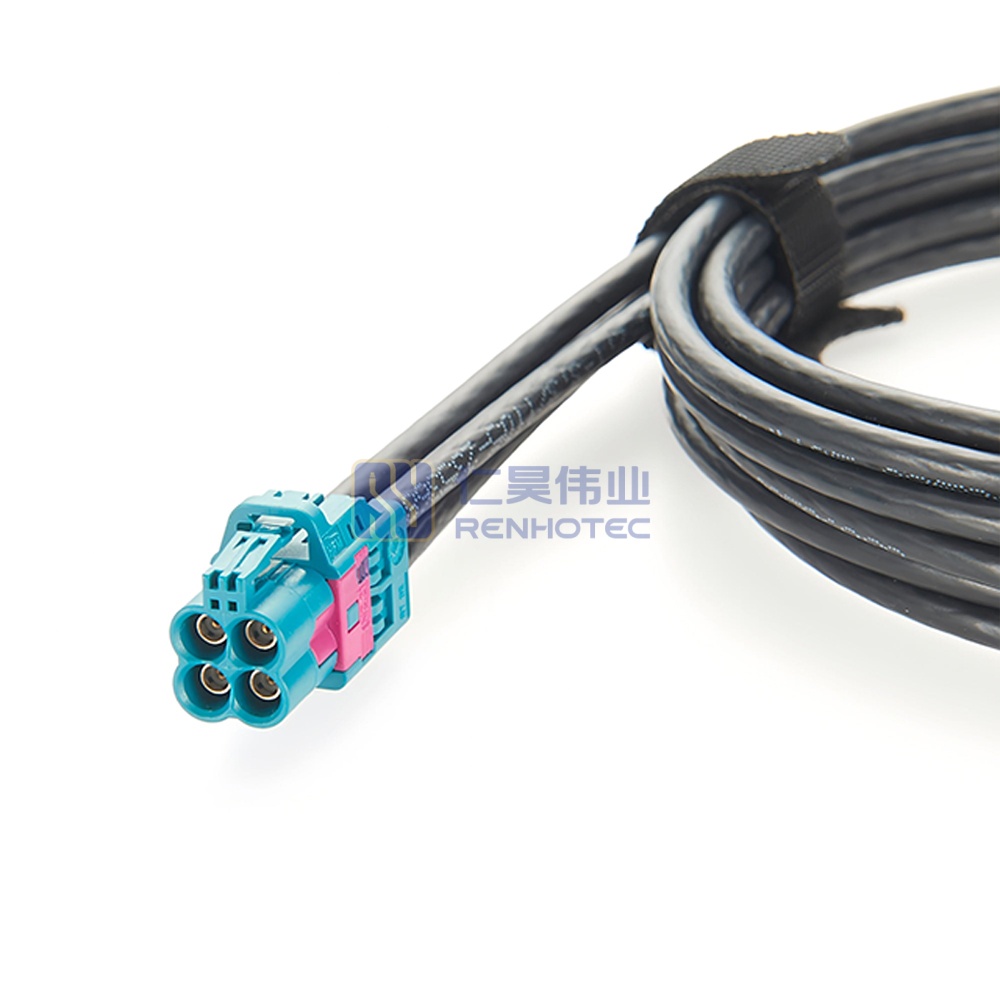

| RF Cable 1st Connector | Mini Fakra Z |
||
|---|---|---|---|

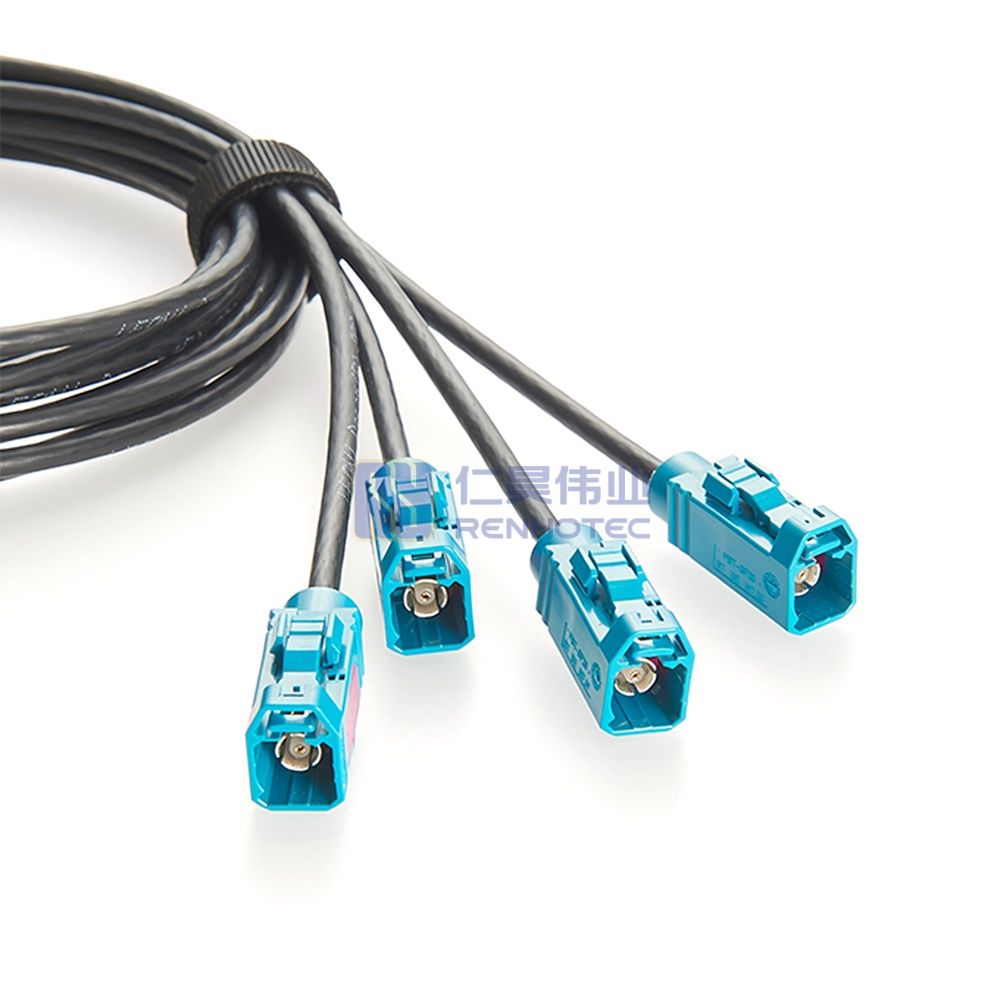

| RF Cable 2nd Connector | FAKRA*4 Z |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| 1st Connector | AMK12D-1M4Z5-Z |
||
| 2nd Connector | 4* 59Z113-000-Z |
||
| Cable Type | LEONI DACAR 302-4 |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC ~ 6 GHz |
||
| Temperature Range | -40 °C to +105 °C |
||
| VSWR | 1.80 MAX |
||
| RF Cable 1st Connector | Mini Fakra Z |
RF Cable 2nd Connector | FAKRA*4 Z |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| 1st Connector | AMK12D-1M4Z5-Z |
2nd Connector | 4* 59Z113-000-Z |
| Cable Type | LEONI DACAR 302-4 |
Impedance | 50 ohm |
| Frequency Range | DC ~ 6 GHz |
Temperature Range | -40 °C to +105 °C |
| VSWR | 1.80 MAX |
| Length | Customized |
|---|---|
| Length | Customized |
| RF Cable 1st Connector | Mini Fakra Z |
|---|---|
| RF Cable 2nd Connector | FAKRA*4 Z |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| 1st Connector | AMK12D-1M4Z5-Z |
| 2nd Connector | 4* 59Z113-000-Z |
| Cable Type | LEONI DACAR 302-4 |
| Length | Customized |
| Impedance | 50 ohm |
| Frequency Range | DC ~ 6 GHz |
| Temperature Range | -40 °C to +105 °C |
| VSWR | 1.80 MAX |
