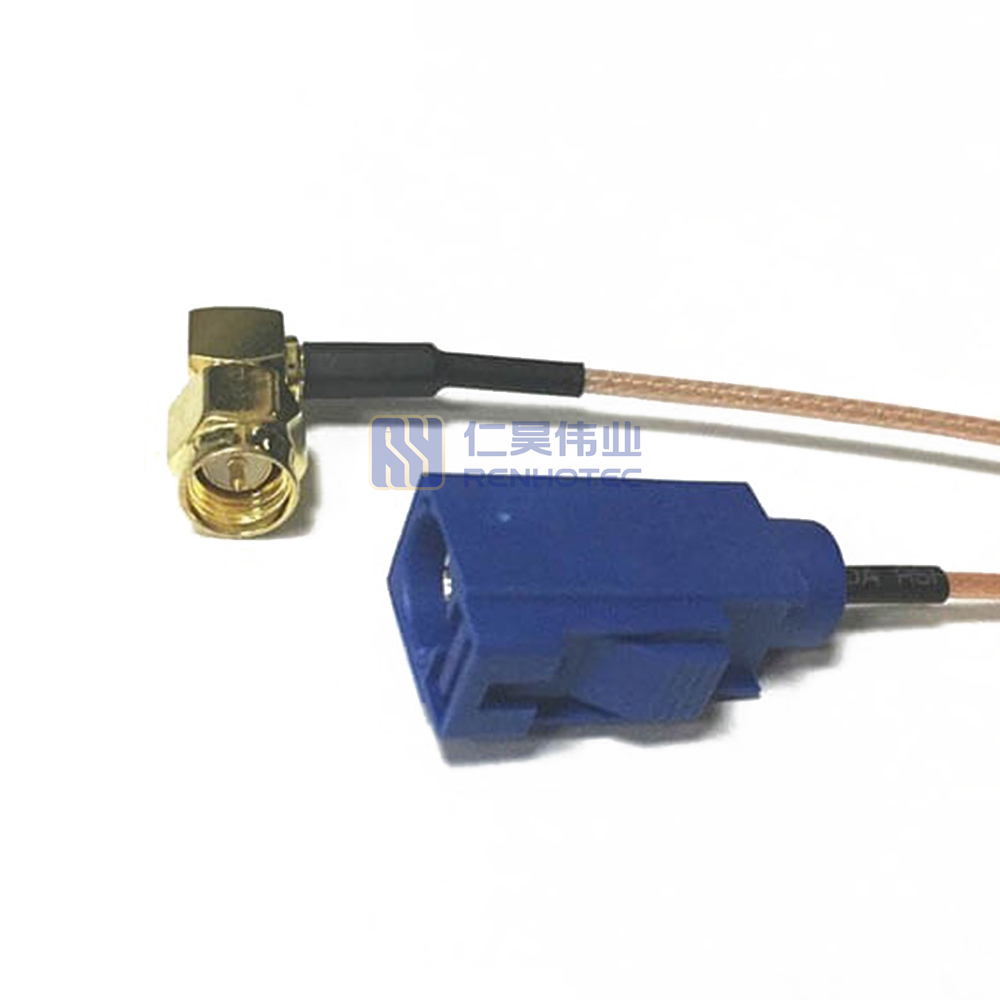

SMA Plug to Fakra C Jack RF Cable Assemblies with RG178 Cable – RHT-605-6202

SKU RHT-605-6202 Category Automotive Series Assemblies, Fakra Cable Assemblies, +2

SMA Plug to Fakra C Jack RF cable assemblies, engineered for high-performance signal transmission in automotive, RF, and GPS applications.
RG178 cable ensures low loss and excellent high-frequency performance for reliable signal integrity in demanding environments.
Durable SMA Plug and Fakra C Jack connectors provide secure, stable connections for automotive and communication systems.
Ideal for GMSL/FPD-Link testing and prototyping, GPS systems, car audio, ensuring uninterrupted performance in both commercial and consumer applications.
Compact and lightweight design for easy installation in tight spaces, ensuring a versatile and efficient solution for your signal transmission needs.

Product Specification

RF Cable 1st Connector	SMA
RF Cable 2nd Connector	Fakra C
1st Contact Type	Male Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Right Angle
2nd Connector Orientation	Straight
RF Cable Style	SMA to Fakra C
Cable Color	Brown
Cable Type	RG178
Frequency Range	DC-14GHz
Impedance	50 ohm
Temperature Range	-40°C to +85°C
RF Cable 1st Connector	SMA	RF Cable 2nd Connector	Fakra C
1st Contact Type	Male Pin	2nd Contact Type	Female Pin
1st Connector Orientation	Right Angle	2nd Connector Orientation	Straight
RF Cable Style	SMA to Fakra C	Cable Color	Brown
Cable Type	RG178	Frequency Range	DC-14GHz
Impedance	50 ohm	Temperature Range	-40°C to +85°C

RF Cable 1st Connector	SMA
RF Cable 2nd Connector	Fakra C
1st Contact Type	Male Pin
2nd Contact Type	Female Pin
1st Connector Orientation	Right Angle
2nd Connector Orientation	Straight
RF Cable Style	SMA to Fakra C
Cable Color	Brown
Cable Type	RG178
Frequency Range	DC-14GHz
Impedance	50 ohm
Temperature Range	-40°C to +85°C

Stable Performance

The process is rigorous,andprecision machining has undergone layers of testing andstrict quality control.

Smooth Surface

Adopting polishing technology,the hand feels smooth and freeof burrs and scratches.

The Cable is Strong

The wire is soft and strong, resistantto folding and bending. The high-density braided screen has a hiddenlayer and an oxygen-free core.Thetransmission is fast and stable.
