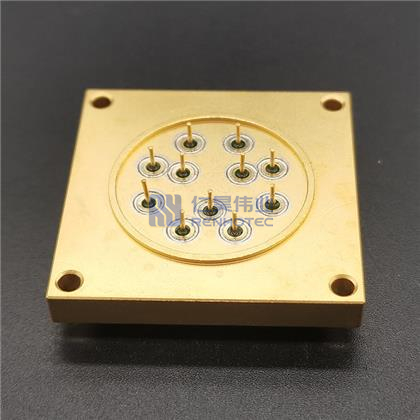

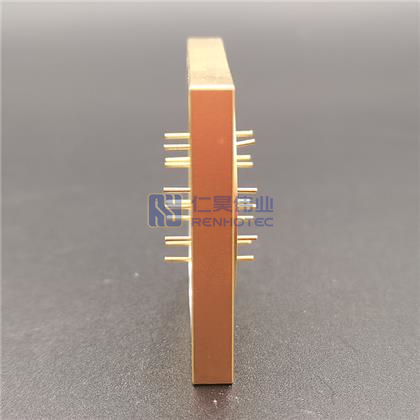

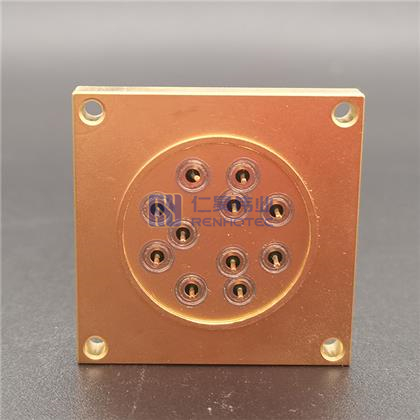

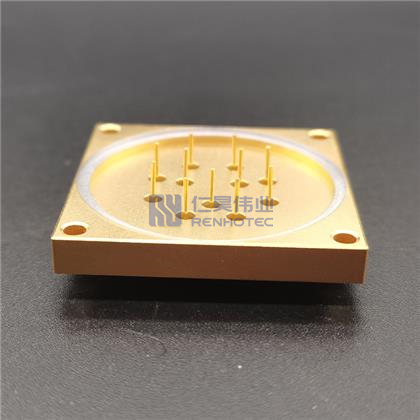

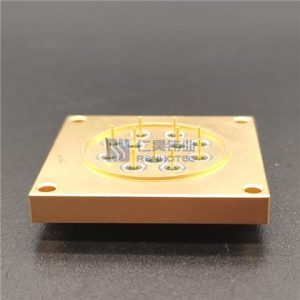

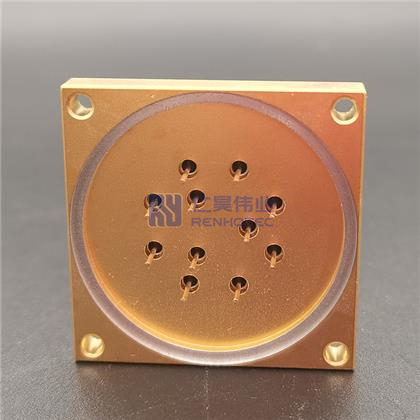

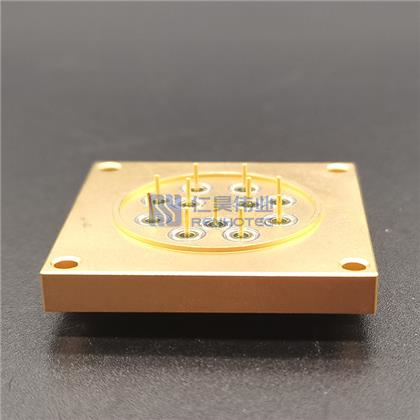

Glass to Metal Sealed Feedthrough Connector – RHT-10205-11P

  • Glass-to-metal hermetic seal provides superior protection against contaminants, moisture, and gases, ensuring reliable and long-lasting performance.
  • Feedthrough design facilitates seamless passage of electrical signals or power through panels, enclosures, or other barriers.
  • Suitable for high-pressure, high-temperature, and harsh environmental conditions, ideal for military, aerospace, and industrial applications.
  • Robust construction ensures stable electrical conductivity with minimal signal loss or degradation.
  • Customizable options are available to meet specific application needs, including pin configuration, sealing type, and mounting style.
  • Highly reliable and compliant with industry standards for performance and safety in critical applications.

Glass-To-Metal-Seal-Connectors

Glass to Metal Hermetic RF/DC Feedthroughs/Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The centerconductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Structure

Glass insulator is composed of three parts: outer conductor/shell, glass medium and center conductor/pin.Its basic structure is shown in the figure.

Glass-To-Metal-Seal-Connectors-Structure

Reliability Requirements

Hermeticity

≤1.01325×10-³Pa·cm³/s/s

Salt spray

Glass insulators shall be tested without severe corrosion and spotting.

Temperature shock

There shall be no cosmetic or mechanical damage after testing.

Applications

Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Product Specification

Number of Positions

11 Pin
Shell Material

4J29
Shell Finish

Gold Plated, Ep.Ni3-11.4μm
Contact Finish

Gold Plated, Ep.Ni3-11.4μm
Insulation Resistance

≥5000 MΩ
Number of Positions

11 Pin

 Shell Material

4J29
Shell Finish

Gold Plated, Ep.Ni3-11.4μm

 Contact Finish

Gold Plated, Ep.Ni3-11.4μm
Insulation Resistance

≥5000 MΩ

Sealing

≤1×10^-9 Pa·m³/s
Production Technology

Glass Sintering
Customizable

Yes
Sealing

≤1×10^-9 Pa·m³/s

 Production Technology

Glass Sintering
Customizable

Yes
Number of Positions

11 Pin
Shell Material

4J29
Shell Finish

Gold Plated, Ep.Ni3-11.4μm
Contact Finish

Gold Plated, Ep.Ni3-11.4μm
Sealing

≤1×10^-9 Pa·m³/s
Insulation Resistance

≥5000 MΩ
Production Technology

Glass Sintering
Customizable

Yes
