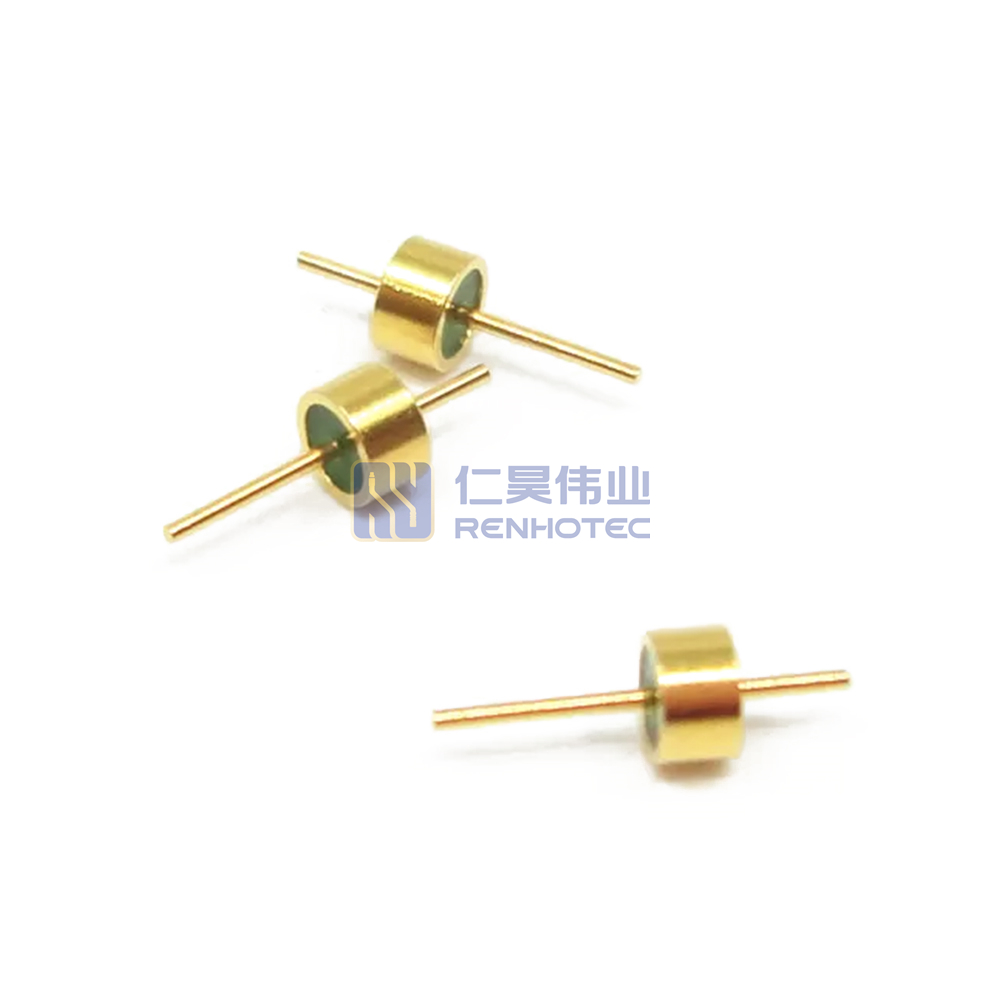

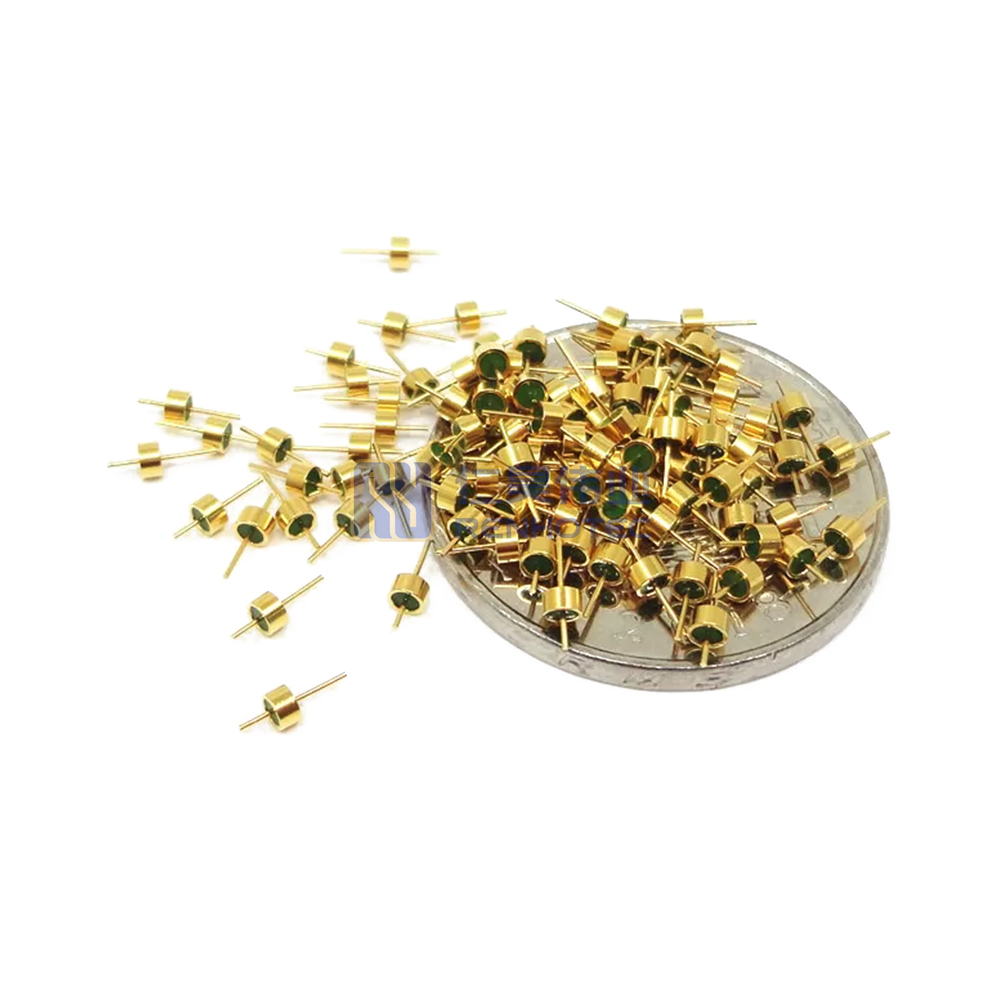

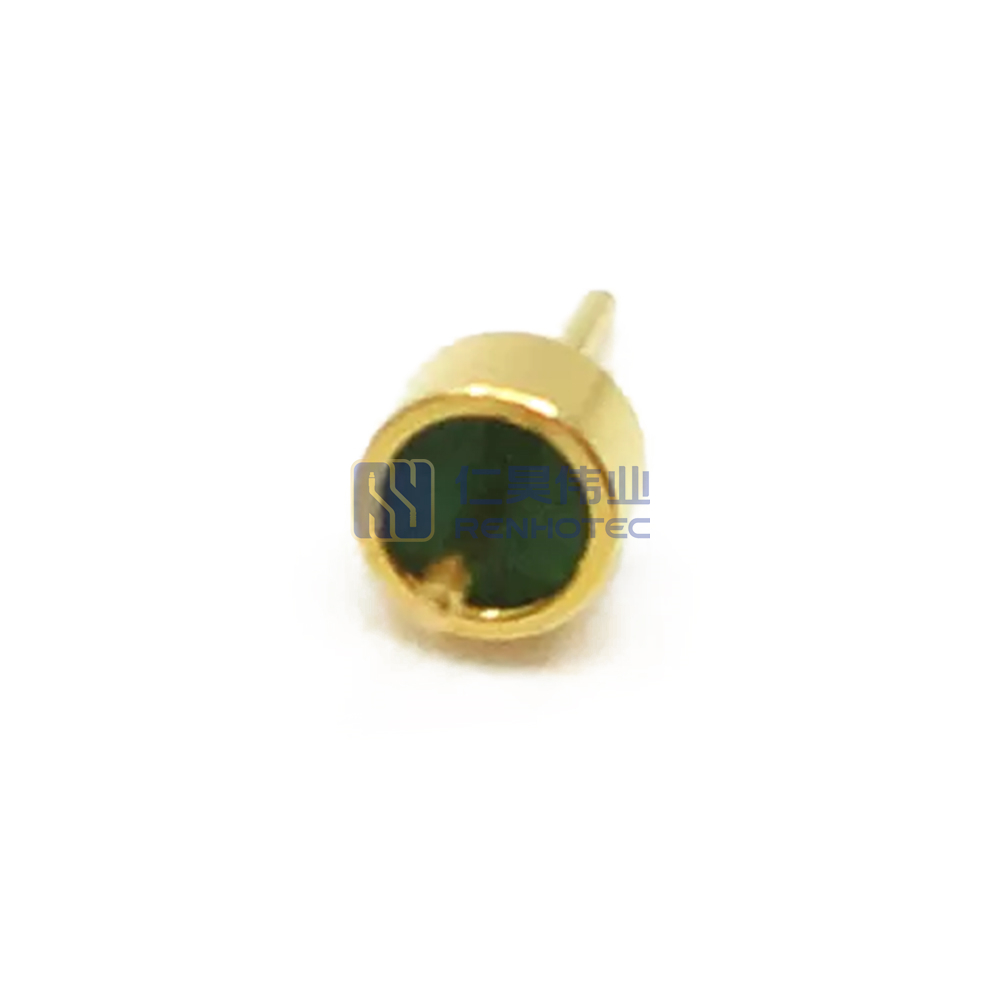

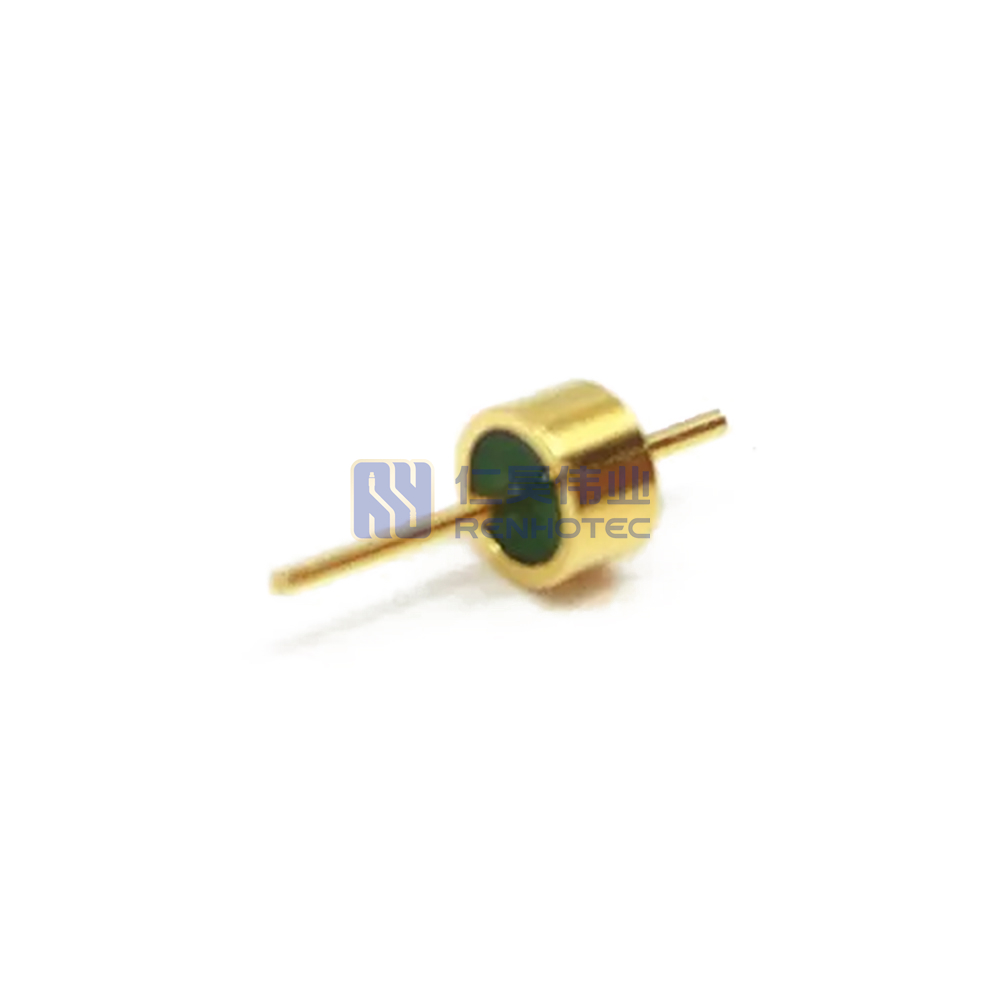

Hermetic Single Pin Connector 50ohm RF Impedance For Aerospace Small Size

  • 50ohm impedance ensures stable and high-quality signal transmission with minimal loss, optimized for RF and high-frequency applications
  • Compact design ideal for aerospace applications, where space constraints and reliable performance are critical
  • Hermetic seal provides leak-proof protection, guarding against moisture, dust, and other contaminants in demanding environments
  • Superior mechanical strength and resistance to environmental factors, such as temperature extremes and vibrations, ensuring long-term durability
  • Designed to meet the rigorous standards of high-reliability industries, including aerospace, telecommunications, and defense

Glass-To-Metal-Seal-Connectors

Glass to Metal Hermetic RF/DC Feedthroughs/Seals /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components. The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The centerconductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Structure

Glass insulator is composed of three parts: outer conductor/shell, glass medium and center conductor/pin.Its basic structure is shown in the figure.

Glass-To-Metal-Seal-Connectors-Structure

Reliability Requirements

Applications

Our Advantages

good reviews

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods
