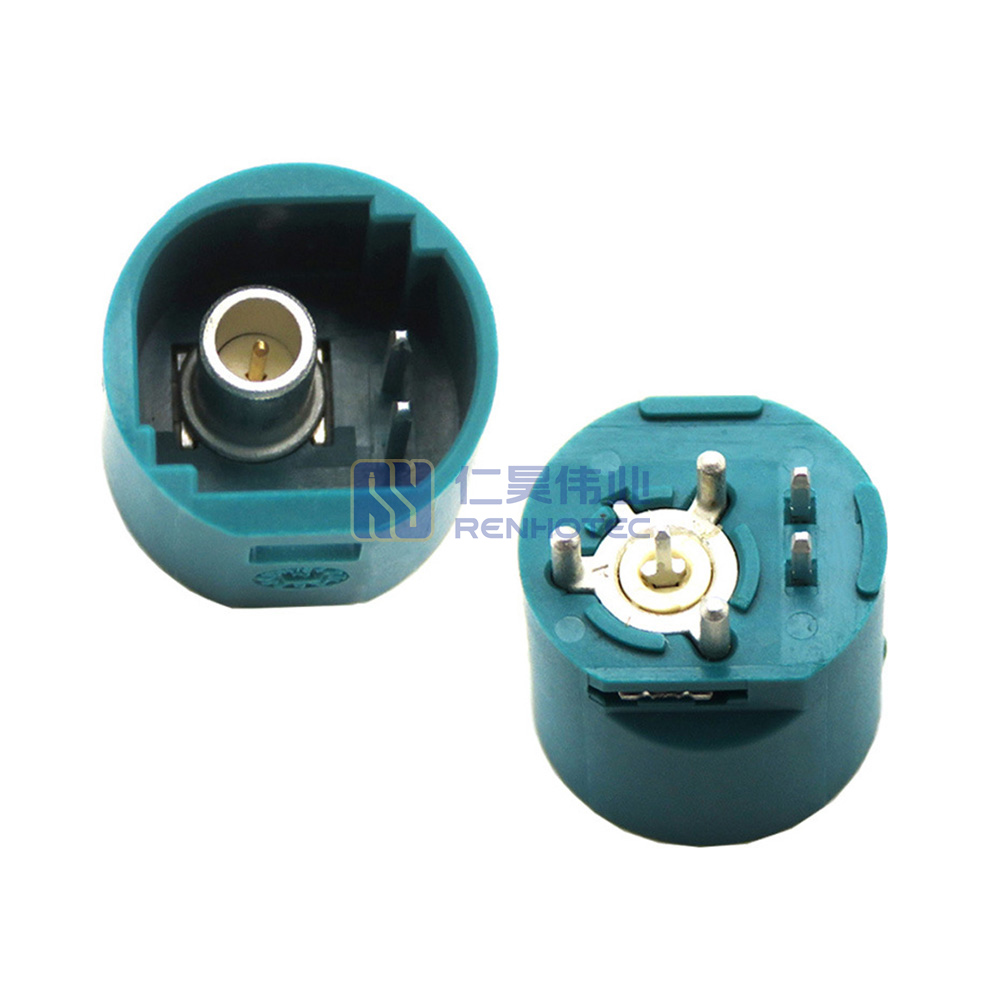

Fakra+2P Short Body Male Connector Through Hole GMSL Compatible
- Fakra+2P short body male connector with through-hole mounting, designed for compact automotive signal transmission applications.
- Space-efficient short body design, ideal for installations in tight or confined automotive spaces without compromising performance.
- Through-hole mounting ensures secure connections, offering reliable signal transmission for automotive electronics systems.
- Durable and resistant to automotive environments, including vibration, temperature changes, and moisture, ensuring long-lasting use.
- Perfect for use in systems such as GPS, infotainment, cameras, and sensors, providing robust and consistent signal quality.
With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.
Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.
Engineered for high-bandwidth automotive data links, this high-performance FAKRA component is optimized for GMSL2/GMSL3 and FPD-Link III protocols.
PCB End (Male)
Cable End (Male)
Cable End (Female)
- Secure primary locking system with tactile and audible locking
- Shock and vibration resistant coded housing
- Protection against unintentional opening by protective bar and protective strips
- High axial holding power of the coaxial insert due to secondary locking
- Mechanical and color coding system with 14 different codes
- Fastening groove for cable connectors for chassis mounting
- Coaxial insert and cable freely rotatable in the housing
- Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
- Efficient, automated further processing option
- Customized packaging possible
 |
 |
 |
 |
 |
 |
 |
|
| Code | A | B | C | D | E | F | G |
| Color | Deep Black | Cream White | Signal Blue | Bordeaux Violet | Leaf Green | Brown | Blue Gray |
| Application | Radio with phantom supply | Radio without phantom supply | GPS telematics or navigation | GSM Cellular Phone | TV (UHF) | TV (VHF) | SDARS terrestrial |
 |
 |
 |
 |
 |
 |
 |
|
| Code | H | I | K | L | M | N | Z |
| Color | Violet | Beige | Curry Yellow | Carmine Red | Pastel Orange | Pastel Green | Water Blue |
| Application | GPS telematics and navigation | Bluetooth Controlled Parking Heating |
SDARS satellite | Not defined | Keyless entry Tire pressure monitoring |
Not defined | Neutral |
Technical Frequently Asked Questions
Are these FAKRA connectors compatible with GMSL2 and GMSL3 protocols?
Yes. Our high-performance FAKRA components are optimized for high-speed data transmission, making them suitable for use with protocols such as GMSL1/2/3, FPD-Link III/IV, and LVDS. They support the frequency ranges and signal integrity required for HD video streams in ADAS and infotainment systems.
Why is 50 Ohm impedance matching critical for these automotive connectors?
Maintaining a precise 50 Ohm impedance is essential to minimize signal reflection and insertion loss in high-frequency automotive environments. Our connectors are engineered to strict tolerances to support reliable performance in high-speed SerDes links where impedance consistency is vital for data accuracy.
Do your FAKRA products meet automotive industry standards?
Our FAKRA connectivity solutions are designed to meet the performance requirements of ISO 20958 and USCAR-18. This ensures reliable mechanical and electrical integration with standard FAKRA interfaces, featuring standardized color-coding (Keying) and secure locking mechanisms for automotive-grade reliability.
