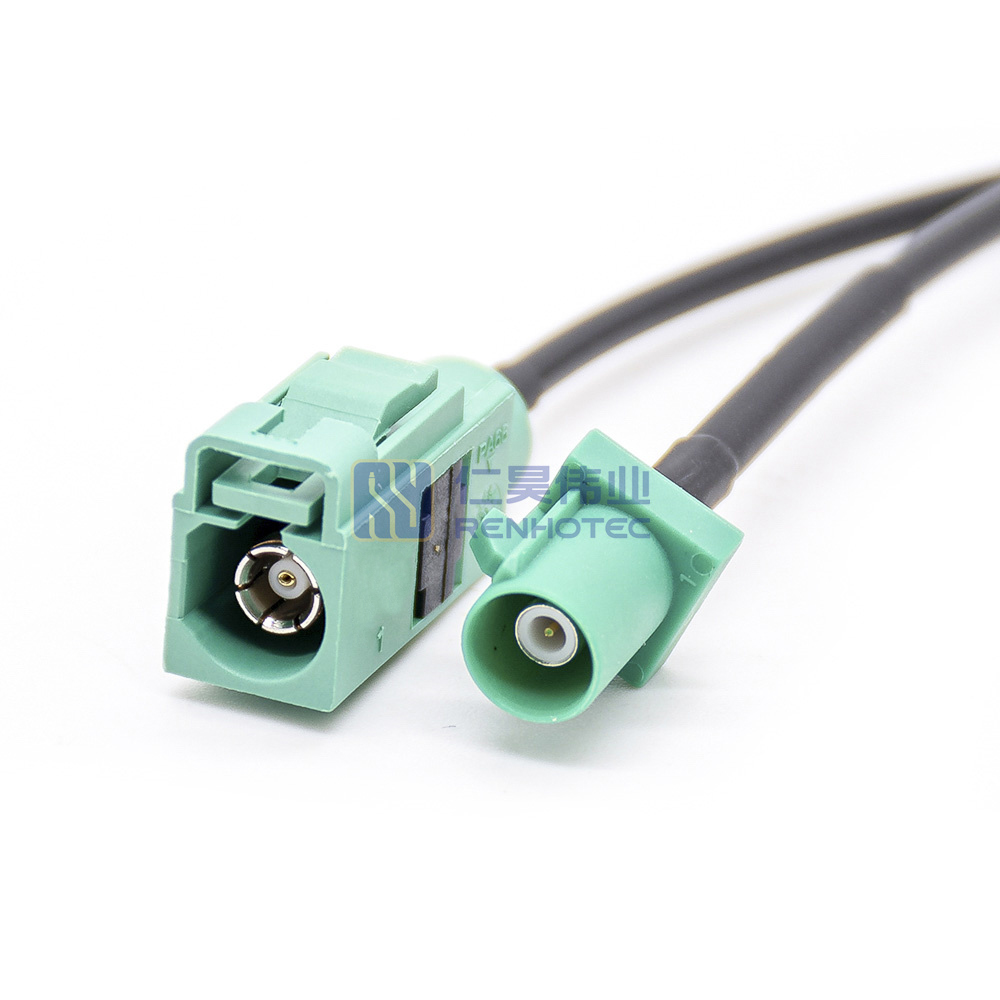

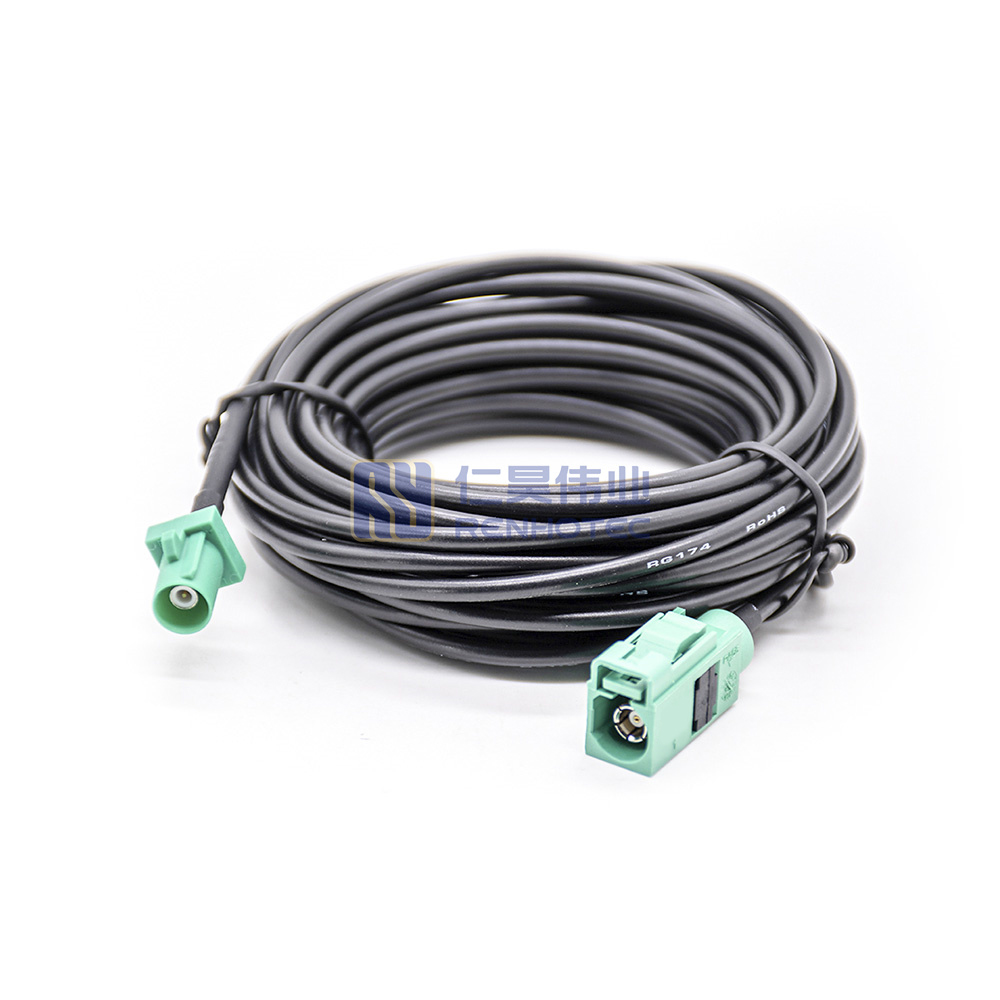

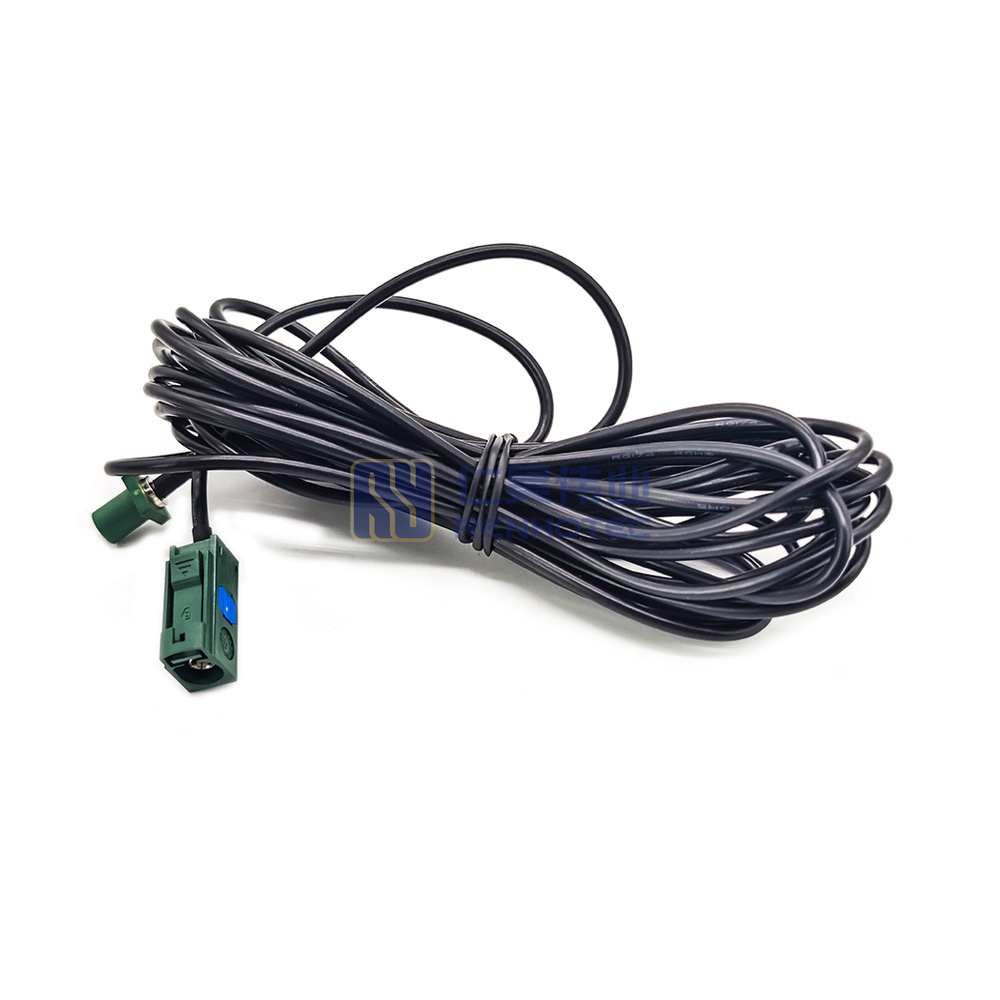

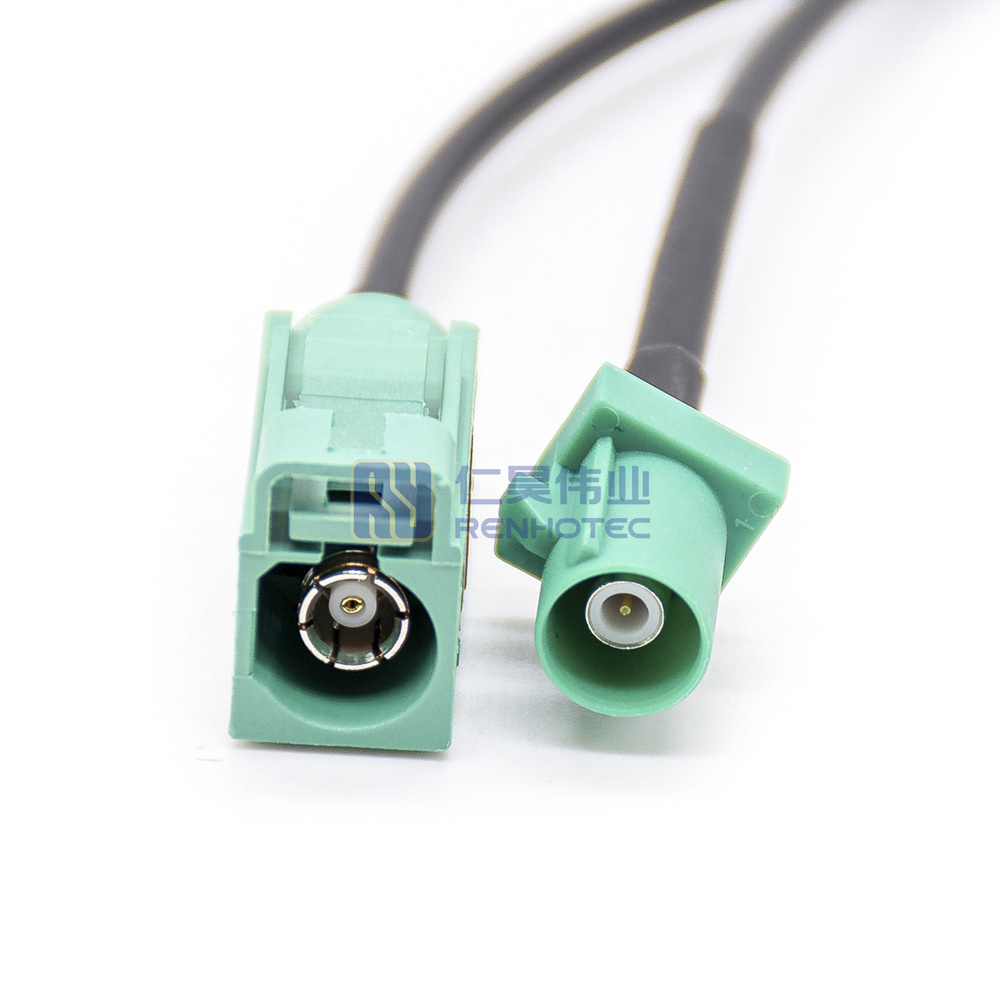

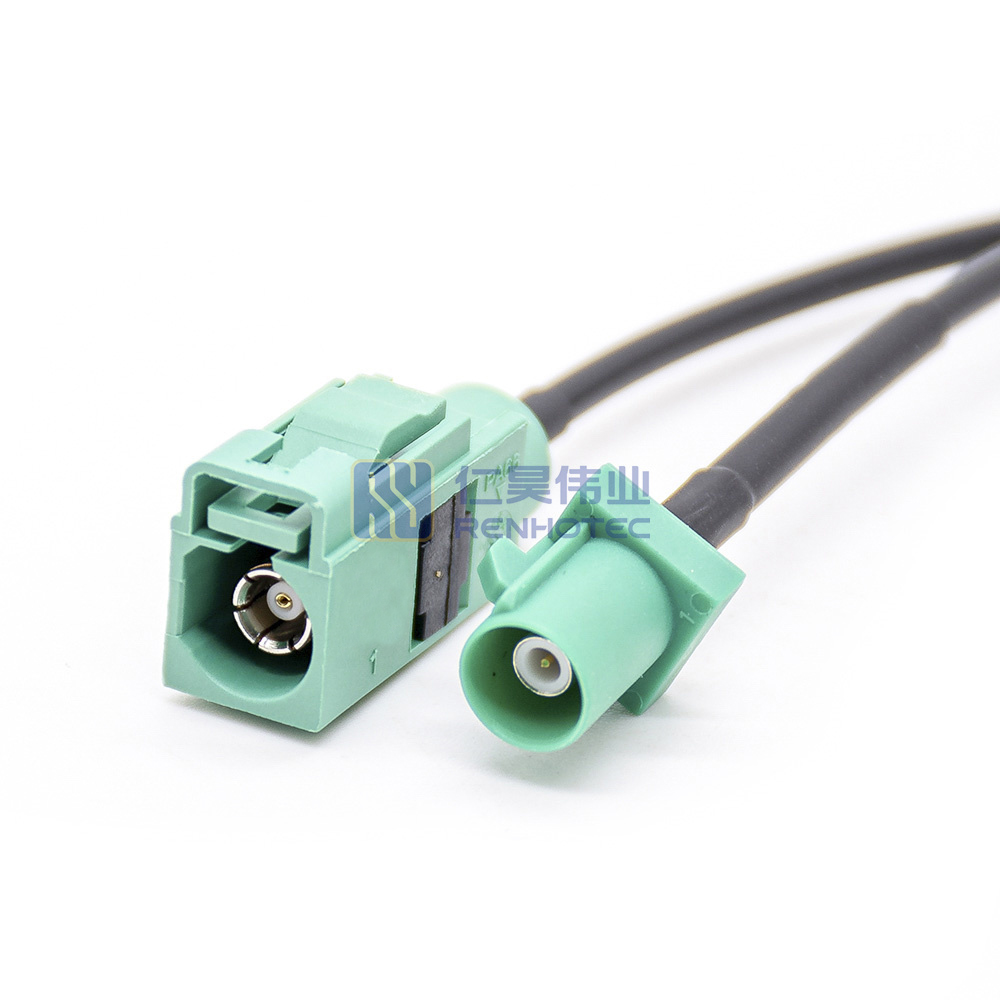

Fakra Female E Code to Fakra Male E Code Coaxial Cable RG174
- Fakra Female E Code to Fakra Male E Code coaxial cable with RG174 ensures reliable and secure signal transmission for automotive electronics.
- Built with high-quality RG174 coaxial cable, offering low loss, flexibility, and enhanced performance for data, video, and audio applications.
- Designed for use in automotive systems, providing clear signal transfer for infotainment, telematics, and navigation systems.
- Durable and resistant to harsh automotive environments, withstanding temperature extremes, moisture, and vibrations.
- Compatible with various Fakra E Code connectors, ensuring seamless integration with automotive systems requiring high-quality signal transfer.
Product Specification
| RF Cable 1st Connector | Fakra E |
||
|---|---|---|---|
| RF Cable 2nd Connector | Fakra E |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Male Pin |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| RF Cable Style | Fakra to Fakra |
||
| Anti-error Force | ≥40N |
||
| Contact Material | Copper |
||
| Core Connection Resistance | ≤ 20 MΩ |
||
| Frequency - Max | 3GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | PTFE |
||
| Insultation Resistance | ≥5 × 10³MΩ (Milliohms min.) |
||
| Latch Holding Force | ≥110N |
||
| Mating Durability | ≥ 25 Cycles |
||
| Operating Temperature | -40°C to +85°C |
||
| Operating Voltage | 335V r.m.s at sea level |
||
| Plastic Housing | PA66+30%GF |
||
| Withstand Voltage | 1000V r.m.s at sea level |
||
| RF Cable 1st Connector | Fakra E |
RF Cable 2nd Connector | Fakra E |
| 1st Contact Type | Female Pin |
2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| RF Cable Style | Fakra to Fakra |
Anti-error Force | ≥40N |
| Contact Material | Copper |
Core Connection Resistance | ≤ 20 MΩ |
| Frequency - Max | 3GHz |
Impedance | 50 ohm |
| Insulator Material | PTFE |
Insultation Resistance | ≥5 × 10³MΩ (Milliohms min.) |
| Latch Holding Force | ≥110N |
Mating Durability | ≥ 25 Cycles |
| Operating Temperature | -40°C to +85°C |
Operating Voltage | 335V r.m.s at sea level |
| Plastic Housing | PA66+30%GF |
Withstand Voltage | 1000V r.m.s at sea level |
| RF Cable 1st Connector | Fakra E |
|---|---|
| RF Cable 2nd Connector | Fakra E |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Male Pin |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| RF Cable Style | Fakra to Fakra |
| Anti-error Force | ≥40N |
| Contact Material | Copper |
| Core Connection Resistance | ≤ 20 MΩ |
| Frequency - Max | 3GHz |
| Impedance | 50 ohm |
| Insulator Material | PTFE |
| Insultation Resistance | ≥5 × 10³MΩ (Milliohms min.) |
| Latch Holding Force | ≥110N |
| Mating Durability | ≥ 25 Cycles |
| Operating Temperature | -40°C to +85°C |
| Operating Voltage | 335V r.m.s at sea level |
| Plastic Housing | PA66+30%GF |
| Withstand Voltage | 1000V r.m.s at sea level |
With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.
Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.
PCB End (Male)
Cable End (Male)
Cable End (Female)
- Secure primary locking system with tactile and audible locking
- Shock and vibration resistant coded housing
- Protection against unintentional opening by protective bar and protective strips
- High axial holding power of the coaxial insert due to secondary locking
- Mechanical and color coding system with 14 different codes
- Fastening groove for cable connectors for chassis mounting
- Coaxial insert and cable freely rotatable in the housing
- Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
- Efficient, automated further processing option
- Customized packaging possible
 |
 |
 |
 |
 |
 |
 |
|
| Code | A | B | C | D | E | F | G |
| Color | Deep Black | Cream White | Signal Blue | Bordeaux Violet | Leaf Green | Brown | Blue Gray |
| Application | Radio with phantom supply | Radio without phantom supply | GPS telematics or navigation | GSM Cellular Phone | TV (UHF) | TV (VHF) | SDARS terrestrial |
 |
 |
 |
 |
 |
 |
 |
|
| Code | H | I | K | L | M | N | Z |
| Color | Violet | Beige | Curry Yellow | Carmine Red | Pastel Orange | Pastel Green | Water Blue |
| Application | GPS telematics and navigation | Bluetooth Controlled Parking Heating |
SDARS satellite | Not defined | Keyless entry Tire pressure monitoring |
Not defined | Neutral |
