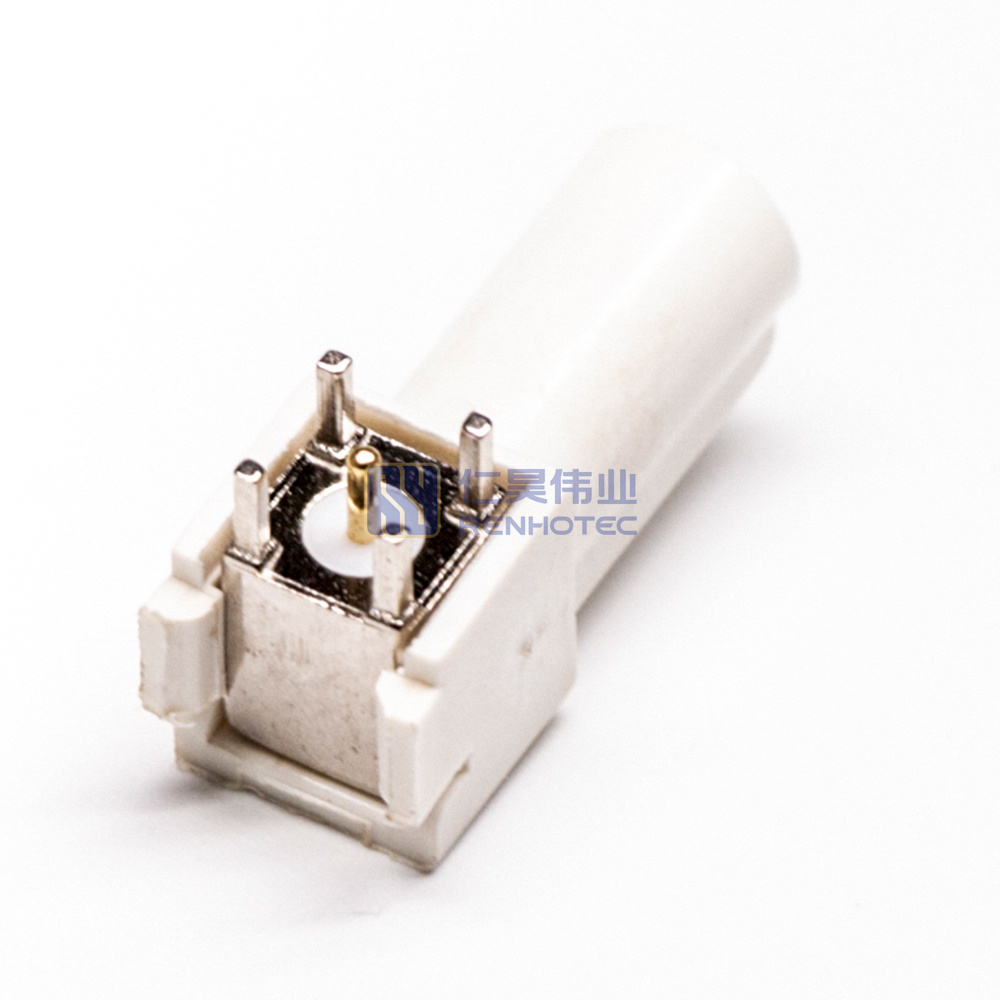

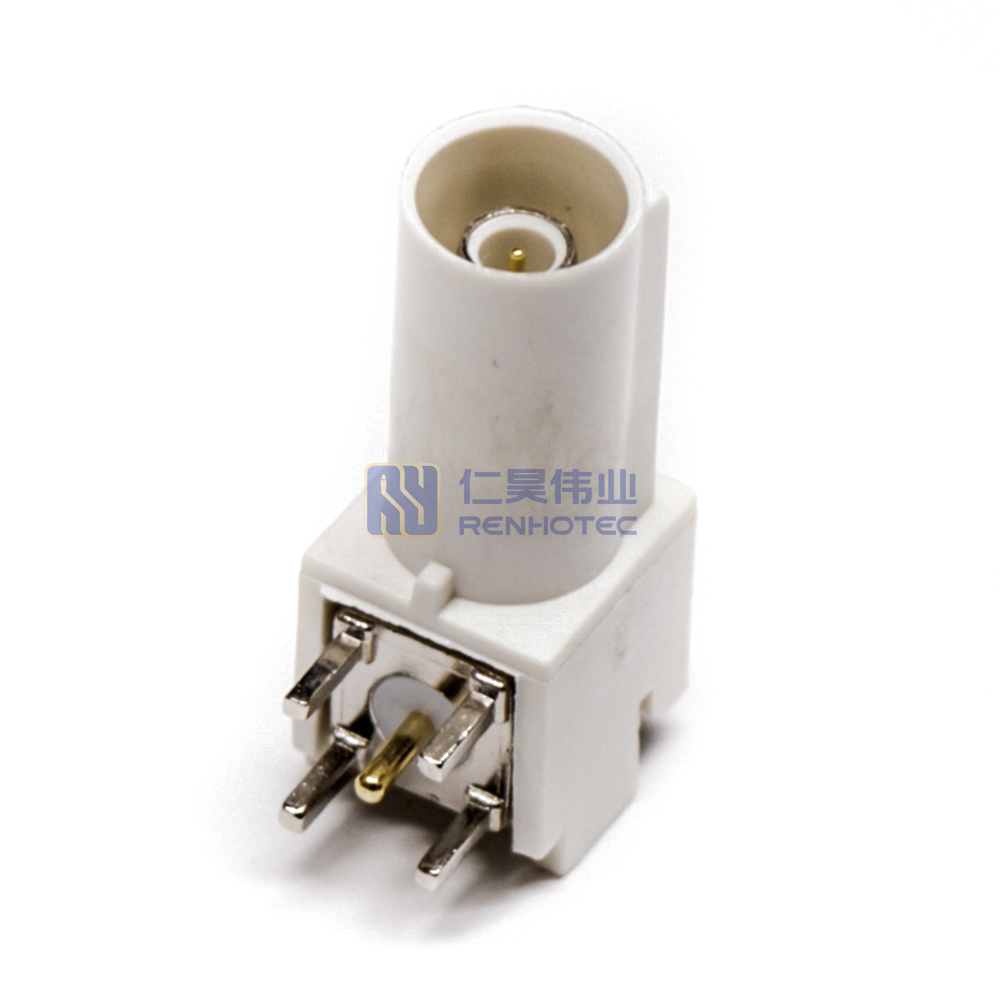

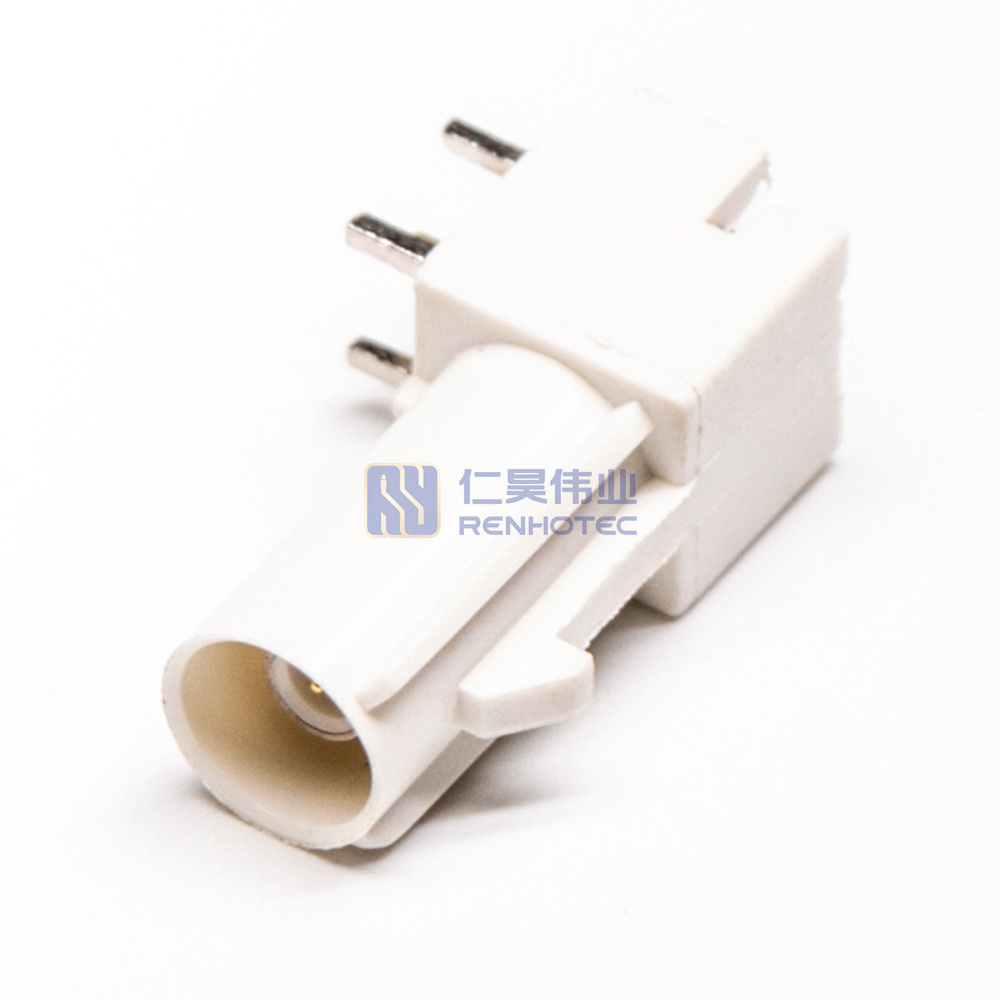

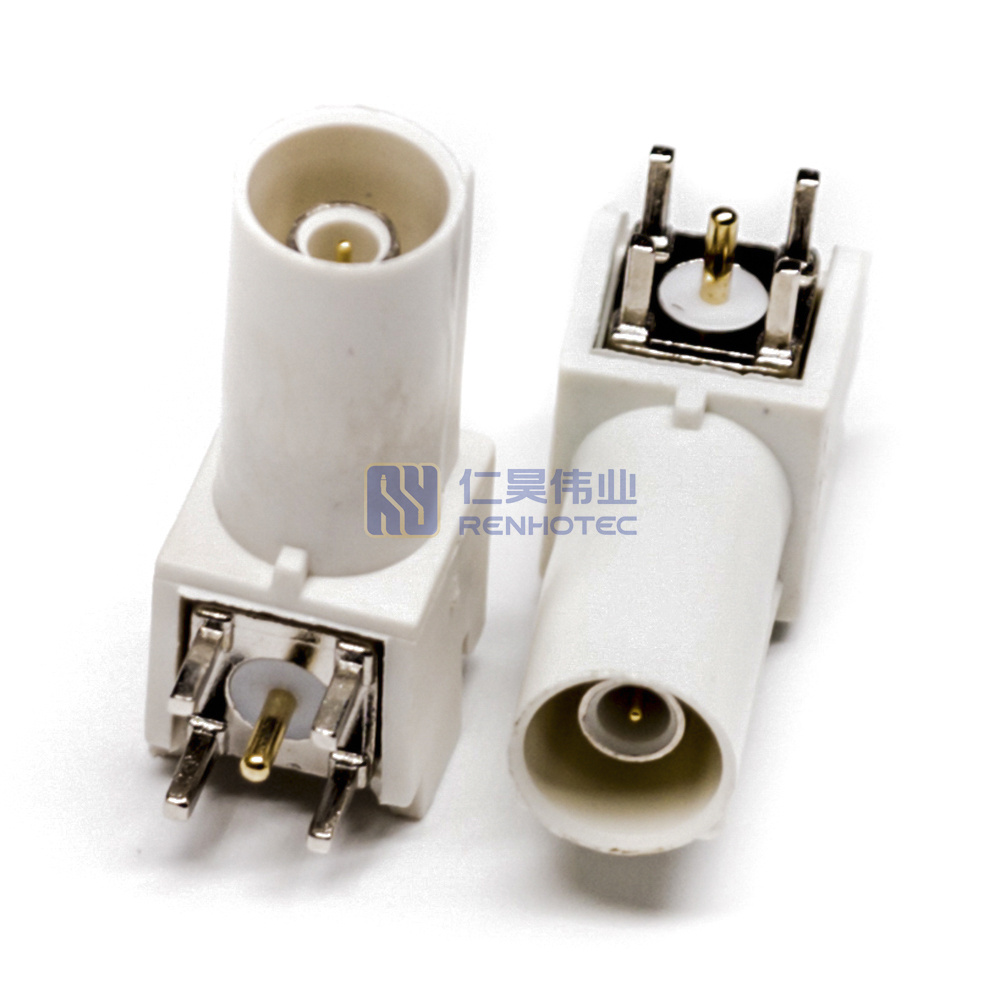

Fakra Connector Plug Right Angle Male Pin Panel Mount Through Hole White B Code Solder – 101-11-10034
Efficiently connect components with this high-quality Fakra Connector Plug featuring a right angle male pin, panel mount through hole design. The white B code solder ensures secure connections in various electronic applications.
Product Specification
| RF Series | Fakra |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Orientation | Right Angle |
||
| Contact Type | Male Pin |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Through Hole |
||
| Fastening Type | Push-On |
||
| Number of Ports | 1 |
||
| Impedance | 50 ohm |
||
| Frequency - Max | 6GHz |
||
| Plastic Housing | PA66+30%GF |
||
| Shell Material | Zinc Alloy |
||
| Shell Finish | Nickel Plated |
||
| Insulator Material | PTFE |
||
| Contact Material | Copper Alloy |
||
| Contact Finish | Gold Plated |
||
| Cable Color | White |
||
| Temperature Range | -40°C to +105°C |
||
| Withstand Voltage | 750V r.m.s |
||
| Operating Voltage | 335V r.m.s at sea level |
||
| Mating Durability | ≥ 25 Cycles |
||
| Insultation Resistance | ≥1000MΩ |
||
| Anti-error Force | ≥40N |
||
| Latch Holding Force | ≥110N |
||
| RF Series | Fakra |
Connector Type | Plug |
| Orientation | Right Angle |
Contact Type | Male Pin |
| Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
| Fastening Type | Push-On |
Number of Ports | 1 |
| Impedance | 50 ohm |
Frequency - Max | 6GHz |
| Plastic Housing | PA66+30%GF |
Shell Material | Zinc Alloy |
| Shell Finish | Nickel Plated |
Insulator Material | PTFE |
| Contact Material | Copper Alloy |
Contact Finish | Gold Plated |
| Cable Color | White |
Temperature Range | -40°C to +105°C |
| Withstand Voltage | 750V r.m.s |
Operating Voltage | 335V r.m.s at sea level |
| Mating Durability | ≥ 25 Cycles |
Insultation Resistance | ≥1000MΩ |
| Anti-error Force | ≥40N |
Latch Holding Force | ≥110N |
| RF Series | Fakra |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Contact Type | Male Pin |
| Mounting Type | Panel Mount |
| Mounting Feature | Through Hole |
| Fastening Type | Push-On |
| Number of Ports | 1 |
| Impedance | 50 ohm |
| Frequency - Max | 6GHz |
| Plastic Housing | PA66+30%GF |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel Plated |
| Insulator Material | PTFE |
| Contact Material | Copper Alloy |
| Contact Finish | Gold Plated |
| Cable Color | White |
| Temperature Range | -40°C to +105°C |
| Withstand Voltage | 750V r.m.s |
| Operating Voltage | 335V r.m.s at sea level |
| Mating Durability | ≥ 25 Cycles |
| Insultation Resistance | ≥1000MΩ |
| Anti-error Force | ≥40N |
| Latch Holding Force | ≥110N |
With advancements in telematics, high-speed imaging, and smart mobility, RF communication systems have become integral components in today’s automotive, trucking, watercraft, and off-road markets. To ensure high levels of electrical and mechanical performance for telematics and GMSL-based ADAS applications, the worldwide automotive industries have standardized high-performing RF connectors based on FAKRA and USCAR standards.
Featuring specialized color-coding and unique mechanical keying to prevent mis-mating, our FAKRA components—including housings, headers, and terminals—are designed to perform up to 6 GHz. This makes them an ideal solution for high-bandwidth protocols like GMSL2 and FPD-Link III, while meeting the rigorous environmental requirements of the global automotive industry.
PCB End (Male)
Cable End (Male)
Cable End (Female)
- Secure primary locking system with tactile and audible locking
- Shock and vibration resistant coded housing
- Protection against unintentional opening by protective bar and protective strips
- High axial holding power of the coaxial insert due to secondary locking
- Mechanical and color coding system with 14 different codes
- Fastening groove for cable connectors for chassis mounting
- Coaxial insert and cable freely rotatable in the housing
- Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
- Efficient, automated further processing option
- Customized packaging possible
 |
 |
 |
 |
 |
 |
 |
|
| Code | A | B | C | D | E | F | G |
| Color | Deep Black | Cream White | Signal Blue | Bordeaux Violet | Leaf Green | Brown | Blue Gray |
| Application | Radio with phantom supply | Radio without phantom supply | GPS telematics or navigation | GSM Cellular Phone | TV (UHF) | TV (VHF) | SDARS terrestrial |
 |
 |
 |
 |
 |
 |
 |
|
| Code | H | I | K | L | M | N | Z |
| Color | Violet | Beige | Curry Yellow | Carmine Red | Pastel Orange | Pastel Green | Water Blue |
| Application | GPS telematics and navigation | Bluetooth Controlled Parking Heating |
SDARS satellite | Not defined | Keyless entry Tire pressure monitoring |
Not defined | Neutral |
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
Customized
We can customize diff-erent specifications ac-cording to your needs
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Drawing for Fakra Connector Plug Right Angle Male Pin Panel Mount Through Hole White B Code Solder - 101-11-10034Download
